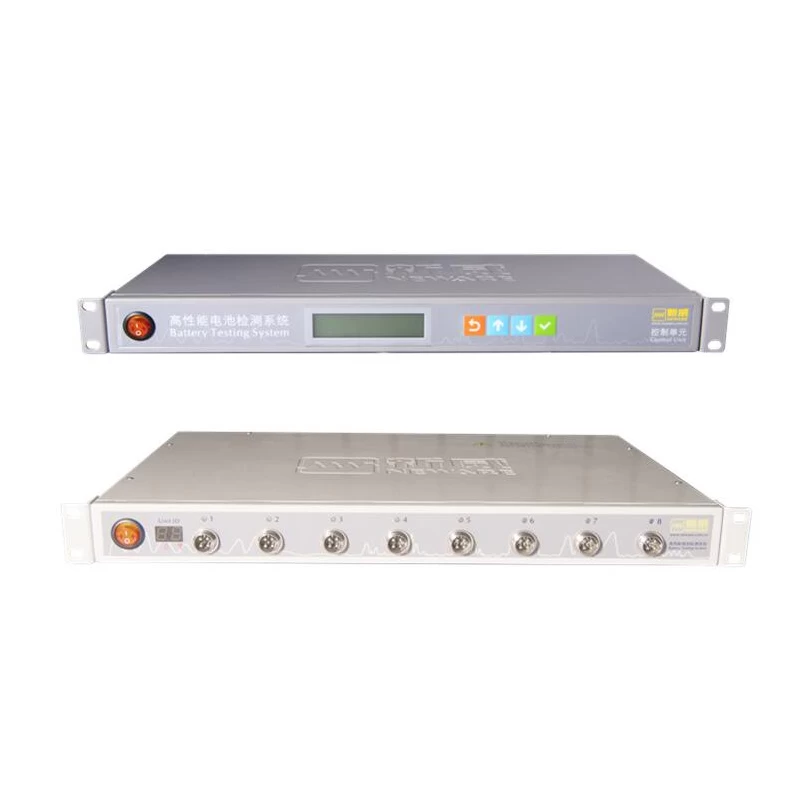

5V20mA Lithium Battery Button Battery Tester To Analyze Small Coin Cells
Introduction:
This coin cell batteryanalyzer is for battery charging, battery discharging, checkingbattery performance, small scale battery formation, capability grading, battery pack testing, etc.
The Button Battery Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.
Specifications:
|
Item
|
Technology parameters
|
|
Model
|
AOT-BTS-5V20mA-164 Coin cell tester
|
|
Input Power
|
AC 220V ±10% 50Hz
|
|
resolution
|
AD：16bit；DA：16bit
|
|
Input Resistance
|
≥10 GΩ
|
|
Input Power
|
25W
|
|
Voltage
|
Constant Voltage Range
|
25mV~5V
|
|
Discharge Min Voltage
|
0V
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Current
|
Per Channel Current Range
|
Range1:10uA-2mA , Range2:2mA-20mA
|
|
Accuracy
|
± 0.05% of FS
|
|
Constant voltage cutoff current
|
Range1：4uA；Range2：40uA
|
|
Stability
|
± 0.05% of FS
|
|
Power
|
Per Channel Output Power
|
0.05W
|
|
Stability
|
± 0.1% of FS
|
|
Time
|
Current Response Time
|
1ms (0-Full Range)
|
|
Step Time Range
|
≤(365*24 )hour/step，
Time Form Support 00：00：00(h、min、s、ms)
|
|
Data Recording
|
Record Condition
|
Minimum Time Interval: 100ms
|
|
Minimum Voltage Interval: 10mV
|
|
Minimum current interval：Range1：4uA；Range 2：40uA
|
|
Record Frequency
|
10Hz
|
|
Charge
|
Charge Mode
|
Constant Current Charge、Constant Voltage Charge、
Constant Current and Constant Voltage Charge、CPC
|
|
End Condition
|
Voltage, current, relative time, capacity -△V
|
|
Discharge
|
Discharge Mode
|
CCD、CPD、CRD
|
|
End Condition
|
Voltage、Current、Relative Time、Capacity -△V
|
|
Pulse
|
charge
|
CCC, CPC
|
|
Discharge
|
CCD, CPC
|
|
Min Pulse Width
|
500ms
|
|
Pulse number
|
A single pulse step supports 32 different pulses
|
|
Automated Switch
|
Automated switch from charge to discharge for each pulse
|
|
End Condition
|
Voltage, Test Time
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Max Steps Per Loop
|
254
|
|
Nested Loop
|
Nested loop Function，Max Support 3 Layers
|
|
Protection
|
Software Protection
|
Power-down Data Protection
|
|
Off-line Testing Function
|
|
Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
|
|
Hardware Protection
|
Additional Anti-reverse Protection Model
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
|
|
Channel Control Mode
|
Independent Control
|
|
DCIR testing
|
Support
|
|
Voltage and Current Testing Sample
|

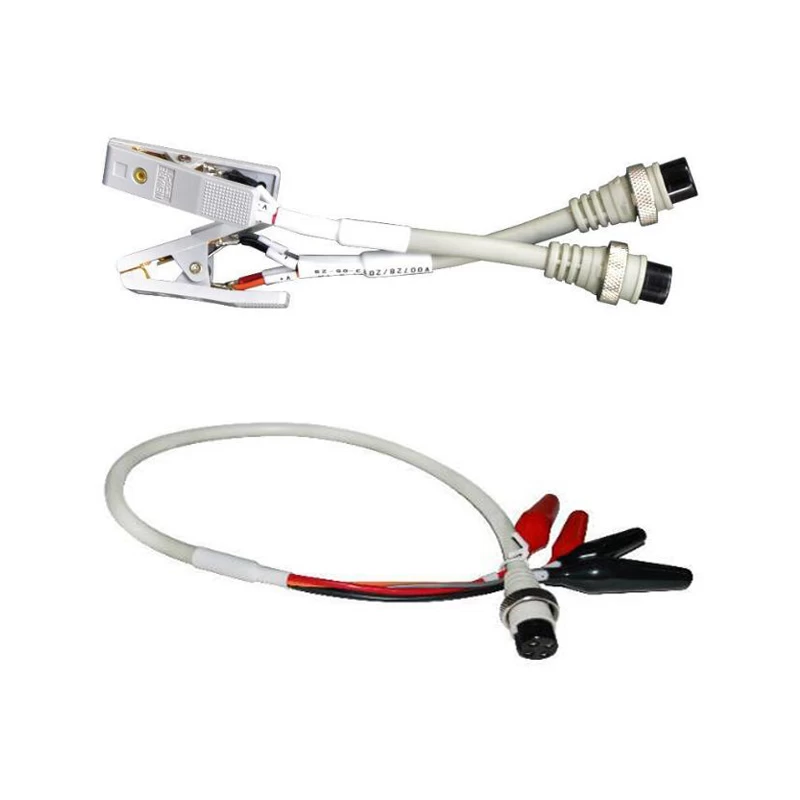

4-wire connecting
|
|
Noise
|
<85dB
|
|
Database
|
MySQL Database
|
|
A Means of Communication of Upper Machine
|
TCP/IP Protocol
|
|
Data Output
|
EXCEL、TXT、Graph
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
8
|
|
Dimensions
|
250*200*60(mm)
|
