5V50ma Coin Cell Battery Capacity Tester
Product Specification
1 TOB-5V50mA battery testing equipment is an eight-channel battery analyzer to analyze small
coin cells with a range current 0-50mah, voltage 0-5v.
Each channel of the analyzer has independent constant-current and
constant-voltage source, which can be programmed and controlled by computer software.
2 This coin cell tester system provides most applications in battery testing fields such
as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.
3 The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.
|
Machine model
|
8 Channels Battery Test Equipment TOB-5V50mA
|
|
Source voltage
|
110v to 220v 50/60HZ
|
|
Power
|
30W
|
|
Current range
|
0-50mA 0.05%RD±0.1%FS (control and measurement)
|
|
Voltage range
|
0-5V 0.1%RD±0.1%FS (control and measurement)
|
|
Cycles
|
9999cycles
|
|
Contents of step
|
Constant current c/d , constant voltage c/d, constant power discharge,
constant resistance discharge, DCIR,rest
|
|
Conditions of constraint
|
Time, voltage, current, capacity, etc.20 kinds
|
|
Protection modes
|
Overvoltage, under voltage, over current, under current, over capacity, etc.
|
|
Programming steps
|
Unlimited (more than 200 steps)
|
|
Channels
|
Eight independent programmable channels
Each channel can set different working modes and functions independently
|
|
Output mode
|
4 electrode (supporting reference electrode test)
|
|
Software
|
1 The software with calibration function is included to set various working
modes for measuring capacity and life cycle for all types of rechargeable batteries
2 Working modes Include constant current discharge, constant current charge,
constant voltage charge, rest, etc
3 Limited threshold conditions include voltage, current, time, capacity,
negative voltage slope, etc
4 With real-time monitoring windows and integrated graph/data windows,
the testing process can be observed more directly and efficiently
5 The calibration software can be used to calibrate the analyzer
|
|
Testing report and
curves
|
1 Different types of curves can be created by software base on user definition.
(Voltage-time curve, current-time curve, capacity-voltage curve,loops times-charge/
discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
2 Data reports are created by software.
3 User can easily compare the performance of the batteries tested
in channels both visually and statistically
|
|
Dimension
|
250*200*60mm
|
|
Weight
|
12kg
|

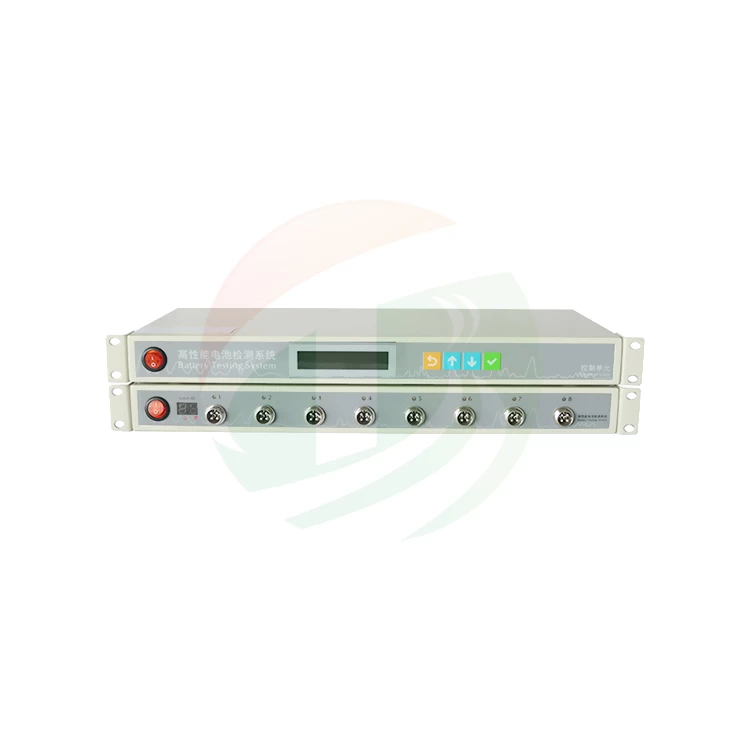

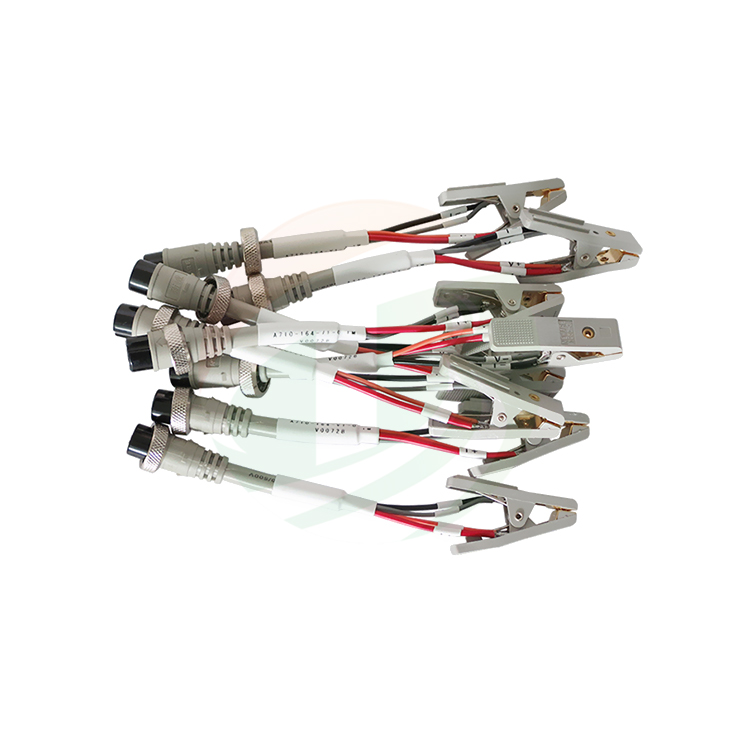

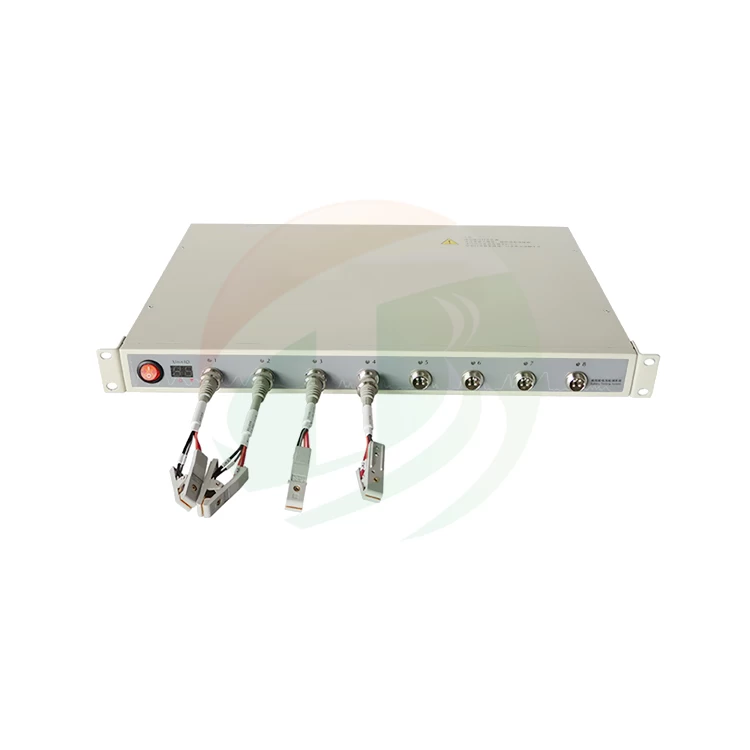

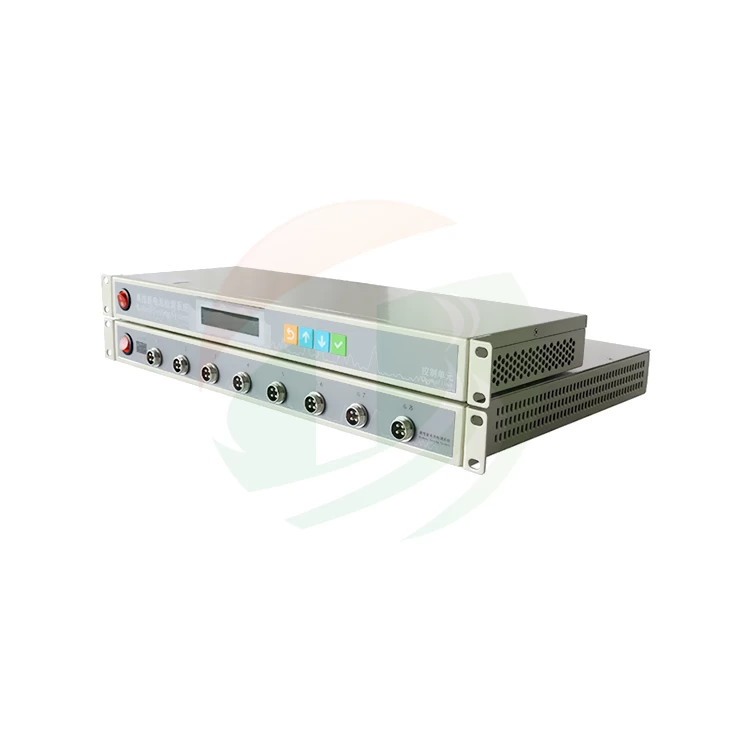

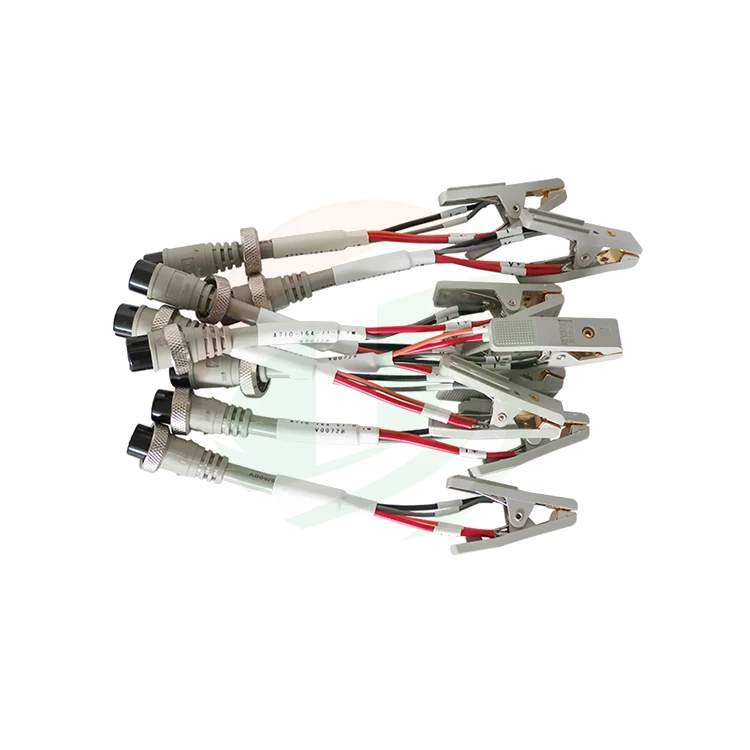

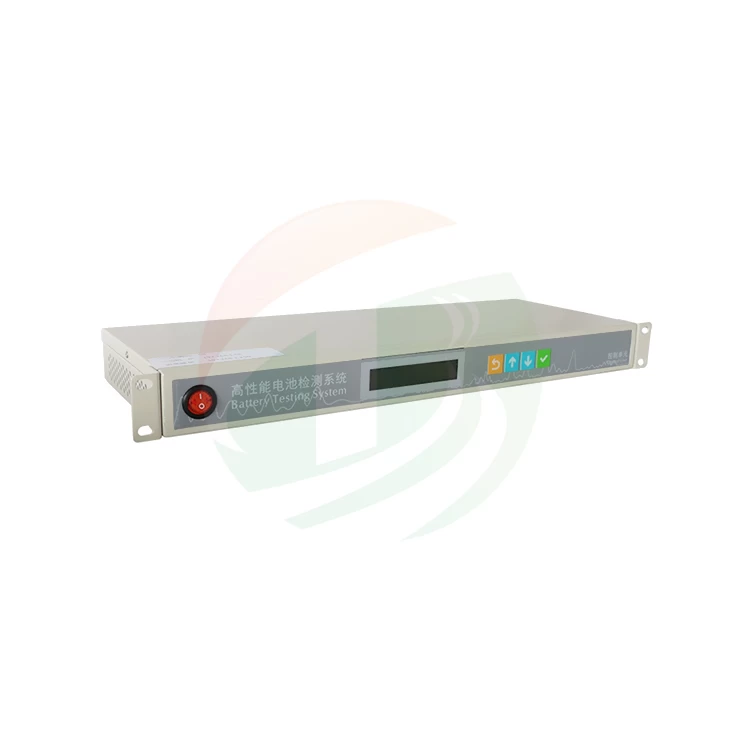

Product Images
