5V5A Lithium ion Battery Testing Equipment
Application
GSM Pulse, Cyclic Voltammetry, Rate, Statistic capacity, Cycle life, constant current, constant power, constant resistance, constant voltage,voltage Scan (cyclic Voltammetry),Waveform import, Arithmetic Functions,1Khz AC impedance, BTS Series, Channel No., Rack Color, Measuring Range, Net With Reverse-connecting Protection.
The New 9 series battery tester has more bigger testing speed and more higher accuracy.
Technical Specifications
|
Project
index
|
Parameter
index
|
|
AC
Input Power
|
220/110V±10%/50Hz/60Hz
|
|
Resolution
|
AD:16bit;DA:16bit
|
|
Impedance
Input
|
≥500MΩ
|
|
Input
Power
|
250W
|
|
Channel
Features
|
Constant
Current Source and Constant Voltage Source with Independent pairs of
Closed-loop Structure
|
|
Channel
Control Mode
|
Independent
Control
|
|
Voltage
|
Per
Channel Voltage Range
|
0.7V~5V
|
|
Lowest
discharge voltage
|
0.7V
|
|
Accuracy
|
±
0.02% of FS
|
|
Stability
|
±0.005%
of FS
|
|
Current
|
Multi
Range
|
Rang1:
0.1uA---150uA ± 30nA
|
|
Rang2:
150uA---5mA ± 1uA
|
|
Rang3:
5mA---150mA ± 30uA
|
|
Rang4:
150mA---5A ± 1mA
|
|
Accuracy
|
±
0.02% of FS
|
|
Stability
|
±0.005%
of FS
|
|
Power
|
Per
Channel Max. Output Power
|
25W
|
|
Stability
|
±
0.01% of FS
|
|
Time
|
Current
Rise Time
|
The
Current gets to (10%-90%) Hardware Rise Time is 100μs
|
|
Step
Time Range
|
Single
Step Time Rang>=10ms
|
|
Data
Recording
|
Record
Condition
|
Lower
sampling time: >=1ms
|
|
Lower
sampling Voltage:>= 1mV
|
|
Lower
sampling Current: :>= 100nA
|
|
Record
Frequency
|
1000Hz
|
|
Charge
|
Charge
Mode
|
Constant
Current Charge,Constant Voltage Charge,
Constant
Current and Constant Voltage Charge,Constant Power Charge
|
|
End
Conditon
|
Voltage,Current,Relative
Time,Capacity
|
|
Discharge
|
Discharge
Mode
|
Constant
Current Discharge,Constant power Discharge,
Constant
resistance discharge,
|
|
End
Condition
|
Current,Voltage,Relative
Time,Capacity,
|
|
Pulse
Model
|
Charge
|
Constant
Current Model;Constant Power Model
|
|
Discharge
|
Constant
Current Model;Constant Power Model
|
|
Min
Pulse Width
|
400μs
|
|
Pulse
Number
|
Single
Pulse Step Support 16 different Pulse
|
|
Charge
r To Discharge
|
One
Pulse Step Can Support Continuous Charge And Discharge Change
|
|
End
Condition
|
Voltage,Relative
Time,
|
|
DCR
Testing
|
Support
Custom Access Point And Count The DCR
|
|
Cycle
|
Loop
Measure Range
|
1~65535
times
|
|
Max
Steps Per Loop
|
254
|
|
Nested
Loop
|
Nested
loop Function,Max Support 3 Layers
|
|
Protective
Function
|
Software
Protection
|
Power-down
Data Protection
|
|
•
Off-line Testing Function
|
|
Setting
Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage
limit,Low Current limit,Upper Current limit,Delay Time
|
|
Hardware
Protection
|
Additional
Anti-reverse Protection Model
|
|
Voltage
and Current Testing Sample
|
4-wire
connecting
|
|
Noise
Density
|
<85dB
|
|
Data
Management
|
MYSQL
|
|
Communication
Means
|
TCP/IP
Protocol
|
|
Data
Output
|
EXCEL,TXT
|
|
Communication
Interface
|
Ethernet
Port
|
|
No.
Of Channels Per Unit
|
4
|
Equipment
Working Environment
|
Project
index
|
Parameter
index
|
|
Working
Temperature
|
0℃- 40℃
|
|
Storage
Temperature
|
-10℃- 50℃
|
|
Working
Humidity
|
≤70%RH
|
|
Storage
Humidity
|
≤80%RH
|

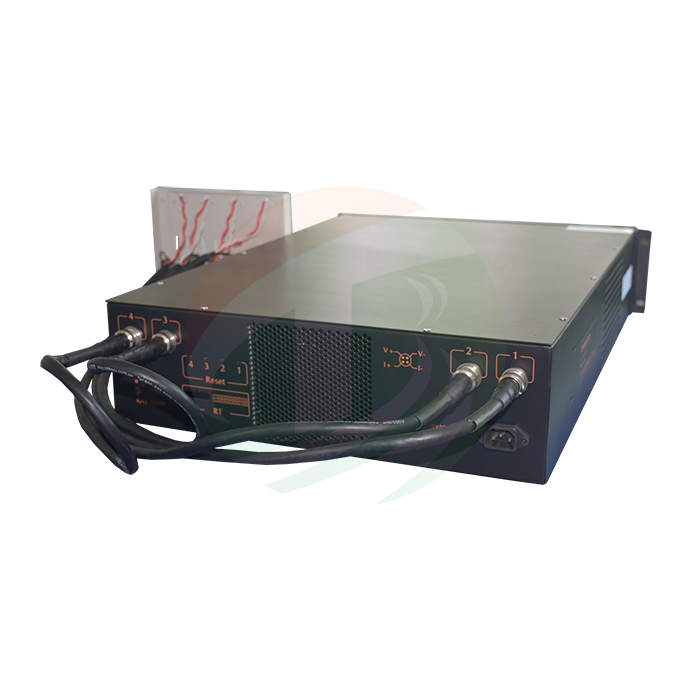

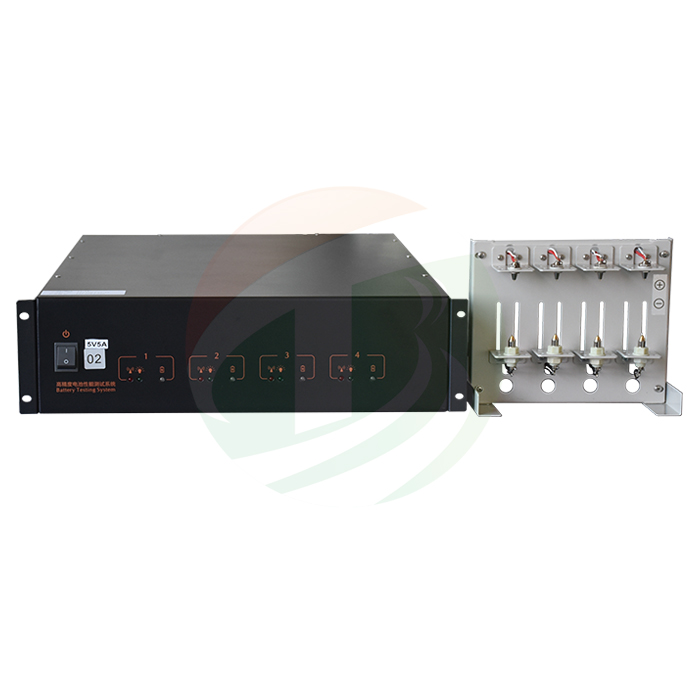

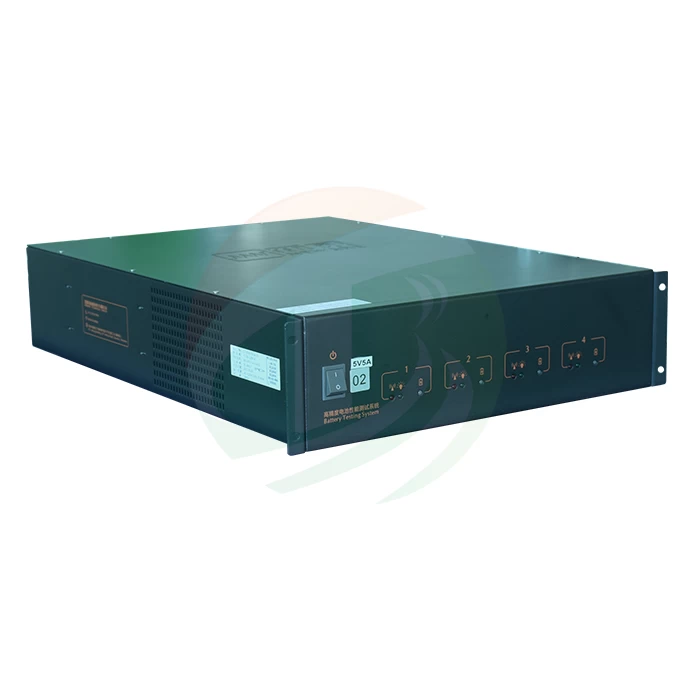

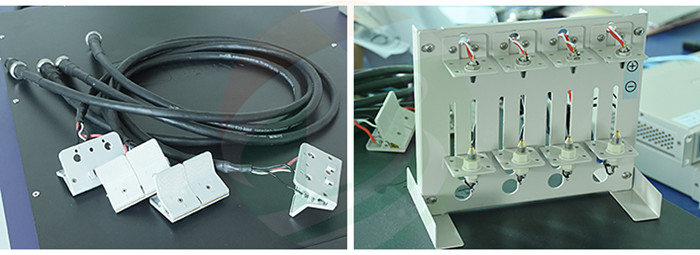

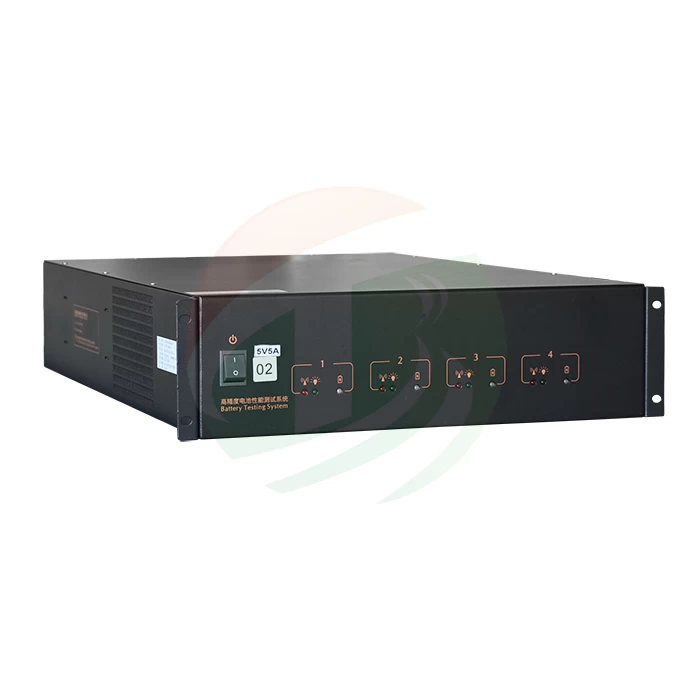

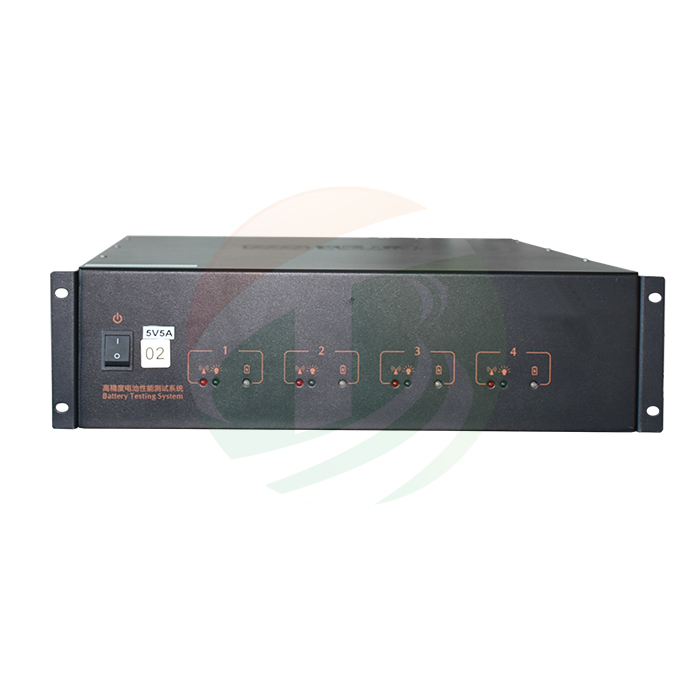

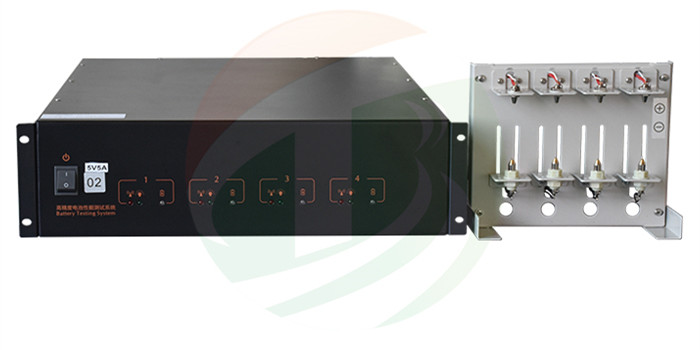

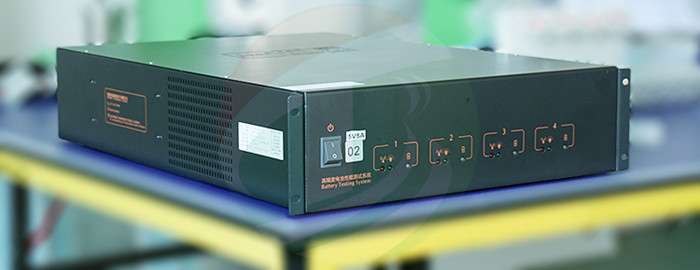

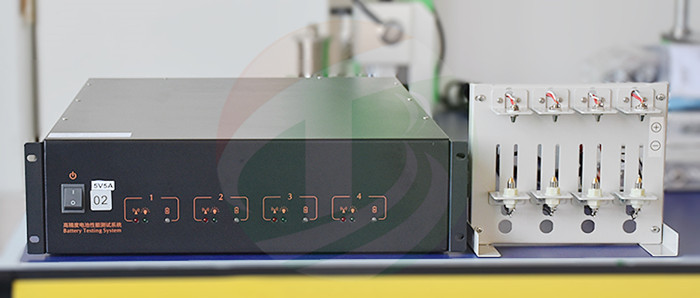

Product Display
