5V6A Battery Discharge Tester For Lithium Battery Voltage, Capacity and Resistance Testing
Product Specification

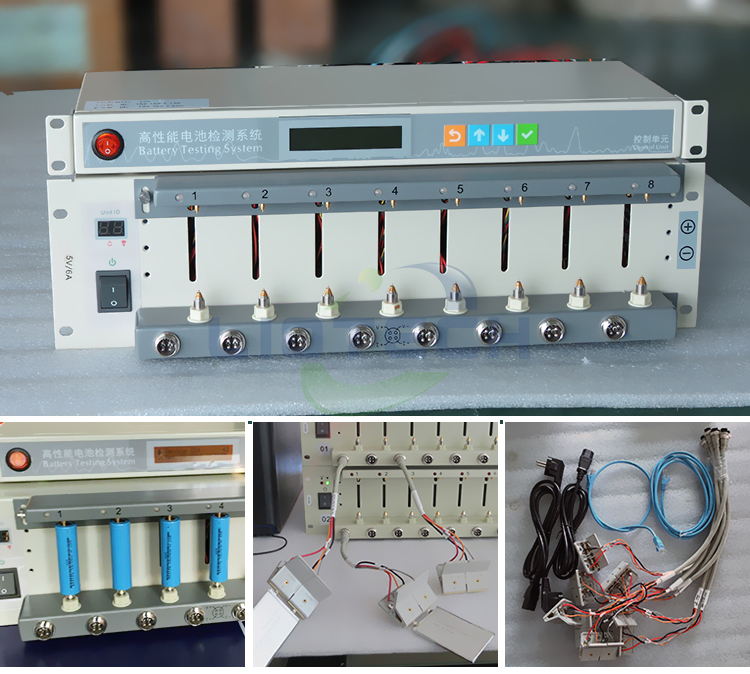

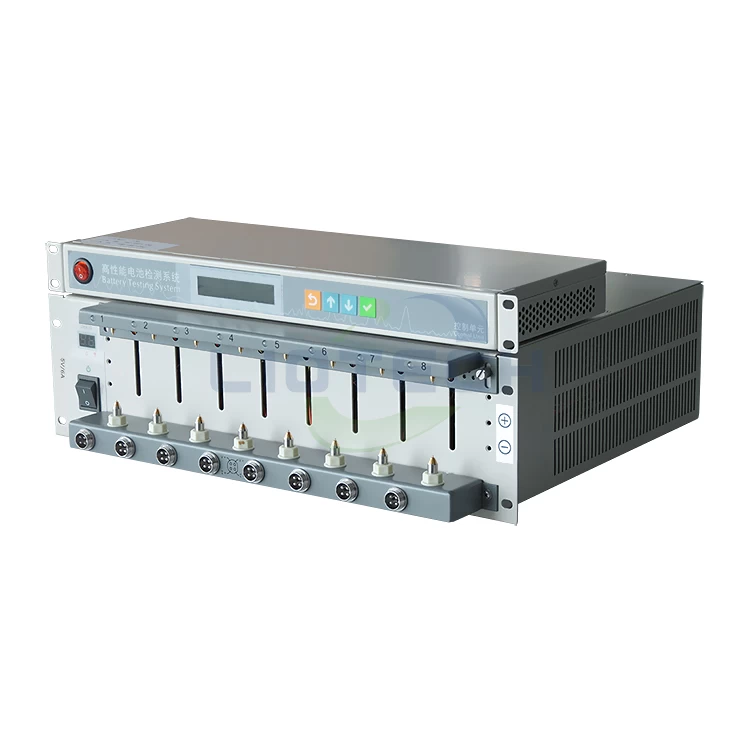

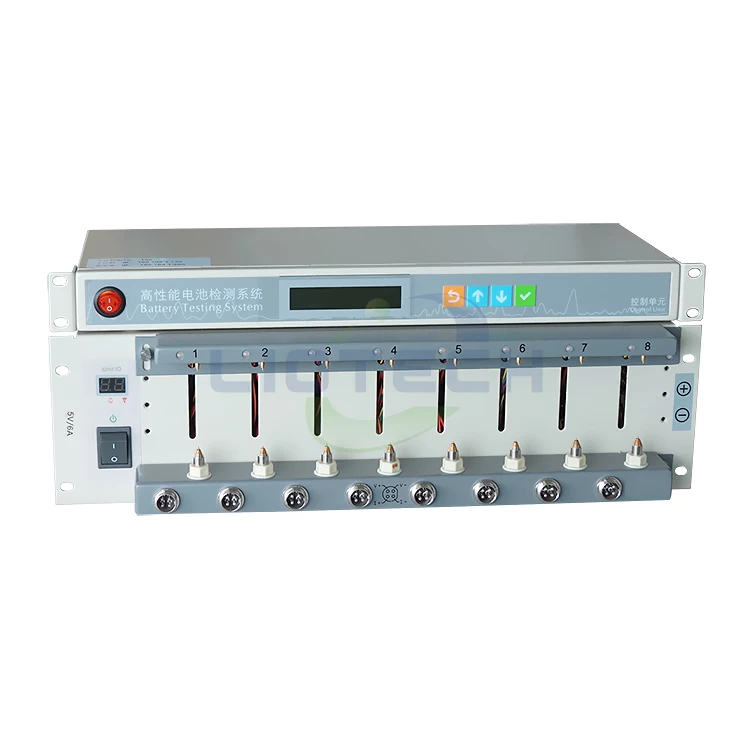

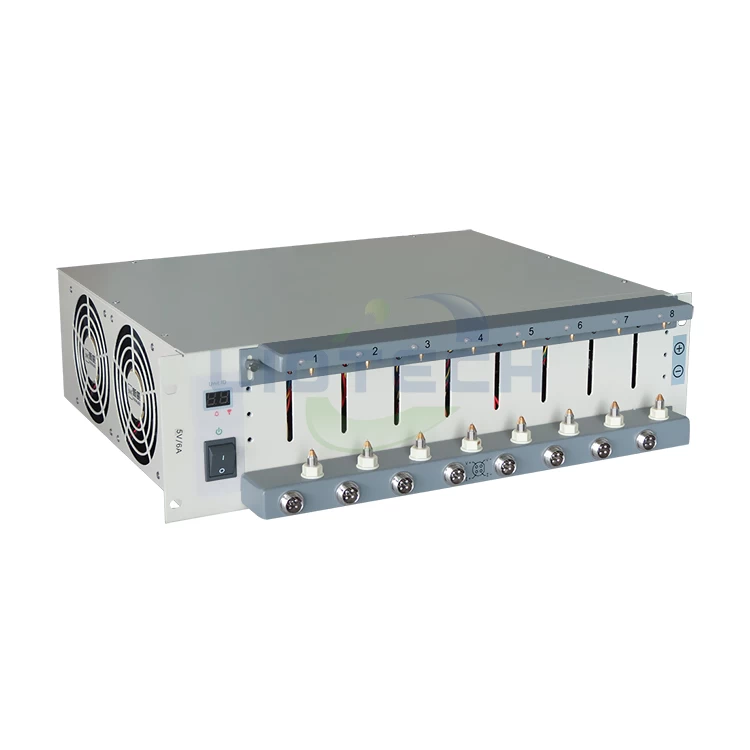

1 LIO-CT-4008-5V6A-S1 Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 12.0 mA to 6000 mA, up to 5V.
2 This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
|
Model
|
LIO-CT-4008-5V6A-S1
|
|
Electricity requirement
|
110V AC or 220V AC
|
|
Power Consumption
|
384W
|
|
Current
|
Range: 12mA – 6000mA
Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Voltage
|
Range: 10mv-5v for charging, 2.5v-5v for discharging
Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Max. measurement cycles
|
1-65535 cycles
|
|
Channels
|
Eight independent programmable channels
Each channel can set different working modes and functions independently
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Application Notes
|
3.1 New buyers must buy the software-installed laptop to avoid trouble from installation.
If you like to run multiple battery analyzers on one Laptop,
you can just buy multiple analyzers with one laptop which is offered at a discounted price.

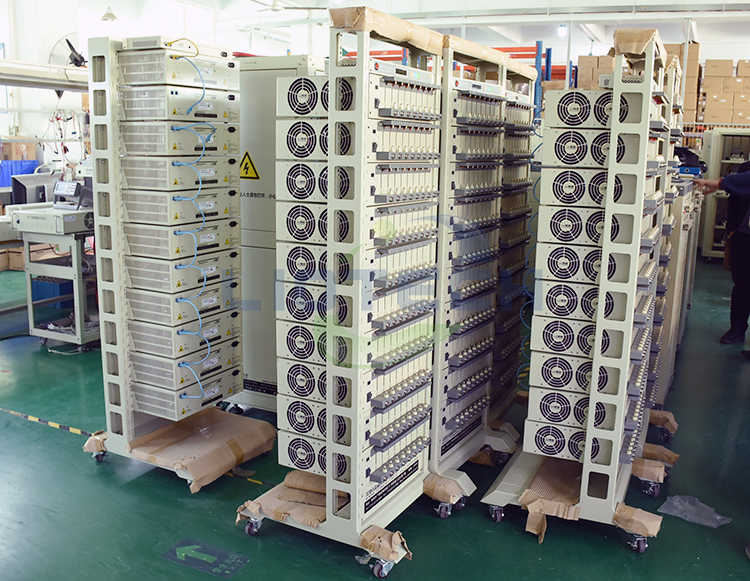

3.2 Customer can easily combine up to 20 battery analyzers by using normal Ethernet cable
connector via one computer.

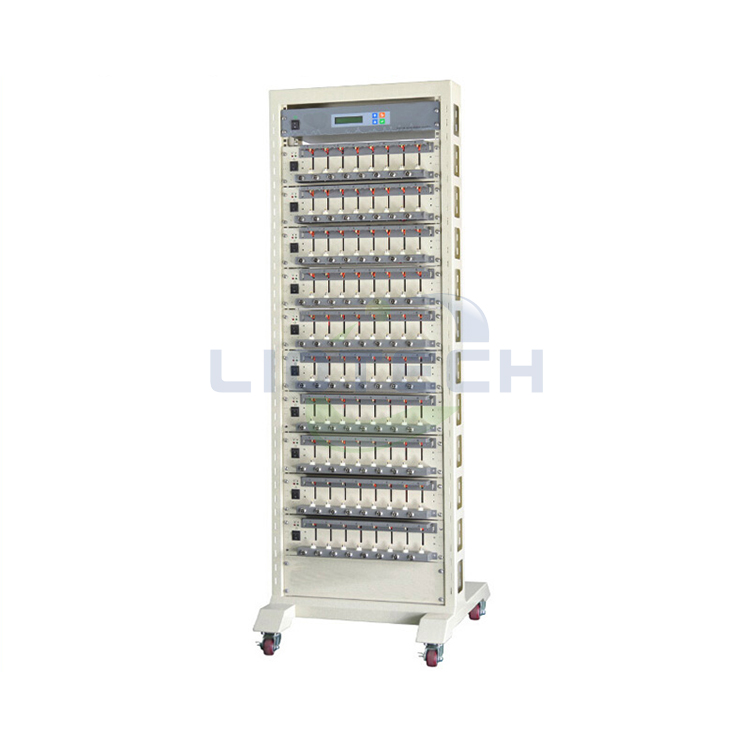

3.3 You may order movable rack to organize the battery analyzers
|
|
Product Dimensions
|
485mm(L) * 508mm(W) *263mm(H)
|
|
Net Weight
|
11.5 kg (26 lbs)
|
