Battery Testing System for Cylinder Cell and Pouch Cell Charging Discharging Cycle Analyzing
Description:
The 5V6A Lithium Battery Tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 0.1 mA to 6000 mA, up to 5V. With channel parallel, the current can up to 12000mA.
This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
For super capacitor testing, please choose the model with min discharge voltage 0V, also suitable for NI-MH battery, Nickel-chromium battery and all kind of rechargeable battery testing.
Specifications:
|
Item
|
Parameter
|
|
Model
|

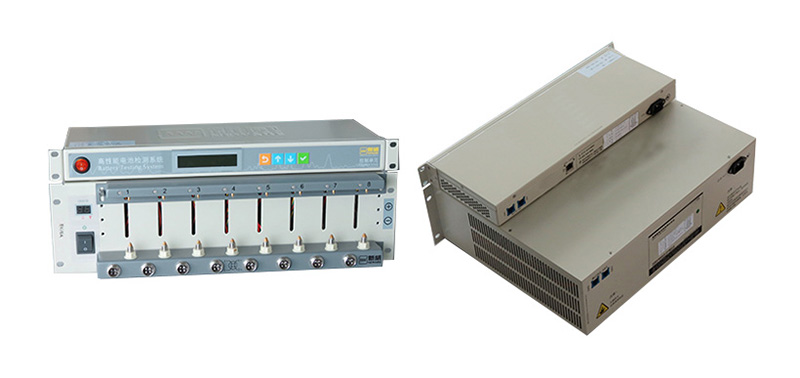

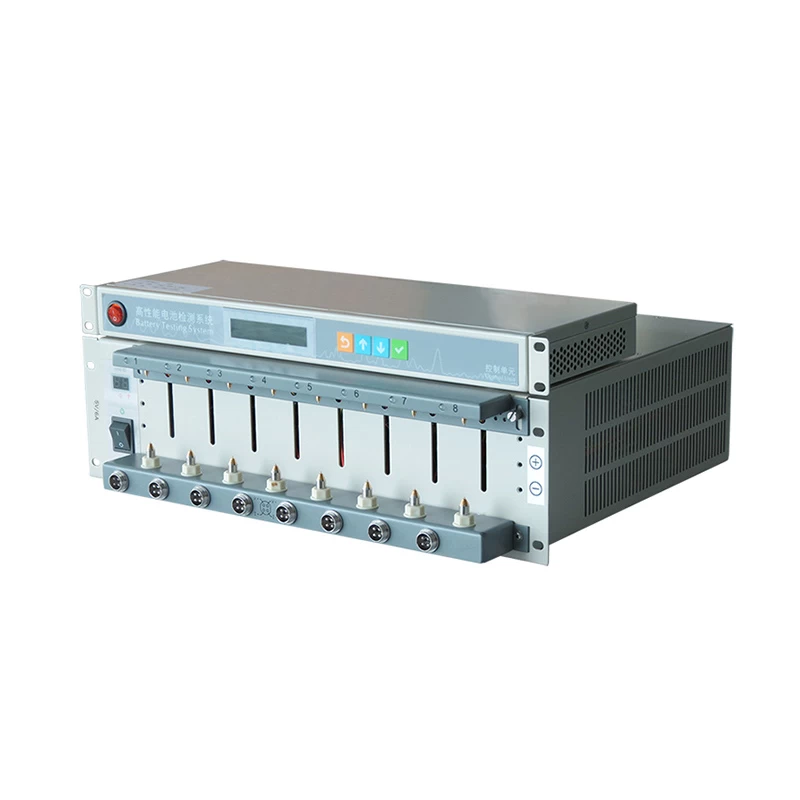

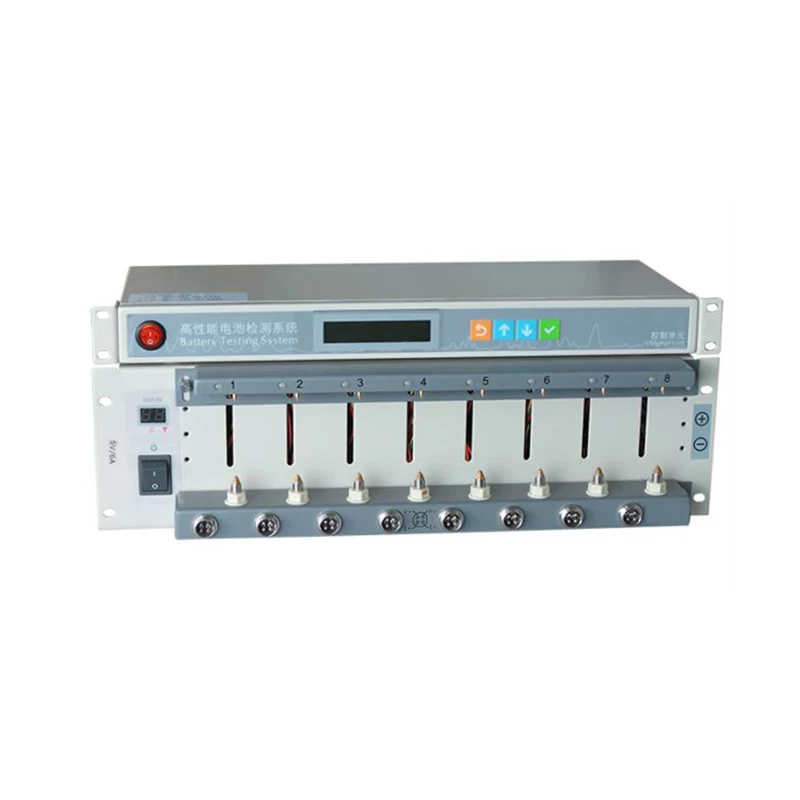

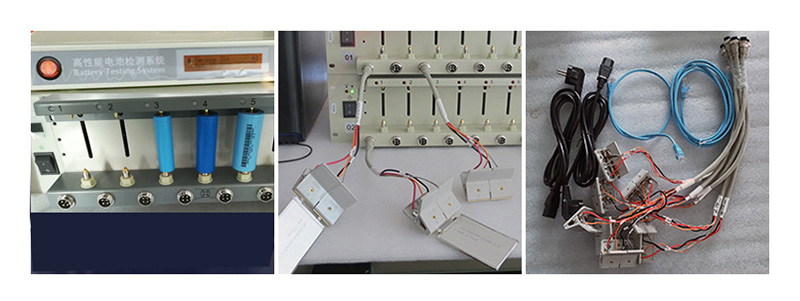

AOT-CT-4008-5V6A Lithium ion Battery Tester
|
|
Input Power
|
AC 220V ±10% / 50Hz
|
|
resolution
|
AD:16bit;DA:16bit
|
|
Input Resistance
|
≥1MΩ
|
|
Input Power
|
425W
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source
with Independent pairs of Closed-loop Structure
|
|
Channel Control Mode
|
Independent Control
|
|
Voltage
|
Per Channel Voltage Range
|
Charge:10mV~5V;Discharge:10mV~5V
|
|
Discharge Min Voltage
|
2.5V
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Current
|
Per Channel Current Range
|
Range 1: 0.1mA-100mA, Range 2: 0.1A-6A
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Power
|
Per Channel Output Power
|
30W
|
|
Stability
|
± 0.1% of FS
|
|
Time
|
Current Response Time
|
1ms (0-Full Range)
|
|
Step Time Range
|
≤(365*24 )hour/step,
Time Form Support 00:00:00(h,min:s,ms)
|
|
Data Recording
|
Record Condition
|
Minimum Time Interval: 100ms
|
|
Minimum Voltage Interval: 10mV
|
|
Minimum Current Interval : 12mA
|
|
Record Frequency
|
10Hz
|
|
Charge
|
Charge Mode
|
Constant Current Charge,Constant Voltage Charge,
Constant Current and Constant Voltage Charge,CPC
|
|
End Condition
|
Voltage,Current,Relative Time,Capacity
|
|
Discharge
|
Discharge Mode
|
CCD,CPD,CRD
|
|
End Condition
|
Voltage,Current,Relative Time,Capacity,
|
|
Pulse
|
charge
|
CCC
|
|
Discharge
|
CCD
|
|
Min Pulse Width
|
500ms
|
|
Automated Switch
|
Automated swith from charge to discharge for each pulse
|
|
End Condition
|
Voltage, Test Time
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Max Steps Per Loop
|
254
|
|
Nested Loop
|
Nested loop Function,Max Support 3 Layers
|
|
Protection
|
Software Protection
|
l Power-down Data Protection
|
|
l Off-line Testing Function
|
|
l Setting Protection Condition, Setting Parameter:
Low Voltage limit, Upper Voltage limit, Low Current limit,
Upper Current limit,Delay Time
|
|
Hardware Protection
|
Additional Anti-reverse Protection Model
|
|
Voltage and Current Testing Sample
|
4-wire connecting
|
|
Noise
|
<85dB
|
|
Database
|
MySQL Database
|
|
A Means of Communication of Upper Machine
|
TCP/IP Protocol
|
|
Data Output
|
EXCEL,TXT,Graph
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
8
|
|
Dimensions
|
3U,482*508*378(mm)
|
