5W 50ohm DC-1GHz RF Terminator UHF Male Termination Dummy Load

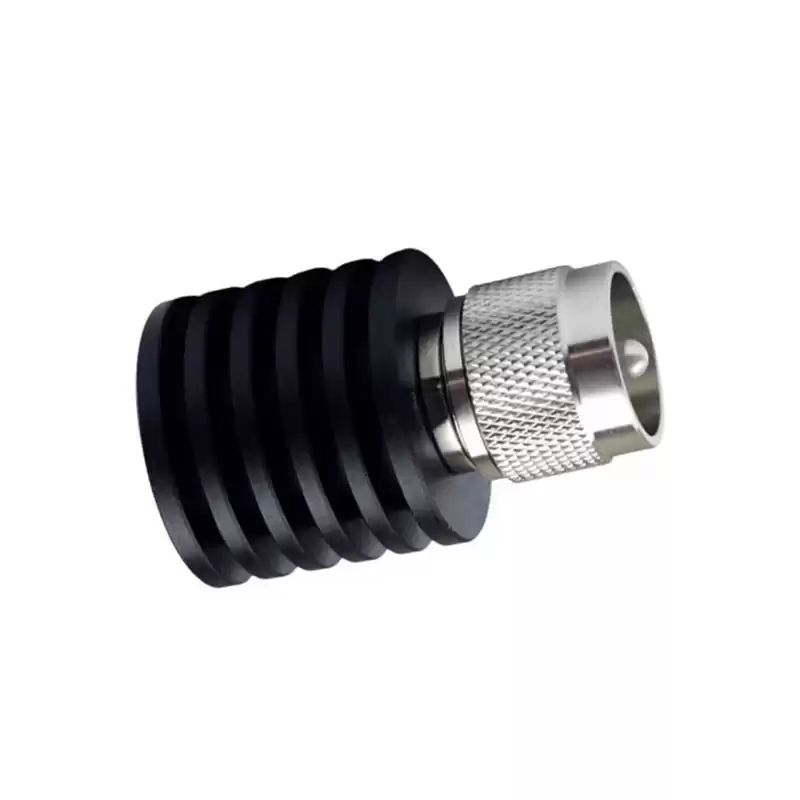

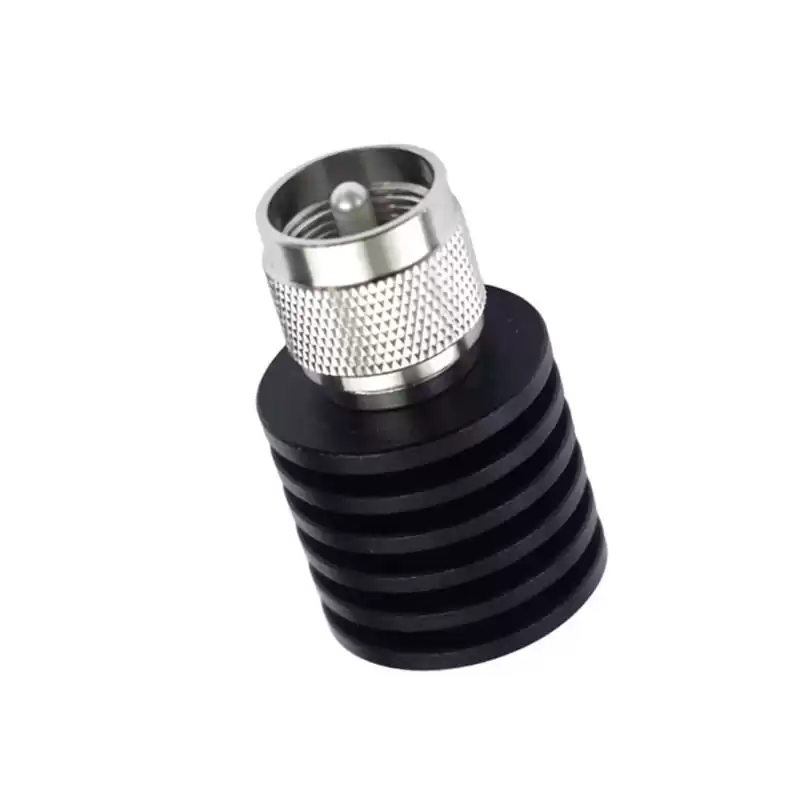

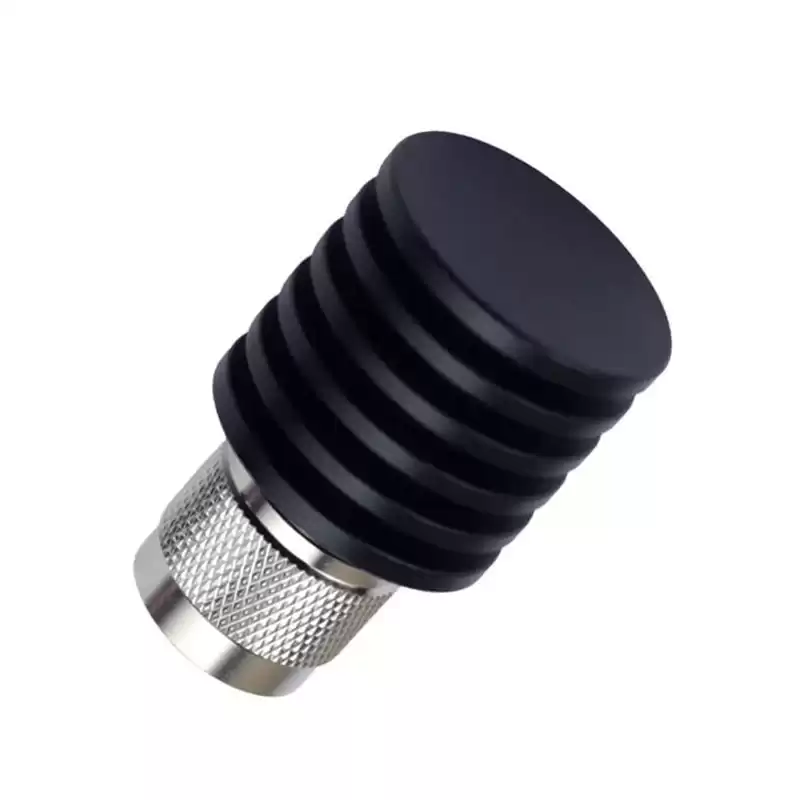

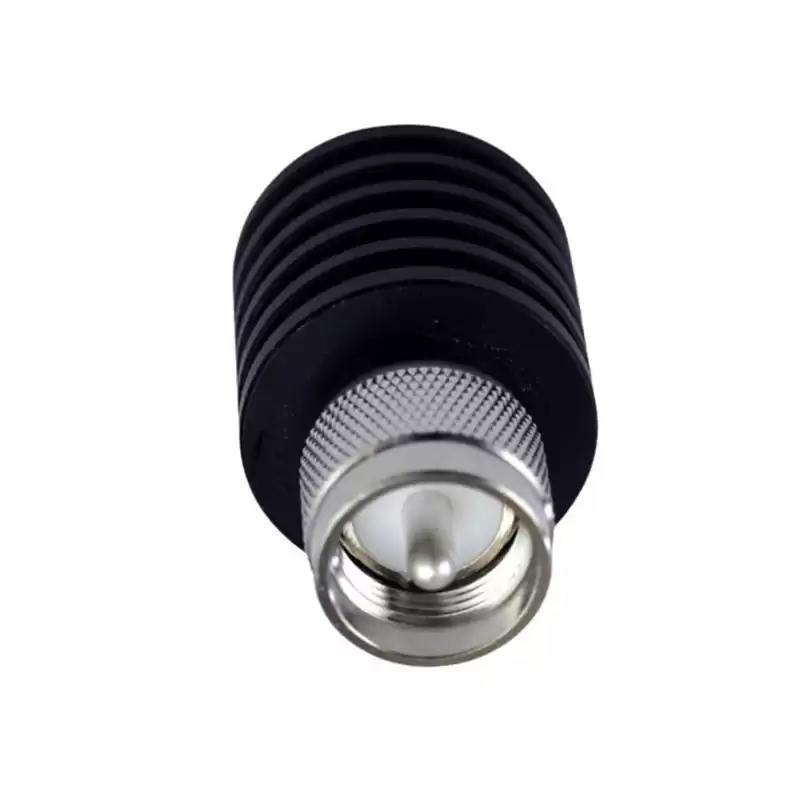

The 5W UHF RF Dummy Load(also known as 5W UHF termination Load or 5W UHF RF load) Low-Loss RF Termination with an integral PL-259 connector which allows direct connection to the transmitter. No coaxial cable required. It's aluminum air-cooled heatsink absorbs, and 5W average power. 50ohms (±5%). Covers DC to 1GHz with an average VSWR of less than 1.2:1; This UHF RF Termination Load is mainly used to absorb the power of RF or microwave system. It can be used as the false load of antenna and the terminal of transmitter; ROHO also could do DIN-Male, DIN-Female,4.3-10 Male, 4.3-10 Female, N-Male,N Female or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~1GHz |
| Connector |
UHF Male |
| VSWR |
≤1.2 |
| Power |
5W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Aspplication
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
