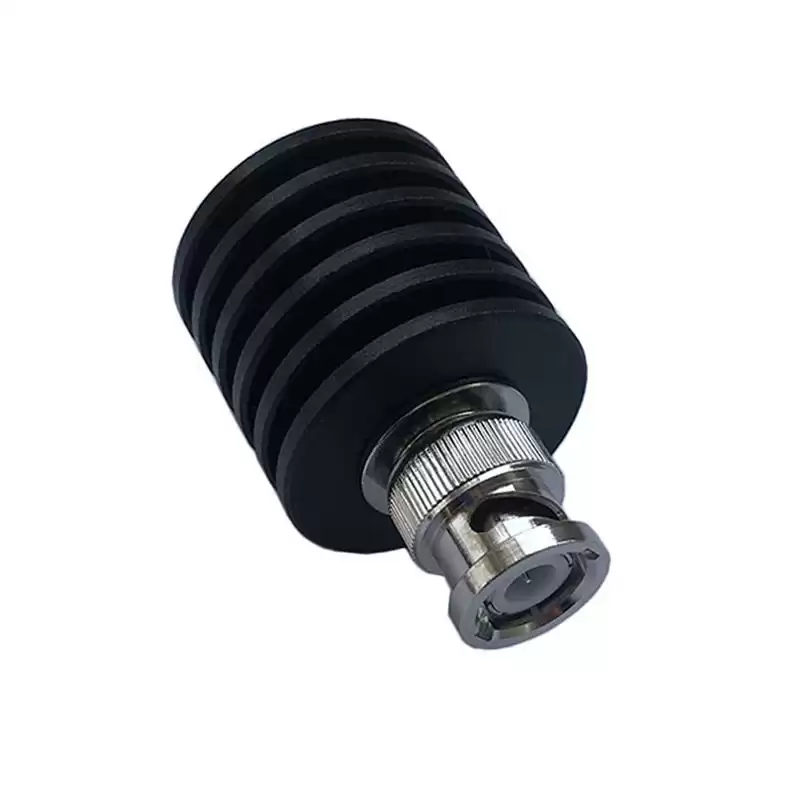

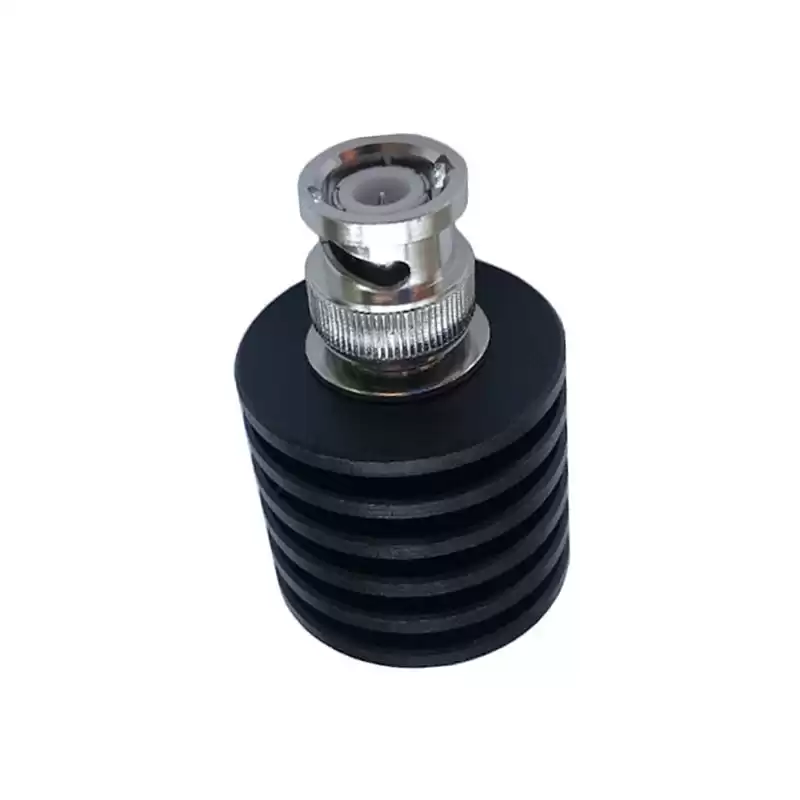

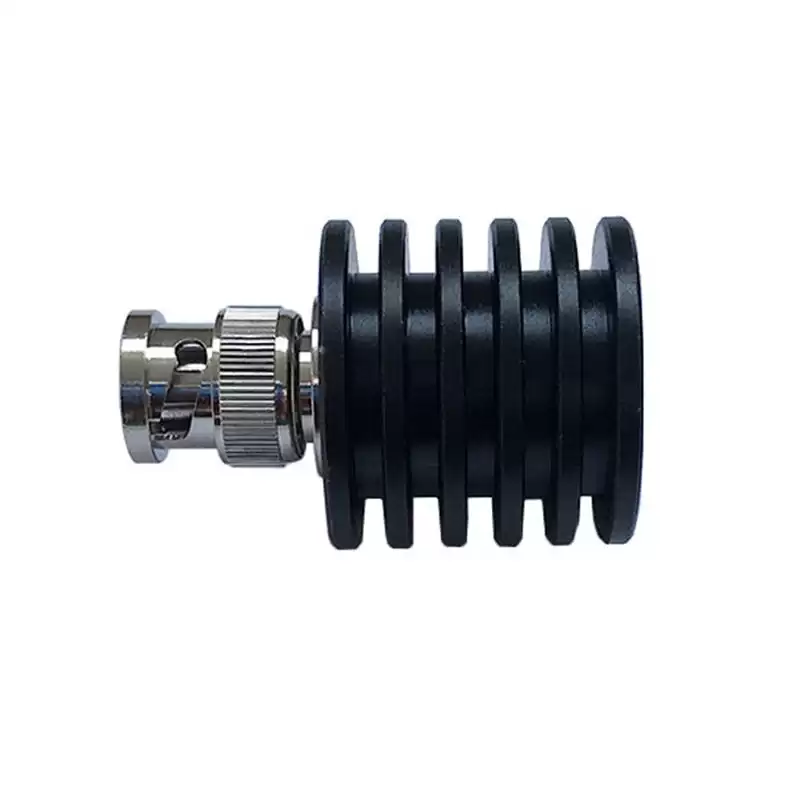

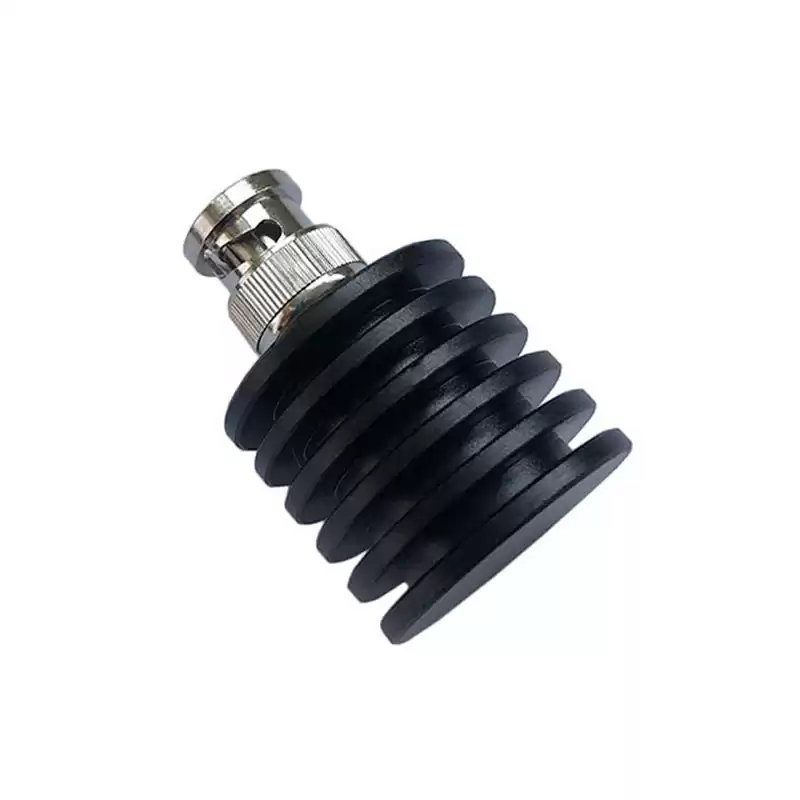

5W BNC Male Termination Load DC-3GHz RF Coaxial Dummy Load Termination Power
The 5W BNC dummy load (also known as 5W BNC termination or 5W BNC RF load ) has a BNC connector that is male. This 5W BNC male load / termination is rated for a maximum frequency of 3GHz. ROHO's BNC male termination load is a rf load termination with a 50ohm impedance; The BNC male load termination is one of RF, microwave and millimeter wave components,ROHO also could do DIN-Male, SMA-Male, DIN-Female, N-Female or other Connector for this product.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz |
| Connector |
BNC Male |
| VSWR |
≤1.2 |
| Power |
5W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
