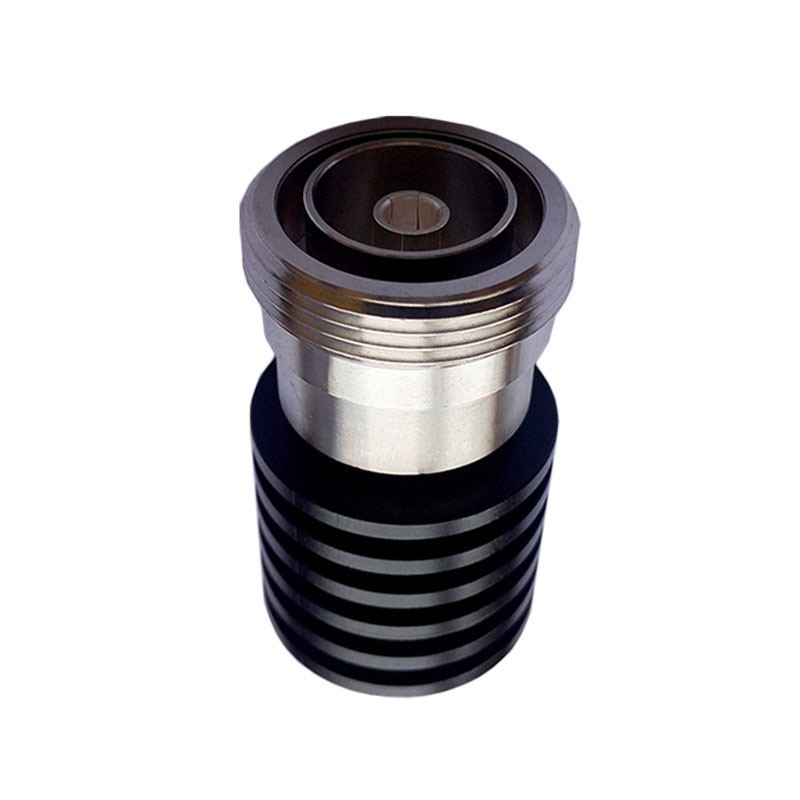

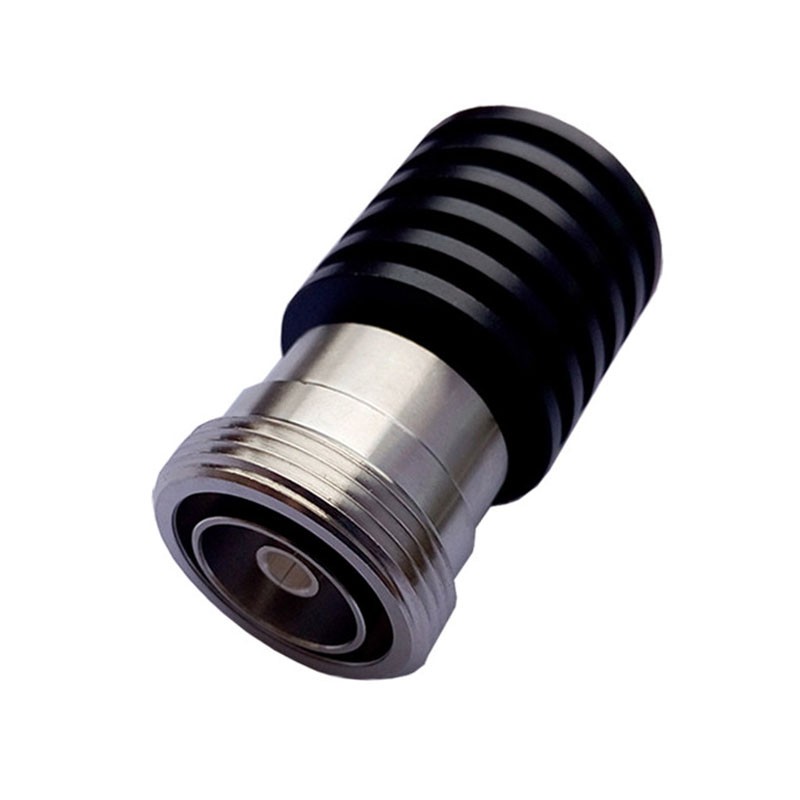

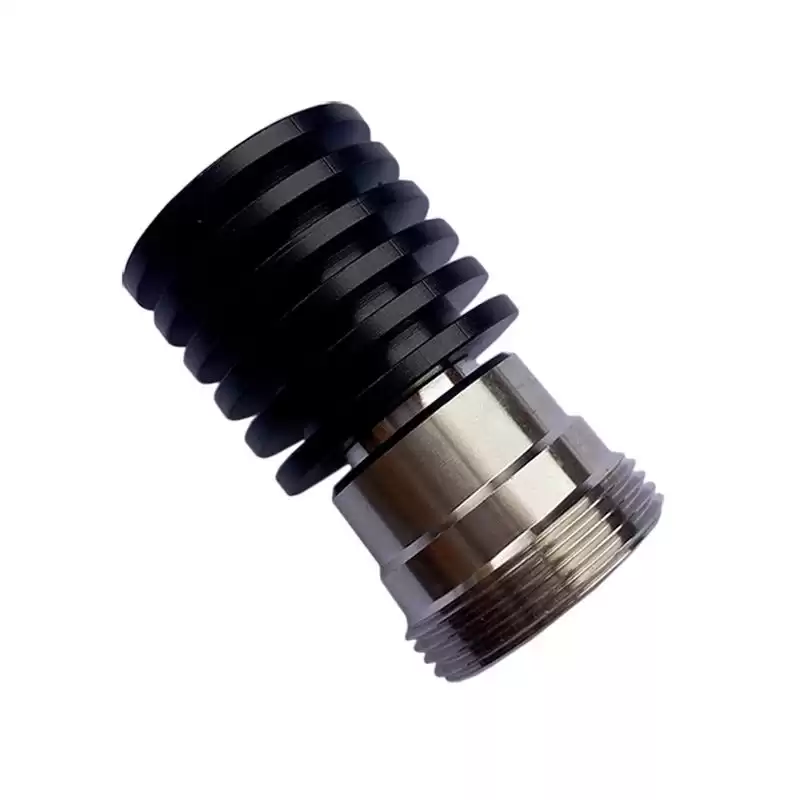

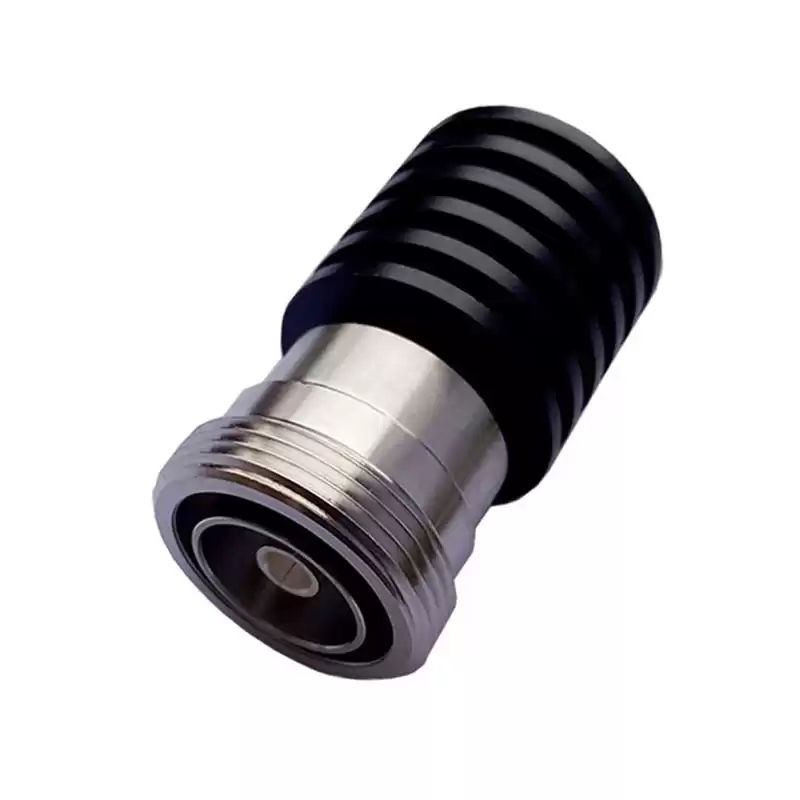

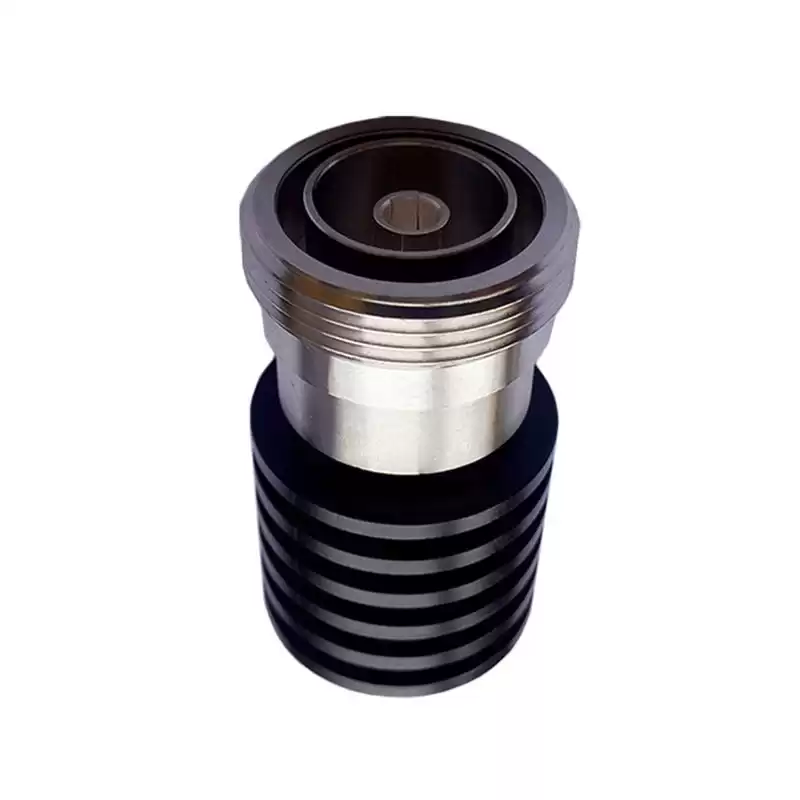

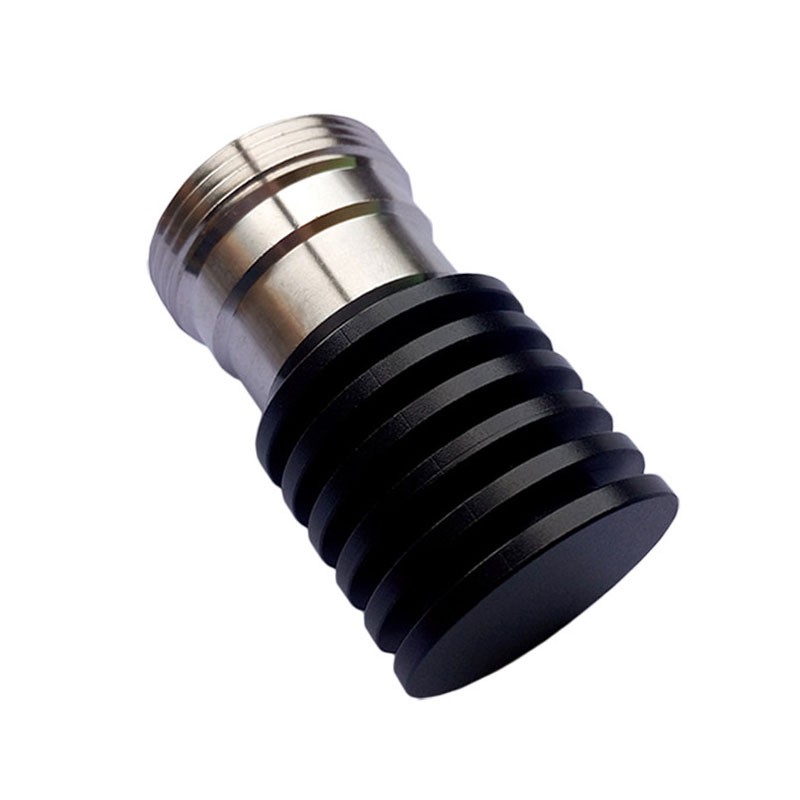

5W DIN 7-16 Female DC-3GHz 50 ohm RF Coaxial Termination Dummy Load
The 5W 7-16 DIN dummy load (also known as 5W 7-16 DIN termination or 5W 7-16 DIN RF load) has a 7-16 DIN connector that is female. This 5W 7-16 DIN female load / termination is rated for a maximum frequency of 3GHz. ROHO's 7-16 DIN female termination load is a rf load termination with a 50ohm impedance;This 7-16 DIN coaxial termination / load has an average maximum VSWR of 1.2:1. and 5W 7-16 DIN female load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz |
| Connector |
DIN 7-16 Female |
| VSWR |
≤1.2 |
| Power |
5W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
