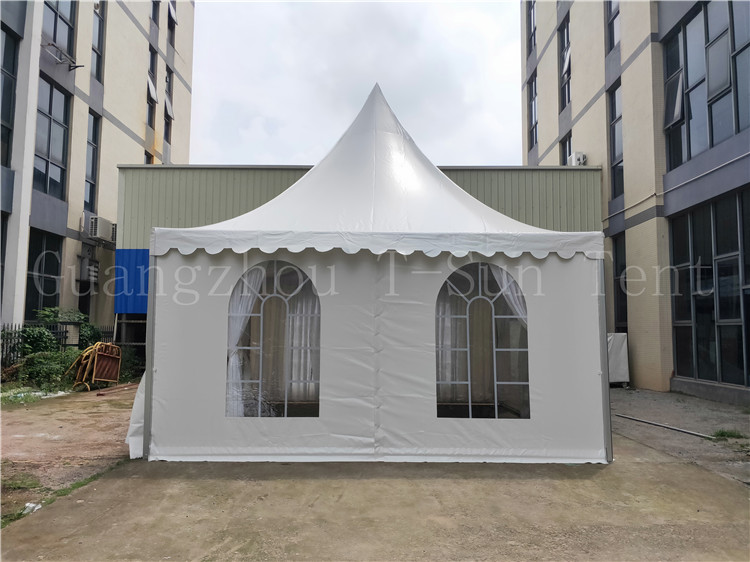

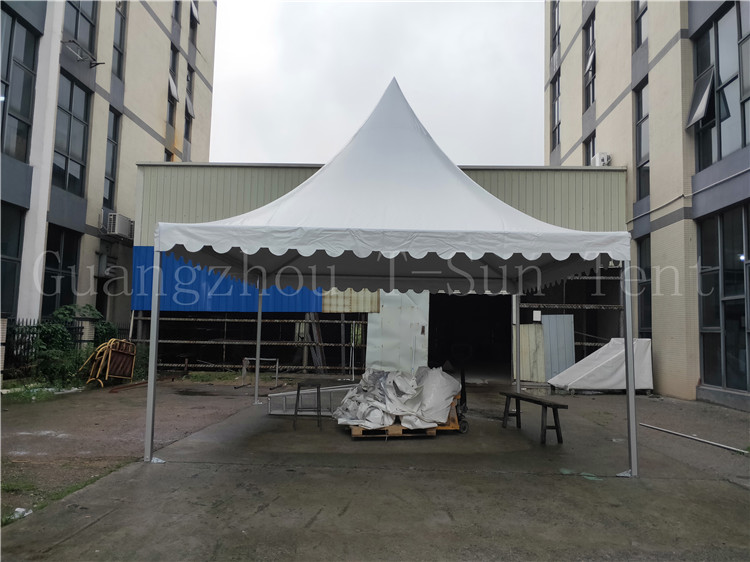

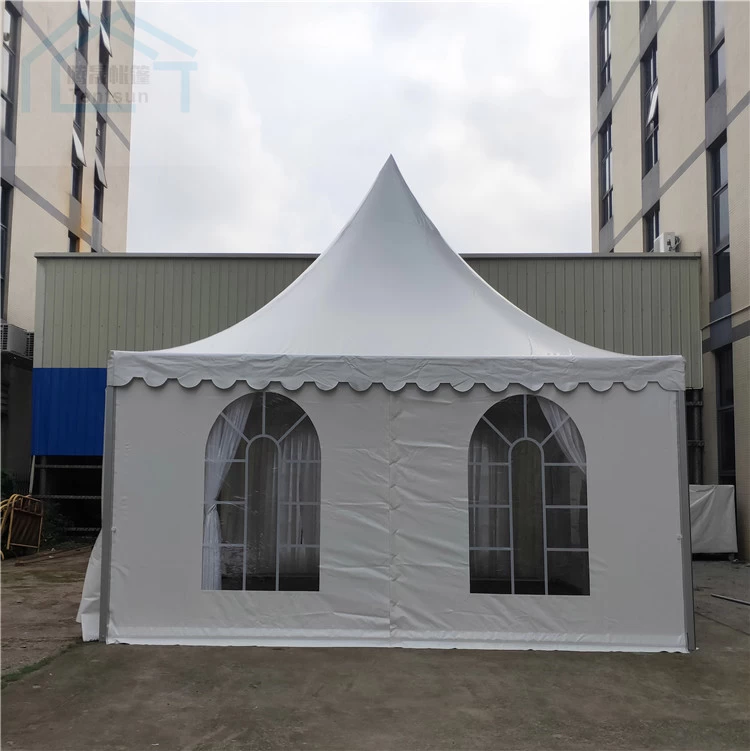

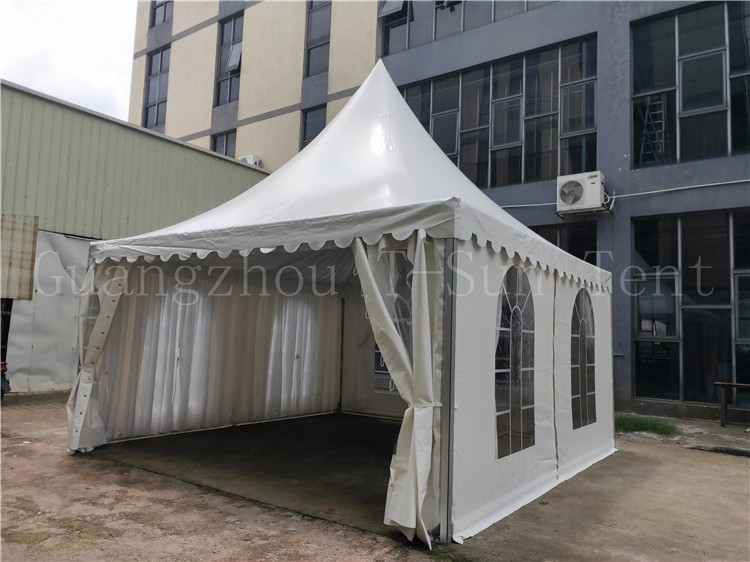

Pagoda tents is popular for events , the quick assemble size is 3x3m ,4x4m ,5x5m and 6x6m , the pagoda tent series provide the perfect solution for a vast range of applications.
Pagoda tent structures are available in a variety of square sided units from 3m through to 10m in clear span width.
|
Model
|
Size(m)
|
Eave height(m)
|
RIdge height(m)
|
Main profile size(mm)
|
|
PGA03
|
3x3
|
2.5
|
4.3
|
65x65x2.5
|
|
PGA04
|
4x4
|
2.5
|
4.8
|
65x65x2.5
|
|
PGA05
|
5x5
|
2.5
|
5.4
|
65x65x2.5
|
|
PGA06
|
6x6
|
2.5
|
5.9
|
65x65x2.5
|
|
PGA08
|
8x8
|
2.6
|
6.0
|
122x68x3
|
|
PGA10
|
10x10
|
2.6
|
6.5
|
122x68x3
|
System Features(3m to 6m square pagoda tent)
1.Hard pressed extruded aluminum frame with 3 channels, 65x65x2.5mm
2.Elegant high peak tensile roof
3.Easy assemble and dismantle
4.hot dip galvanized base plated and connection
5.Single unit can be joined together to make a larger space by rain gutters
6.Full accessories available such as linings,flooring,clear windows,hard wall system etc.
