6+6 Pins EFD30 Transformer Bobbin Phenolic Horizontal Transformer Bobbin

EFD30 phenolic transformer bobbin. Phenolic transformer bobbin.

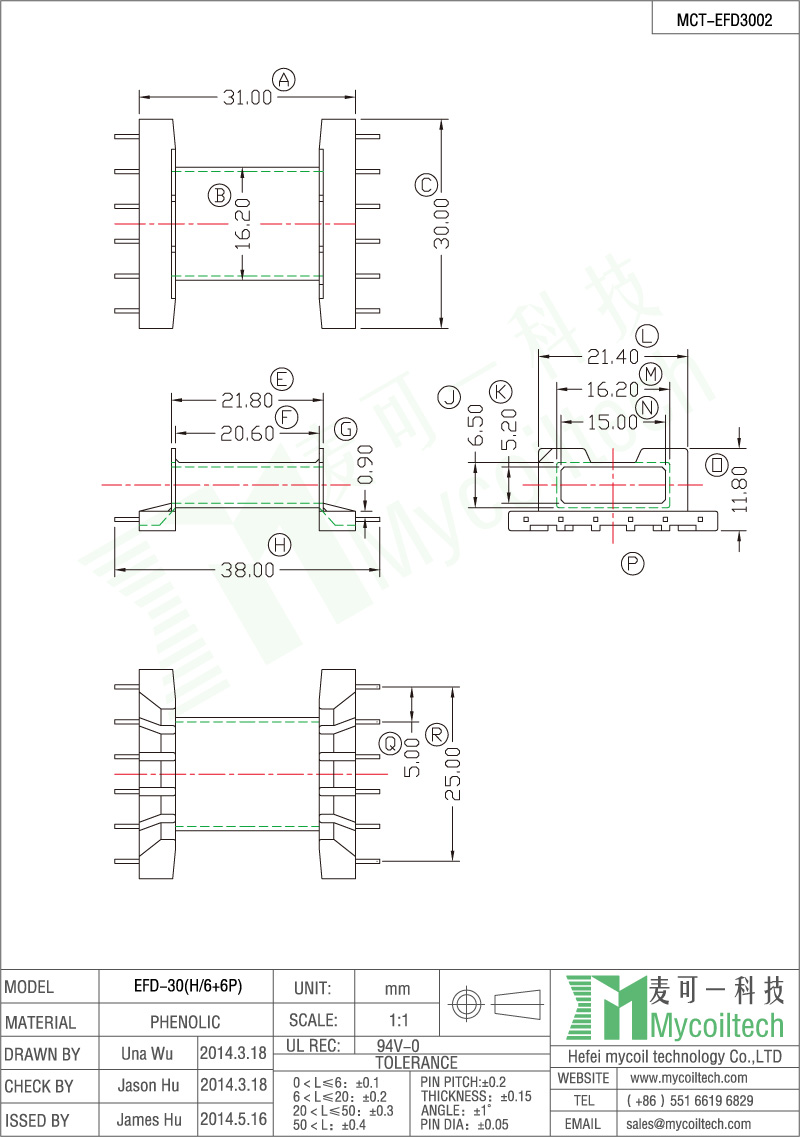

6+6 Pins horizontal transformer bobbin.Parallel Distance=31mm.

Bobbin Size=38mmX30mmX11.8mm. UL REC:94V-0.



Factory direct selling  EFD30 transformer bobbin, 6+6 Pins horizontal bobbin, low price and good quality, any requests, welcome to contact us.


Quick Details

Part Number: MCT-EFD3002(H6+6P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 6+6 Pins EFD30 Transformer Bobbin Phenolic Horizontal Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

6+6 Pins EFD30 transformer bobbin supplier
