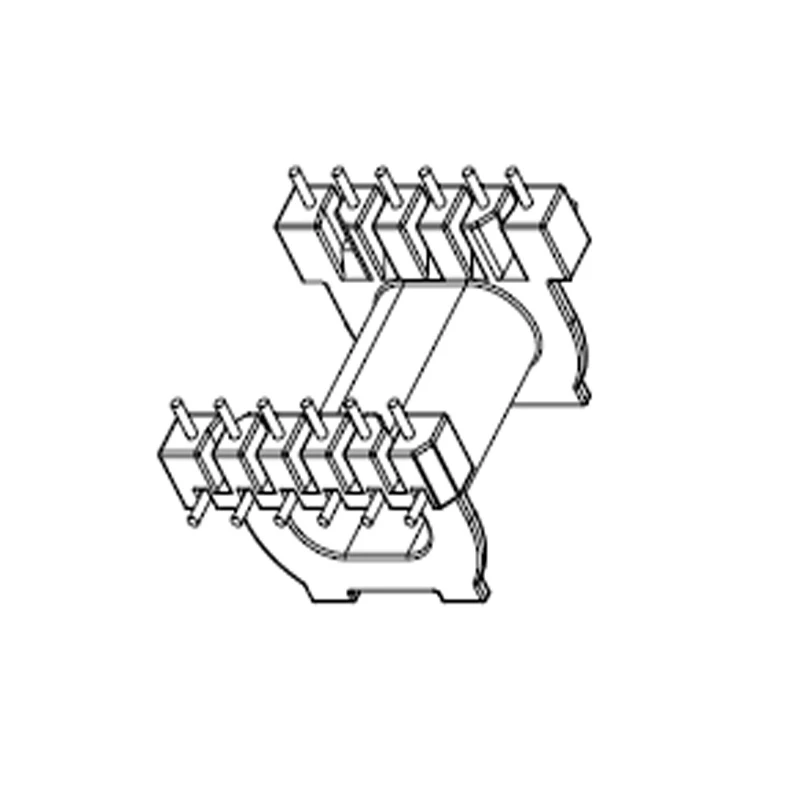

6+6 Pins EPC34 Horizontal Bobbin for Electronic Transformer

EPC34 horizontal transformer bobbin. UL REC:94V-0.

6+6 Pins transformer bobbin. Parallel Distance=27.5mm.

Bobbin Size=37.7mmX32.1mmX21.5mm. PHENOLIC T375HF Bobbin.



Popular EPC34 bobbin for electronic transformer. Good price and high quality 6+6 Pins horizontal transformer bobbin, if you are interested in our transformer bobbins, welcome to contact us.


Quick Details

Part Number: MCT-EPC3401(H6+6P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 6+6 Pins EPC34 Horizontal Bobbin for Electronic Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

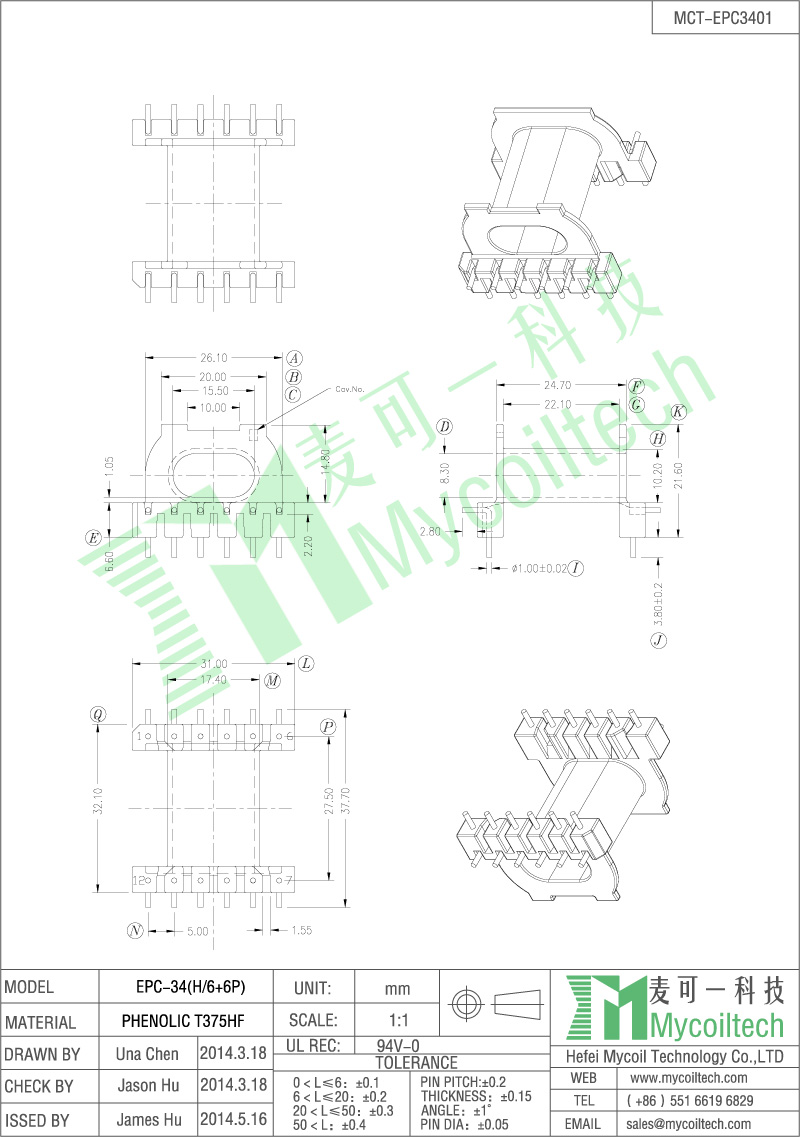

Product Specification

EPC34 6+6 pins transformer bobbin manufacturer MCT
