6.2 Inch TFT 800(RGB)*480 LCD screen

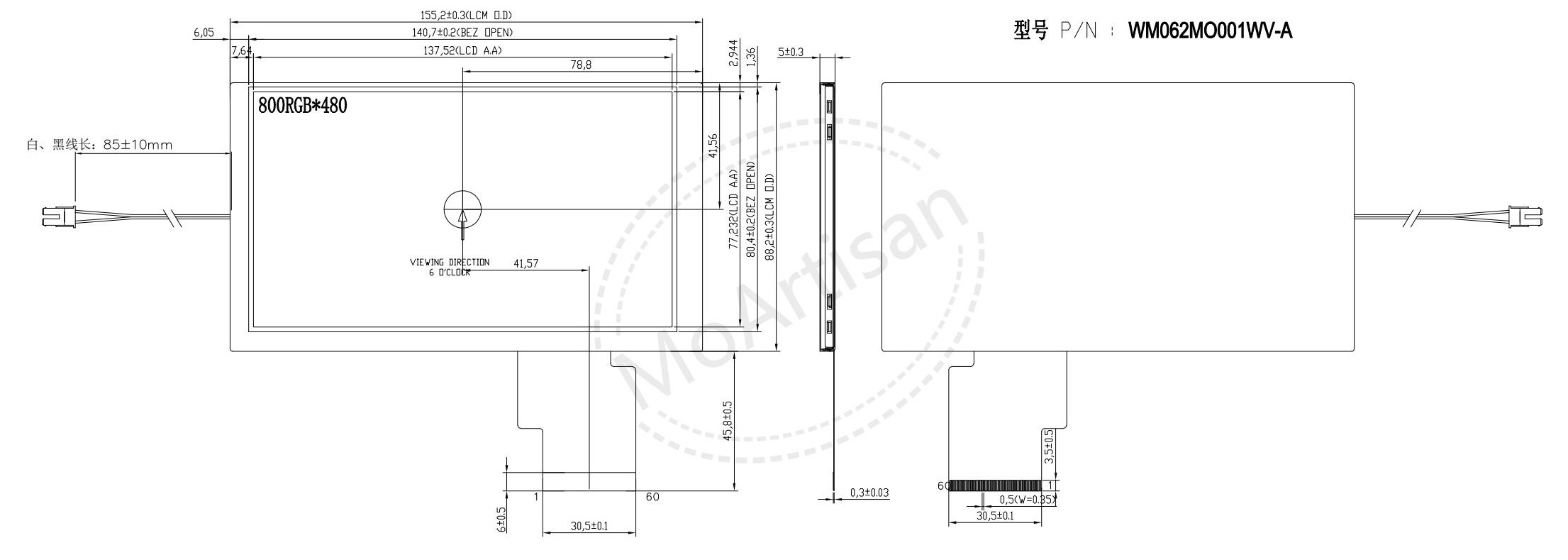

Production drawings
WM062MO001VG-A Introduction
-
6.2 inch diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
6.2 Inch TN LCD module with 400 nits brightness.
-
Operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
6.2
|
WVGA, 800*RGB*480, TN, 6 O'CLOCK, landscape view LCD screen
|
155.2*88.2*5.0
|
7*3 LED (50K)
|
60 PIN FPC, 24-Bit, RGB
|
400 nits/600
|
Topa: -20~+70
Tstg: -30~+80
|
60/75/75/75
|
WM062MO001WV-A
|
Production Applications
Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
lead time for samples: 3~4 weeks
FAQ:
This product is not a regular LCD size, is it?
ANSWER:
This product is special, specially made for the car.This LCD has a high temperature range as well as good durability and reliability.
