6.95 Inch TFT 800(RGB)*480 wide operating temperature LCD module screen

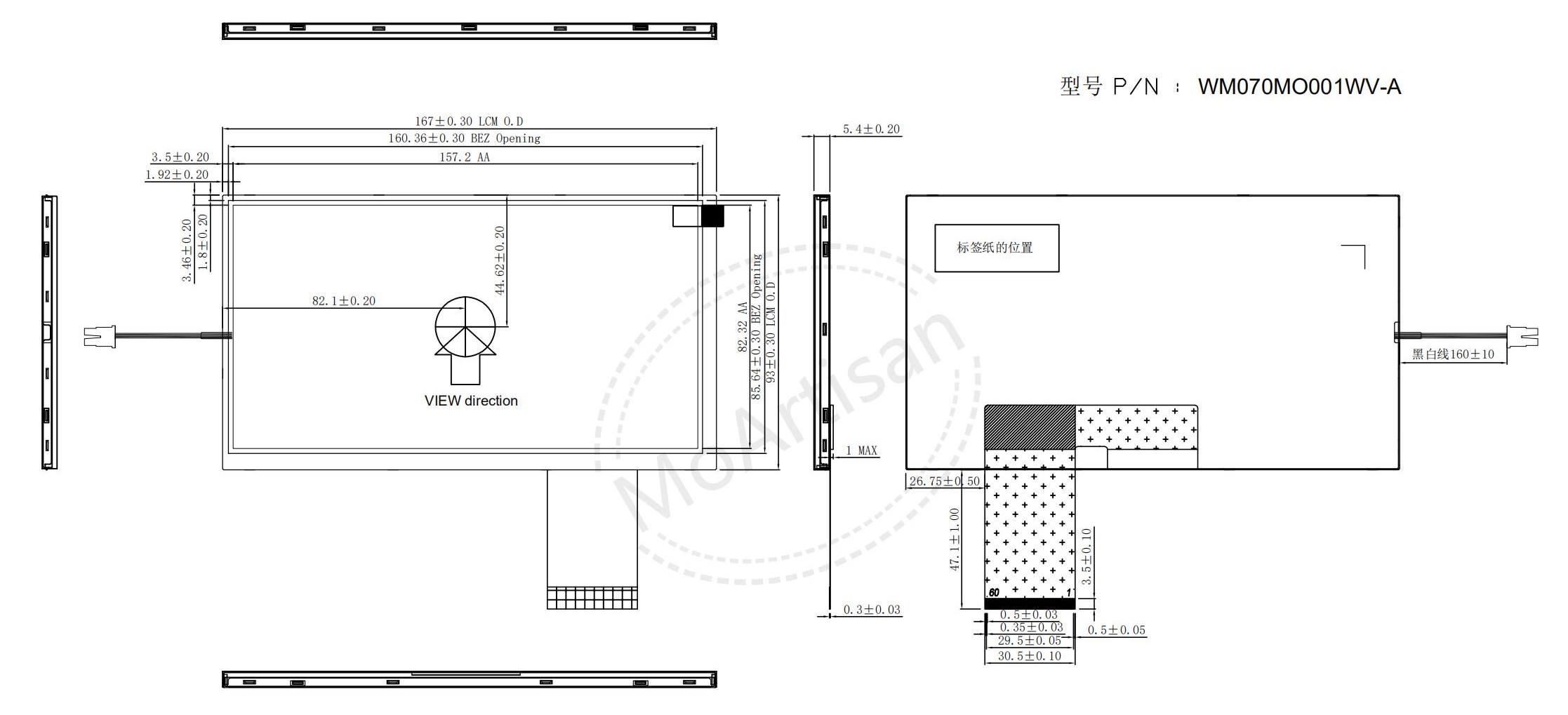

Production Drawings
WM070MO001WV-A Introduction
-
A 6.95 (16:9) inch
diagonally measured active display area.
-
WVGA (800 horizontal by 480
vertical pixel) resolution.
-
6.95 inch TN LCD module with 450 nits brightness.
-
Operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
6.95
|
WVGA, 800RGB*480, TN, 6 O'clock, wide temp.
|
167*93*5.4
|
10X3 LED (50K)
|
60 PIN FPC, 24-Bit, RGB
|
450 nits/500
|
Topa: -30~+80
Tstg: -30~+80
|
60/70/75/75
|
WM070MO001WV-A
|
Production Applications
Mobile NB, GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
FAQ:
What is the key points of the wide temperature LCM designing?
ANSWER:
The operating temperature range of the liquid crystal at the higher end is 105 degrees, such as -30 to +75 degrees Celsius.
The liquid crystal material is in the liquid crystal state, that is to say, below -30 degrees, the material solidifies into a crystalline state, while above +75 degrees, the material liquefies into a liquid state.
Only the material is in the liquid crystal state, the display is normal work, otherwise, can not be normal display.
The operating temperature range here is from -30 to +80 degrees Celsius, which indicates that this product uses a special high-end liquid crystal material.
Then, other materials must also be fully considered its weatherability.
