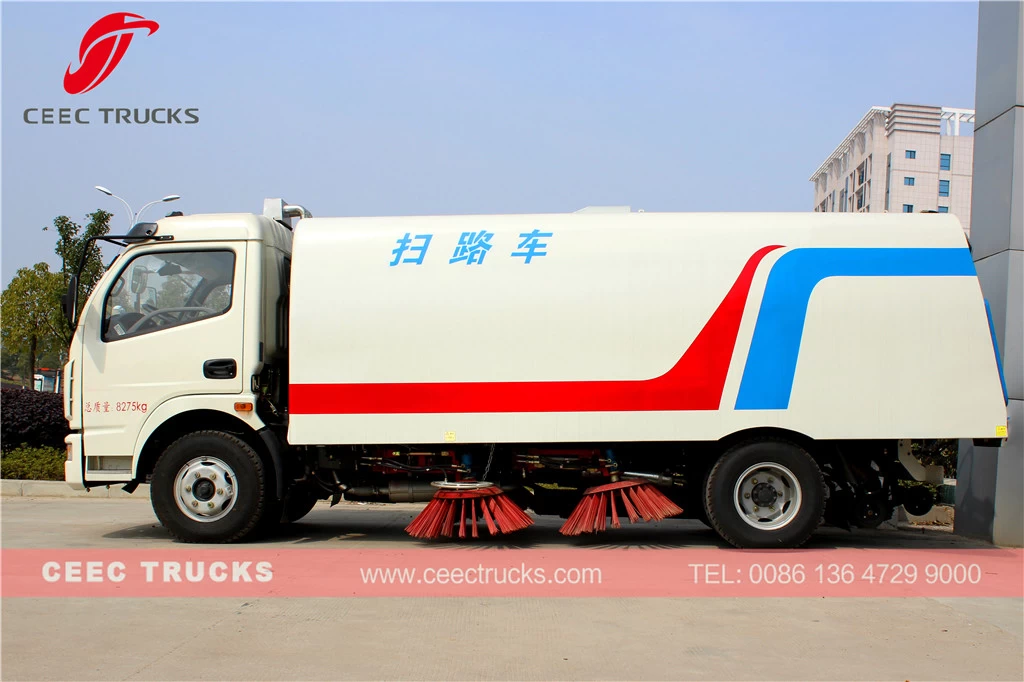

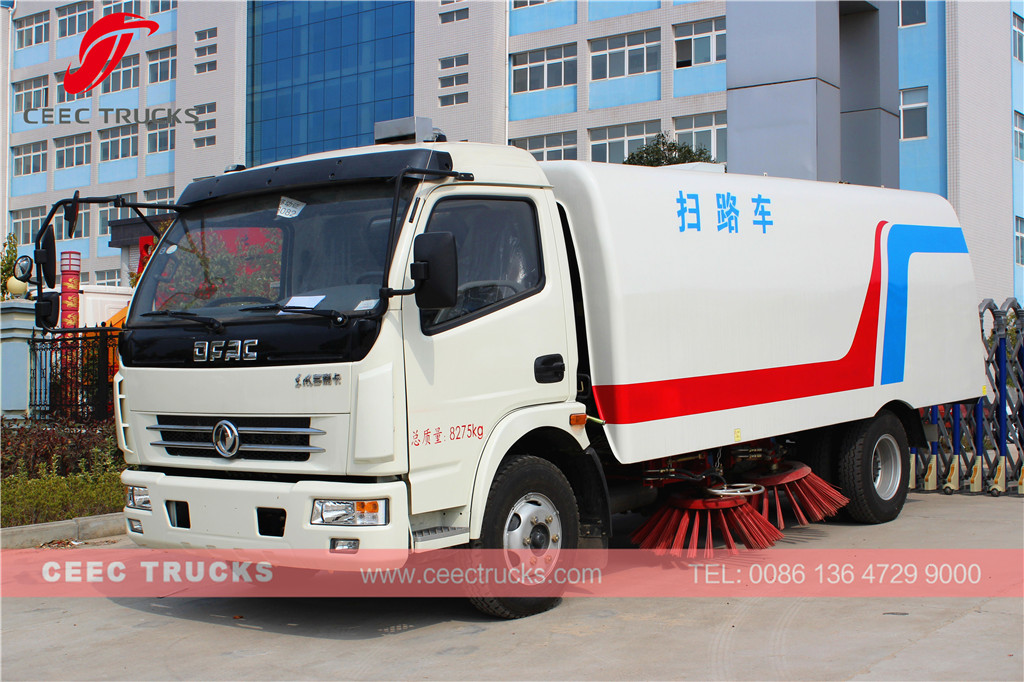

6 CBM road sweeper truck

Dongfeng brand road sweeper with 3800mm wheelbase chassis, CHAOCHAI 120HP diesel engine, 5-shift manual gearbox, equipped with 6cbm stainless steel material tanker. Italy Brevini brand motor for high performance. painting & logos depend on request

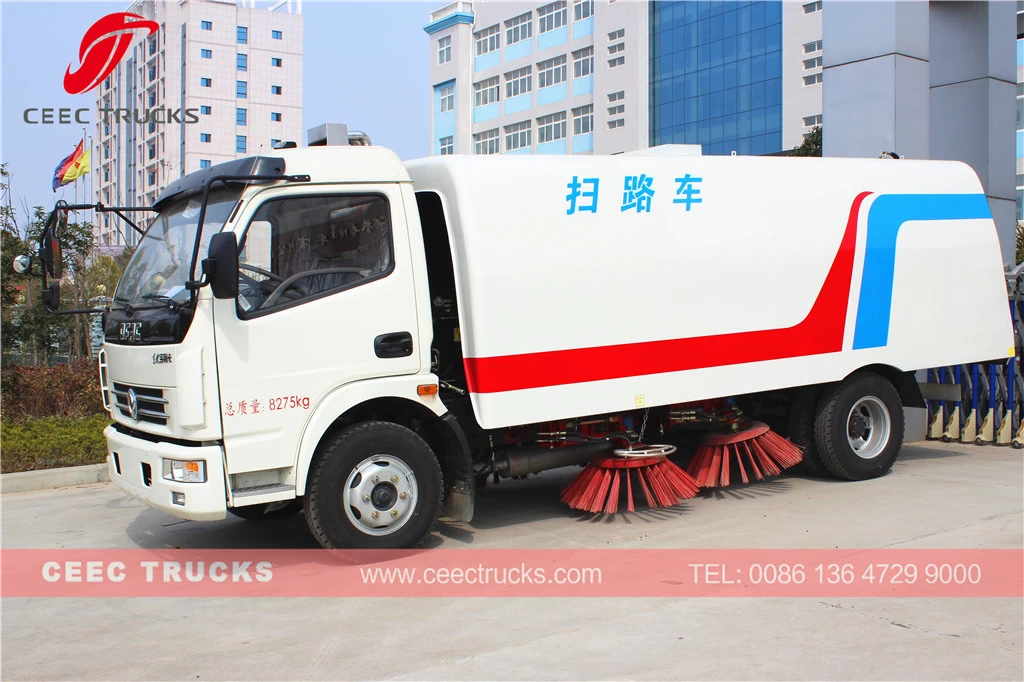

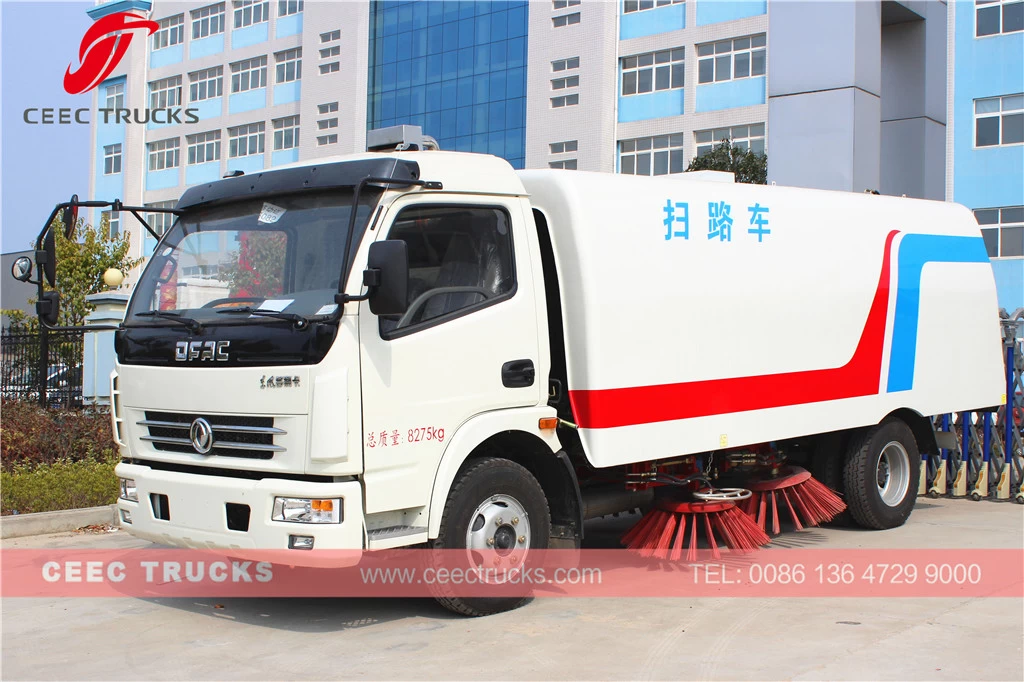

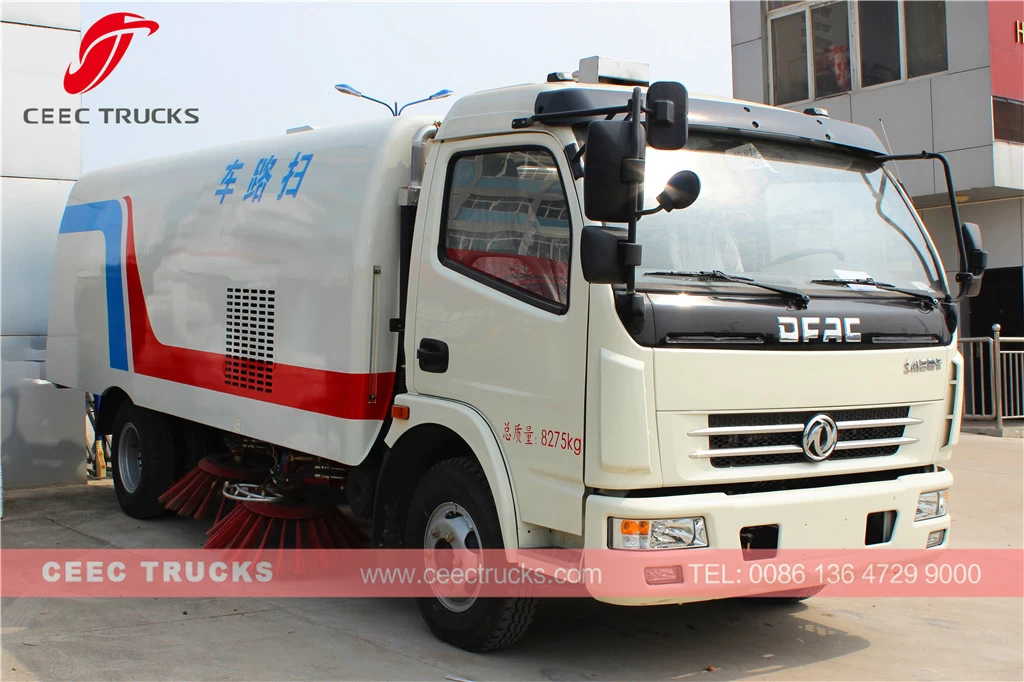

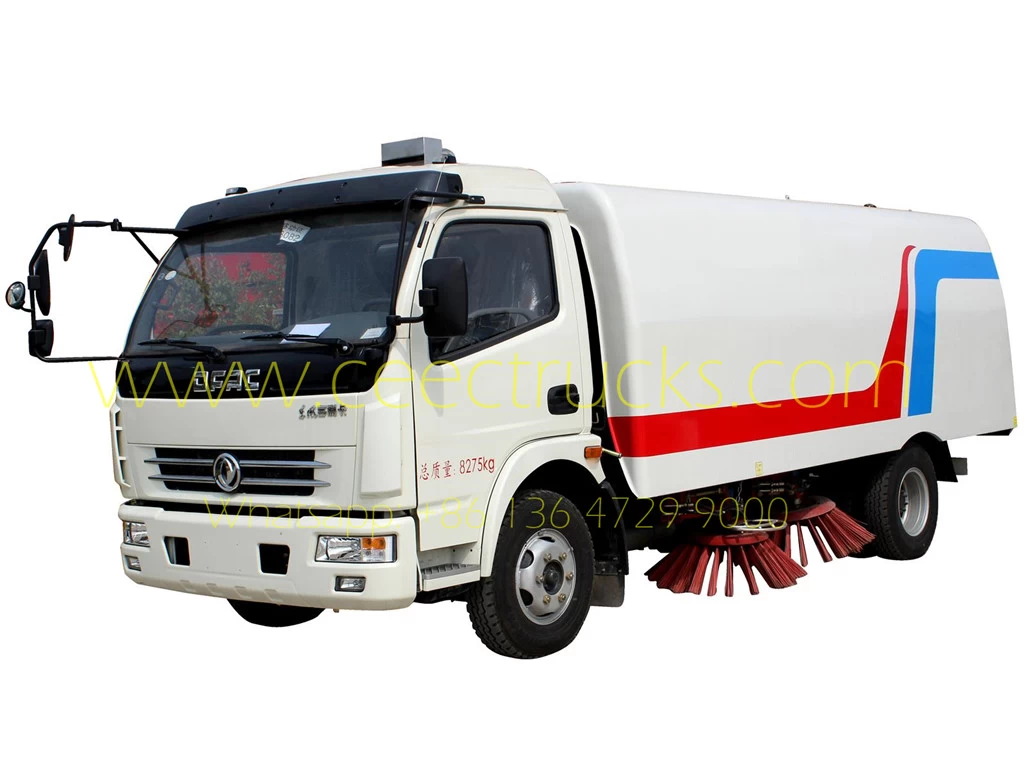

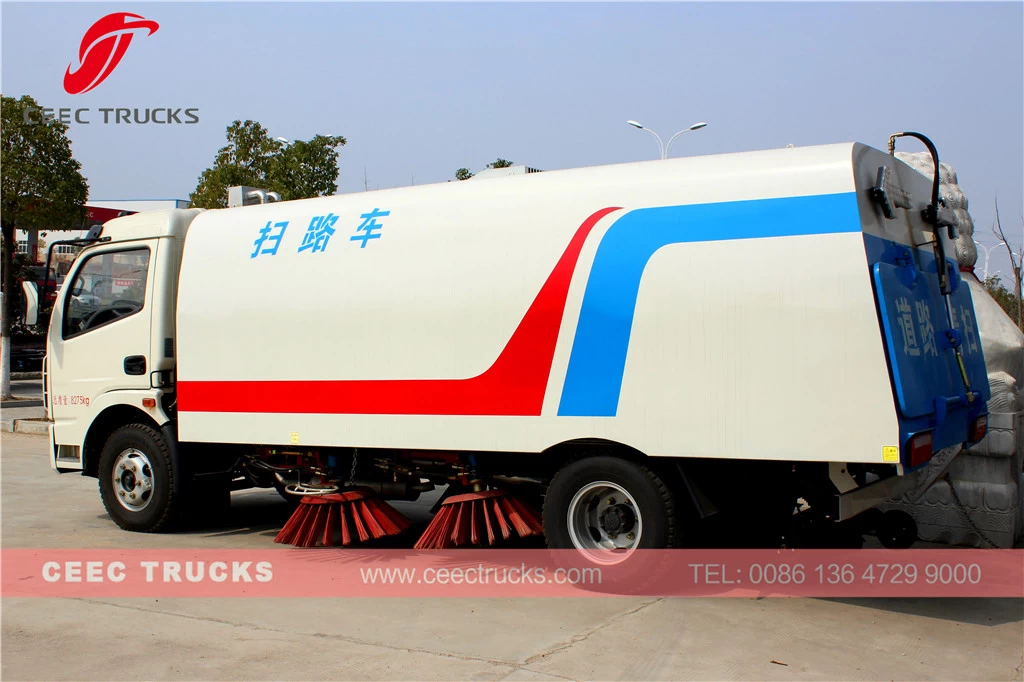

 road sweeping truck overview



 Applications:



Road Sweeper truck 6cbm Dongfeng (also called vacuum road sweeping truck, trash collection truck, road cleaning vehicle, vacuum road sweeper, DFAC road sweeper,street sweeper truck) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



CEEC TRUCKS 6000L road sweeper truck is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57KW auxiliary engine, efficiently avoiding secondary pollution.



The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- DONGFENG chassis, perfect performance

---- CHAOCHAI diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeper body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



DONGFENG Road Sweeper (6,000L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

6390*2080*2700 mm

GVW / Kerb Weight

9,400kg / 5,800 kg

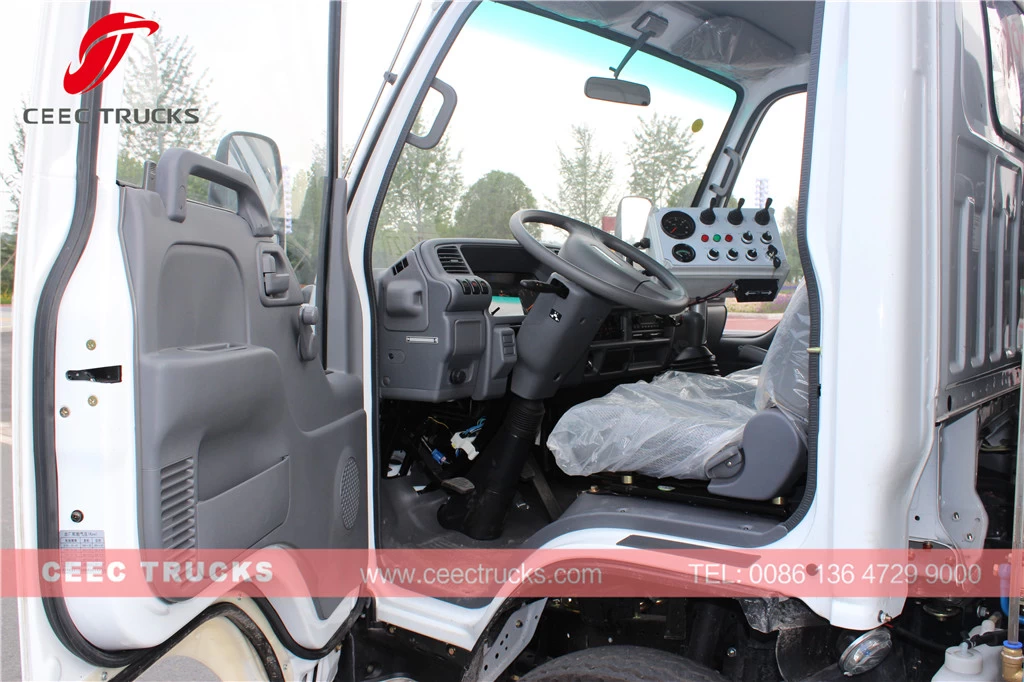

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CHAOCHAI

Power

120 HP (88 KW)

Displacement

3856 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

4X2, (left hand drive)

Transmission

5 speed levers with 1 reverse

Wheelbase/No. of axle

3800 mm / 2

Tire Specification

7.50-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

4.5 cbm dust tank & 1.5 cbm water tank

Tanker material

Stainless steel

Vacuum sweeping capacity

31,000 cbm/h

Vacuum sweeping speed

3-15 km/h

Max. sweeping width

2200 mm

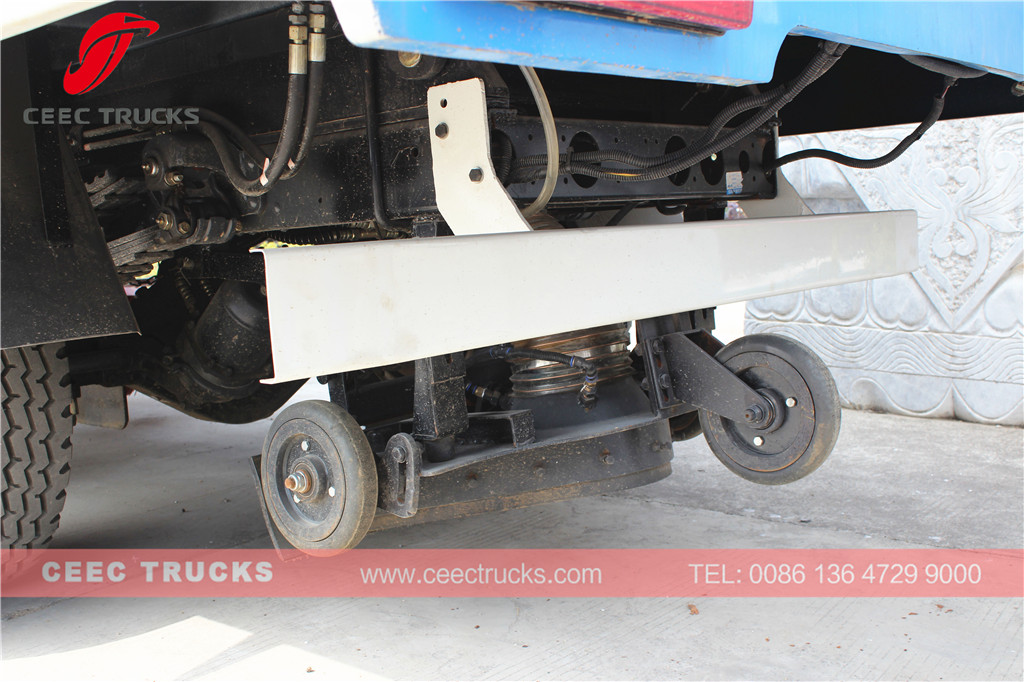

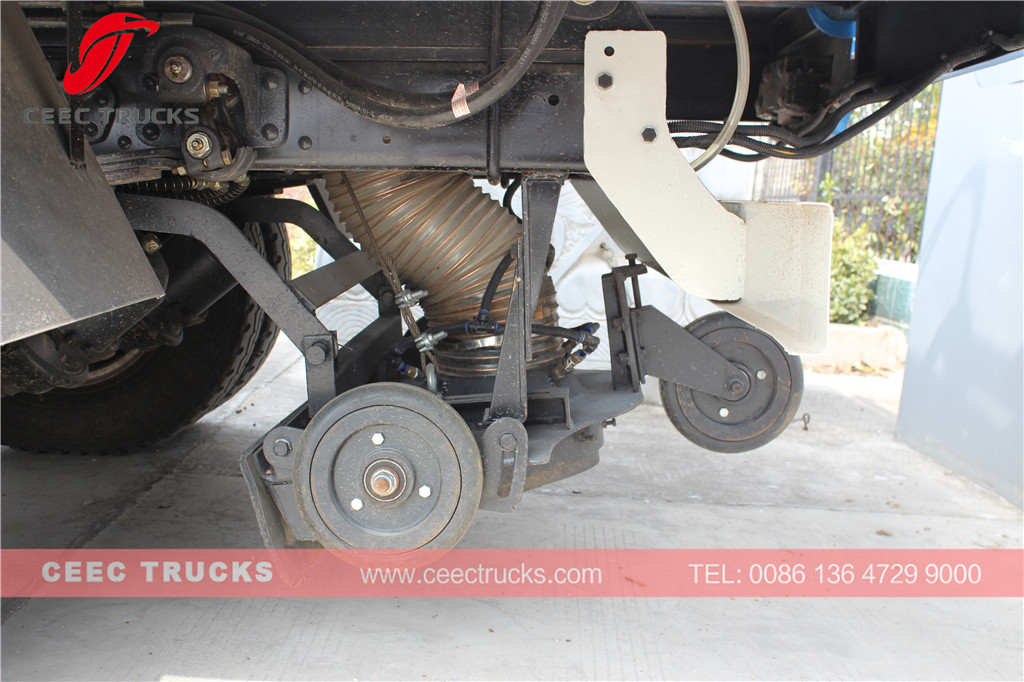

Vacuum suction plate

Under the road sweeper tanker

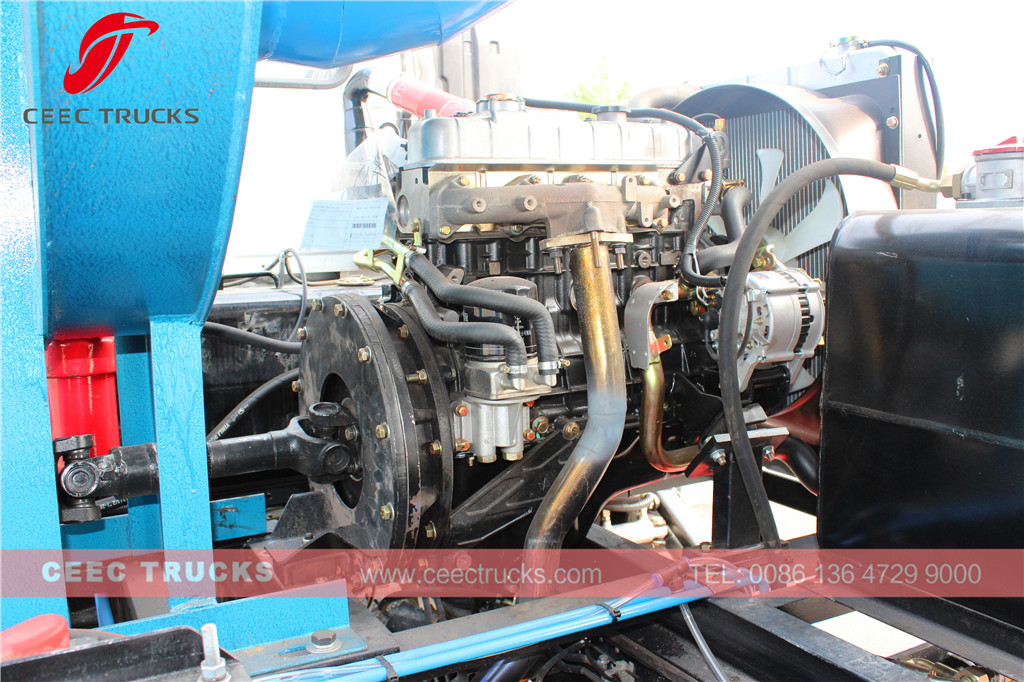

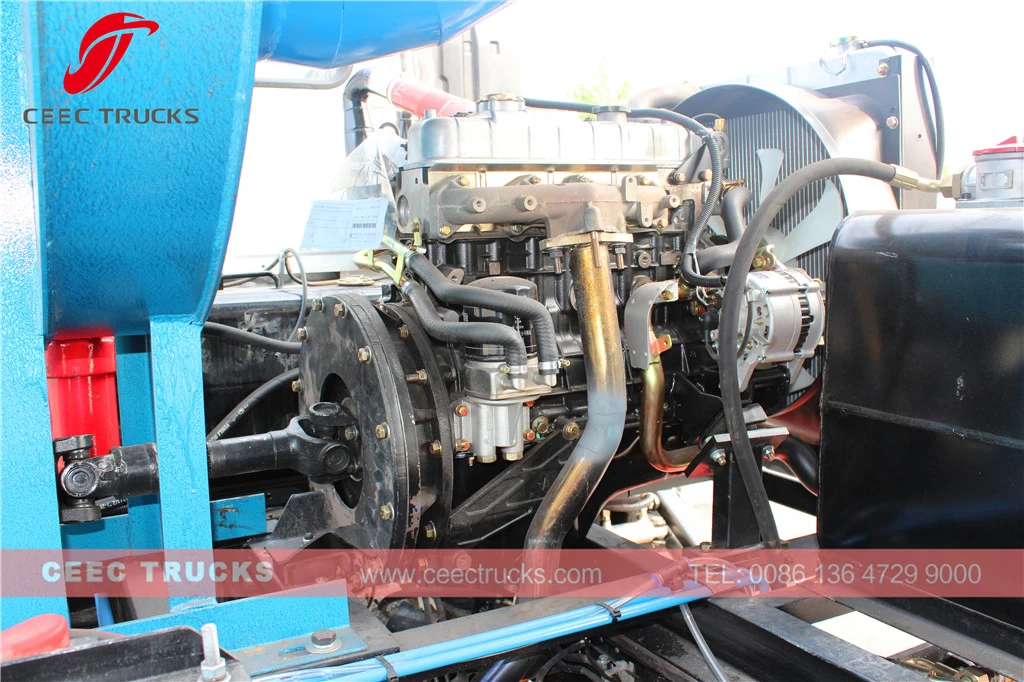

Auxiliary engine

ISUZU engine, 77HP (57kw), super powerful

JMC engine, 77HP (57kw), super powerful

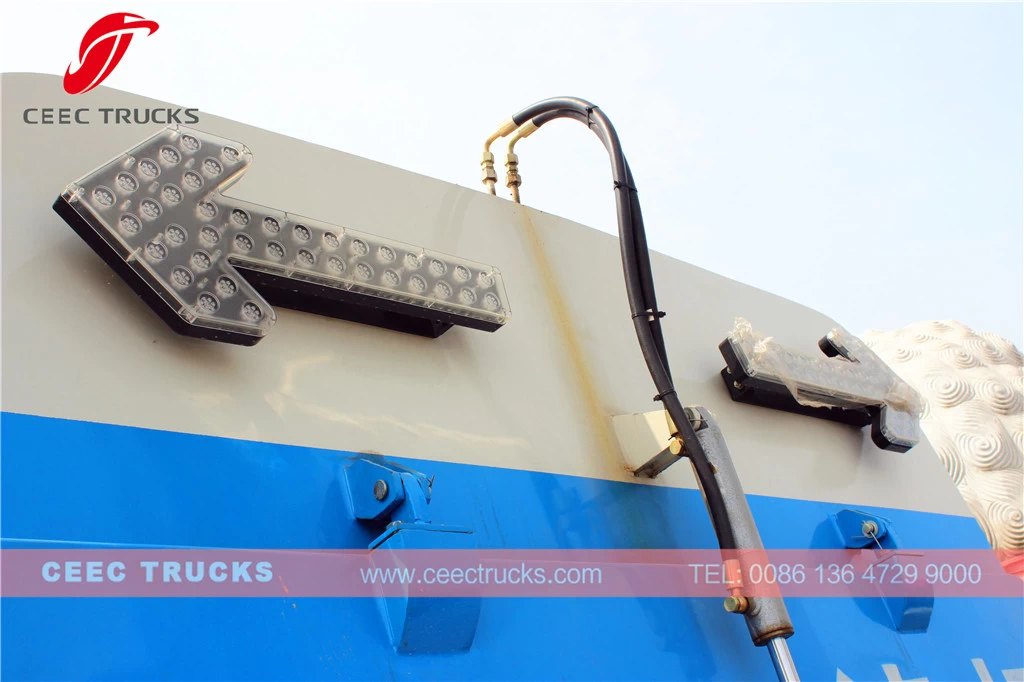

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Italy Brevini motor can be optional.

** Air blower can be of stainless steel

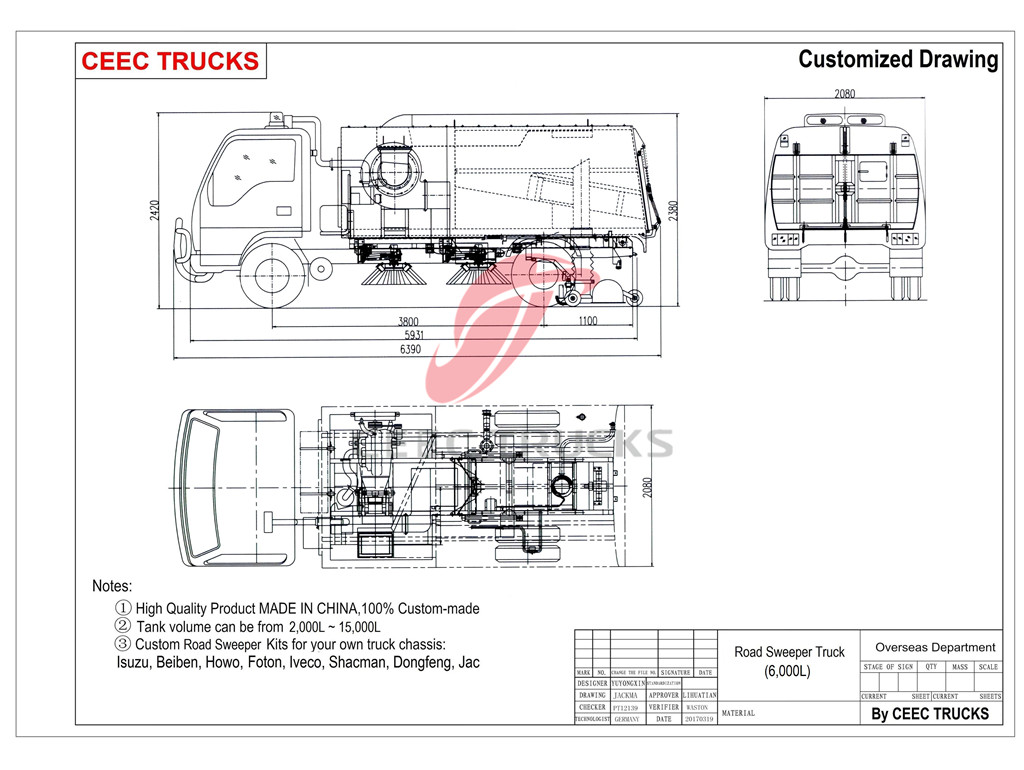

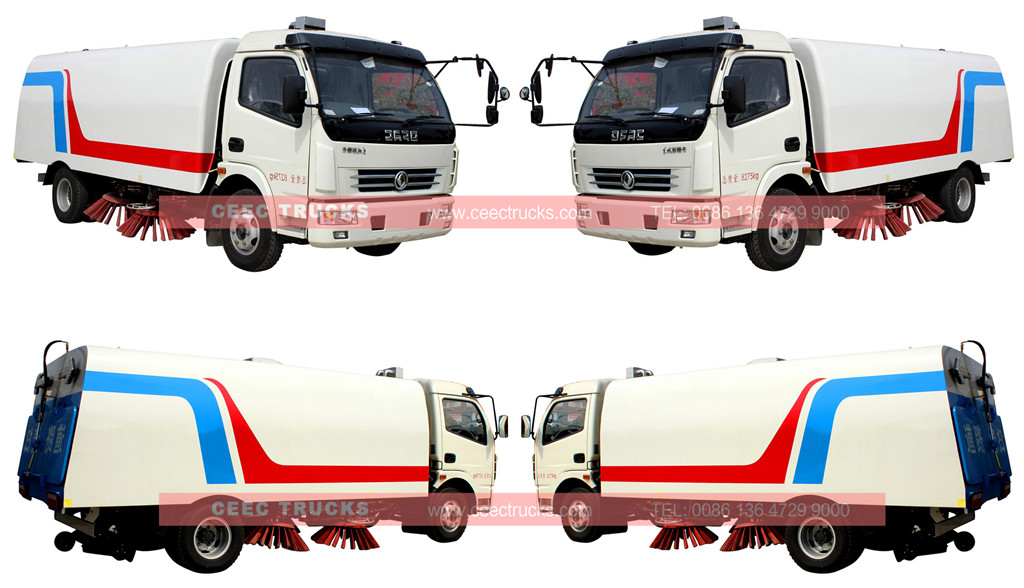

 road sweeping truck drawing
