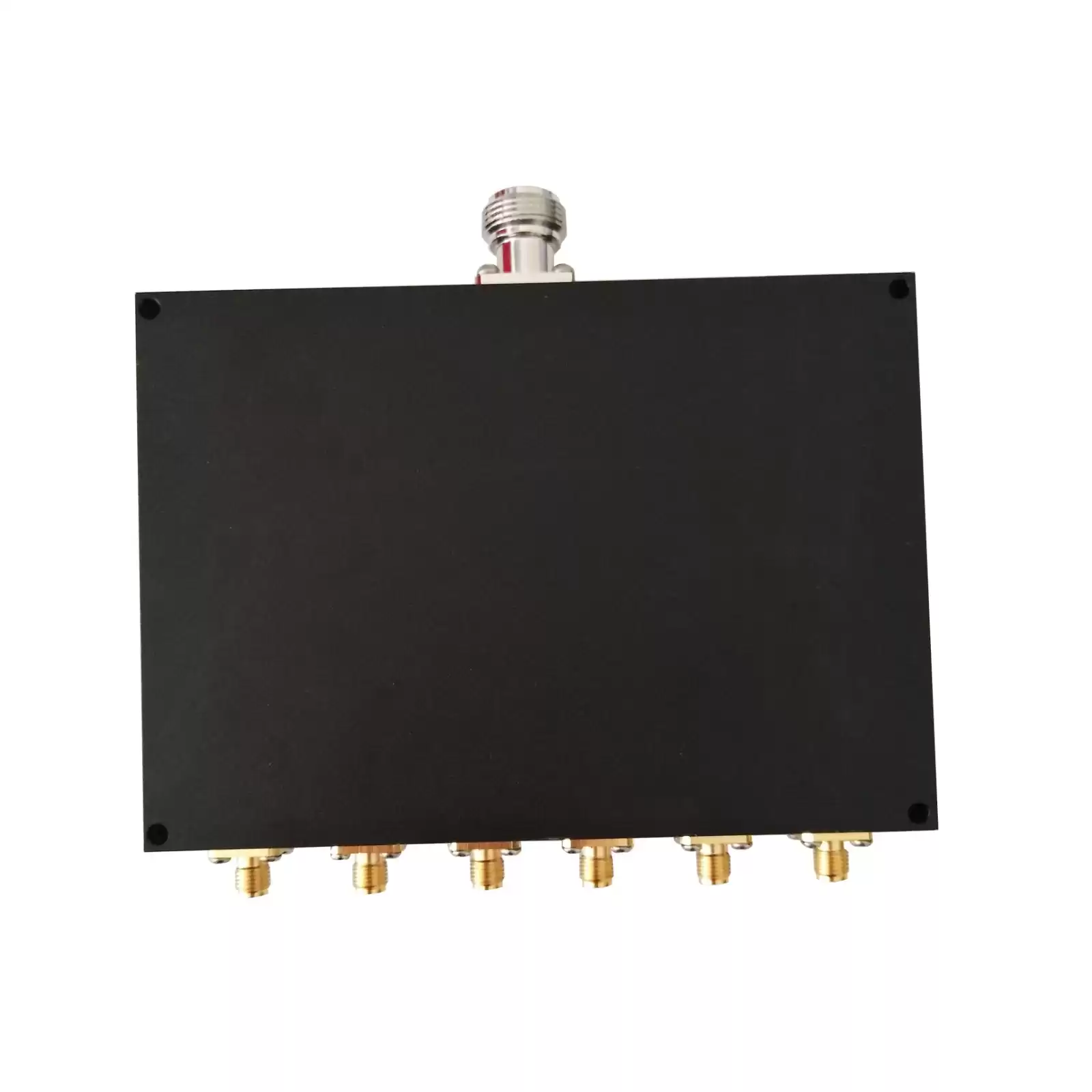

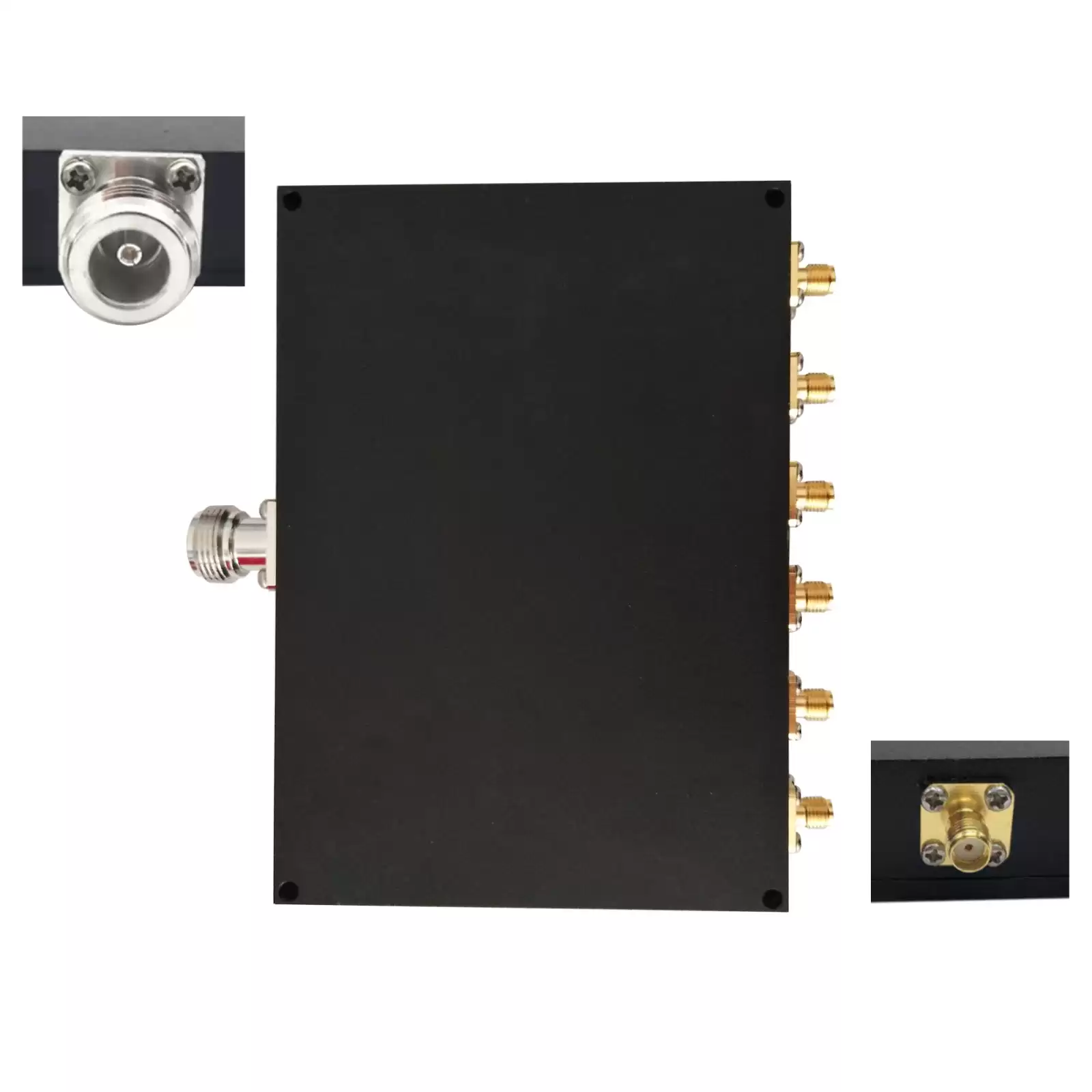

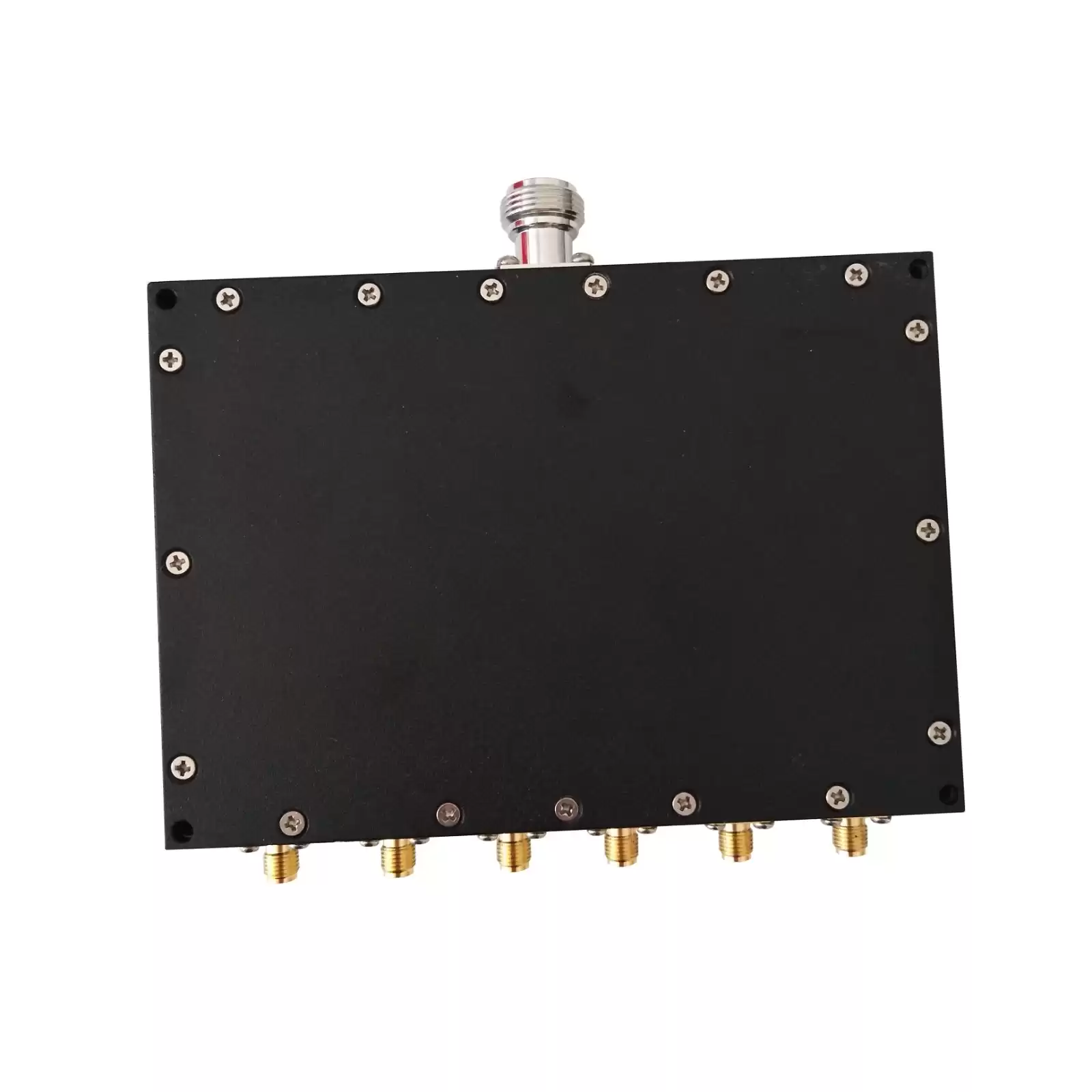

6 way Power Splitter with 6-Way SMA Female connectors OUT 1 N Female IN 698-2700MHZ 9dB Power Divider
The wilkinson 6 way SMA Power Splitter (also known as 6 way SMA Power Divider ) is rated for a minimum frequency of 698MHz and a maximum frequency of 2.7GHz. This 6 port SMA power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 10W. ROHO's SMA coaxial RF splitter / divider has a female SMA input and 6 female SMA output ports;This 6 way SMA RF power divider is a wilkinson design and has a maximum insertion loss of 0. The maximum input VSWR of this SMA wilkinson splitter / divider is 1.4:1 and the minimum isolation is 20dB. The 6 port SMA power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.
Specifications
Frequency Range
|
698-2700MHz
|
Split Loss
|
7.8dB
|
Insertion Loss
|
≤1.0dB
|
Isolation
|
≥20dB |
VSWR
|
≤ 1.4
|
Impedance
|
50ohm |
Connector Type
|
1-Way N Female IN,6-Way SMA Female OUT
|
Average Power
|
50W |
Application
|
Indoor or Outdoor
|
Temperature
|
-35°C to +70°C
|
Applications
- Mobile Communication Network Optimization and In-door distribution system.
- Cluster communication, satellite communication, shortwave communication and hopping radio.
- Radar, electronic navigation and electronic confrontation.
- Aerospace equipment systems.
