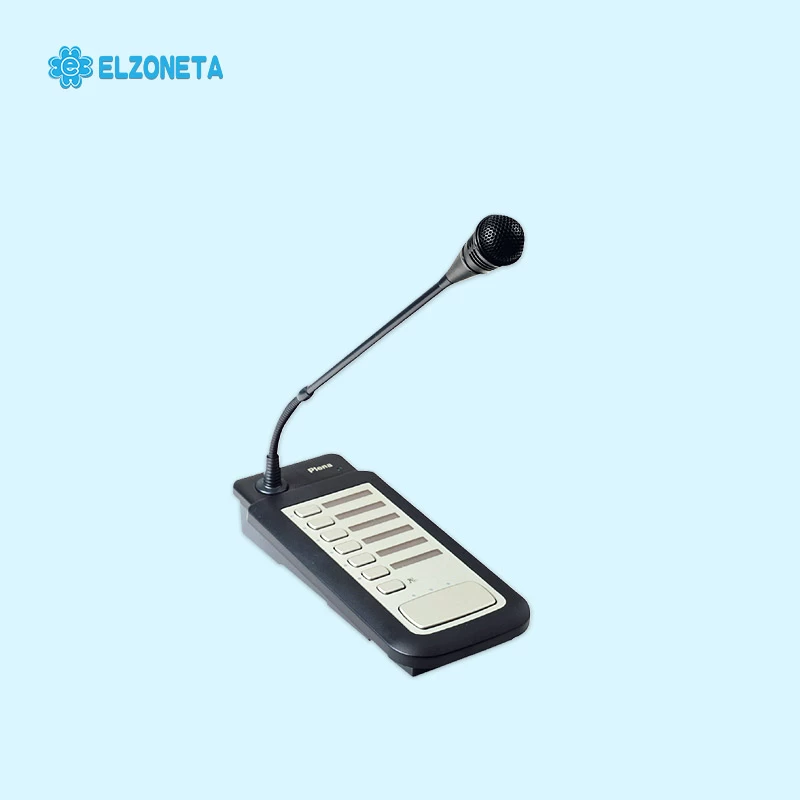

EC-PVS-CS6Z 6 Zones Call Station
Features
1.Stylish six zone call station for the Plena Voice Alarm System
2.Six zone selection keys, all-call key and momentary PTT-key for calls
3.Selectable gain, speech filter, limiter, and output level for improved intelligibility
4.LED indications for zone selection, fault, and emergency state
5.Call station extension provides seven additional zone and zone group keys
Specification
|
Power Supply
|
|
|
Voltage range
|
24VDC supplied by LBB 1990/00(or
18 to 24VDC or VAC external power supply)
|
|
Current consumption
|
<30mA (plus <15mA
per keypad)
|
|
Performance
|
|
|
Nominal sensitivity
|
85dB SPL (gain preset
0dB)
|
|
Nominal output level
|
700mV
|
|
Input sound level (max)
|
110dB SPL
|
|
Gain preset
|
+6/0/-15dB
|
|
Limiter threshold
|
2V
|
|
Compression ratio limiter
|
1:20
|
|
Distortion
|
<0.6% (maximum input)
|
|
Input noise level (equiv.)
|
25dB SPLA
|
|
Frequency response
|
100Hz to 16kHz
|
|
Speech filter
|
-3dB at 315Hz, high-pass,
6dB/oct
|
|
Output impedance
|
200ohm
|
|
Selections
|
|
|
Chimes
|
Any wave file
|
|
Priorities
|
7
|
|
|
|
Base dimensions
|
40 x 100 x 235mm(1.57 x 3.97 x
9.25 in)
|
|
Weight
|
Approx. 1kg
|
|
Mounting
|
Standalone
|
|
Color
|
Charcoal with silver
|
|
Stem length with mic
|
390mm (15.35in)
|
|
Cable length
|
5m (16.4ft)
|
|
|
|
Operating temperature
|
-10ºC to +45ºC
(14ºF to +113ºF)
|
|
Storage and transport temperature
|
-40ºC to +70ºC
(-40ºF to +158ºF)
|
|
Relative humidity
|
<95%
|
