MODULE CHARACTERISTICS
1. High efficiency crystalline silicon solar cells.
2. High transmission low iron tempered glass, strong mechanical resistance.
3. Standard waterproof junction box, with bypass diode.
4. High endurance to different atrocious weather.
|

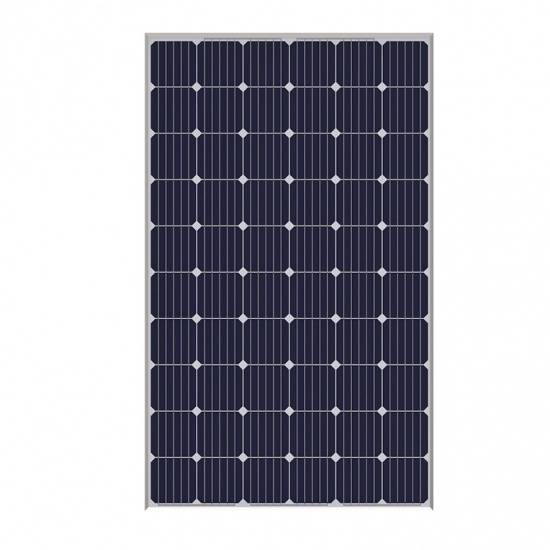

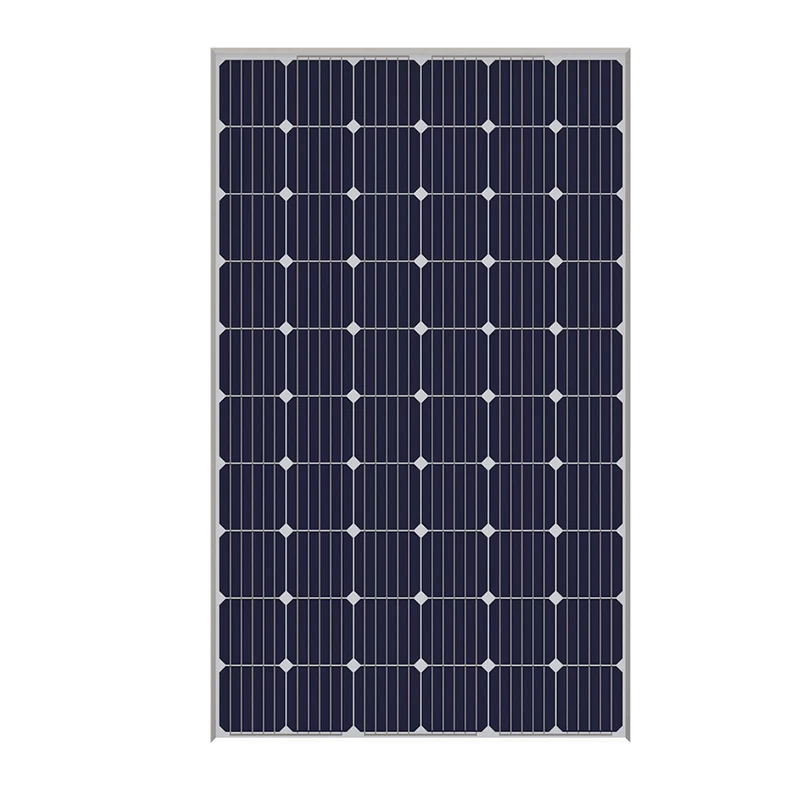

270 Watt Solar Panel Specifications
|
Working Conditions
|
|
Cell(mm)
|
Mono 156x156
|
Maximum System Voltage
|
DC 1000V(TUV)
|
|
Weight(kg)
|
19
|
Operating Temp.
|
-40℃～+85℃
|
|
Dimensions(L*W*H)(mm)
|
1650x992x40
|
Maximum Series Fuse(A)
|
20
|
|
Cable Length(mm)
|
≥900
|
Static loading
|
5400Pa
|
|
Cable cross section size(mm2)
|
4
|
Grounding conductivity
|
<0.1Ω
|
|
No. of cells and connections
|
60(10x6)
|
NOCT
|
45±2℃
|
|
No. of diodes
|
3
|
Application Class
|
Class A
|
|
Packing configuration
|
30pcs/carton
|
Insulation Resistance
|
≥100MΩ
|
Guarantee
15-year limited product warranty
Limited performance warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output.
|
Electrical Parameters
|
|
TYPE
|
SPC-PM270W
|
SPC-PM275W
|
SPC-PM280W
|
SPC-PM285W
|
SPC-PM290W
|
|
Rated Maximum Power at STC(w)
|
270
|
275
|
280
|
285
|
290
|
|
Open Circuit Voltage(Voc/V)
|
38.4
|
38.5
|
38.6
|
38.7
|
39.5
|
|
Maximum Power Voltage(Vmp/V)
|
31.4
|
31.6
|
31.8
|
32.0
|
32.2
|
|
Short Circuit Current(Isc/A)
|
9.28
|
9.40
|
9.49
|
9.51
|
9.55
|
|
Maximum Power Current(Imp/A)
|
8.60
|
8.70
|
8.81
|
8.90
|
9.02
|
|
Module Efficiency(nm/%)
|
16.5
|
16.8
|
17.11
|
17.41
|
17.72
|
|
Power Tolerance
|
0~ +3%
|
|
αIsc
|
+0.05%/℃
|
|
βVoc
|
－0.29%/℃
|
|
γPmp
|
－0.40%/℃
|
|
STC
|
AM1.5、1000W/㎡、25℃
|
