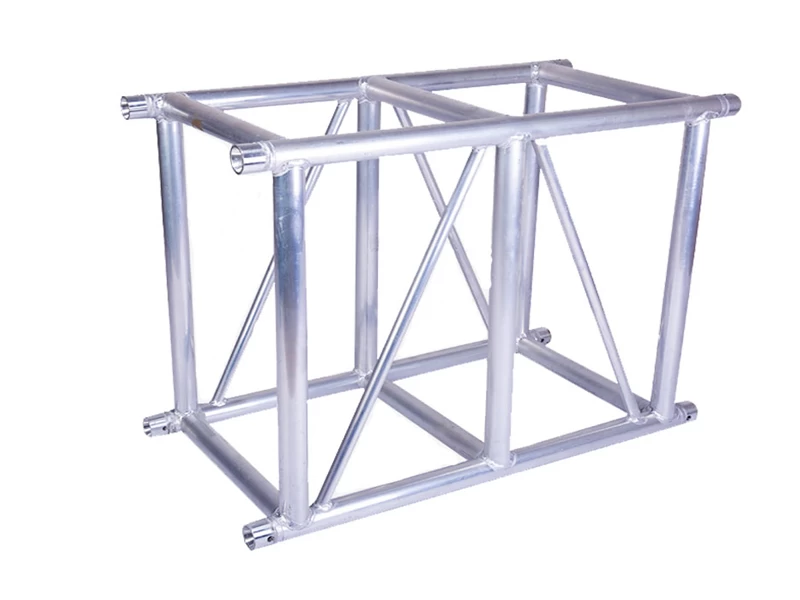

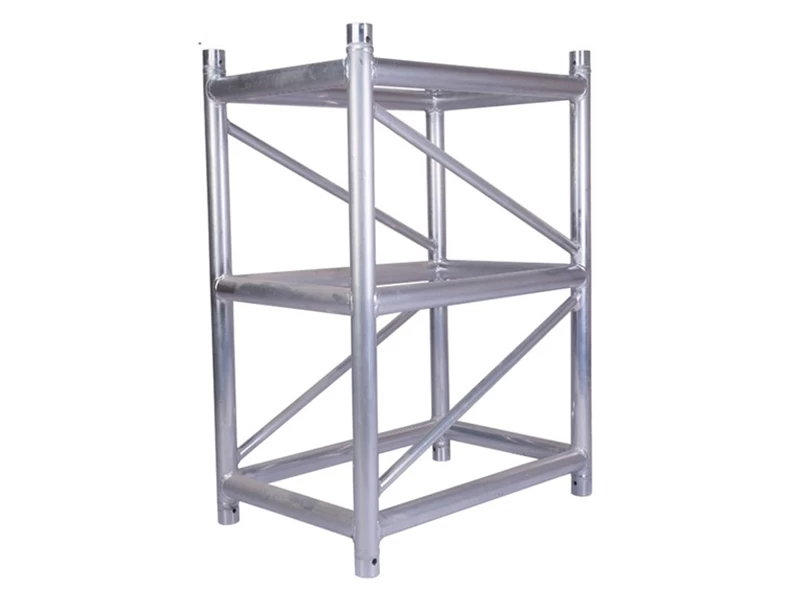

600 x 760 Theatrical Spigot Rectangular Truss and Beams

600 X 760mm Rectangle Truss Segment is usually applied as roof truss support beams in heavy duty and large spand truss systems.



600 x 760 Theatrical Spigot Rectangular Truss and Beams:

The Rectangular Truss and Beam offer Heavy Dutyand Long Span for Truss Systems at more than 24-27m span. Its big spigot connection make it fast to install.

Features:

  1. 4- point nodding
  2. TUV and SGS approved
  3. Free design and technology support
  4. OEM and ODM acceptable
  5. Powder coating and anodizing to any color without any peeling

Specification:

Material Aluminum Alloy 6082-T 6
Types Rectangle
Main tubes 50 x 3 mm
Sub-Main tube 30 x 2 mm
Braces 25 x 2 mm
Connection type Spigoted Connection

Length and Weight:

Length Weight
50 cm 8.5 kg
100 cm 15.3 kg
150 cm 22.34 kg
200 cm 29.38 kg
250 cm 37.19 kg
300 cm 45 kg

Other length can be custom on request.

Application:

The Aluminum Truss Beam is widely used for Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
