The off-grid solar power system packages detailed below are complete, and can be shipped quickly to your home. Call us with details on how you want to mount your solar panels and we'll recommend a high quality racking system to meet your needs.
Wholesale Solar's technicians design home power systems for both off the grid and grid-tied systems for all areas of the country and at all price levels. The systems on this page are all stand-alone systems, capable of producing electricity from solar energy and storing it for use when the sun is not shining.
Our design team can also customize a complete system unique to your specific application. If you do not find what you need on this page, contact us .
For a basic cost estimate, pull one of your current electric bills and check out our Size Your System for Off-Grid page first.

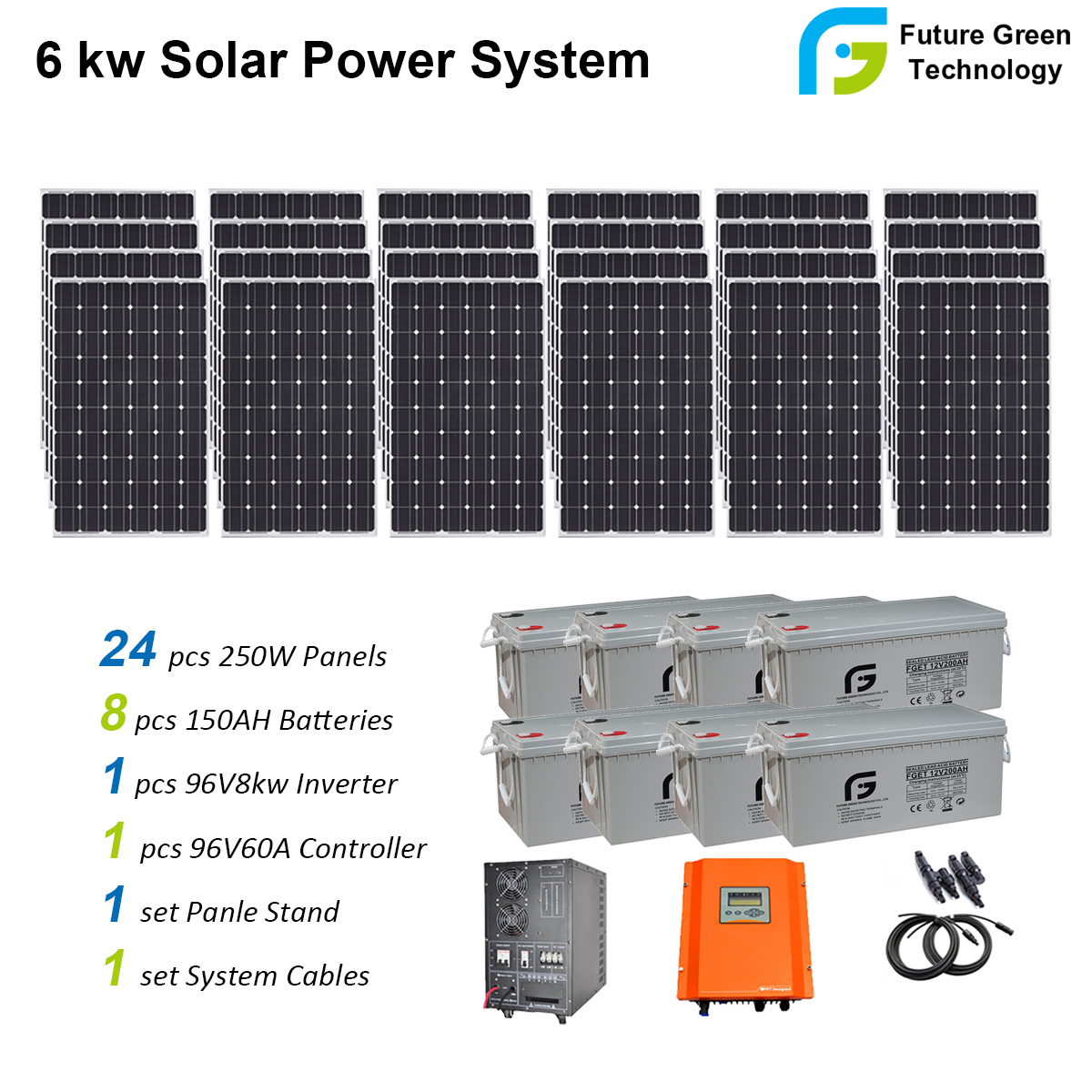

Wholesale Solar has pre-designed off-grid home solar packages with FGET panels and batteries.
|
Available load
|
6 kw
|
|
Equipment
|
QTY
|
Load(W)
|
Time(h)
|
Power(WH)
|
|
LED
|
10
|
18
|
5
|
900
|
|
Printer
|
1
|
150
|
1
|
150
|
|
|
Computer
|
3
|
100
|
5
|
1500
|
|
TV55'
|
1
|
250
|
6
|
1500
|
|
Microwave
oven
|
1
|
2000
|
0.5
|
1000
|
|
Pump
|
1
|
400
|
1
|
400
|
|
180L Fridge
|
1
|
50
|
24
|
1200
|
|
Washer
|
1
|
300
|
1.5
|
450
|
|
1P
Air-condition
|
2
|
800
|
10
|
16000
|
|
Total
|
|
|
|
23100
|
|
Solar Panel
|
24
Pieces
|
Type: Polycrystalline Silicon PV Module
Max Power: 250W
Vmp: 30.5V; Imp: 8.33A
Size: 1640*990*35 mm
Weight: 22kg/pcs
25 years power output guarantee
|
Remark:
This system configuration is for reference. It can be ADJUSTED based on actual condition and requirement.
All parts have been tested and proven in actual operation with enough
reliability and stability.
It’s suggested to source whole system as a pack from us to guarantee the
system compatibility.
|
|
Controller
|
1
Set
|
PV Charging Controller 192V 40A;
PWM high-efficiency charging controller, intelligent control; Temperature
compensation, various protections.
|
|
Inverter
|
1
Set
|
DC192V input, AC220V/110V 1-phase output
50/60Hz; Rated Output
Capacity: 8000W
Pure sine-wave output, off-grid type
Protections: Short circuit, overload, surge current, over temperature,
over/under voltage, lightning, reverse polarity.
|
|
Battery
|
16
Pieces
|
12V/150AH per piece
AGM valve-regulated lead-acid battery,deep cycle
fully sealed, free maintenance type
Service Life: 5~6 years
|
|
Solar Panel
Rack
|
1
Set
|
Roof type mounting rack including complete
fittings, aluminum alloy (Rack can be customized per request)
|
Volume: 3.8 CBM
Weight: 2150 kg
|
|
Cables
|
1
Set
|
International standard, with specification
suitable for solar system, BV1*4 series and 1*10 series
|
Solar System characteristic:
1. All Systems have LCD digital display which allows you to see the system working, (eg) Charge data, System voltage, Daily power consumption and temperature.
2. All type of BPS system both has AC and DC output.
3. All system have automatic switch , If mains power goes off the system will switch automatically over to battery power, When mains power resumes
the system will switch back automatically. The batteries will resume recharging automatically.
4. All inverters are Pure Sine Wave inverters. This allows the use of Air Conditioners and refrigerators without any problem.
5. Each component has a single chip detector. Assembled by the IPM or IGBT of Mitsubishi
This protects the system from Overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuit, Reverse Polarity.
6. Your system can be updated very easily. Just by adding extra components your system will increase power capacity.
7. Battery optional, you can purchase from us or locally.
8. Simple to install, just follow installation instructions.
9. Our System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.
|
Case Studies
|
>>View More>>
|
|
|
|
|
|
CRRC 5kw
Project: CRRC Super Capacitor Test
Capacity: 5kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2017
Owner: CRRC Cooperation Ltd.
Installer: FGET
|
30kw System Replace
Owner: CRRC Cooperation Ltd.
Project: CRRC Solar System replace
Capacity: 30kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2016
Installer: FGET
|
Burkina Faso 5kw
Project: Burkina Faso 5kw
Capacity: 5kW
Type of Module: FGET Multicrystalline 250Wp
Date of Completion: March 2017
Owner: Yacouba Zongo
|
|
Packing & Delivery
|
>>View More>>
|
|
|
|
|
|
Carton Packing
20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH, one in one carton for larger batteries.
|
Batteries Layer
Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.
|
Fumigation Free Tray
As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.
|
|
Our Certification
|
|
>>View More>>
|
|
|
|
|
Company Certificate
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.
|
ISO Certificate
SGS ISO9001 quality management system certificate, ISO14001 environment system certificate
|
MSDS & Transport
Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
