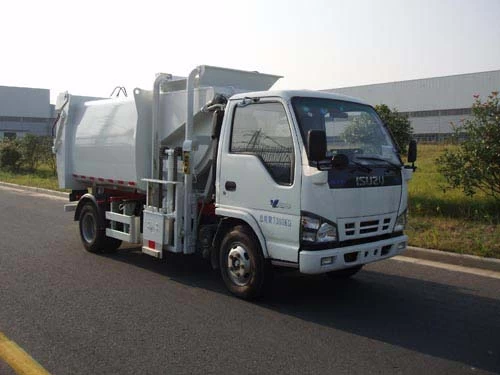

6000L Isuzu High Quality Kitchen Garbage Truck
ISUZU 6000L High Quality Kitchen Garbage Truck
Main Features of the garbage truck:
1,It is used for collecting and transporting residual food arise from hotel, restaurant and mess hall.
2,Adopt machine-electric-hydraulic integration control systems, easy to operate and working safety.
3,Providing sealing discharge and pashing discharge two forms to adapt to different users.
4,The structures of control valve, cylinder and pipeline are advanced, the performances of that are reliable, easy to operate and convenient for maintenance.
5,Parts that are highly resistant to corrosion after acid pickling.
6Fine sealed property that can prevent sewage from overflow to avoid pollution again.
7,Stainless steel water tank and a high-pressure pump are supplied for the machine, it is convenient for cleaning vehicle and worksite.
Main Parameter of the garbage truck:
Vehicle model
|
PT5080TCAA4
|
Chassis model
|
NKR77
|
Total mass
|
8495kg
|
Curb weight
|
5250/5050kg
|
Rated contained mass
|
3050/3250kg
|
Box type
|
Tank
|
Cabinet capacity
|
6m³
|
Sewage tank capacity
|
0.32 m³
|
Solution tank capacity
|
0.259 m³
|
Discharge form
|
Sealing discharge /Pashing discharge
|
The maximum pressure of the hydraulic system
|
14MPa
|
Dimensions
|
5955*2200*2770(mm)
|
Wheelbase
|
3360mm
|
Trash volume
|
120/240L
|
