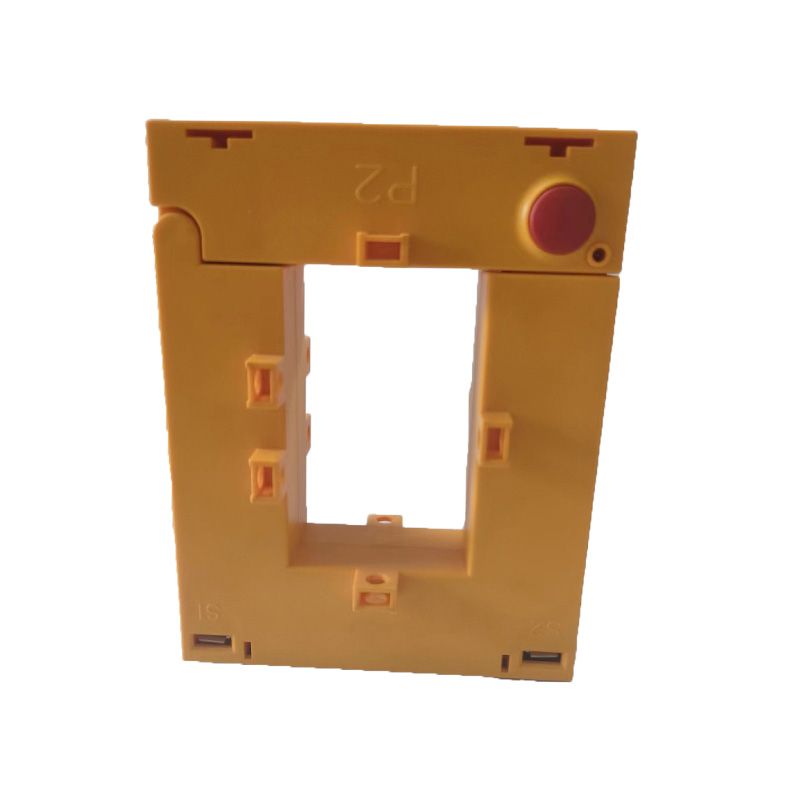

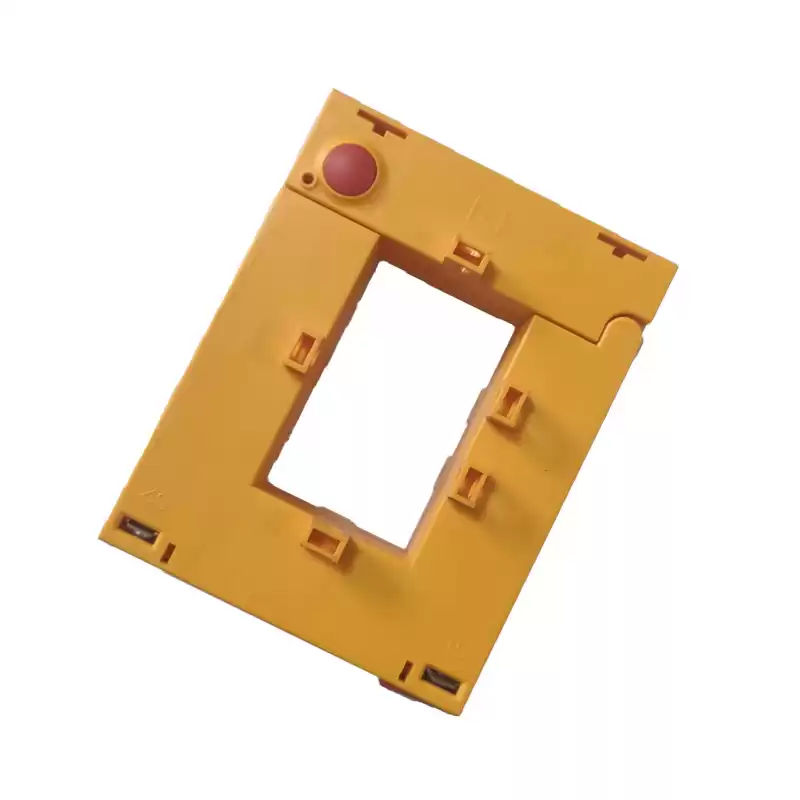

Introduction:
The principle of current transformer is based on the principle of electromagnetic induction. Current transformers consist of a closed iron core and windings. Its primary winding has several turns and is connected in series on the line where the current needs to be measured. Therefore, it often has all the current flowing through the line. The secondary winding has a large number of turns and is connected in series with measuring instruments and protection circuits. When the current transformer is working, its secondary side loop is always closed, so the impedance of the series coil of the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to a short circuit. The current transformer is used to transform the large current on the primary side into a small current on the secondary side, and the secondary side cannot be open circuited.
The current transformer is well-suited for various applications in the smart grid, such as:
Hybrid inverter (Home Energy Storage)
Power metering: current measurement for active power calculation
Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation
Power quality monitoring: electrical loads and distribution system equipment
Distributed measurement systems
Condition monitoring (e.g. Motor loads such as conveyers, pumps)
Typical applications:
1. Function: For power systems with strong mobility or small space or uninterrupted power
General measurement and protection in systems.
2. Purpose: Electric power instruments, electronic multi-function electric energy meters and on-site calibrators.
Instrumentation measurement and protection.
Electrical characteristics:
1. Maximum voltage of equipment: 720V
2. Power frequency withstand voltage: 4000V50Hz /1 min (1mA)
3. Primary rated current: 0-6000A
4. Secondary rated current: 5A
5. Frequency: 50/60Hz
Size comparison table: (products can be customized)
| Model |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
I(mm) |
J(mm) |
|
HMKCT-FA30*20
|
20 |
30 |
50 |
89 |
110 |
34 |
48 |
40 |
32 |
32 |
|
HMKCT-FA80*50
|
50 |
80 |
79 |
115 |
146 |
32 |
33 |
33 |
32 |
33 |
|
HMKCT-FA80*80
|
80 |
80 |
108 |
145 |
145 |
32 |
33 |
33 |
32 |
33 |
|
HMKCT-FA120*80
|
80 |
120 |
108 |
144 |
185 |
32 |
32 |
32 |
33 |
32 |
|
HMKCT-FA132*42
|
42 |
132 |
79 |
146 |
215 |
48 |
42 |
55 |
38 |
40 |
|
HMKCT-FA160*80
|
80 |
160 |
120 |
184 |
244 |
52 |
47 |
54 |
38 |
33 |

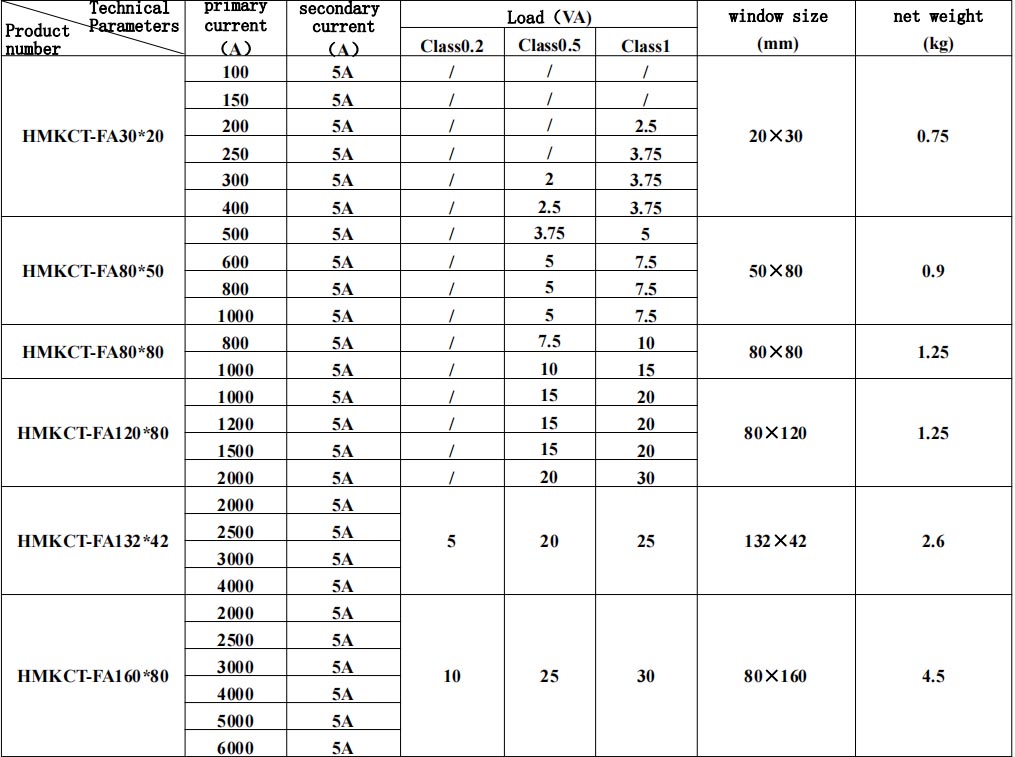

Basic parameters:
Hemei Electronics has a perfect technical research and development team, our current transformers have been sold at home and abroad for many years, the quality is guaranteed and trustworthy. Welcome to contact us at any time!
