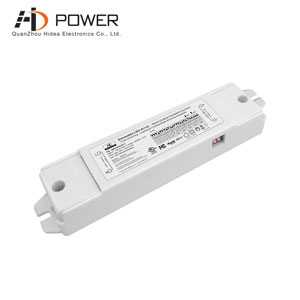

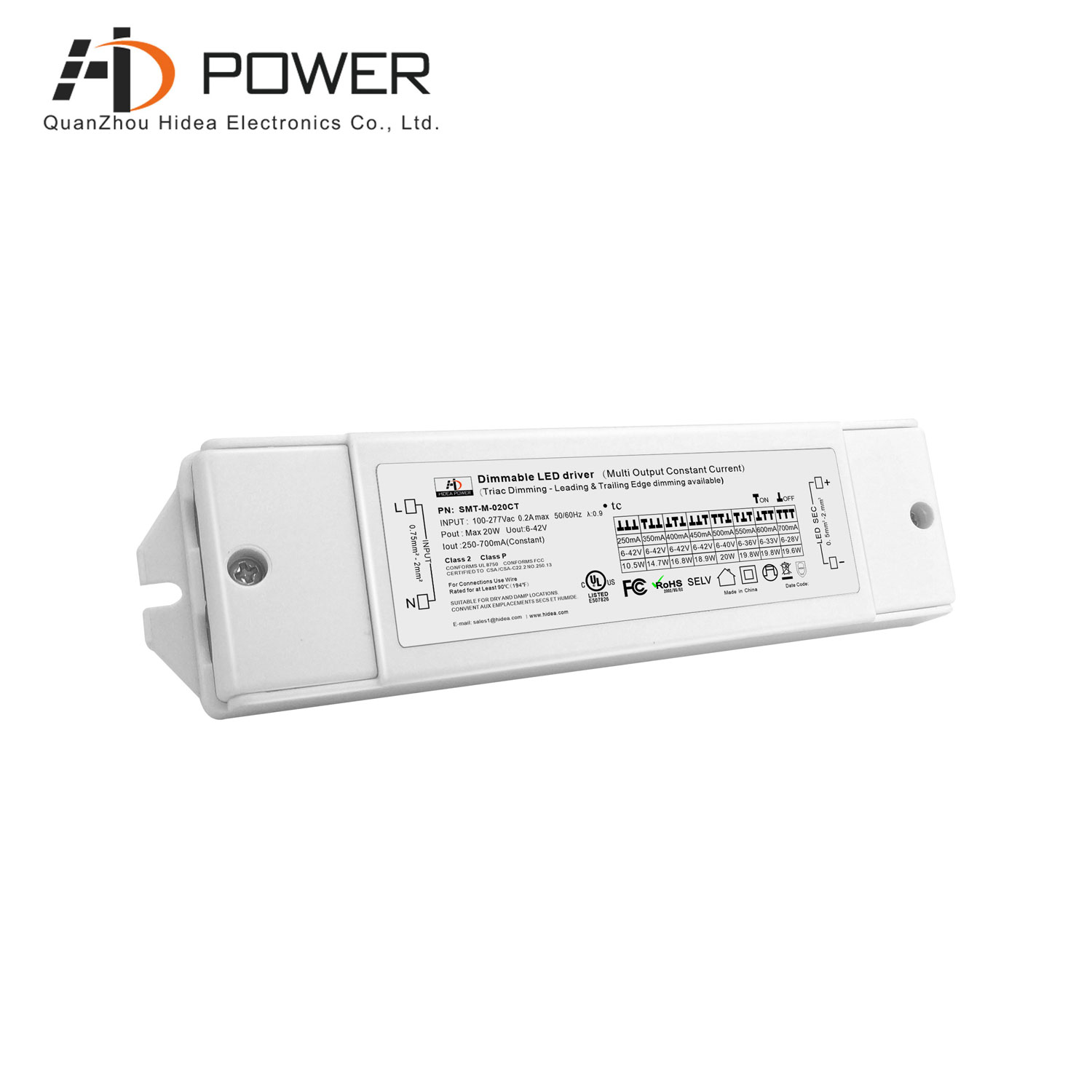

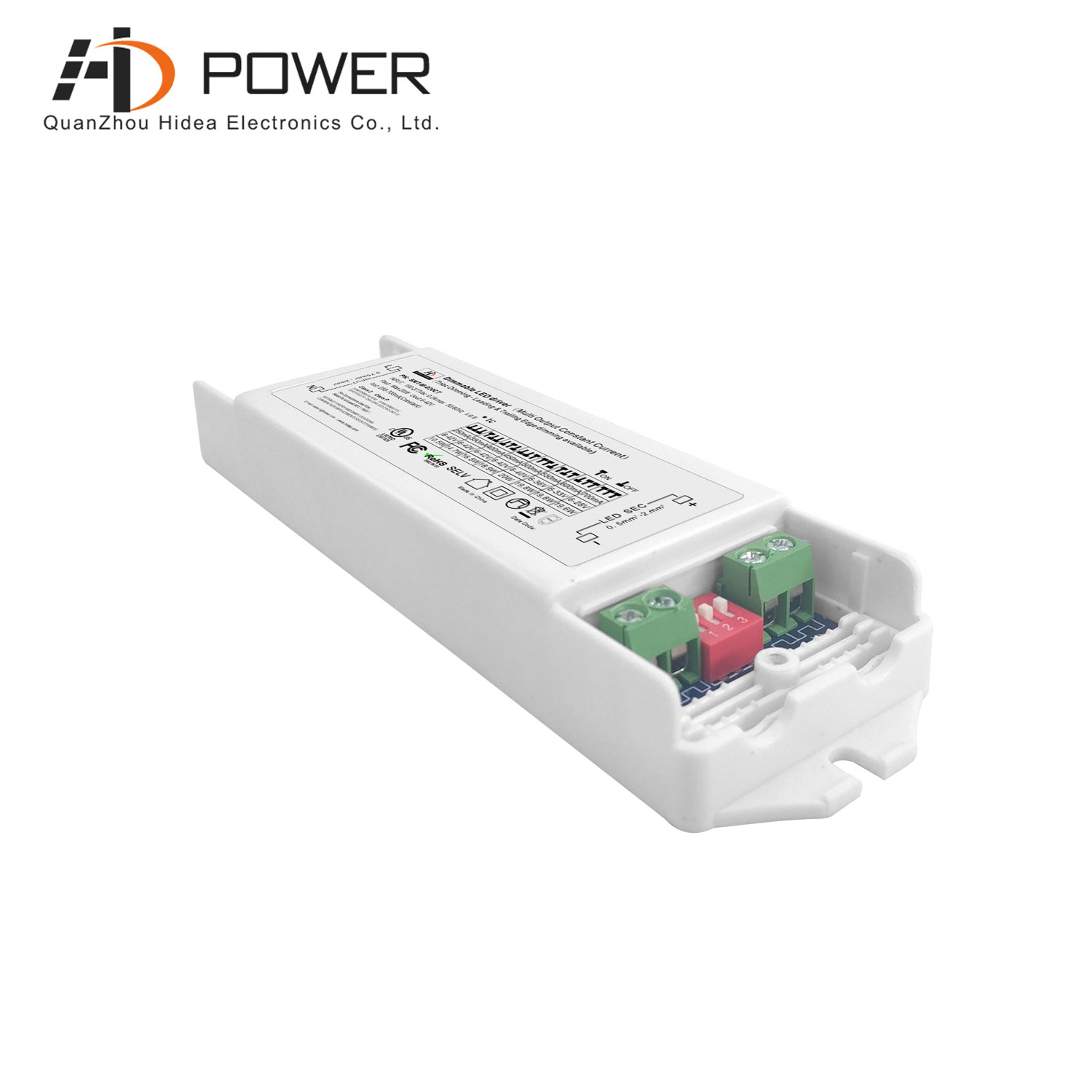

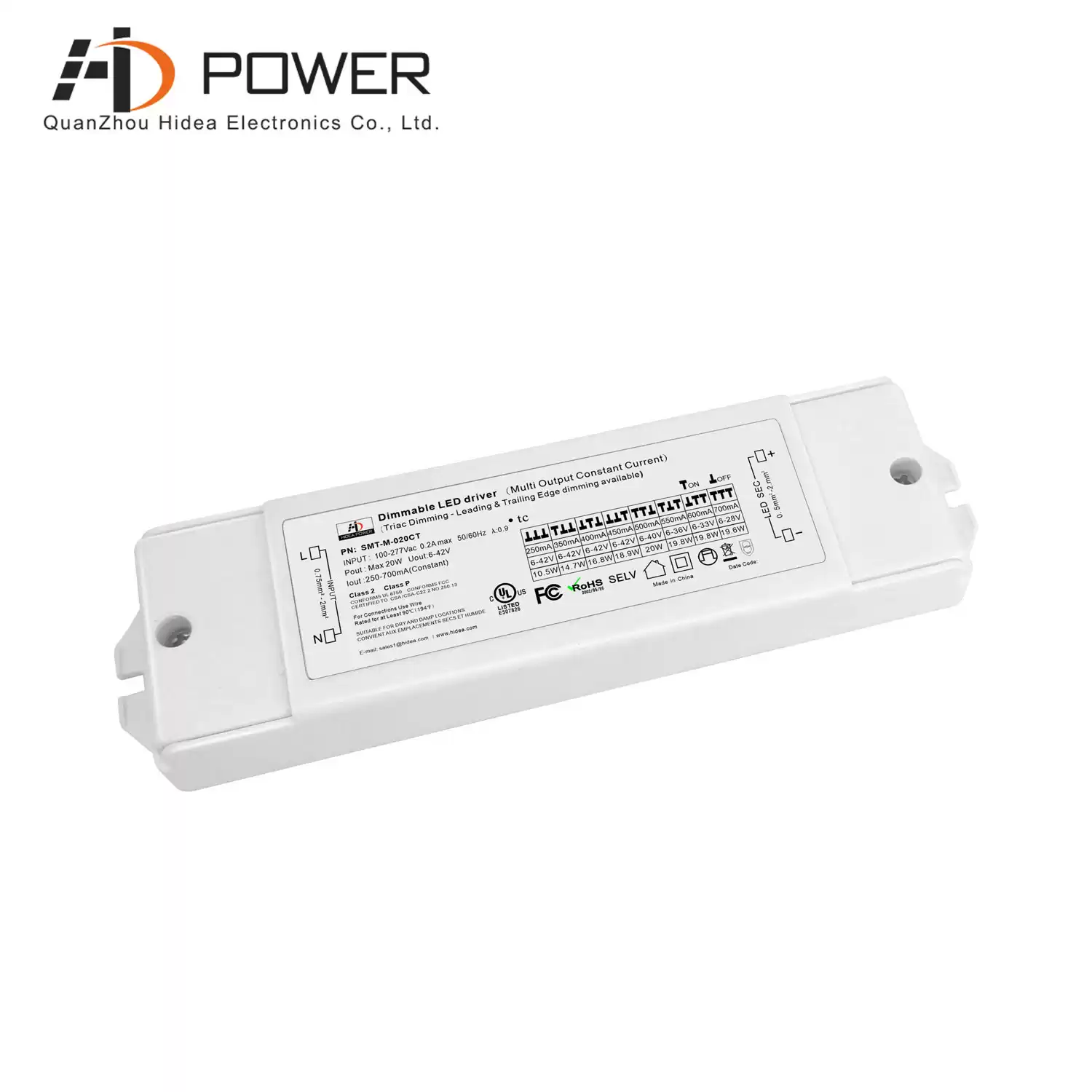

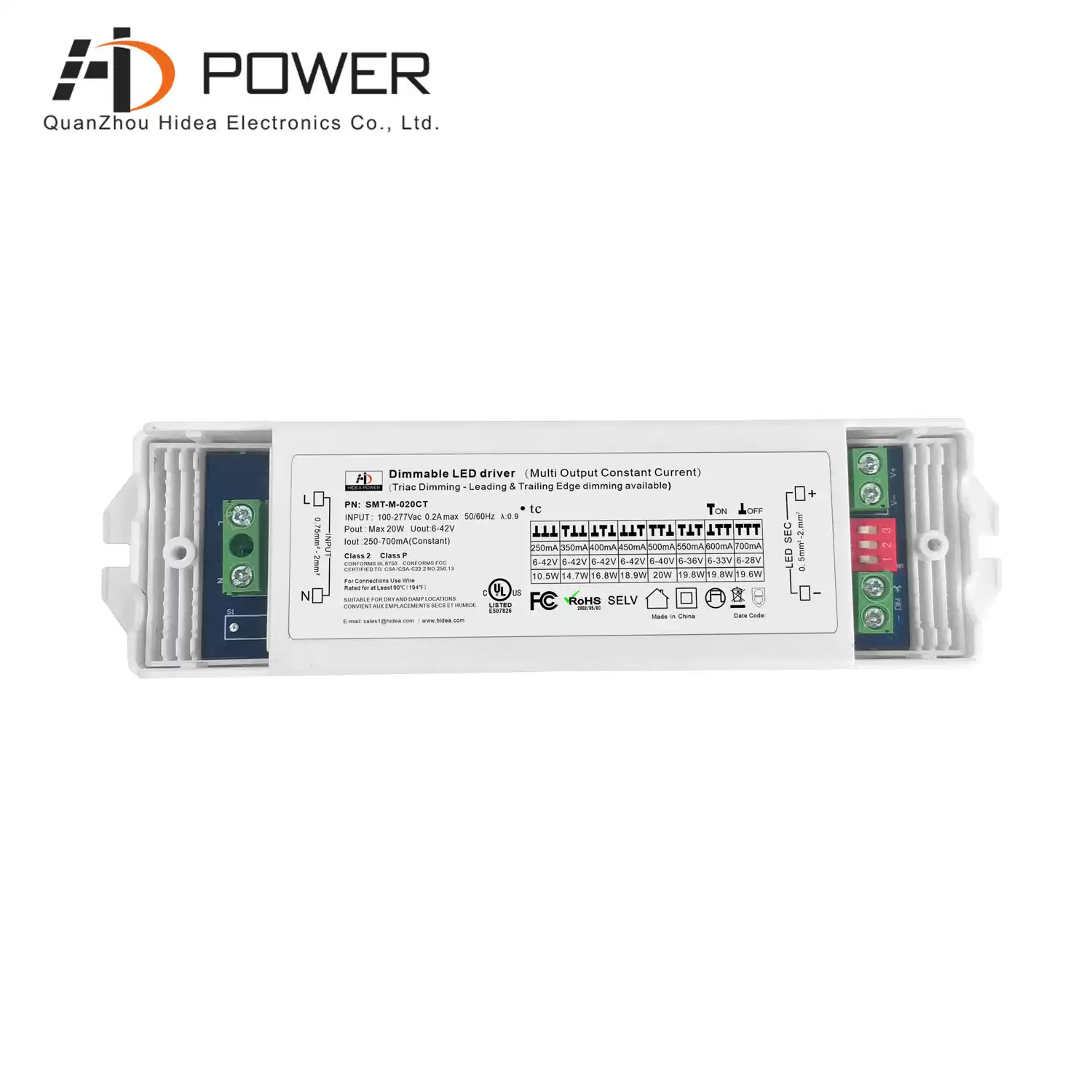

600ma 20w adjustable current design light led driver power supply manufacturers

600ma output current multi-current with dip switch 20W TRIAC dimmable led driver has short-circuit and overload protection functions, complies with global safety lighting laws, and can be well matched and compatible with well-known dimmers such as Lutron

Dimming ModeTriac Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)20W
Output Voltage
Shape & SizeStandard Size
Output Current600mA
Size159.5*43*20mm
Weight150g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

600ma 20w adjustable current design light led driver power supply manufacturers

hideapowertech new product Multi-current selectable triac dimmable led driver, built-in active PFC function, working efficiency up to 78%, plastic shell design, easy and fast installation, waterproof grade ip20, suitable for indoor lighting projects

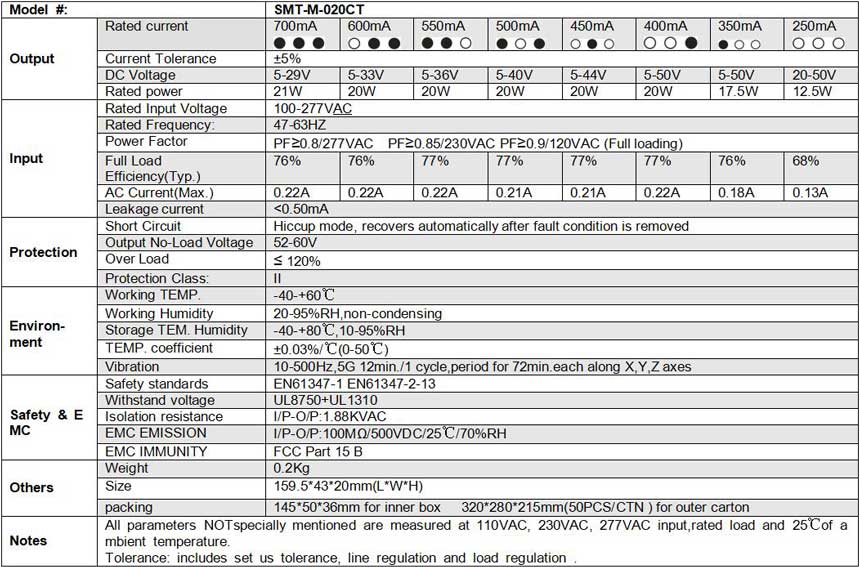

Specification

Related Products

Plastic shell 10W LED constant current output led driver, with a unique multi-current with dip switch design, can adjust the required output current according to user needs, optional between 100ma-450ma

Mode：SMT-M-010CT

Dimming Mode : triac dimming

Output Power : 10W

intput voltage：100-277Vac

Size：135*30*20mm（L*W*H）

Next Product

Prev Product

Product Tags adjustable current led driver 600ma constant current led driver led driver 20w 600ma led power supply manufacturers design light led power supply 5-33v triac dimmable led driver
