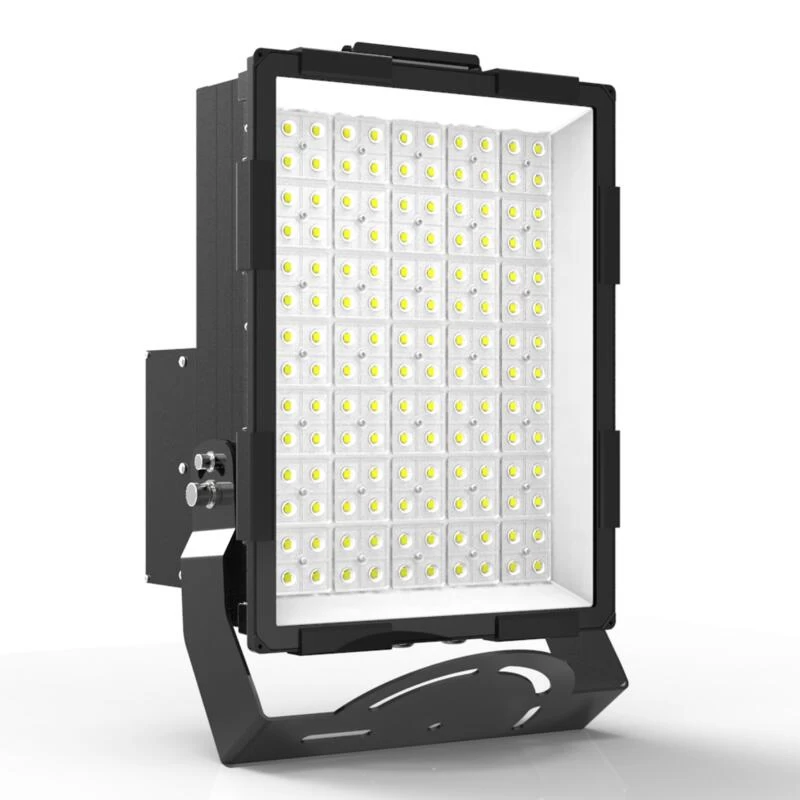

Product Item: 600W Harbour High Mast Lighting LED Floodlights
Overview:
This range of harbour lighting LED floodlights is suitable for replacing conventional HPS or metal halide floodlights 800W-2500W for sports fields lighting, square lighting, railway platform lighting, and other public exterior lighting, etc.
Adopting high brightness CREE XHP or XTE series high power LED chip and 5 years warranty high efficiency Mean Well/Inventronics driver, this series of LED high-mast flood lights has a superior quality in lighting distribution and durability. Luminous efficacy can be 120-135 lumen/W, while compared with other ordinary SMD LED on market, the high power CREE LED stronger beam can have better performance especially under rainy or foggy weather, luminaire with CREE XTE or CREE XHP series LED chip can go farther.
The compact die-cast aluminium stadium light has effective cooling system for best heat dissipation which ensures lower luminous decay and longer life expectancy.
Specifications:
|
Model
|
SR-HMC-600W
|
Power
|
600W
|
Lumen Output
|
81,000lm
|
Light Source
|
CREE/LUMILEDS/OSRAM, etc.
|
Beam Angle
|
10°/15°/20°/36°/60°/90°/70x140°/80x135°
|
Driver
|
INVENTRONICS/MEAN WELL/PHILIPS, etc.
|
Input Voltage
|
AC 100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP66
|
|
IK Rating
|
IK08
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, Tempered Glass
|
Dimension
|
542x347x211mm
|
Warranty
|
5 years warranty
|
Features:
• Power: 400 Watt, 500 Watt, 600 Watt, 800 Watt, 1000 Watt, 1200 Watt.
• 600W LED high mast stadium light system luminous efficacy 120-135lm/W (Lumileds, Nichia, Osram, and other LED chip available)

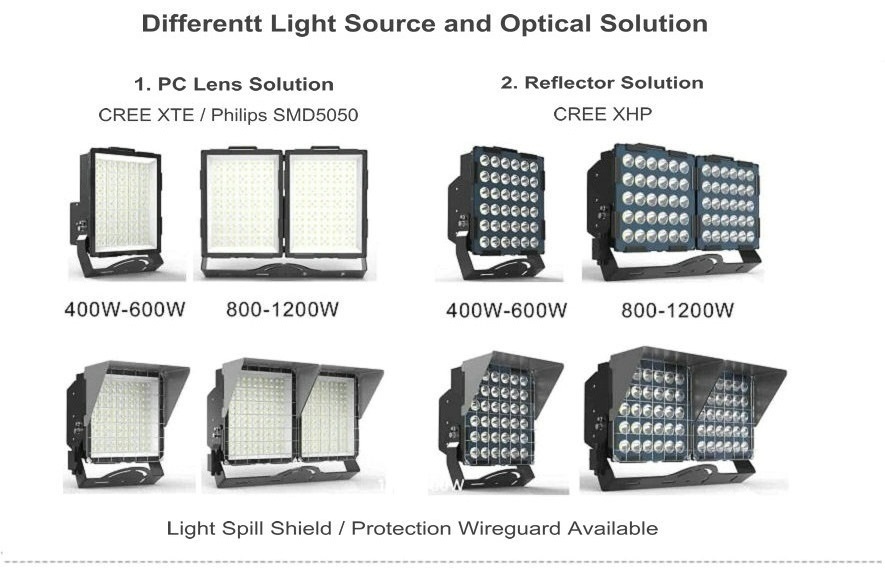

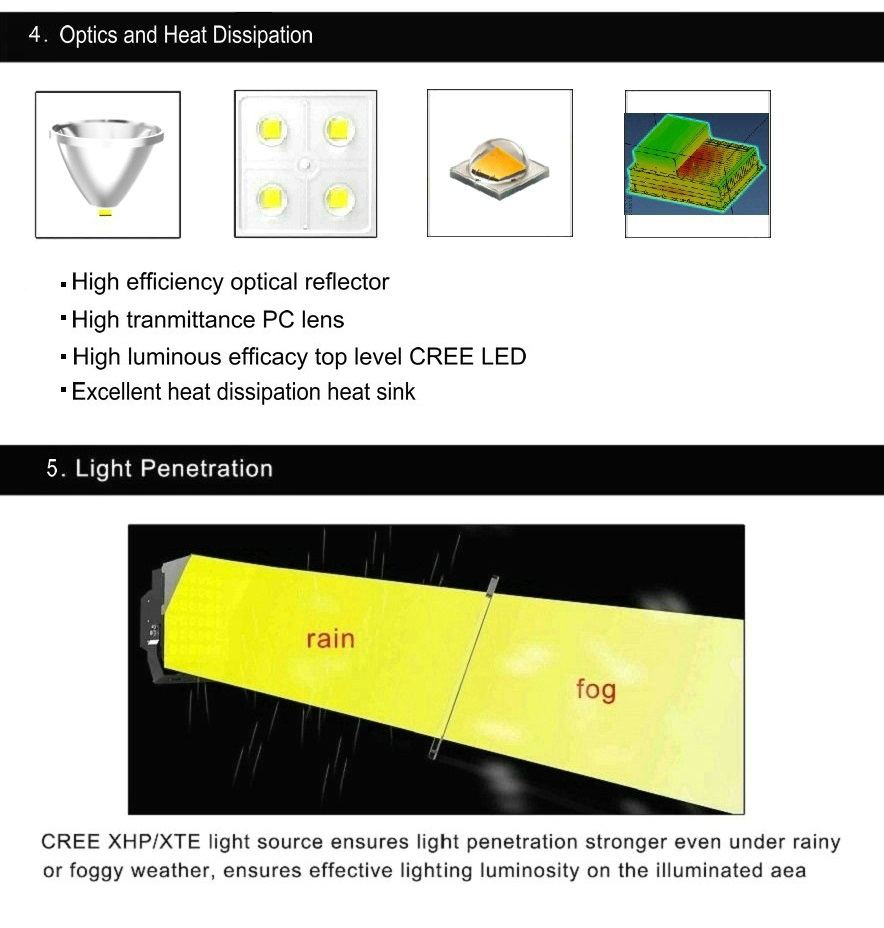

• Top level CREE XTE or CREE XHP series LED, better stability under high temperature long-time working with less luminous decay. Light beam of luminaire with CREE XHP or XTE can reach farther under extreme rainy or foggy weather.

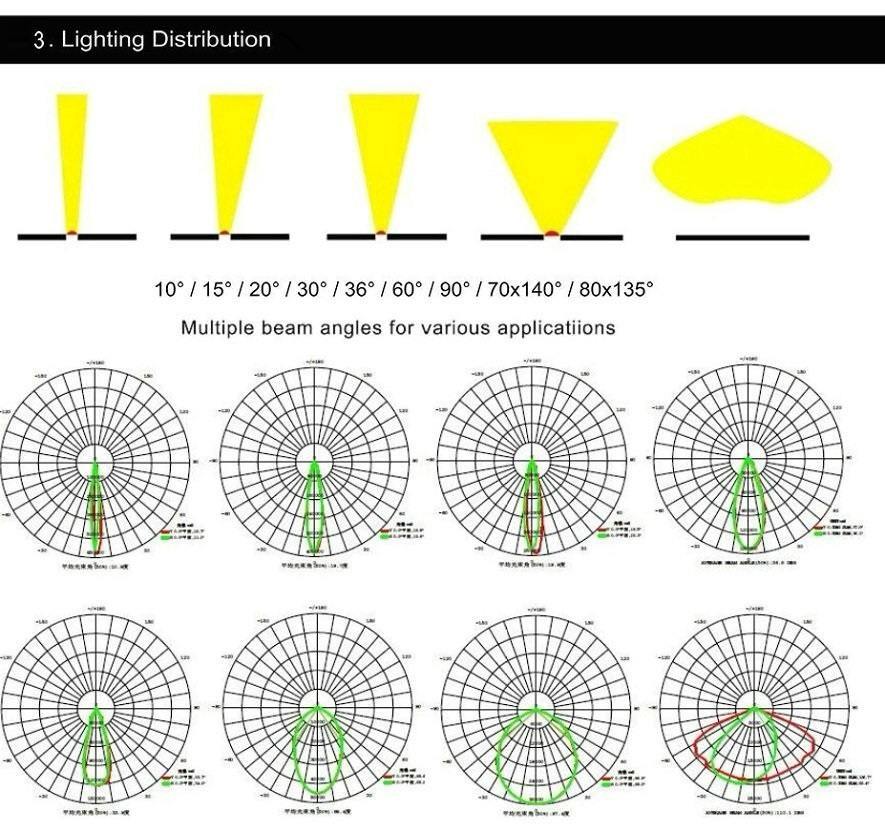

• Multiple light beams: 10°/15°/20°/36°/60°/90°/70x140°/80x135°, both symmetrical and asymmetrical beams for various lighting applications.
• 5 years warranty Mean Well or Inventronics driver adopted, high power factor>0.95.
• 6KV standard surge protection, 10KV surge protection/additional surge protection device (SPD) available upon request.
• Dark grey or black finish with powder coating for anti-corrosion.

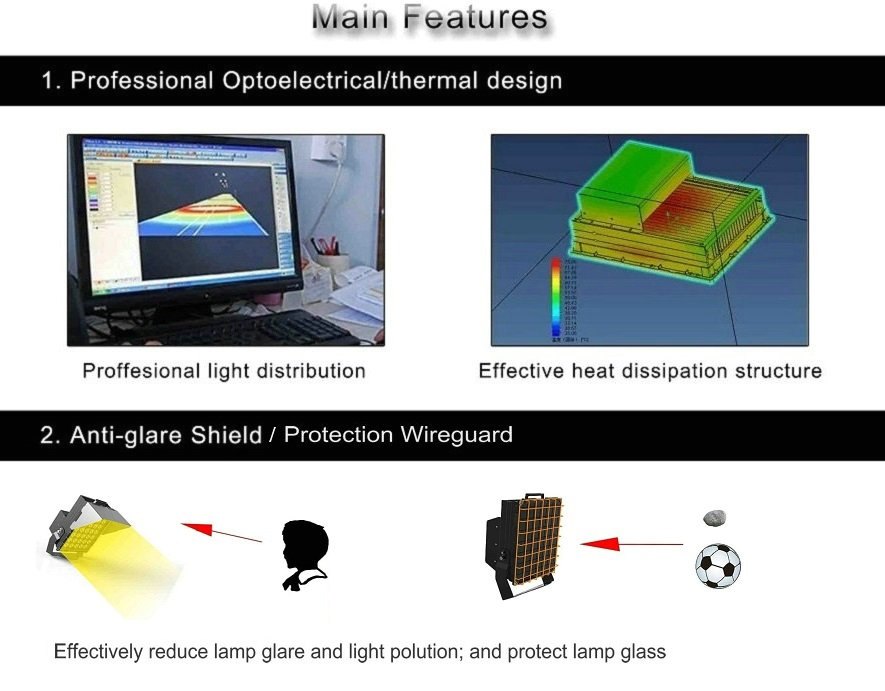

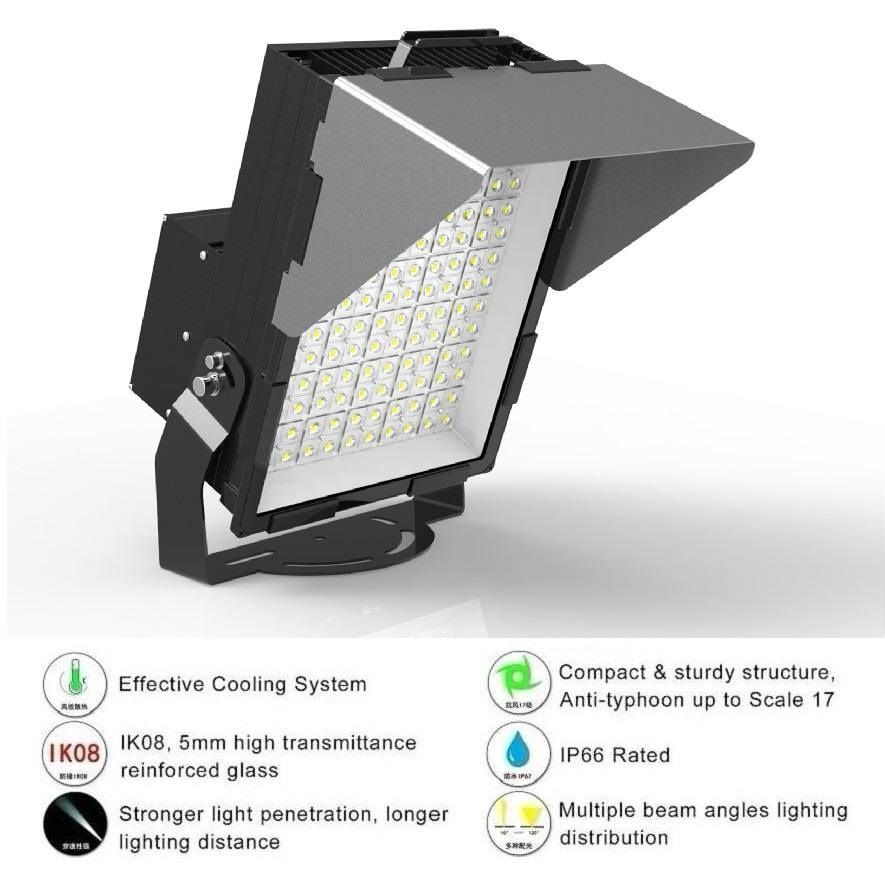

• Aluminum lamp body with effective cooling system. Good thermal management with the well-designed ventilation of the heat sink.

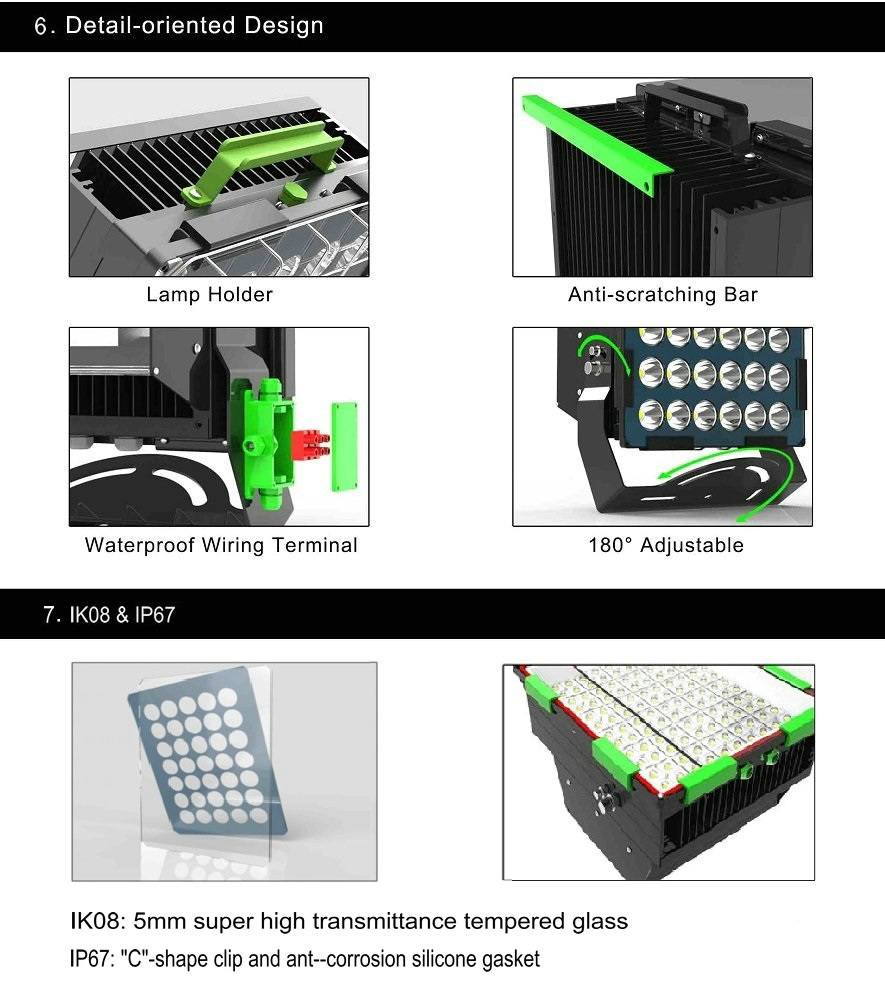

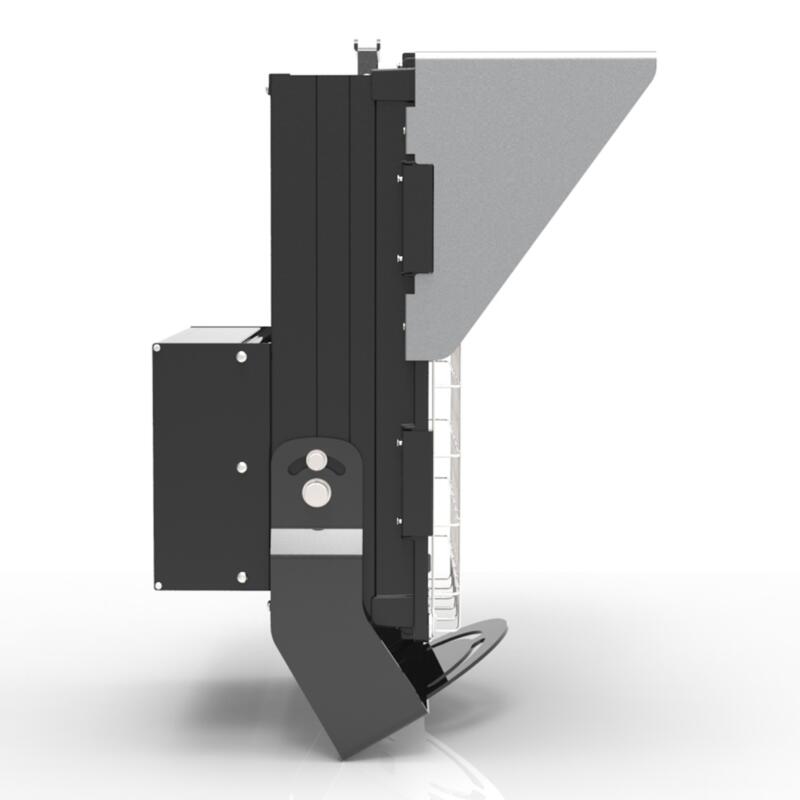

• Separate exterior driver compartment attached at the back for easier maintenance and thermal control.
• IK08, 5mm thickness tempered glass with high transmittance of light. IP66 waterproof.
• Intelligent dimming available: 1-10V dimming, DALI dimming, ZigBee wireless control.

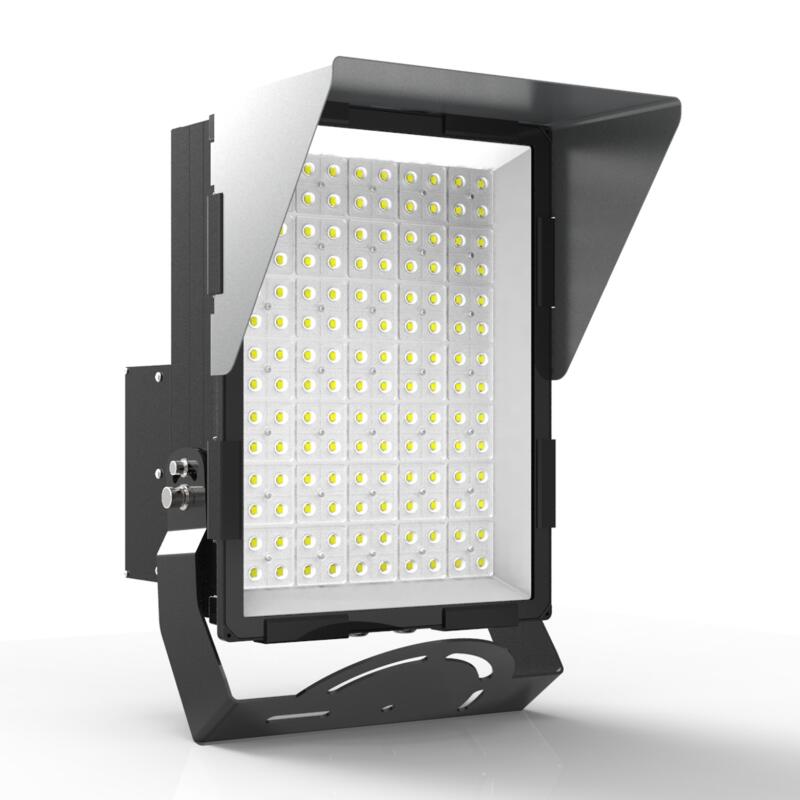

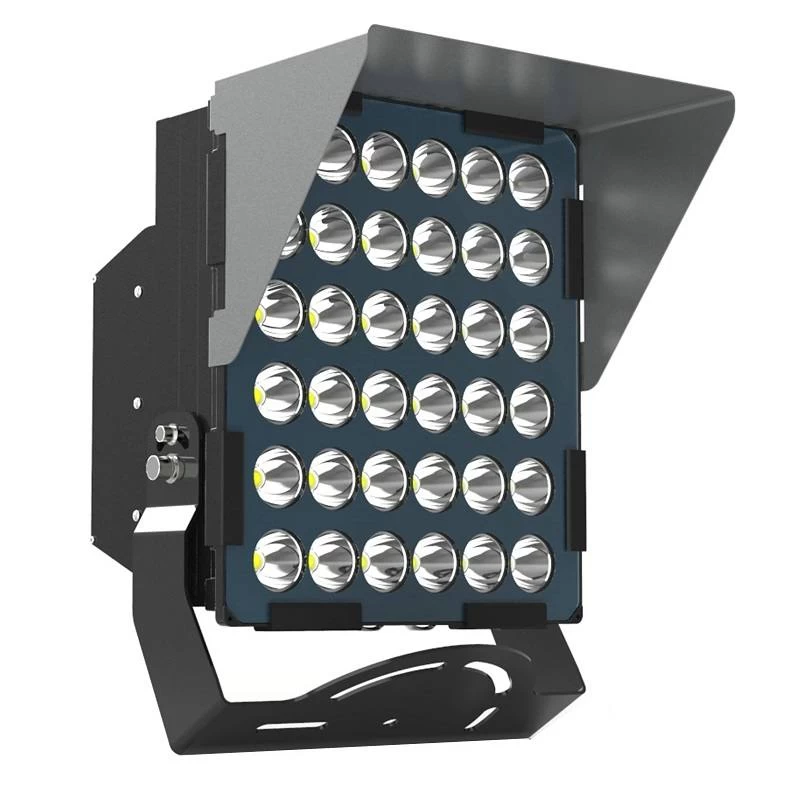

• Light spill shield, anti-collision wire guard, and laser aiming tool kits available.

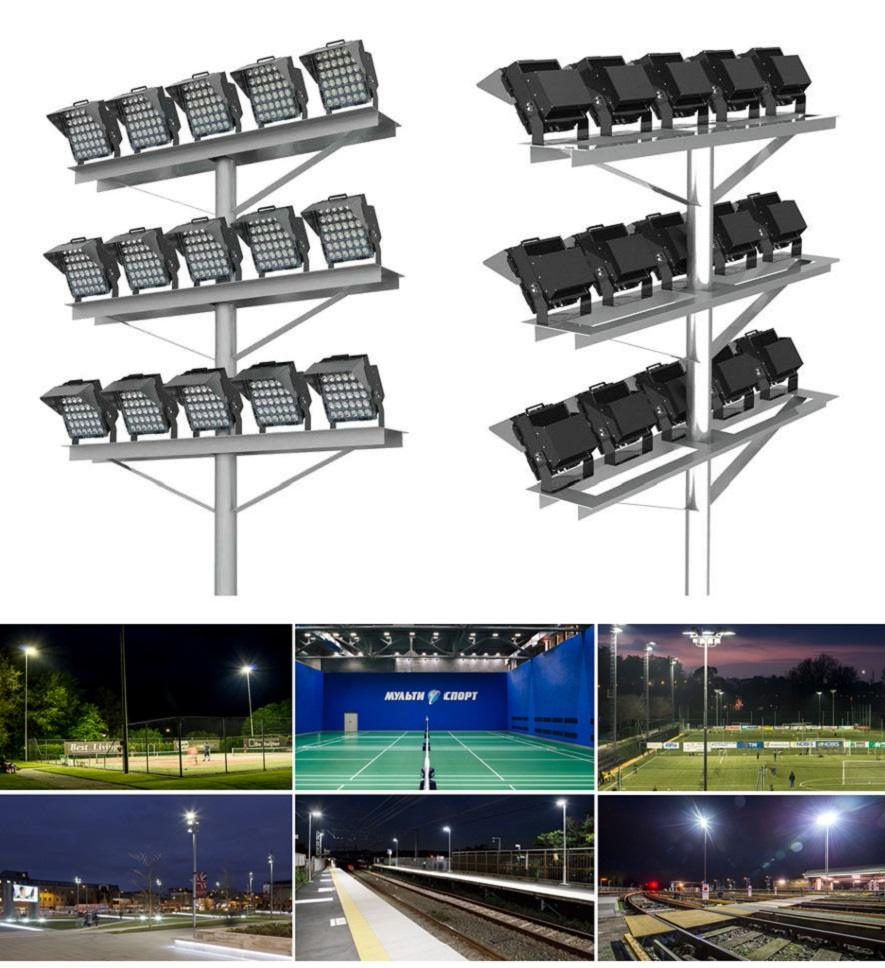

• This range of high power floodlights are widely used for wharf lighting, railway lighting, logistics lighting, futsal court lighting, padel court lighting, volleyball court lighting, handball court ligting, basketball court lighting, etc.
