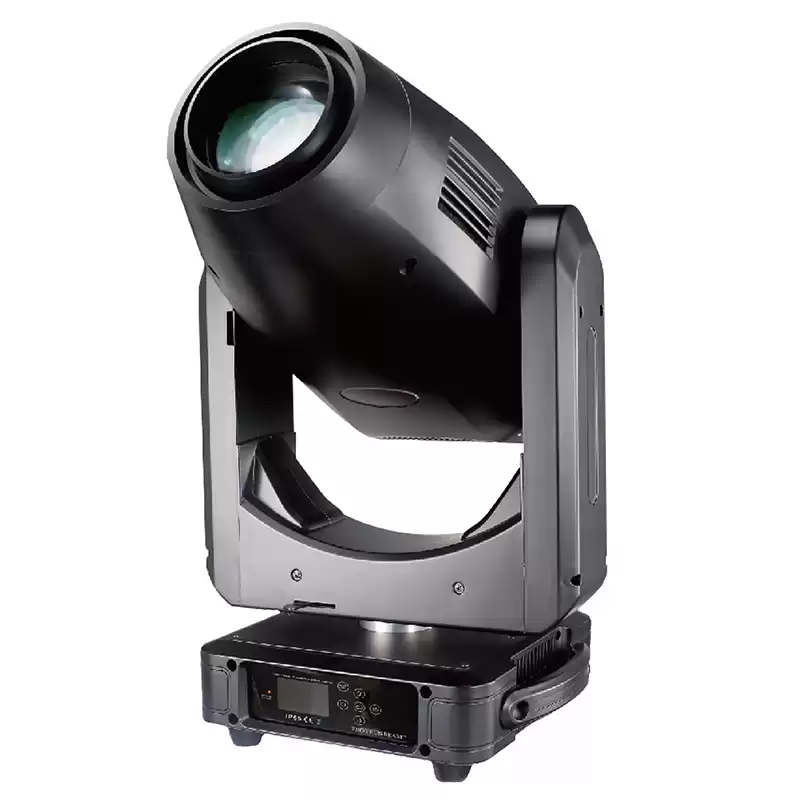

It uses a single 600W LED as the light source, a 7-42 ° large angle range zoom, and a three-phase motor for horizontal and vertical use. The corresponding speed, smooth, gorgeous dynamic effect disk, unique prism effect, uniform cutting transformation Ideal for stage lighting engineers. In addition to DMX control, there are powerful RDM control and ArtNet network control technology.
● Optics
. Light source: 600W white LED
. Color temperature: 6200k / 8000k
. Service life: 50000 hours
. Explicit indication: 74 / ≥90 (optional)
● Power supply
. AC100-240V 50 / 60Hz
. Power consumption: 890W
. PF ≧ 0.98
● Scanning
. Pan: 540 ° / 630 ° operation (16 bit fine adjustment)
. Tilt : 270 ° (16bit fine adjustment)
. Advanced operation system: automatic repositioning, fast, quiet and smooth
● Colour
. Unlimited color mixing
. CTO linear
. 7 dichroic filters + open, two-way color rainbow can be created,
. Uniform and smooth CMY + CTO color change system (GL6: 2700k-8000k, GL6H: 2700K-6500k))
● Gobo
. 1 rotating gobo
. 6 interchangeable + open, with vibration effect and pattern plate can be positioned
. 1 fixed gobo
. 7 interchangeable + open, shaking effect with the gobo
● Features
. DMX channel: 34/54CH
. Prism: 1 bidirectional five-sided rotating prism, the prism can locate the focus
. Aperture: 5% -100% smooth change to change the spot size
. Strobe: 0-25Hz or random
. Dimming: 0-100% linear dimming
. Atomization: light atomization, heavy atomization
. Zoom: 7 °-42
. Focusing: smooth and delicate focusing, auto focus.
. Dynamic effect board: stunning simulation of moving flames
. Cutting disk: a set of 4 light-cutting angle control systems, which can be adjusted by 90 ° rotation
● Display
. Battery for fast addressing
. 15-second standby automatic lock
. Pan / tilt release (maintain menu and input buttons)
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
● Other specifications
. Input and output signal isolation
. Optional wireless receiver
. ArtNet control, RJ45 input and output
. Setting and addressing: RDM
. Intelligent fan noise control, intelligent energy saving
● Dimensions and weight
. Packing size: 620x430x320mm
. Net weight: 32KG
● Certification
. CE,ROHS
