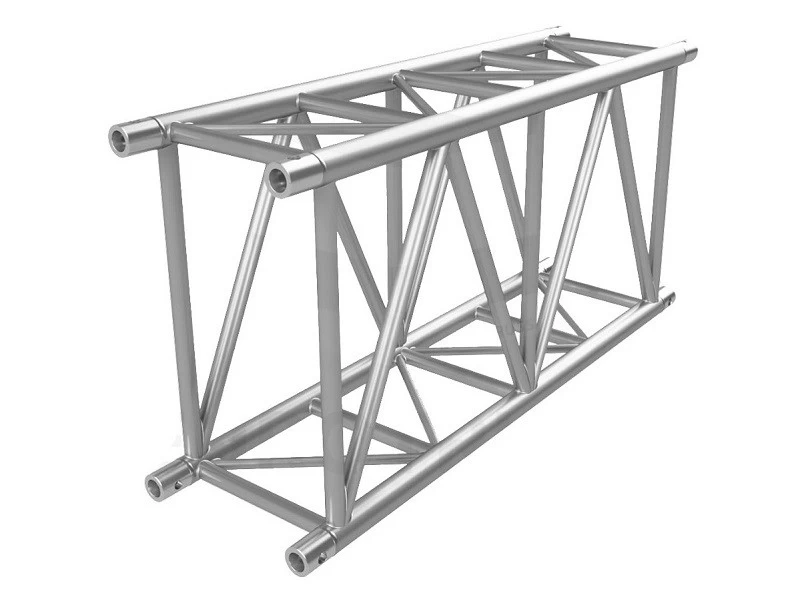

600x1010 Heavy Duty Spigot Rectangular Truss Beam

Rectangular Lighting Truss is heavy duty  with strong loading capacity UDL91kg and CPL 1358kg at more than 30 m span. It is adapted forBig Concerts,Theaters, Expos. Rental,ect.



600x1010 Heavy Duty Spigot Rectangular Truss Beam:

Rectangular Lighting Truss offers supperPre Rig heavy duty capacity for big events.It is usually tower-based and it is usually used as Truss Beam and constructed into huge Truss Roof System  in big concerts events.

Features:

  1. Long Span to be more than 30 m with more than 10000 kg capacity structure
  2. Usually equipped with Ground Supports to construct the truss systems
  3. Easy and quick to install with supper conical couple
  4. Powder coating or anodizing to be any color on request
  5. Any architecture structure designs available for free

Specification:

Material Aluminum Alloy 6061-T 6/ 6082-T 6
Dimensions 1010 x 680 mm
Types Rectangular
Main tubes 60 x 5 mm
Braces 50 x 3 mm & 50 x 2 mm
Connection type Supper Conical couple system

Length: 100cm/ 200cm/300cm/400cm; other length can be custom.

The other specifficatios and irregular shape structures can also be customized according to requirements.

Large-Scale performance stage truss, also known as stage frame, lighting frame, space frame, is a structure formed by connecting rods with hinges at both ends. The truss is composed of straight rods and generally has planar or spatial structure with triangular elements. The stage Truss rods mainly bear axial tension or pressure, so that the strength of the material can be fully utilized, and the material can be saved compared with the solid web beam when the span is large. And increase stiffness. It is often used in various enterainment projects, for stage construction, haning lights, sounds, decorations,ect., or for scaffolding construction. The application of truss is very wide.
