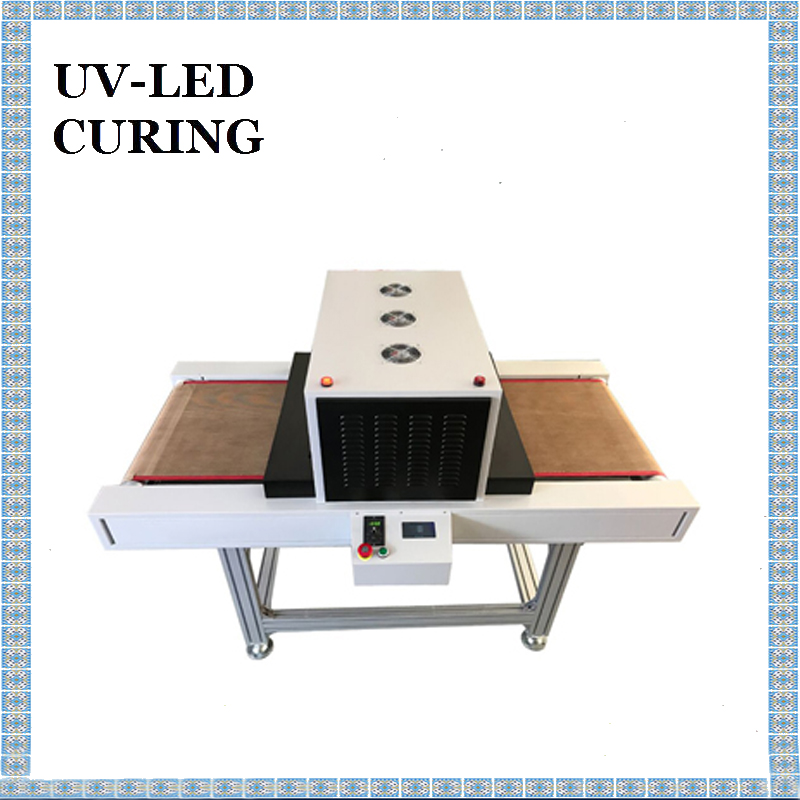

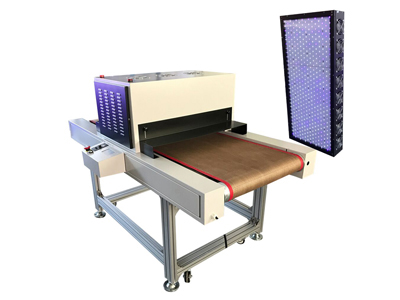

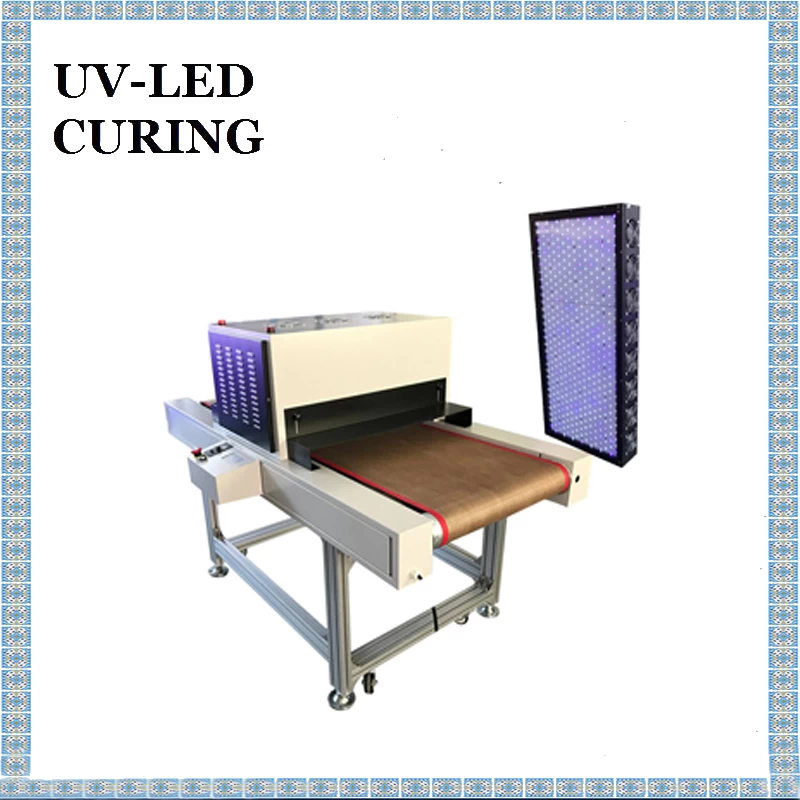

600X250mm Conveyor Type UV LED Curing Machine, to replace the traditional mercury lamp, low temperature, no ozone, no deep UV, low energy consumption, high efficiency.
No infrared radiation, cold light source, suitable for curing all kinds of heat sensitive materials. It does not need to be warmed up at the start-up, it is ready to use and instantly reaches the maximum light intensity. Power saving, easy to control. Contains no mercury, does not produce ozone, safe and environmentally friendly infrared sensor intelligent control, start and stop control on demand.
Specification Parameter

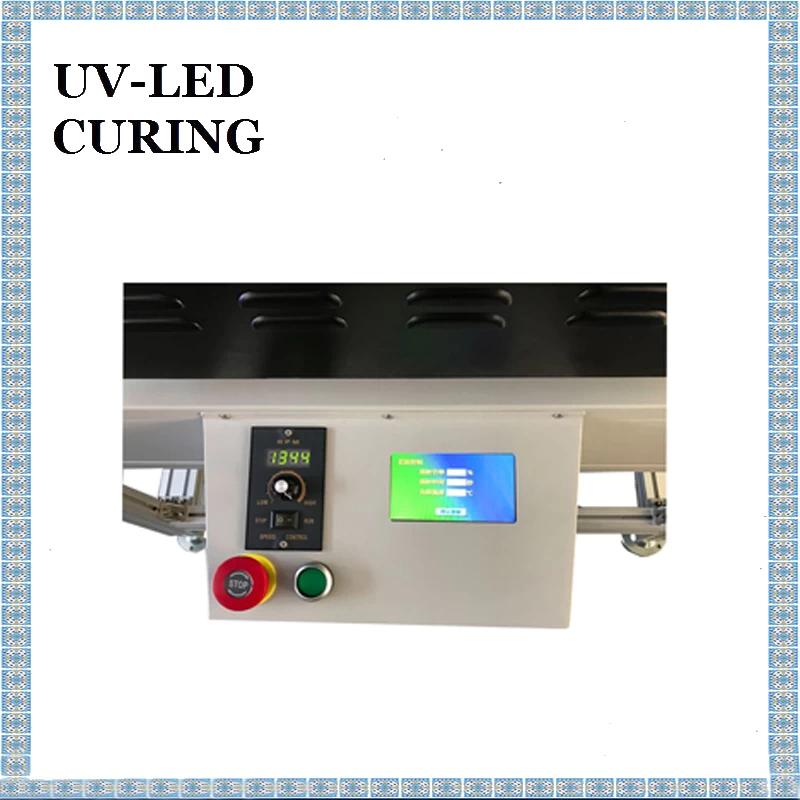

1. Control system:
*panel display,touch opration, real-time
*monitoring of head of the working state
*intensity adjustable from 0-100%
*temperature monitoring
*infrared sensor control, work model optional
*speed of conveyor : 0-10m/min adjustable

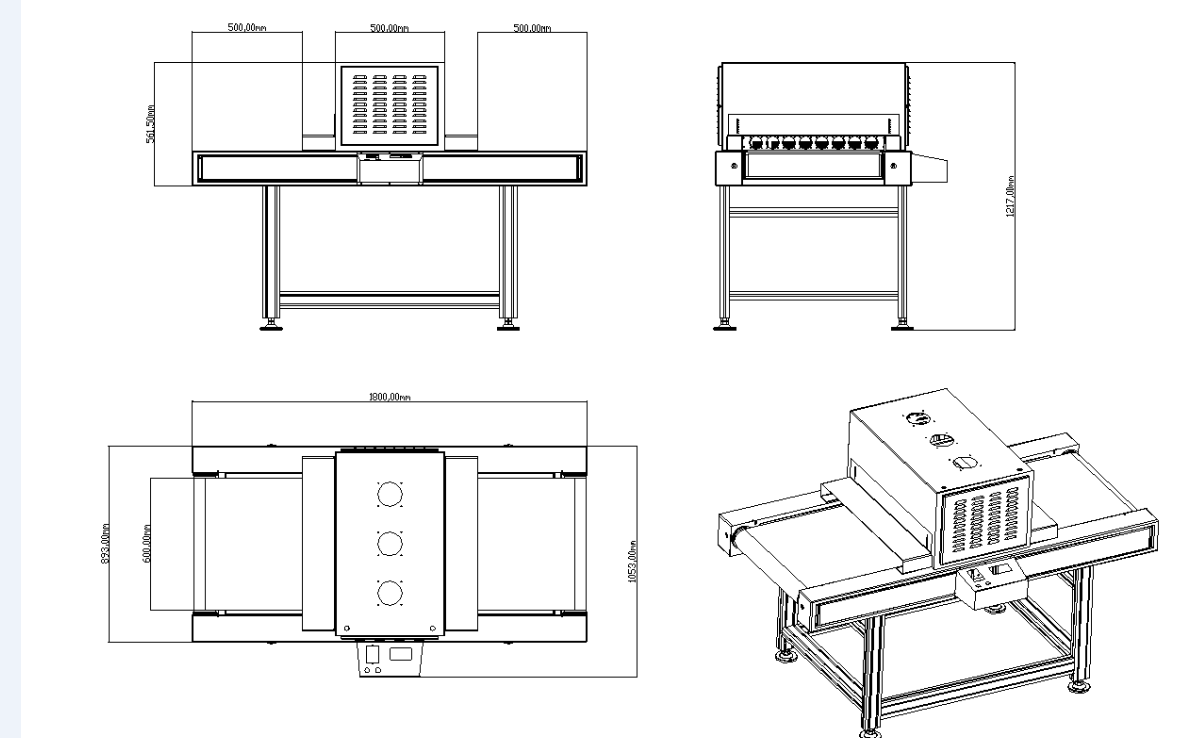

*whole machine size : L1800*W1053*H1271mm
2. UV LED irradiation head(DSX-S450-250x600)
*wavelength : 365nm
*curing area : 250x600mm
*optic power : 500mw/cm2(10mm irradiation distance)
*recommended height of irradiation : 5-100mm
*dimension : L644*W294*H86mm
*cooling method : air cooling
Product Survey
DSX-SL450-250x600 is a high-performance UV LED curing system, the system includes the controller, UVLED irradiation head and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of forced air cooling, the effective curing area of 250x600mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line.
HTLD-SL450-600X250-365 is a UV adhesive curing design High performance UVLED surface light source curing system, the system mainly contains control System, UVLED head and conveyor belt. The machine UVLED irradiation head mining Integrated with imported high-intensity UV LED, UV spectrum wavelength is 365nmWith forced air cooling, the effective curing area is 600X250mm, which supports out-side The signal input and trigger can be used in semi-automatic or fully automatic production lines. The conveyor belt material is Teflon and the transmission bandwidth is 600mm.
