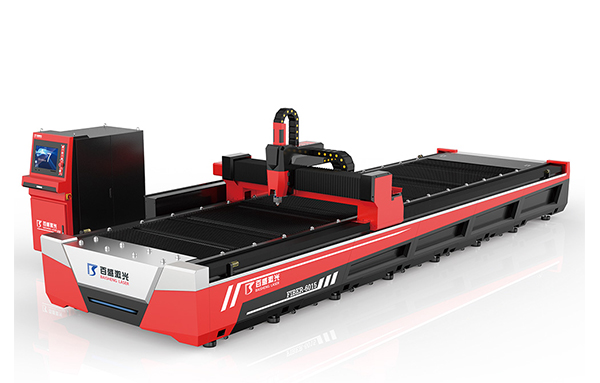

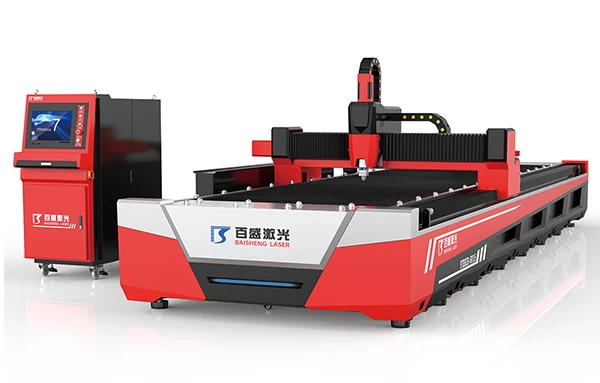

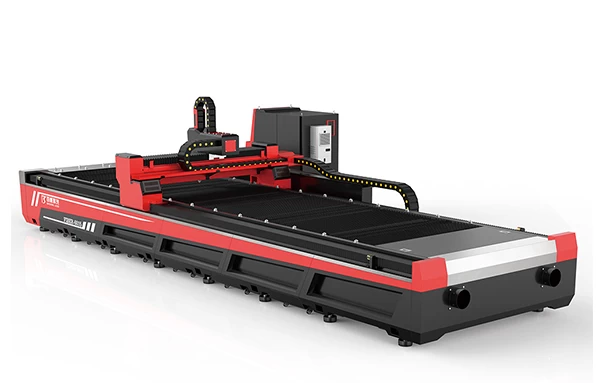

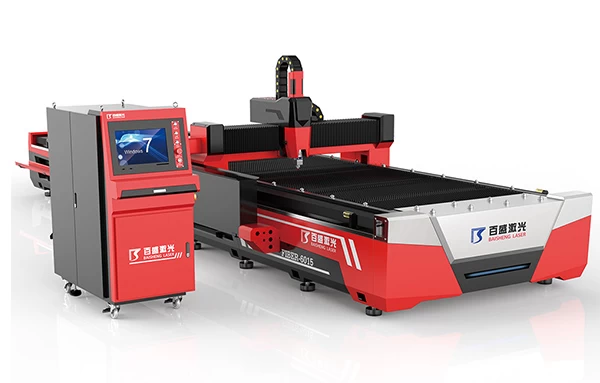

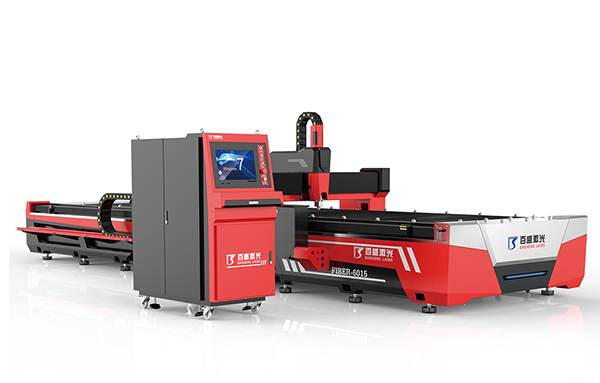

6015 Fiber Laser Cutting Machine with 6000*1500mm Work Table

Brand and manufacturer

Baisheng Laser

Machine Model

F6015E F6020EF4015EF4020E options.

Dimension cutting size

8020*2520*1900mm 6000*1500mm

Laser power

700W,750w,1000w 1500W 2000W 2200W options

Machine weight

Fiber laser Generator

Raycus,IPG option

Laser wavelength

1064nm

Laser Beam quality

<0.373mrad

Worktable

Sawtooth slats  pneumatic loading & offloading equipment

Fiber Laser cutting head

Worthing WSX ,Raytools, Precitec

Working life of fiber module

More than 100000 hours

Motors & Drives

Japan Brand

Reducer

 high precision and torque, max one arc precise

Guide Rails

TaiwanAmerica  Brand

Transmit system

rack and pinion double drive system ,4 servo motors .

Chain system

Enclosed high quality

Water Chiller

TEYU( S&A) brand, Hanli

Control system

Professional laser control system--Cypcut

Position type

Red Dot pointer

Cutting thickness

≤7mm(stainless steel)

≤16mm(carbon steel)

Max. Idle Running Speed

120mmin idle acceleration

Max Cutting Speed

30MMin

Geometric Position Accuracy

within ±0.05mmM

Reorientation accuracy

within ±0.03mmM

Lubrication system

Automatic ,evenly.

Min. Line Width

±0.02mm

Power Consumption

≤18KW

Auxiliary gas system

Japan SMC

Power supply Voltage

380V50Hz60Hz

Auxiliary Gas for cutting

Oxygen, Nitrogen, Air

Compatible software

Autocad, Coreldraw, etc

Graphic format

DXFPLTAI

Working method

Industrial PC control with console desk and romote

Total power protection rating

IP54
