6020 High Power Fiber Laser Cutting Machine with Shuttle Table
-
3000 x 1500 mm (10’ x 5’), 4000 x 2000 mm (13’ x 6.5’), 6000 x 2000 mm (20’ x 6.5’) availble.
-
sheet size in-line pallet changer,climbing pallet .
-
fiber laser source up to 8 kW
-
machinable materials: mild steel, stainless steel, aluminium, copper, brass, galvanized
-
very compact layout
-

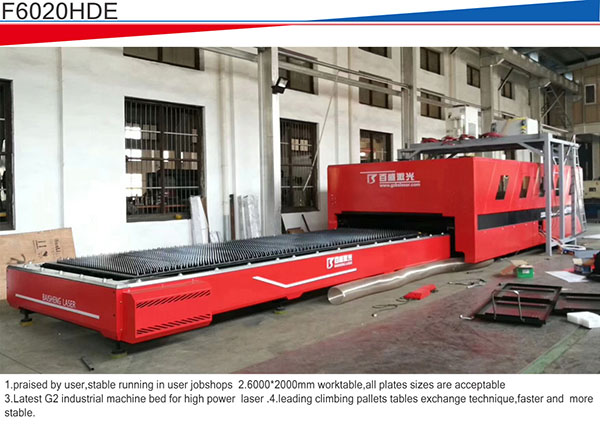

Model name:F6020HDE
-
control system: China Cypcut or PA8000 cnc control..
-
cutting head:WSX ,Raytools,Precitec,Highyag.
-
Servo motors and drives:Yaskawa / Schneider

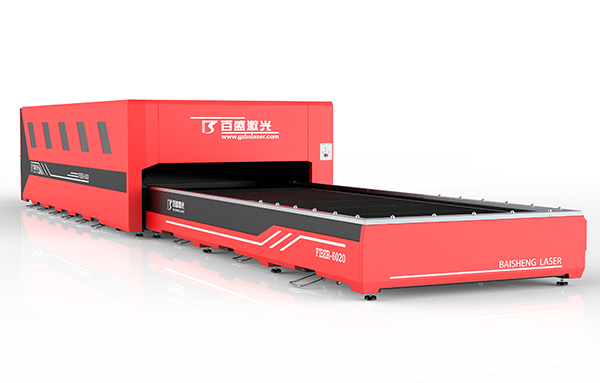

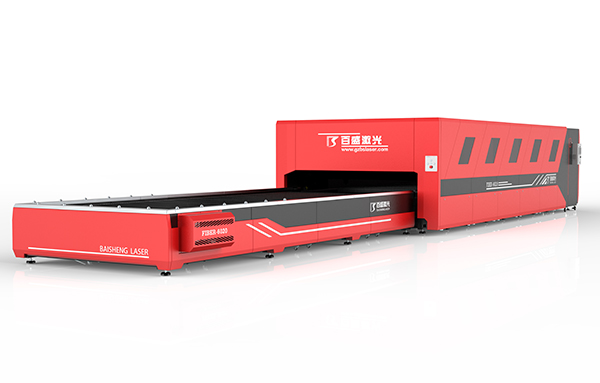

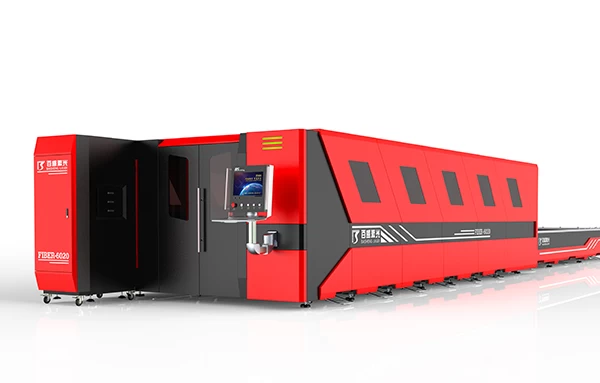

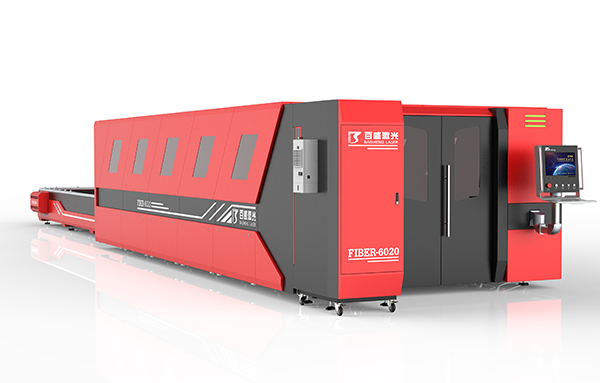

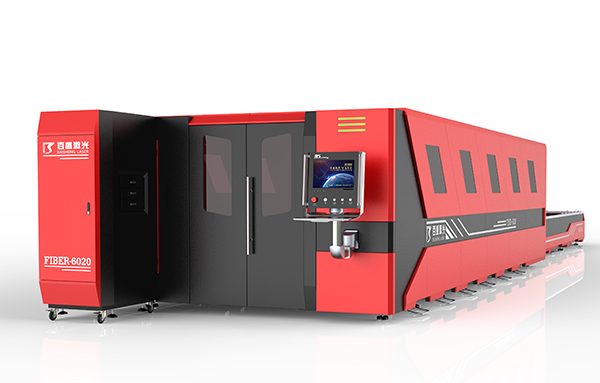

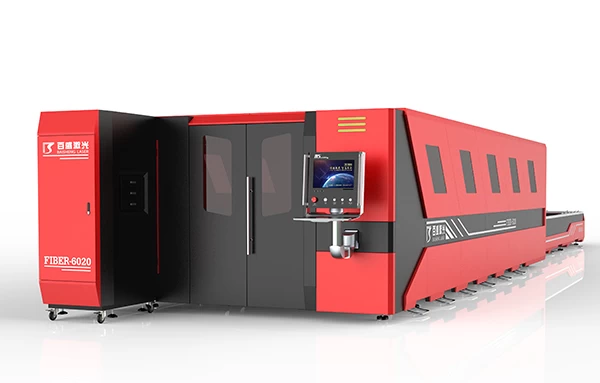

F6020HDE laser with shuttle tables and fully enclosed protective cover,6000*2000mm cutting size.
the whole machine can be packed and loaded in a 40 flat rack container+20FR.
6020 High Power Fiber Laser Cutting Machine Exclusive Features:
1.Unique leading climbing pallets ,synchronous exchanging tables ,cutting tables at same height.shorter stroke of Z axis 120mm,
faster and better for cutting accuracy.
2..fully enclosed cutting table with powerful blowser and Smart control exhaust system which creates clean job shop.
3.Thick sheet metal welded industrial grade machine bed ,true heat-treatment ,annealing machine bed,unique"W"beams strengthened.
4.Aviation grade extruding aluminium beam ,no any pinhole is allowed. lighter in weight but more tough.
5.for high-power laser machine ,exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.
Unique Machine bed allows your machine more durable and faster
Unique laser gantry

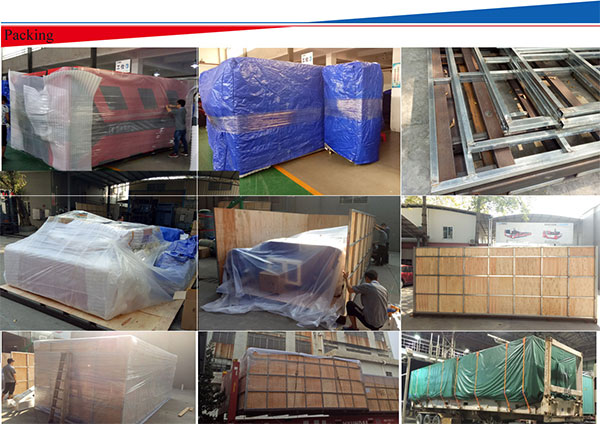

Laser Machine Packing and loading
Fiber laser cutting machine advantages:
Fiber laser is a time saver and energy saver for metal fabrication and the main stream for now and the future .fiber lasers have become the true workhorse of metal fabrication.
They have never been more productive. They cut nests at unprecedented speeds and produce finished parts with fine edge while power draw not so high .
Fiber laser cutting machines offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets. The maximum sheet thickness depends on the chosen output power.
The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 1000 watts to 12000 watts.
