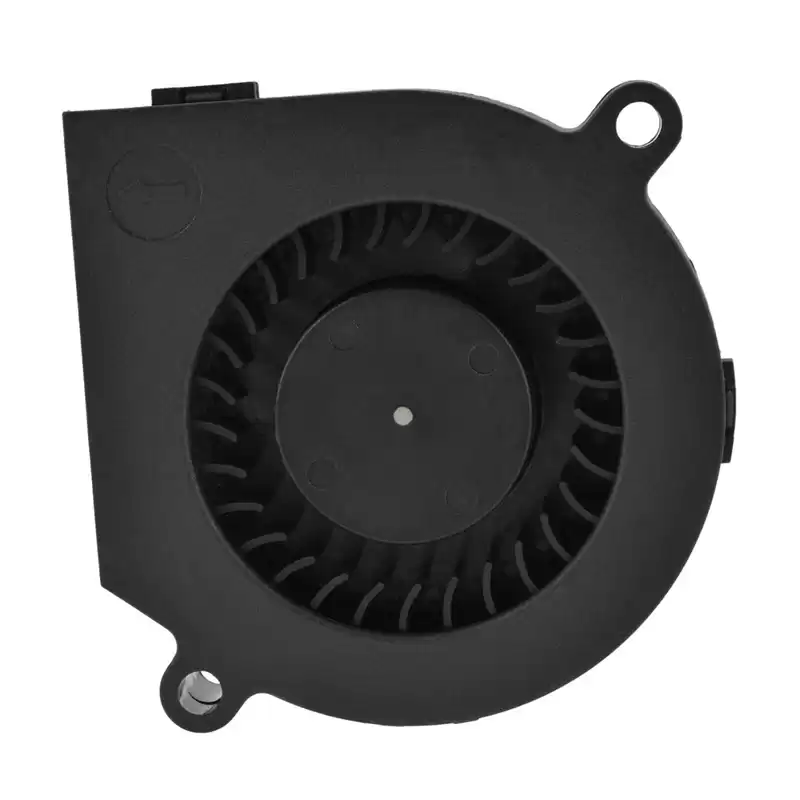

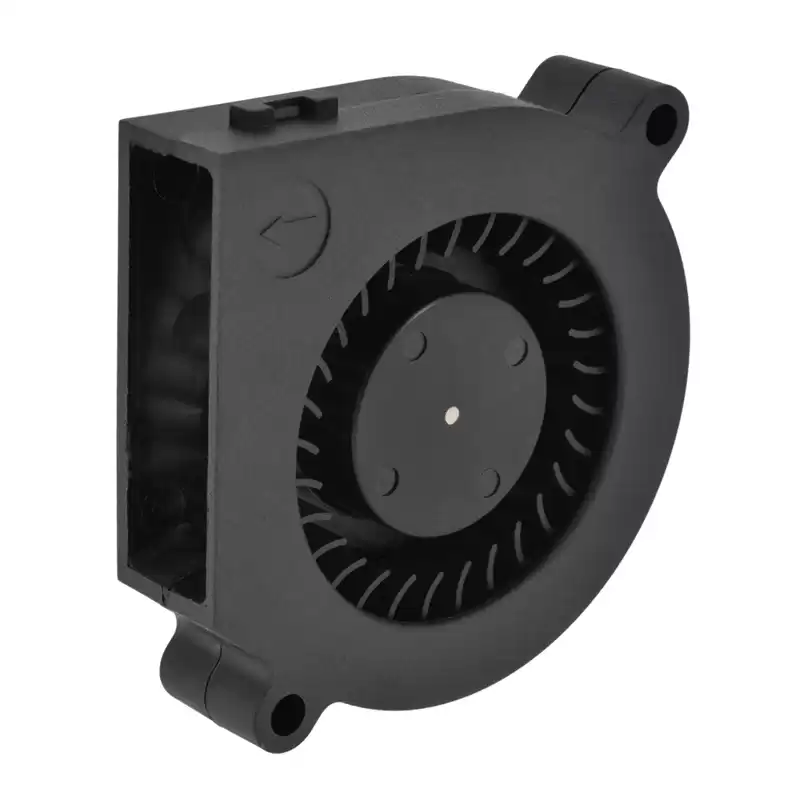

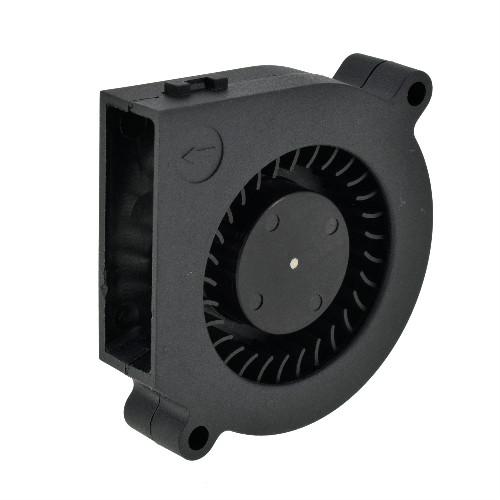

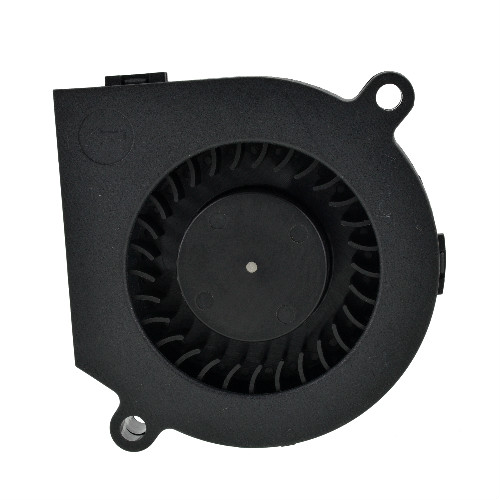

Long Life Air Cooler Ventilation System Fan Electric Blower with 5000 RPM. Each centrifugal blower fan is constructed of PBT material and suitable for various environments.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

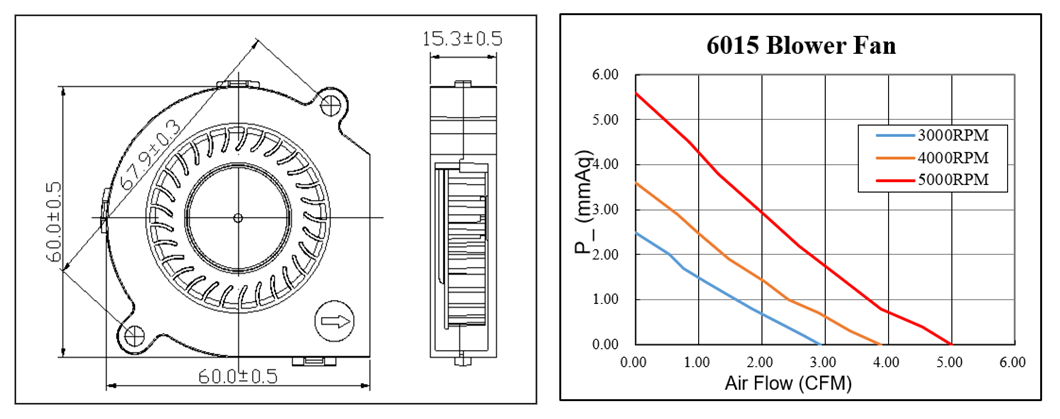

Dimension of outer the frame is 60 mm(L) x 60 mm(W) x 15 mm(H) / The size of fan in inch is 2.36 in(L) x 2.36 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 67.9 ± 0.3 mm / 2.67 in.
-

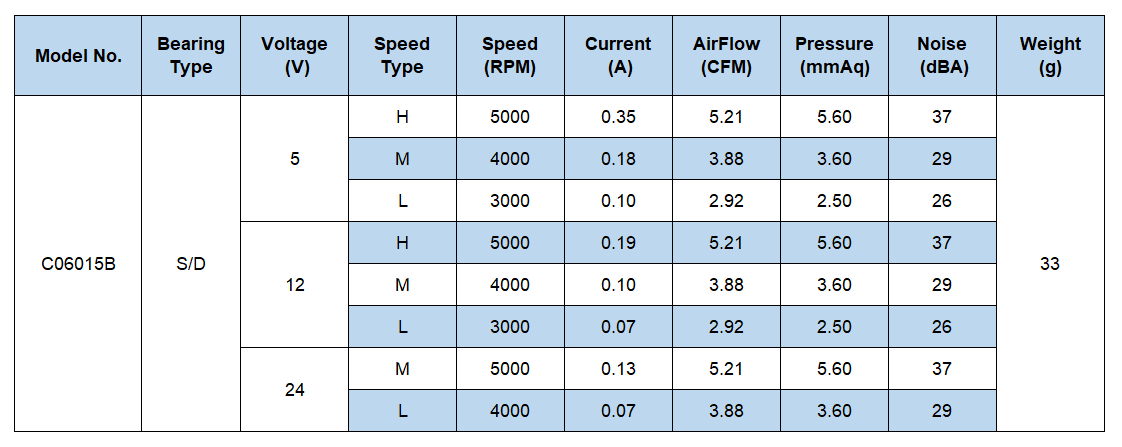

Operating Voltage Range: DC 5V/12V/24V | Current: 0.07 ~ 0.35 Amp | Speed: 3000 ~ 5000 RPM | Airflow: 2.92 ~ 5.21 CFM | Noise: 26 ~ 37 dBA | Pressure: 2.50 ~ 5.60 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
DC BLOWER FAN 60x60x15mm(2.36"x2.36"x0.59")
General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
The product supports full-size parameter setting;
-
Can work normally in the low temperature environment of -10℃ ~ +70℃;
-
The coil of our blower fan motor is made by 100% copper wire which bring longer lifetime;
-
All our products are approved by UL/CE, as well as in compliance with RoHS requirement;
-
Adopt DC motor, limit overload and ensure that the motor will not be overloaded when it exceeds its capacity.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
DC blowers are widely used in household LED lamps, fast chargers, handheld intelligent products, automotive inverters, automotive perfume machines, and other micro devices which are popular in the market at present, and other industries.
-
Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
-
Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
