60mm deep tubular U shape aero 700c carbon fiber road disc rims

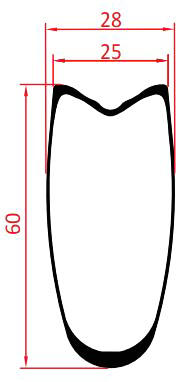

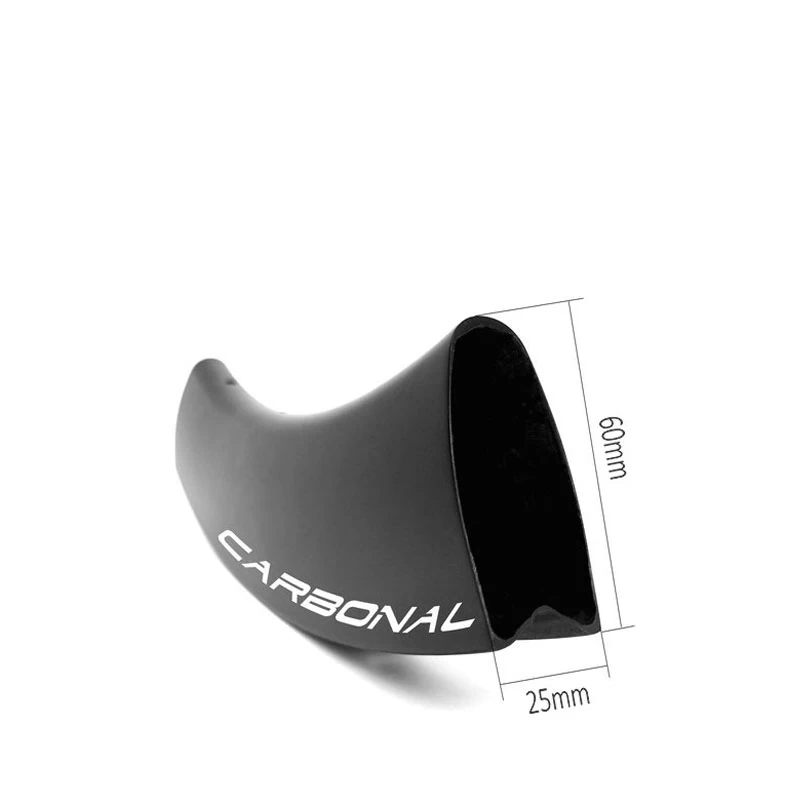

Item DT60S, weight 430g, ERD 525mm. This 60mm tubular road disc rim perfect fit wider tires from 24mm to 35mm width used on most disc brake road bikes. 25mm wide U shape is aerodynamic, stiff and durable enough for training, racing.


  • Max weight limit130kg
  • Max spoke tension140kgf
  • Depth60mm
  • Width25mm
  • ERD525mm
  • Weight430g±20
  • Brakedisc brake
  • Typetubular
  • Materialfull carbon Toray T700 & T800
  • Size700C

Product Item: 60mm deep tubular U shape aero 700c carbon fiber road disc rims
road disc rim

This 60mm tubular road disc rim perfect fit wider tires from 24mm to 35mm width used on most disc brake road bikes. 25mm wide U shape is aerodynamic, stiff and durable enough for training, racing.


Specification:

 Item:
 DT60S
 Use:
 road, tt
 Rim type:
 700C tubular - disc brake
 Material:
 Toray T700 & T800 carbon fiber
 Width:
 25mm
 Weight:
 430g±20
 Depth:
 60mm
 ERD*:
 525mm
 Weave:
 UD, 3k, 6k, 3k twill, marble  see different carbon weaves
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 160psi - read more
 Decal:
 Customized
 Weight limit:
 130kgs
 TG resin temperature:
 130°C
 Standard:
 EN standard


* ERD: we calculate effective rim diameter from the top point of the nipple, learn more here.


Features:

  • This 60mm tubular road disc rims is aerodynamic U shape, it's areodynamic, stiff and durable enough for training, road racing.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke, this brings less stress on the spoke and therefore reduces the chance of breaking spokes.


Unique Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
