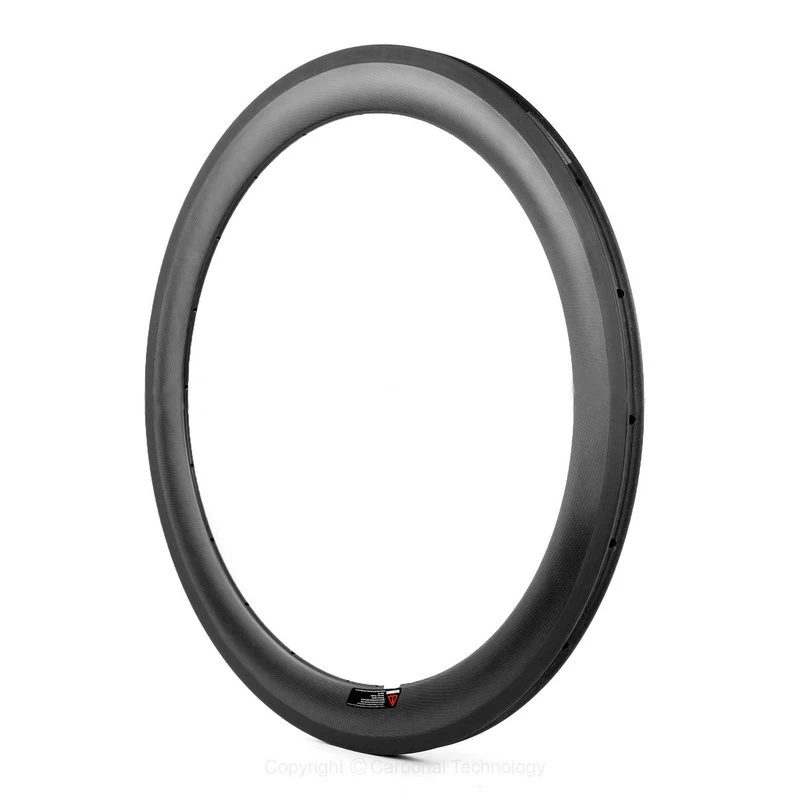

Product Item: 60mm depth 23mm wide tubular V shape 700C road bicycle carbon rims
700C 60mm depth 23mm wide tubular V shape carbon rim is lightweight and
aerodynamics, build into an aerodynamic 700C carbon road bicycle wheels.
Available in rim brake and disc brake for training, racing and
triathlon..
Specification:
Item:
|
RT60W
|
Use:
|
road bike, triathlon
|
Rim type:
|
700C tubular - rim brake or disc brake *
|
Material:
|
Toray T700 carbon fiber
|

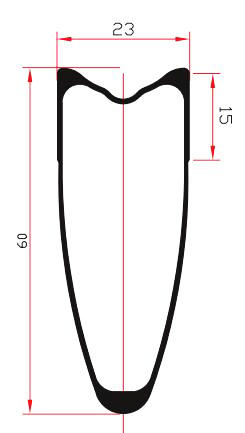

Width:
|
23mm
|
Weight:
|
450g±20
|
Depth:
|
60mm
|
ERD:
|
526mm
|
Weave:
|
UD, 3k, 3k twill, 6k, 12k, marble
|
Finish:
|
Matte, glossy
|
Spoke hole count:
|
16 - 36
|
Assemble hole diameter:
|
8.5mm
|
Spoke hole diameter:
|
4.5mm / 2.5mm or customized
|
Valve hole diameter:
|
6.5mm
|
Max spoke tension:
|
140kgf (recommended 110~130kgf)
|
Max / Min tire pressure:
|
N/A / 90psi (6.5 bar)
|
Decal:
|
Customized
|
Weight limit:
|
130kgs
|
TG resin temperature:
|
210°C
|
Standard:
|
EN standard
|
*Disc brake, we will manufacture this rim without braking surface accordingly.
*Rim brake track available in 3k twill (recommended
) or basalt surface.
Features:
-

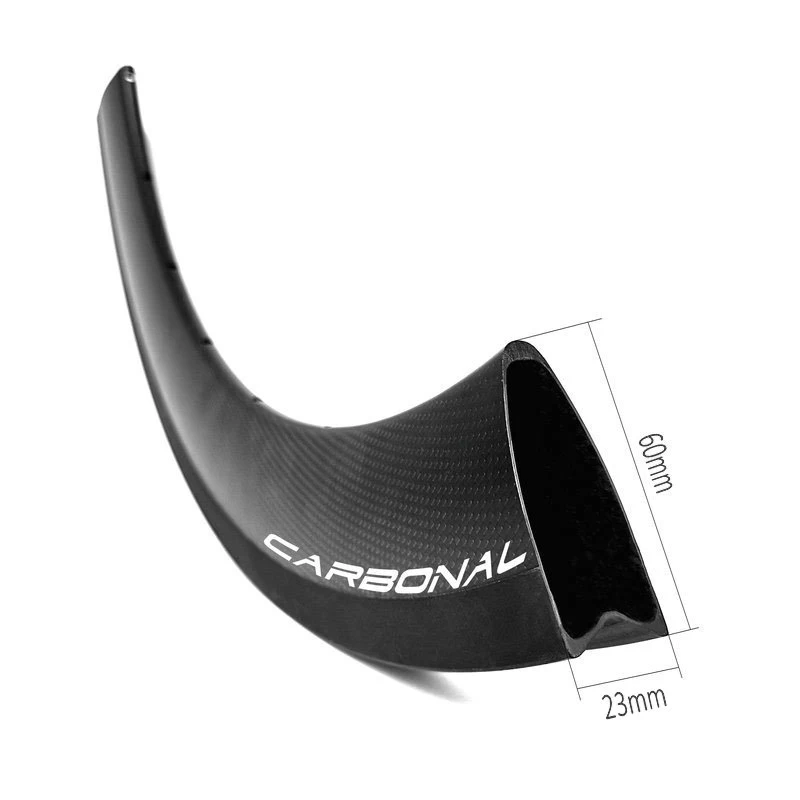

Aerodynamic 23mm wide V shape design, this 60mm depth tubular 700c carbon rim available in V-brake and Disc brake (without brake track).
-
Super lightweight, rim constructed with premium Toray T700 carbon fiber, precise layup, achieve a most lightweight.
-
One piece molding, a rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is strongest.
-
High TG 210°C resin temperature brake track, use pregreg carbon fiber, which is carbon with resin together already, high TG resin be used to make rim is good enough at high temperature heating on wheels during braking.
-
Angled
spoke holes allows the nipple to pull straight in line with the spoke
for reduced stress, this results in fewer broken spokes and nipples.
Warranty Policy:
5 years warranty & 2 years crash replacement.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
Manufacturing process:
Our
Engineering team creates a unique fiber orientation which amplifies the
desired riding characteristics for a given rim. And each rim carries
its own layup schedule documents which are followed meticulously by the
layup workers, it ensures the accuracy of each rim in the production
process.
Our
carbon rims are made in one piece molding, each rim is made by one piece
long carbon fiber, no wrinkles, to make the strength of rim is the
strongest. And we use a unique process to remove the air bladder from
the valve hole, so that the rim does not have to be patched like
traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
