60W garage ceiling canopy light

For its sleek appearance and frosted lens, Morstar 05B Series Waterproof Canopy Luminaire beloved by the public and has a good market prospect. With high lumen output up to 8,000 lumens, It is the an energy-efficient alternative of 250W MH canopy lights.



High Lumen Commercial Canopy Light

    The exterior design is traditional and economical, yet stylish, and plays a very good decorative role, which make the Canopy Luminaire with Sensor is easy to install and will look great for years. Available in 20-, 40- and 60-LED configurations, the 05B Series waterproof canopy light allows for increased visibility and safety in dark areas while substantially reducing energy and maintenance costs. This also reflect in construction, which is equipped with durable, die-cast aluminum housing with heat dissipating fins,  polycarbonate optical lens with high impact and heat-resisting, white, dark bronze or black polyester powder-coat finish. This high lumen canopy light for outdoor or indoor has advantages and characteristics in the following aspects, Offers the best overhead lighting in parking structures, entryways and walk ways.


  • PHOTOMETRY


       Parking Garage Photometry andpolycarbonate optical lens with heat resisting.

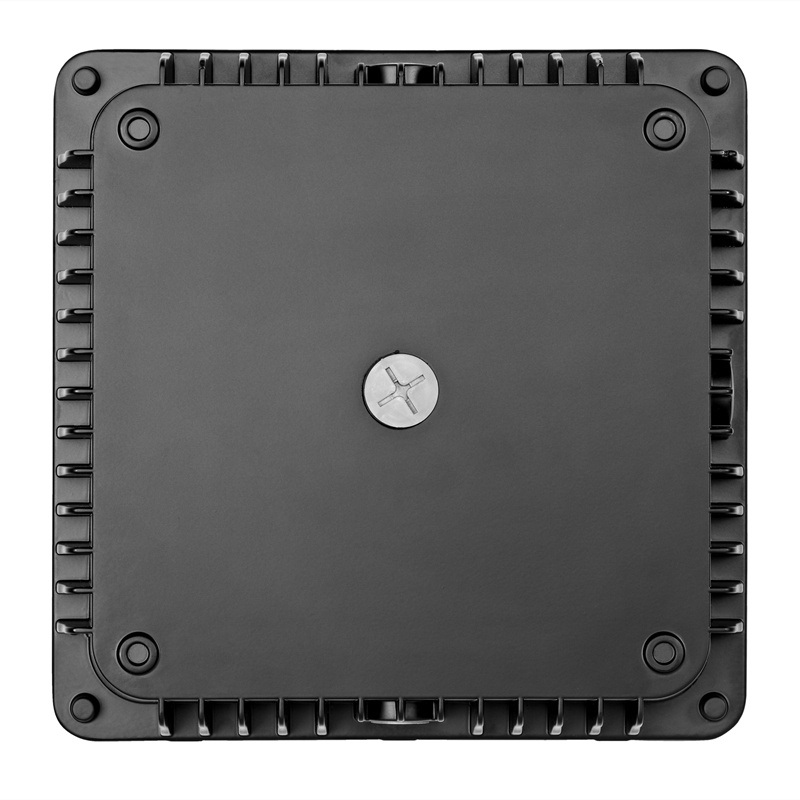

  • Housing


       One piece die cast housing better waterproofing, suitable for both indoor and outdoor application.

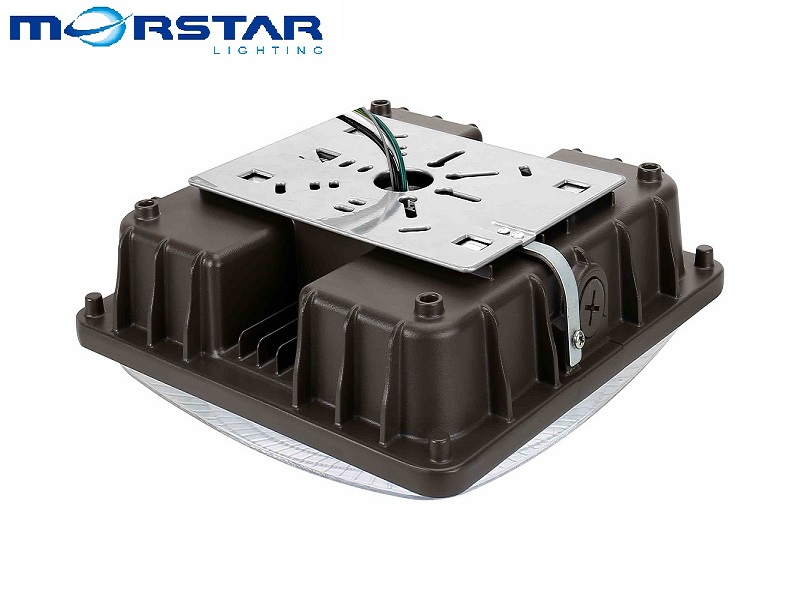

  • Mounting Bracket


    Suitable for J-BOX mounting, and easy for installation, also support pendant mounting, wires coming out from the back for easier wire connections.


  • 1/2inch knock hole


       Support wires coming from the hole for easier wire connections.

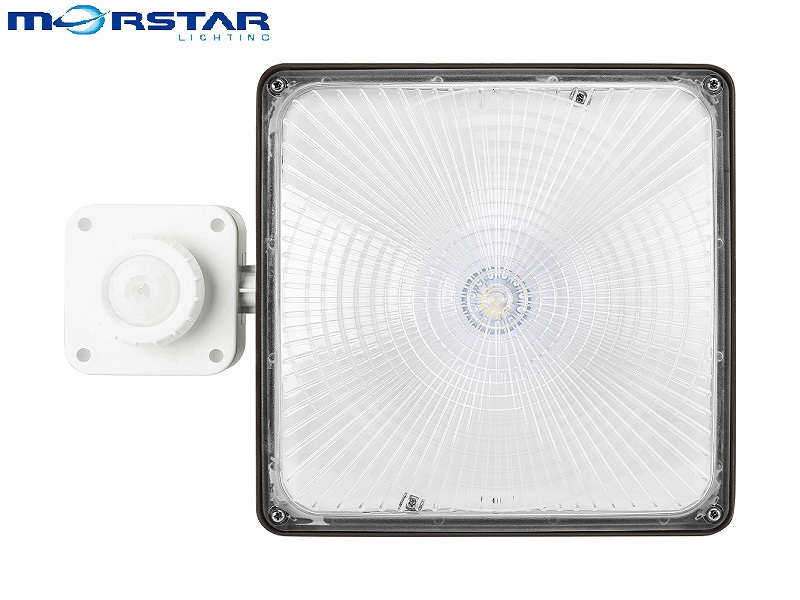

      Optional PIRsensor and Emergency Battery.

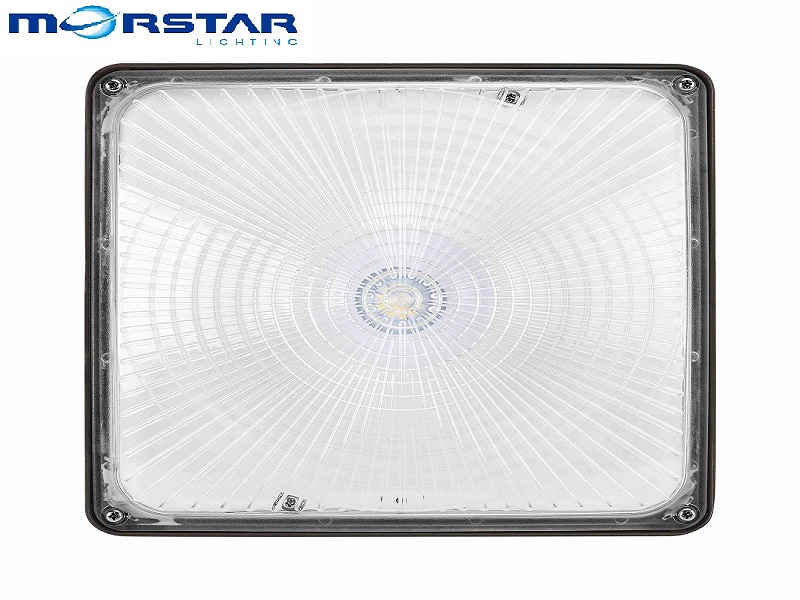

PRODUCT APPEARANCE AND SPECIFICATION

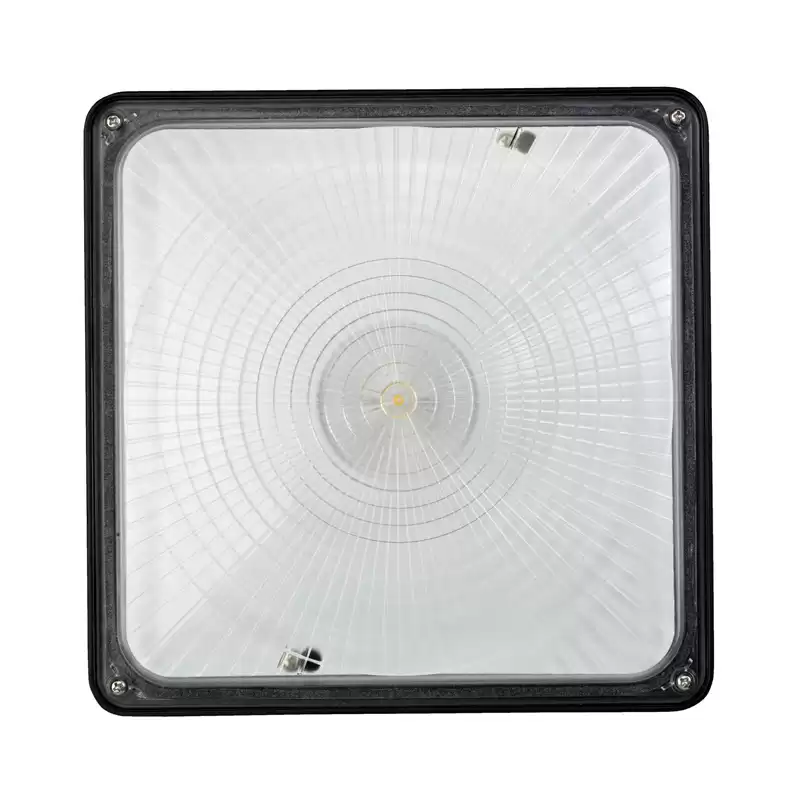

the appearance of canopy light


Power Consumption

27W

Equivalent Wattage

100W MH

Lumens Delivered

3,800 lm

Efficacy

135 lm/W

CRI

>80

Color Temperature

4000K /5000K

Input Voltage

120-277V , 347-480V

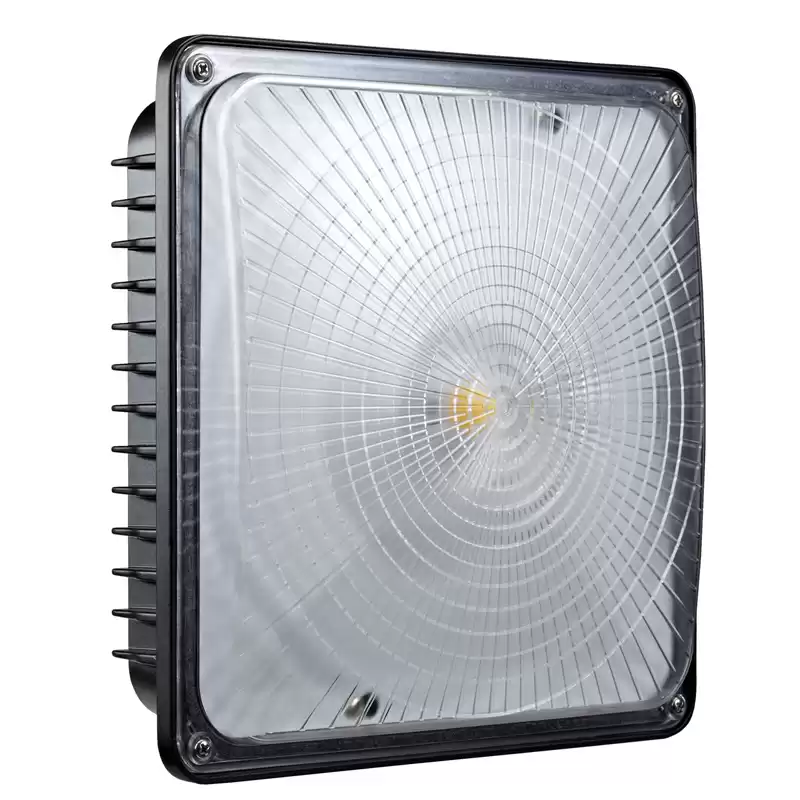

the appearance of canopy light

Power Consumption

40W

Equivalent Wattage

175W MH

Lumens Delivered

5,450 lm

Efficacy

135 lm/W

CRI

>80

Color Temperature

4000K /5000K

Input Voltage

120-277V , 347-480V

the appearance of canopy light

Power Consumption

60W

Equivalent Wattage

250W MH

Lumens Delivered

8,200 lm

Efficacy

135 lm/W

CRI

>80

Color Temperature

4000K /5000K

Input Voltage

120-277V , 347-480V

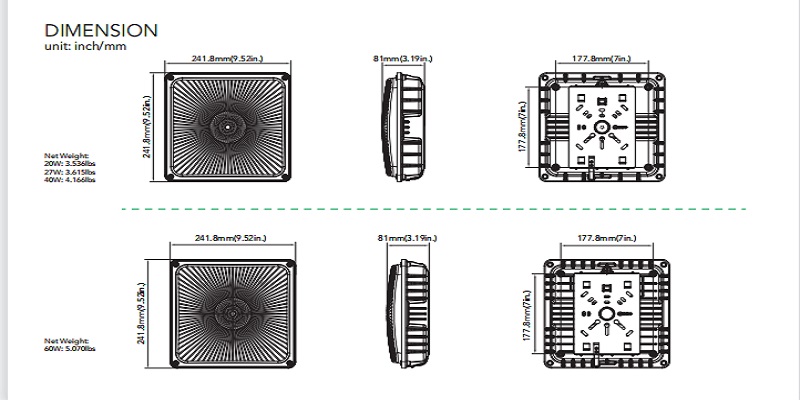

PRODUCT DIMENSION


the dimension canopy light



PRODUCT APPLICATIONS

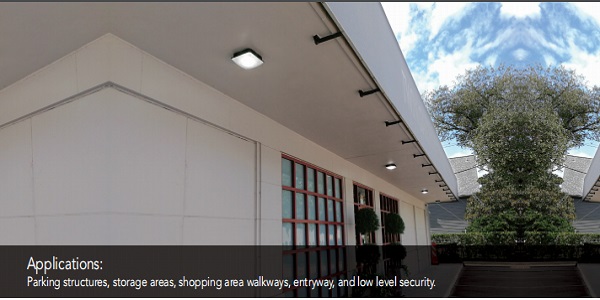

the application of canopy lightthe application of canopy light

the application of canopy light





FAQ

Q1: Do you offer guarantee for the products?

A: 7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 104°F.

Q2. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q3.How about the delivery time ?

A: Sample order:3-5 days after payment. Mass production: 10-18 days after payment.

Q4. DO YOU HAVE ANY MOQ LIMIT FOR LED LIGHT ORDER?

A: Low MOQ, 1pc for sample checking is available.
