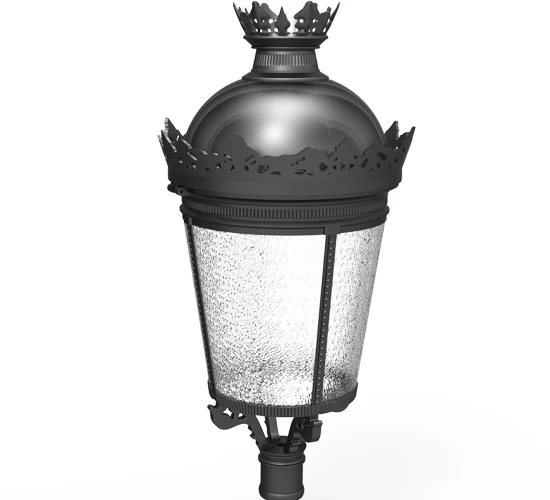

60w High Power Corolla Decorative LED Post Top Light 5 Years Warranty
Feature:
-
Die-cast aluminum housing, hollow out type heat dissipation structure.
-
Beautiful appearance, using Philips 5050 LED, output >100lm/w.
-
Available TYPE V distribution.
-
Adopt high quality Meanwell driver, 5 years warrany.
-
IP65, fit a standard 3” pole.
Application:
Main use for street, road lighting, walkway, park, courtyard lighting.
Datasheet:
|
Model
|
CCT
|
CRI
|
Lumens
|
Power
|
Product
Size/MM
|
Beam
Angle
|
N.W.
|
|
GD-TP498-W30-N-XXXK
|
2700-7000K
|
≥70
|
3450LM
|
30W
|
489.4*965.2
|
120
|
10KG
|
|
GD-TP498-W60-N-XXXK
|
2700-7000K
|
≥70
|
6900LM
|
60W
|
489.4*965.2
|
120
|
10KG
|
|
GD-TP498-W120-N-XXXK
|
2700-7000K
|
≥70
|
13800 LM
|
120W
|
489.4*965.2
|
120
|
10KG
|
|
2700-7000K CCT optional
|
|
AC 90V~305V
|
|
Power efficiency>95%
|
|
Storage temprature: –40 ~ 85°C
|
Installation caution
● Make sure the power has been turned off before maintenance.
● Clean the lens cover regularly to maintain high transmission of light.
● Clean up the dust from the reflector and heat sink regularly to keep sound heat dispersion.
● Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
● When install or replace power supply, directly open the back cover with a screwdriver, then remove
the power supply. There are three-core cable of AC power, black or brown wire corresponds to the power of “L”, white, red or blue wire to “N”, and green & yellow wire to “G ”.
● Improvement and modification to fitting construction is prohibited. Product fault resulted from disassembling, remodeling or incorrect construction are not in the warranty.
