It including ultra-high-speed motion and continuous, infinitely infinite rotation. This new light replaces 4.5 ° fixed-focus optics and a new 94mm lens that emits highly efficient brightness. 12: 1 optical zoom system with no obvious moving parts and an incredible zoom range of 5 ° -40 °.
● Optics
. LED type：
※ 1x60W 4-in-1 RGBW LED, uniform and delicate color mixing effect
※ 8x0.5W RGB LEDs
. Lens: 94mm high brightness PMMA lens
. Beam angle: 5-40 ° zoom
. Life Span : 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan / Tilt operation:
※ 8bit and 16bit fine-tuning
※ Smooth and precise positioning
※ Pan: 540 ° ,Tilt 270 ° rotation
※ Pan and tilt high-speed unlimited operation, and speed adjustable
※ The scanning position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and tilt l with error correction function
● Colour
. Uniform RGBW color mixing system and rainbow effect
. White balance can be adjusted manually
. LED halo can make more colorful chase effect
● Specification
. 3 DMX channel modes: 19/21/35 international standard DMX512 channels
. 3 control modes: DMX512, sound control, master-slave
. Spot angle: 5-40 ° linear zoom
. DMX function: pan , pan 16bit, tilt l, tilt 16bit, pan step less rotation, tilt step less rotation, focus, focus speed, dimming, strobe, RGBW, function settings, color jump, color gradient, ring auto Program selection, auto travel speed, dimming curve selection.
. Stand-alone mode: color jump, color gradient, auto-run, slave, static setting, auto-run program selection
. Strobe effect :Plus Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Break effect, 5s…..1s、Strobe0-20Hz。
. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time
● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
● Other functions
. Setting and addressing: RDM
. Fan cooling (fan changes speed with temperature change)
. Fan mode: automatic and high-speed mode switching
. LED temperature detection system to protect the life of lamp beads

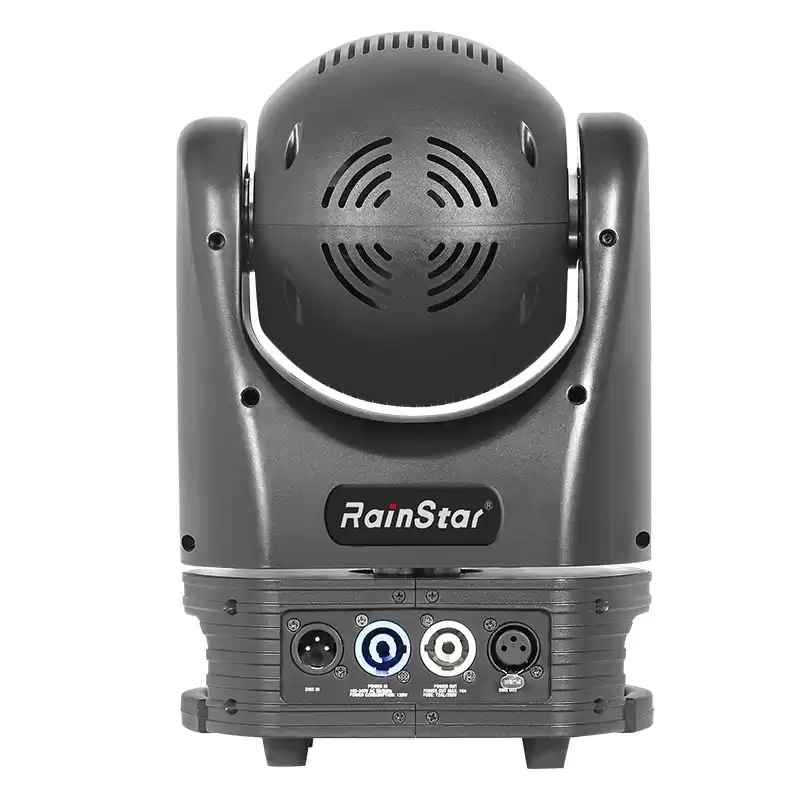

● Power / Signal connection
. Power connection: PowerCON power line input and output
. DMX XLR socket : 3 XLR socket input, output
● Power
. AC100-240V 50 / 60HZ
. Consumption: 120W
● Protection class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
● working environment
. Indoor working temperature: -20 ° C～+ 40 ° C
● size and weight
. Packing size: 265x230x420mm
. Net weight: 5.4KG
. Gross weight: 6.6KG
● Certification
. CE ROHS
