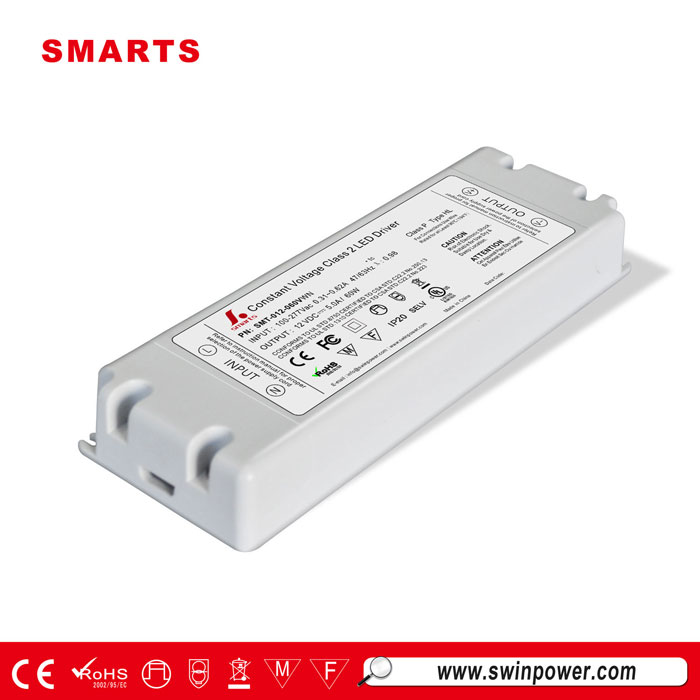

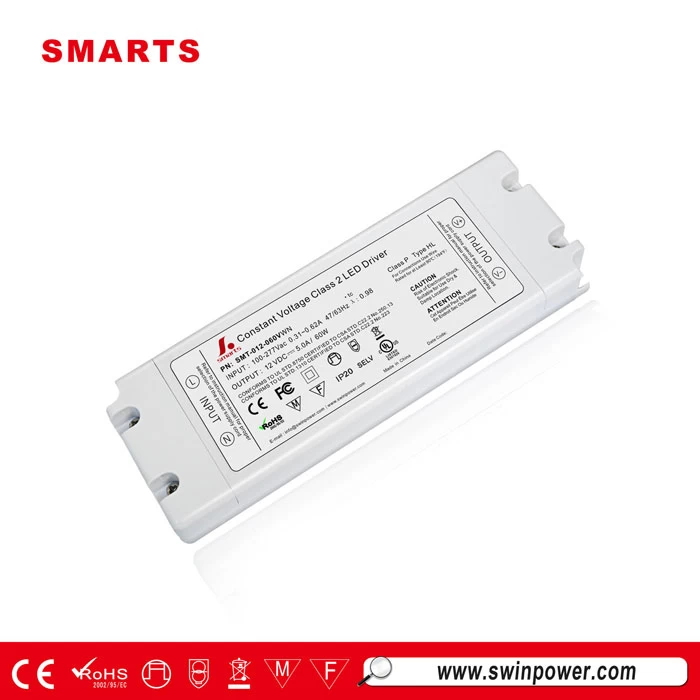

60W LED Power Supply 100-277V AC Input UL listed for LED strip
Our 60w led power supply feature flexible input voltage (100-277VAC) and can be ordered in 12VDC or 24VDC outputs. These power supplies are rated to run at 80% continuous wattage.
Specification
|
model
|
SMT-012-060VWN
|
SMT-024-060VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>86%
|
>87%
|
|
AC Current（Typ.）
|
0.9A/110VAC
|
|
Inrush Current （Typ.）
|
14A, 50%, 780us@120VAC; 50A,50%,176us@230VAC; 15A,50%,660us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over voltage
|
≦140VAC(90~135V) , ≦285VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P: 1.98KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
About 0.35Kg
|
|
Size
|
178*61*24mm（L*W*H）
|
|
packing
|
20PCS/CTN
（L*W*H）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|

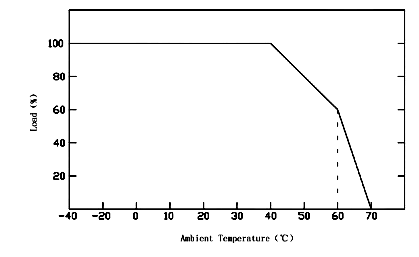

Derating curve

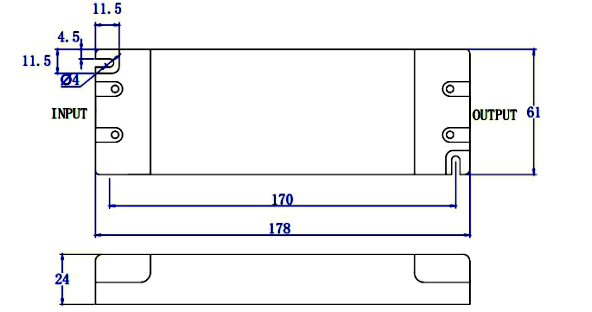

Product size
Certifications
FAQ
1. What is class 2 standard?
Answer: the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.
25.Can we make the 120w 150w 200w 250w constant volatge led drivers into one output?
Answer: Yes.
2. If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .
Answer: ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.
3. What are the details of the 7 year warranty: Is it based on 7 years of actual use? We understand that some driver manufacturers have technology to keep track of hours of use. Or does the warranty start at point of sale and end 7 years after? Please explain details.
Answers:
The 7 years warranty start at the point of LED Driver leave our factory. There have manufacture date in back of every LED driver.
We use the best quality components for our 277vac dimmable series and the capacitances we used have the super life-span. We can promise 7 years warranty if loading 80% and within 12 hours working time per days.
