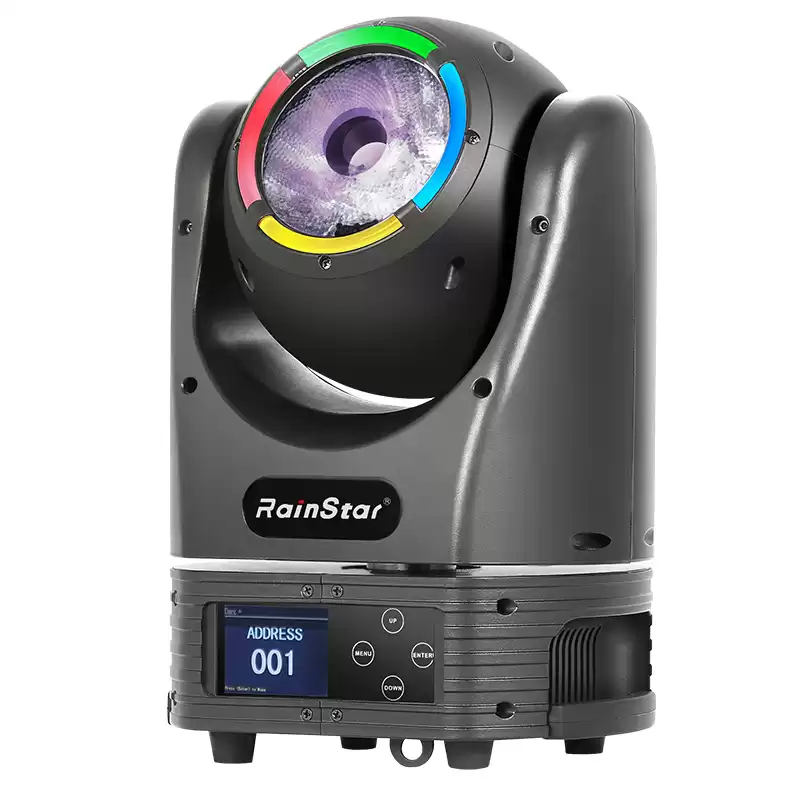

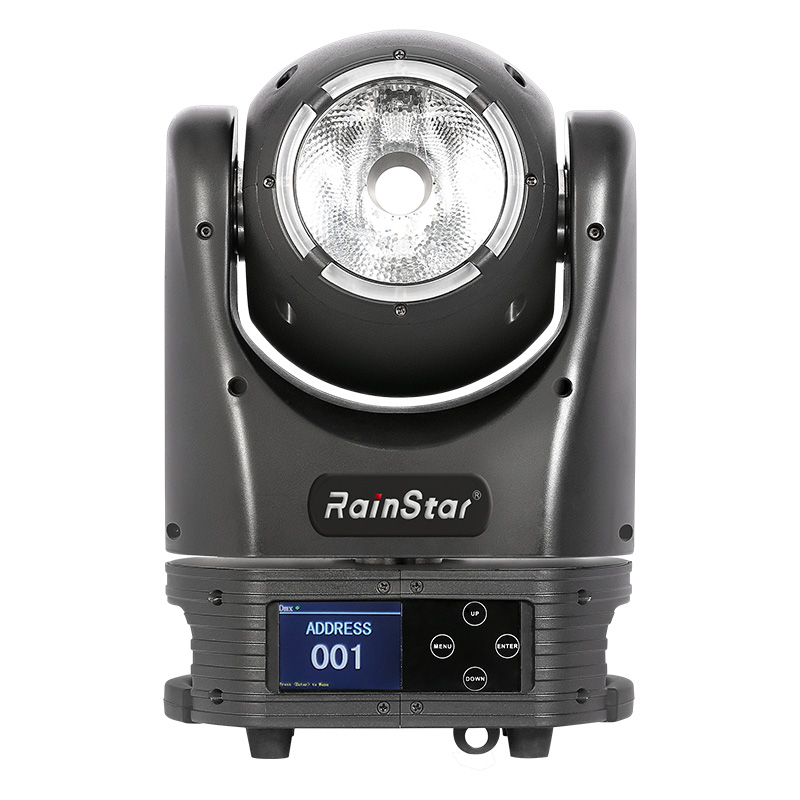

It is exquisite in appearance design. It is a moving head light designed with a single high-power LED. The new high-efficiency optical system has a diameter of 94mm and an optical angle of less than 5 degrees. The use of RGBW LED multi-chips can produce a beam effect. Lenses for better beam effect. The simple cylinder design, coupled with horizontal and vertical stepless rotation, allows users to create lighting groups and control each light emission in each direction, plus the halo can be RGB color changing and chasing effects to make it more dynamic. Compact structure, light, horizontal, vertical ultra-fast running speed and matching the new 60W RGBW LED and 94mm diameter high-efficiency lens, emitting high-efficiency brightness. This new LED light source uses a special cooling system.
● Optics
. LED：
※ 1x60W 4-in-1 RGBW LED, uniform and delicate color mixing effect
※ 8x0.5W RGB LEDs
. Lens: 94mm high brightness PMMA lens
. Beam angle: 4.5 °
. Life Span: 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan / Tilt operation:
※ 8bit and 16bit fine-tuning
※ Smooth and precise positioning
※ Pan: 540 ° ,Tilt 270 ° rotation
※ Pan and tilt high-speed unlimited operation, and speed adjustable
※ The scanning position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and tilt l with error correction function
● Colour
. Uniform RGBW color mixing system and rainbow effect
. White balance can be adjusted manually
. LED halo can make more colorful chase effect
● Specification
. 3 DMX channel modes: 15/17/33 international standard DMX512 channels
. 3 control modes: DMX512, voice control, master-slave
. Spot angle: 4.5 °
. DMX function: horizontal, horizontal 16bit, vertical, vertical 16bit, horizontal stepless rotation, vertical stepless rotation, focus, focus speed, dimming, strobe, RGBW, function settings, color jump, color gradient, ring auto Program selection, auto travel speed, dimming curve selection.
. Stand-alone mode: color jump, color gradient, auto-run, slave, static setting, auto-run program selection
. Strobe effect :Pulse Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz。
. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time
● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer, Square Dimmer, Square Dimmer, S-Curve Dimmer
● Other function
. Setting and addressing: RDM
. Fan cooling (fan changes speed with temperature change)
. Fan mode: automatic and high-speed mode switching
. LED temperature detection system to protect the life of lamp
● Power / DMX connection

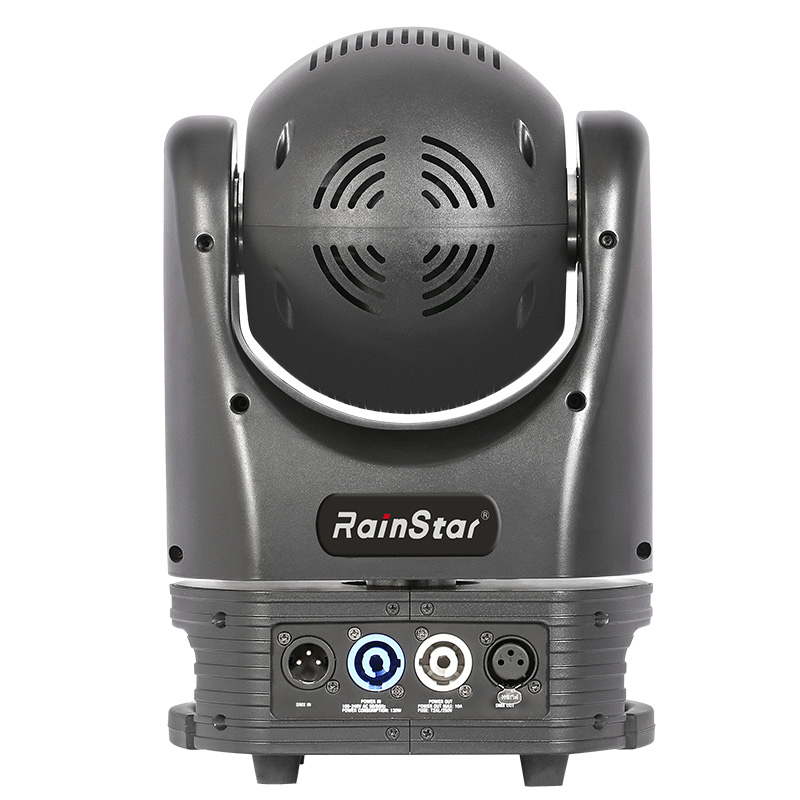

. Power connection: PowerCON power input and output
. DMX XLR socket: 3 Pin XLR socket input, output
● Power
. AC100-240V 50/60HZ
. Consumption：120W
● Protective class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
● Working environment
. Indoor working temperature: -20 ° C～+ 40 ° C
● Size and weight
. Packing size: 350x260x310mm
. Net weight: 5.1KG
. Gross weight: 6.2KG
● Certification
. CE,ROHS
