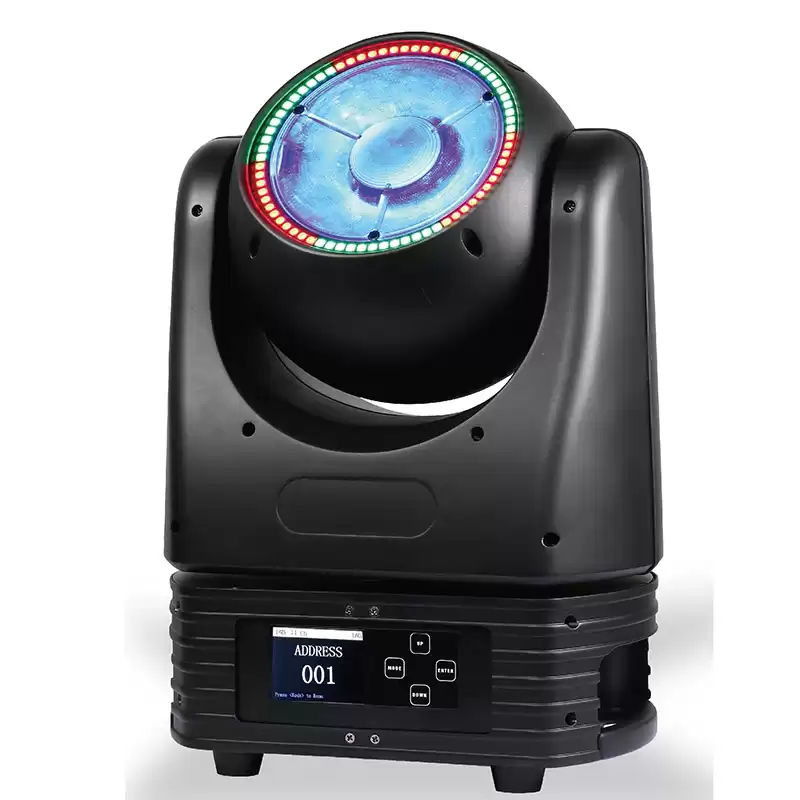

The design is exquisite. It is a moving head light designed with a single high-power LED. The new high-efficiency optical system has a diameter of 130mm and an optical angle of 2 degrees. , Using RGBW LED multi-chip can produce beam effect, making its beam effect better. The simple cylinder design, coupled with horizontal and vertical stepless rotation, allows users to create lighting groups and control each light emission in each direction, plus the halo can be RGB color changing and chasing effects to make it more dynamic. Compact structure, light, horizontal, vertical ultra-fast running speed and matched with the new 60W RGBW LED and 130mm diameter high-efficiency lens, emitting high-efficiency brightness. This new LED light source uses a special cooling system. In addition to DMX control, there are powerful RDM control and ArtNet network control technology.
● Optics
. LED：
※ 1x60W 4-in-1 RGBW LED, uniform and delicate color mixing effect
※ 72x 0.2W RGBLEDs
. Beam angle：2°
. Lens: 130mm high brightness PMMA lens
. Excellent color mixing effect and rainbow effect
. LED halo effect can be controlled separately, with chase and running effect.
. Life span: 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan/tilt operation:
※ 8bit and 16bit fine-tuning
※ Smooth and precise positioning
※ Pan: 540 ° or 640 °, tilt 270 °
※ Pan and tilt high-speed unlimited operation, and speed adjustable
※ The scanning position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and tilt with error correction function
● Colour
. Uniform RGBW color mixing system and rainbow effect
. White balance can be adjusted manually
● Specification
. 4 DMX channel modes: 4CH / 19CH / 43CH / 115 international standard DMX512 channels
. 4 control modes: DMX512, Artnet, voice control, master-slave
. Spot angle: 2 °
. Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz。
. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time
. Halo effect composed of 72 0.2W RGB LEDs, which can individually control RGB dimming
● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
. Dimmer mode: 2 kinds.(LED and Halogen)
● Other functions
. Setting and addressing: RDM
. RJ45 input and output
. Fan cooling (fan changes speed with temperature change)
. LED temperature detection system to protect the life of light

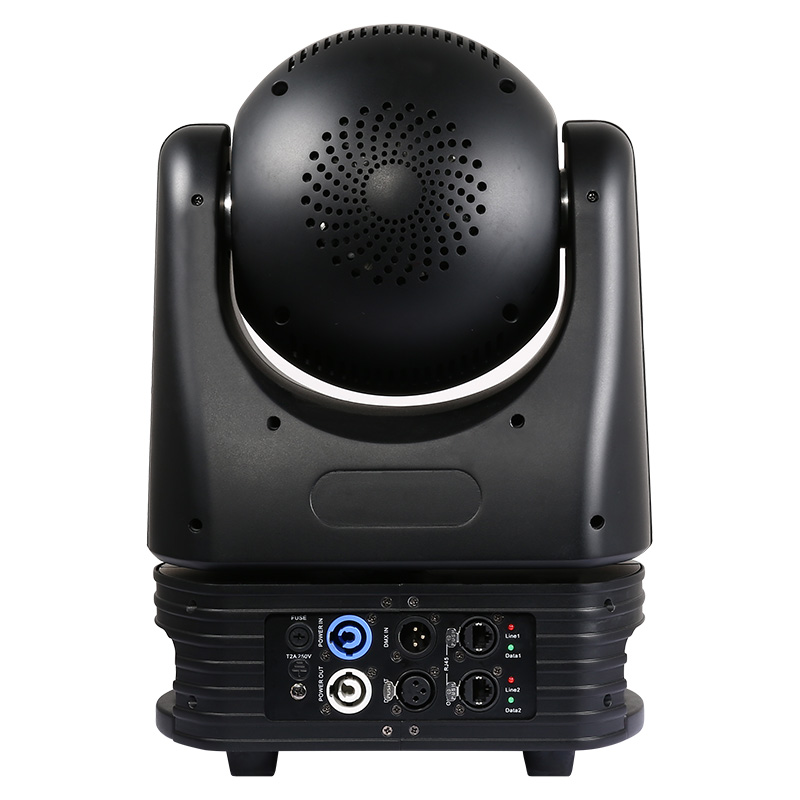

Power / DMX connection
. Power connection: PowerCON power line input and output
. DMX XLR socket: 3 PinXLR socket , input and output
● Power
. AC100-240V 50 / 60HZ
. Power consumption: 120W
● Protection class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
● Working environment
. Indoor working temperature: -20 ° C～+ 40 ° C
● Size and weight
. Packing size: 465x340x310mm
. Net weight: 9.1KG
. Gross weight: 9.4KG
● Certification
. CE, ROHS
