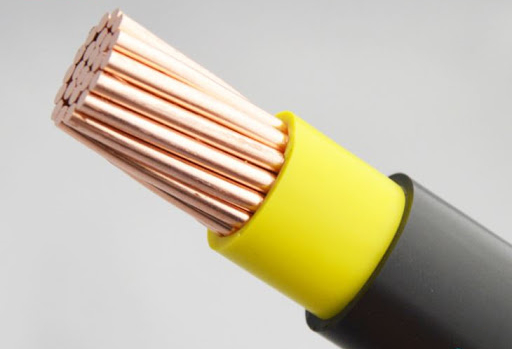

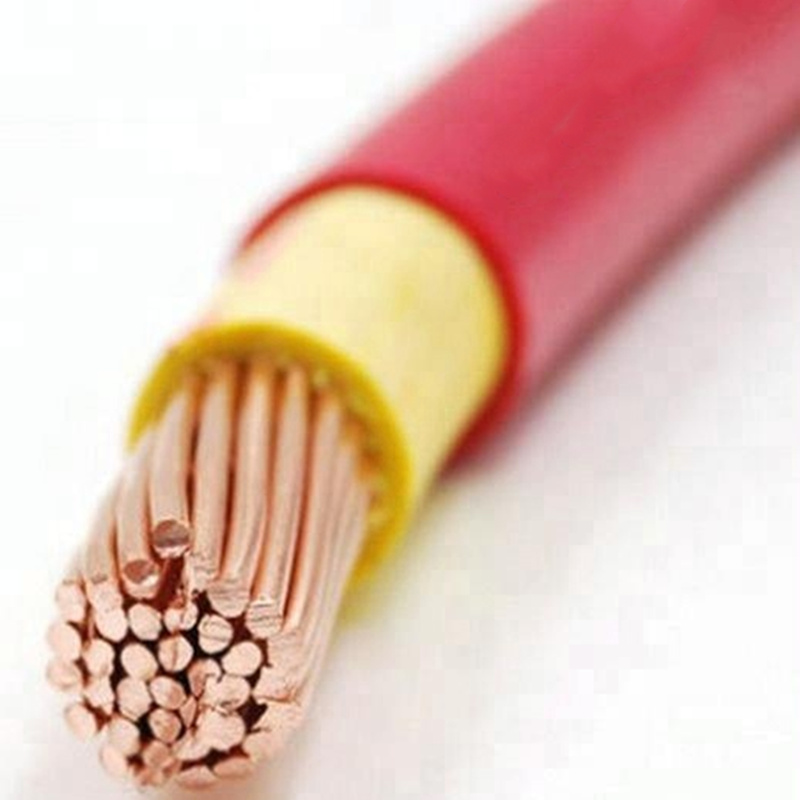

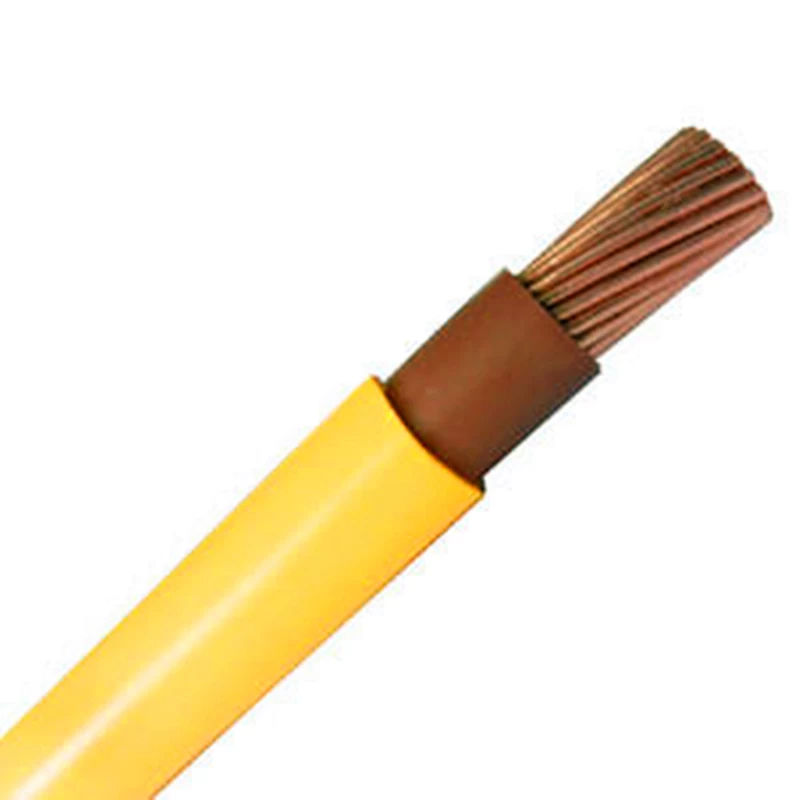

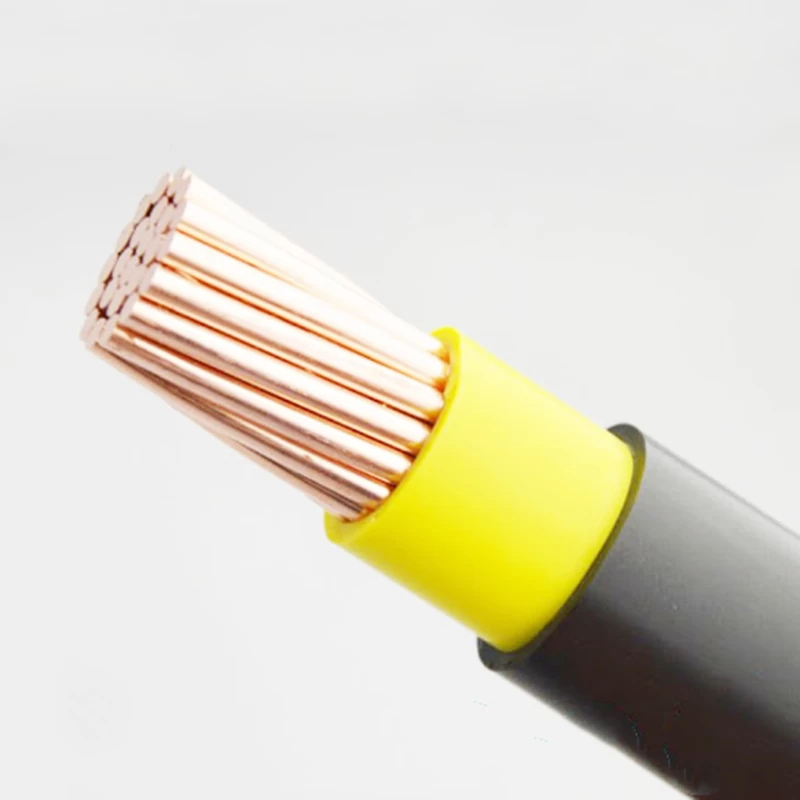

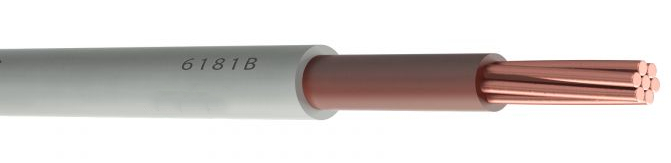

6181B Single Core LSZH Insulated WDZ-BYJYJ Electrical Cable

6181B Single Core LSZH Insulated WDZ-BYJYJ Electrical Wire and Cable, plain annealed copper conductor, LSZH insulation, LSZH sheath, meet to BS 7211, JB/T 10491.



6181B Single Core Double LSZH Insulated WDZ-BYJYJ Electrical Cable


PRODUTS KEYWORDS

6181B electric cable, WDZ-BYJYJ electrical wire, SDI LSZH insulated and sheathed cable, BS 7211 LSZH insulated cable, JB/T 10491 WDZ-BYJYJ cable.


PRODUCTS CHARACTERISTICS

6181B Single Core Double LSZH Insulated Electrical Wire and Cables, plain annealed copper conductor, solid or strand, low smoking zero halogen insulation, low smoking zero halogen, meet to JB/T 10491, BS 7211, BS EN/IEC 61034, BS 6724, BS 8573.

Low smoke zero halogen (LSZH, LSOH, LS0H, LSFH and OHLS) is the material classification of wire sheath in the wire and cable industry. The low-smoke halogen-free wire sheath is composed of thermoplastic or thermosetting properties with low smoke emission and no halogens. Low-smoke halogen-free materials reduce the toxic and corrosive gases produced during combustion. Low-smoke, halogen free materials are often used in poorly ventilated environments such as airplanes, train cars, or ships. Low-smoke halogen materials are also commonly used in the railway industry because of the presence of high-voltage lines or signal lines that carry the train's position. The use of low-smoke, halogen-free materials also reduces the amount of toxic gas accumulated when the line is damaged by fire or short circuit.


PRODUCTS CHARACTERISTICS

6181B single core double LSZH insulated cable, it is fixed installation in walls, on boards and in channels or embedded in plaster, low smoke emission and corrosive gasses in case of fire.


PRODUCTS STRUCTURE

---Conductor Material

    Pure annealed copper wire; solid class 1, or strand class 2.

---Insulation Material

    LSZH (low smoking zero halogen), XLPE (cross-linked polyethylene, is optioned)

---Insulation Color

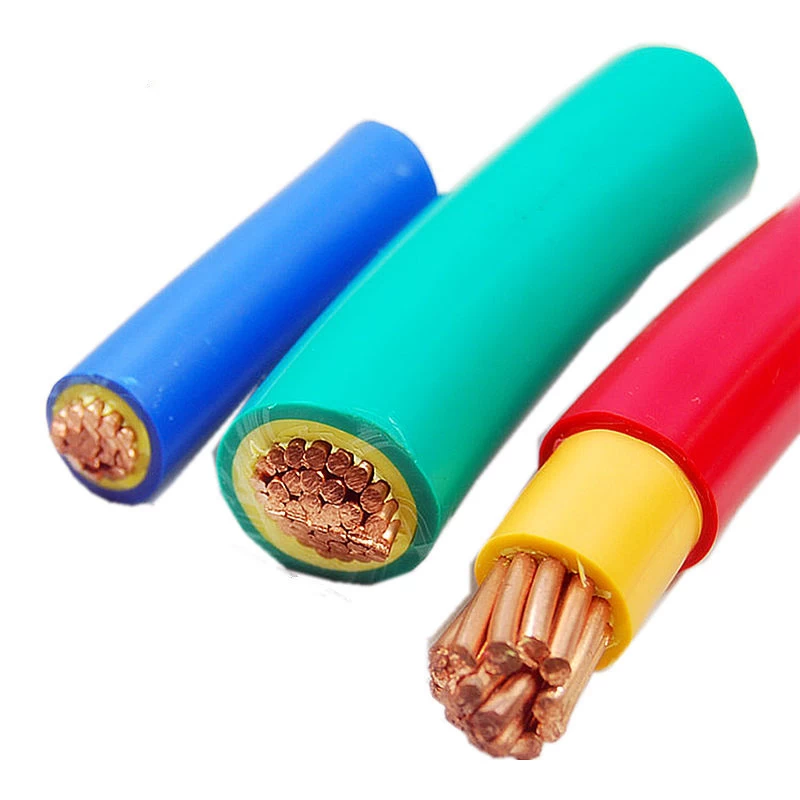

    Red, yellow, blue, green, black, brown, and other colors.

---Sheath Material

    LSZH (low smoking zero halogen)

---Sheath Color

    Black, grey, and other colours.

---Core Number

    Single core, 1C.

---Voltage Rate (U0/U)

    300/500V, 450/750V

---Working Temperature

    -15℃~+90℃.

---Minimum Bending Radius

    Diameter up to 25mm2: 4 x overall diameter

    Diameter over 25mm2: 6 x overall diameter.

---Production Standard

   JB/T 10491, BS 7211, BS 6724, BS EN/IEC 61034, BS 8573.

---Products Packing

   100 meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.

---Products Delivery

   Within 5-7 working days as soon as we received the deposit.


REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

    ---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

    ---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

    ---Hante Cable: it is your Production Base, Overseas Warehouse, and Purchase Consultant in wire and cable

    industry.


MAIN ADVANTAGE


HOT-SELLING PRODUCTS


RAW MATERIAL



PRODUCTION PROCESS


INSPECTION PROCESS

FAQ
1. Are you the manufacturer or trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
