6201-2RS 6201ZZ Radial Ball Bearing 12x32x10mm
The 6201-ZZ-012 bearing is a precision radial ball bearing featuring a 12.5mm bore, with metal shields on both sides and pre-lubrication with grease. The 6201 is a versatile 12 mm ball bearing suitable for a variety of rotary and factory automation applications. This deep groove ball bearing is of an open style, providing flexibility in its usage. The 6201Z variant features a single row raceway and a single shield, while the 6201ZZ ball bearing comes with a single row raceway and shields on both sides. For enhanced protection, the ball bearings are shielded by two rubber seals on each side. With an inner dimension of 12mm, outer dimension of 32mm, and a width of 10mm, the 6201 is designed as an open style ball bearing specifically engineered for high rotational speeds and dynamic loads.
Metric Ball Bearing 6000zz Dimension:
|
Bearing No.
|
6201-2RS 6201ZZ
|
|
Inner Diameter
|
12 mm
|
|
Outer Diameter
|
32 mm
|
|
Width
|
10 mm
|
|
Seal type
|
Metal shield /rubber sealed
|
Application :
- Motorcycles
- Small power tool
- Tractor gearbox
- Machine tool gearboxes
- Automobile
- Textile industry
- Agricultural
- Electric motors

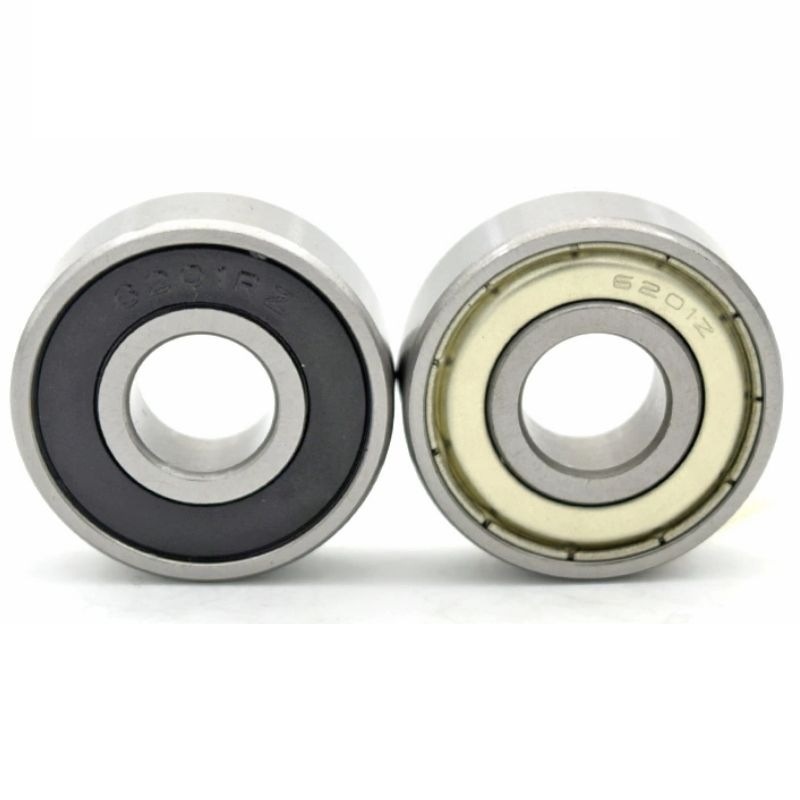

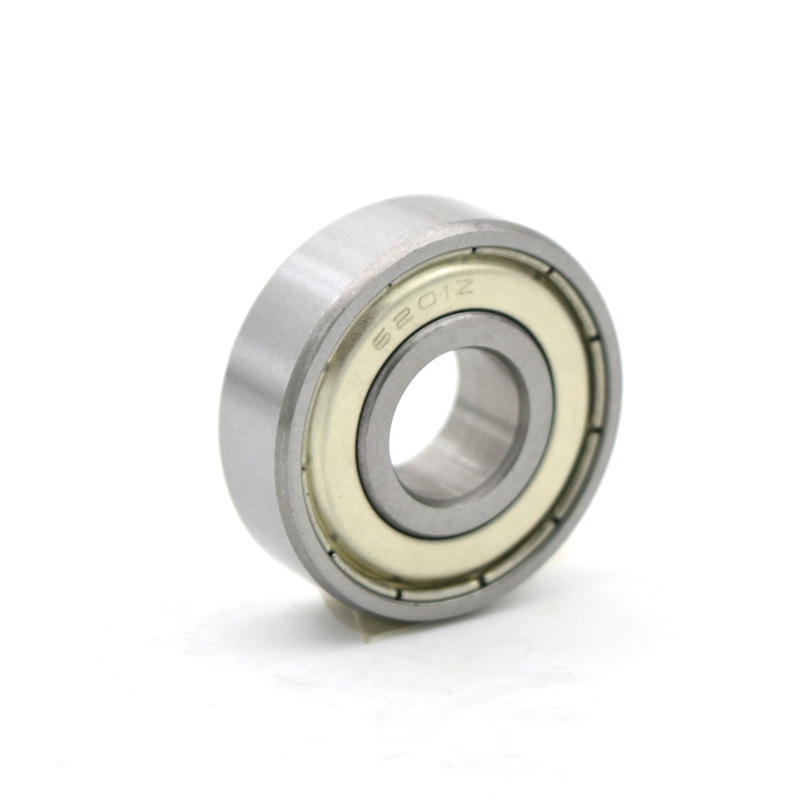

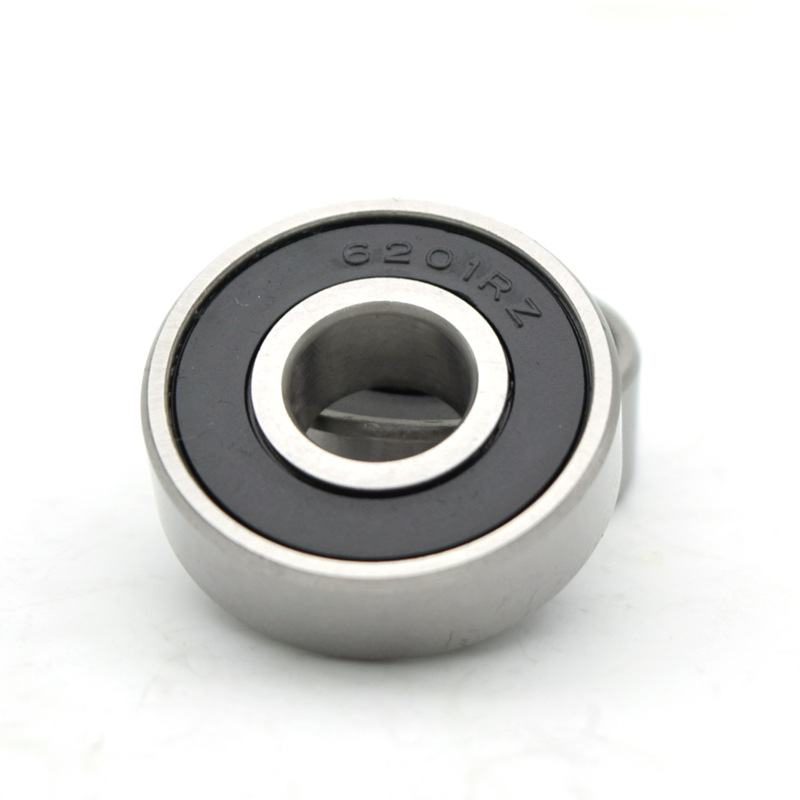

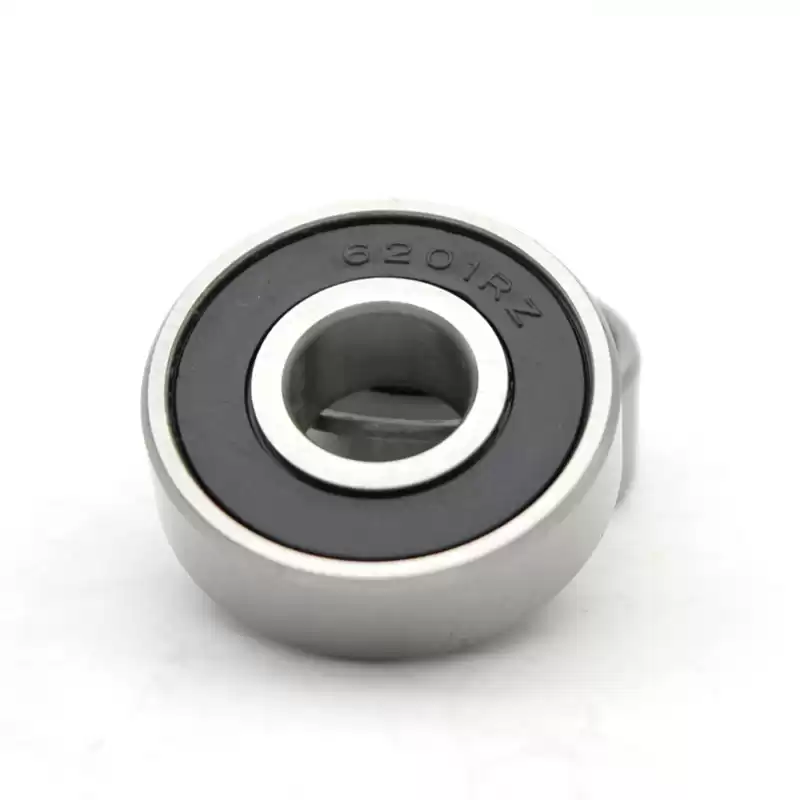

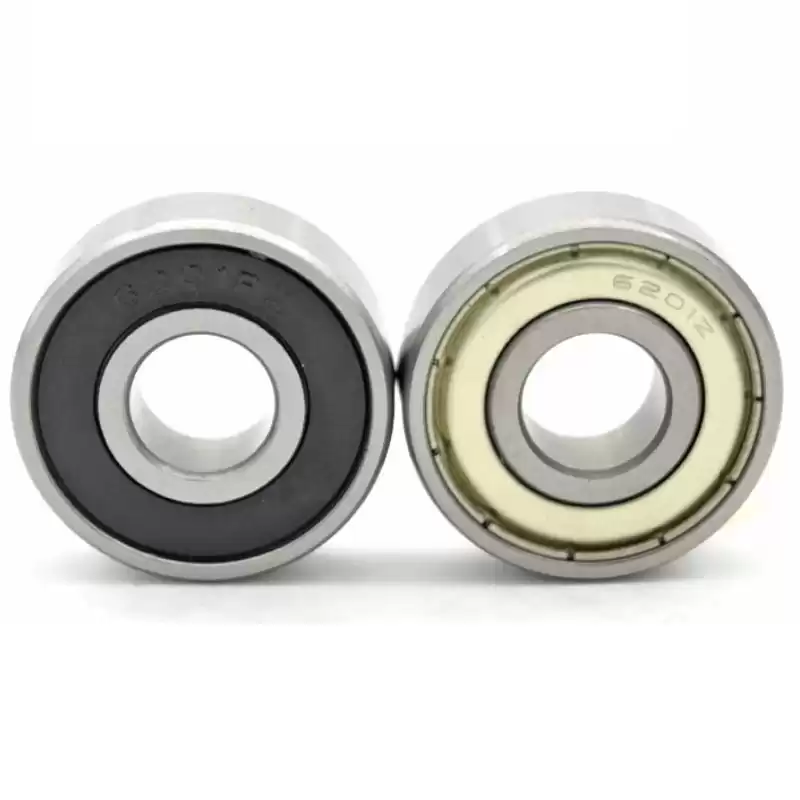

Photos:
More Related Models :
|
Bearing No.
|
I.D
|
O.D
|
W
|
Load Rating(KN)
|
Unit Weight
|
|
|
d
|
D
|
B
|
Dynamic
|
Static
|
|
|
|
mm
|
mm
|
mm
|
Cr
|
Cor
|
kg
|
|
6200
|
10
|
30
|
9
|
5.1
|
2.39
|
0.032
|
|
6201
|
12
|
32
|
10
|
6.1
|
2.75
|
0.037
|
|
6202
|
15
|
35
|
11
|
7.75
|
3.6
|
0.045
|
|
6203
|
17
|
40
|
12
|
9.6
|
4.6
|
0.065
|
|
6204
|
20
|
47
|
14
|
12.8
|
6.65
|
0.106
|
|
6205
|
25
|
52
|
15
|
14
|
7.85
|
0.128
|
|
6206
|
30
|
62
|
16
|
19.5
|
11.3
|
0.199
|
|
6207
|
35
|
72
|
17
|
25.7
|
15.3
|
0.288
|
|
6208
|
40
|
80
|
18
|
29.1
|
17.8
|
0.366
|
|
6209
|
45
|
85
|
19
|
32.5
|
20.4
|
0.407
|
|
6210
|
50
|
90
|
20
|
35
|
23.2
|
0.463
|
|
6211
|
55
|
100
|
21
|
43.5
|
29.2
|
0.607
|
|
6212
|
60
|
110
|
22
|
52.5
|
36
|
0.783
|
|
6213
|
65
|
120
|
23
|
57.5
|
40
|
0.99
|
|
6214
|
70
|
125
|
24
|
62
|
44
|
1.07
|
|
6215
|
75
|
130
|
25
|
66
|
49.5
|
1.18
|
|
6216
|
80
|
140
|
26
|
72.5
|
53
|
1.4
|
|
6217
|
85
|
150
|
28
|
83.5
|
64
|
1.79
|
|
6218
|
90
|
160
|
30
|
96
|
71.5
|
2.15
|
|
6219
|
95
|
170
|
32
|
109
|
82
|
2.62
|
|
6220
|
100
|
180
|
34
|
122
|
93
|
3.19
|
|
Remark
|
Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc.
|
