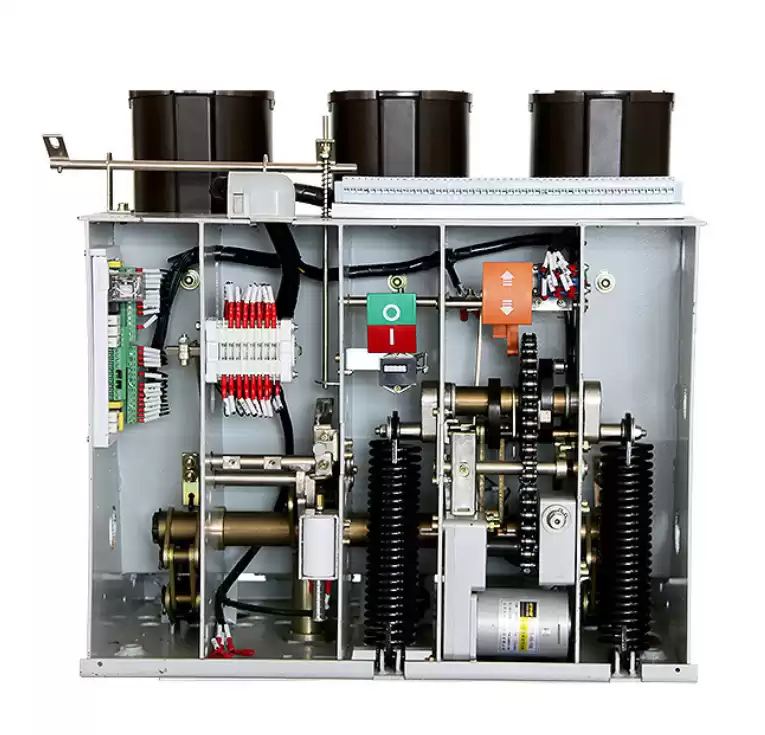

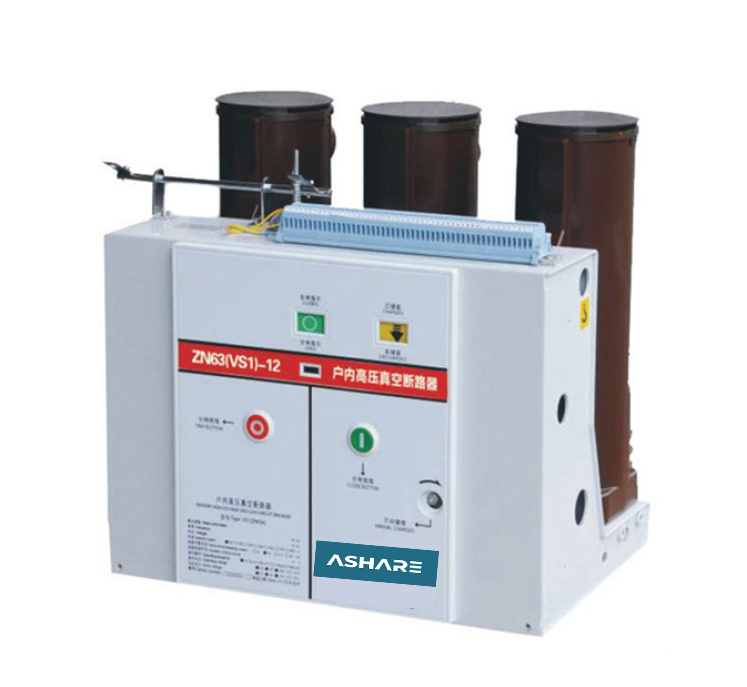

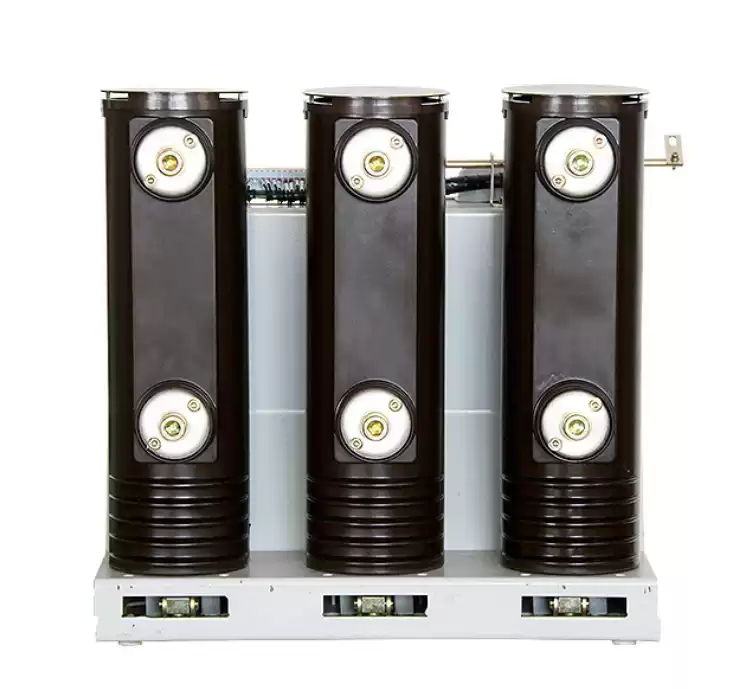

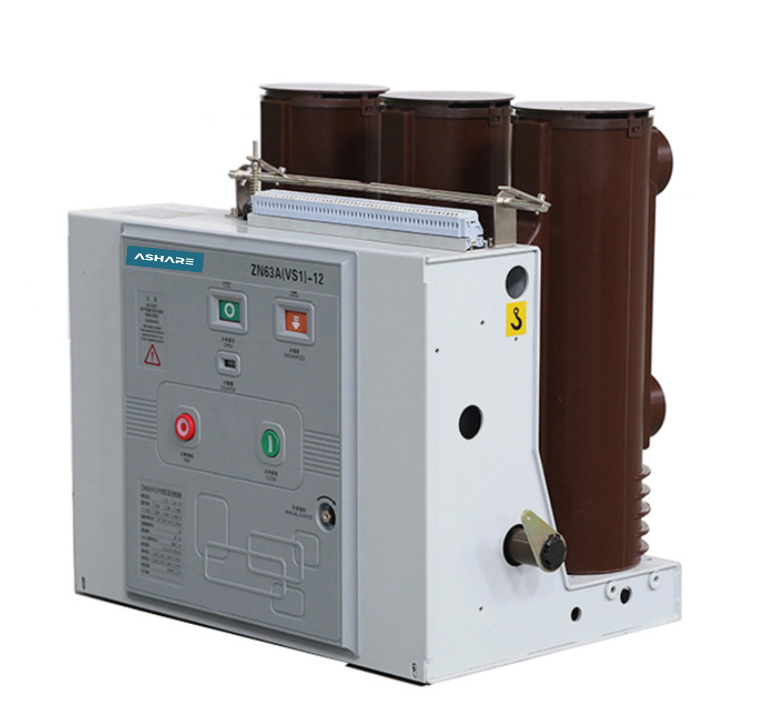

This circuit breaker adopts an integrated design of the operating mechanism and the circuit breaker body, which can be used as a fixed installation unit or equipped with a special propulsion mechanism to form a handcart unit.
① The pole body of the circuit breaker adopts A-pole compound rubber, which can play a very good anti-fouling and sealing effect, and its wear resistance is stronger than ordinary materials.
② Plum-style copper contacts are less prone to rust and damage, and have a long service life.
③ Install metal wheels for easy movement and better installation efficiency.

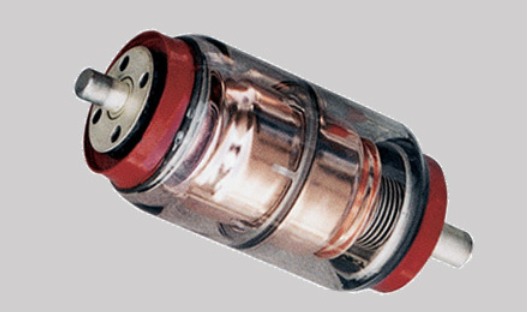

④ Vacuum arc extinguishing chamber, with strong arc extinguishing insulation, long life, small size and stable safety performance.
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Rated voltage
|
kV
|
12
|
|
2
|
Rated insulation level
|
Power frequency withstand voltage (1 min)
|
KA
|
On the ground/interphase 42/48
|
|
Lightning impulse withstand voltage (peak value)
|
On the ground/interphase 75/85
|
|
3
|
Rated frequency
|
Hz
|
50
|
|
4
|
Rated current
|
A
|
630
|
630
|
1250
|
1600
|
1250
|
1600
|
|
5
|
Rated short-circuit breaking current
|
kA
|
20
|
25
|
31.5
|
31.5
|
40
|
40
|
|
6
|
Rated short-time withstand current (effective value)
|
kA
|
20
|
25
|
31.5
|
40
|
40
|
40
|
|
7
|
Rated withstand current (peak value)
|
kA
|
50
|
63
|
80
|
100
|
100
|
100
|
|
8
|
Rated short-circuit making current (peak value)
|
kA
|
60
|
63
|
80
|
100
|
100
|
100
|
|
9
|
Rated short-circuit current duration
|
S
|
4
|
|
10
|
Mechanical life
|
Times
|
20000
|
|
11
|
1min power frequency withstand voltage of secondary circuit
|
V
|
2000
|

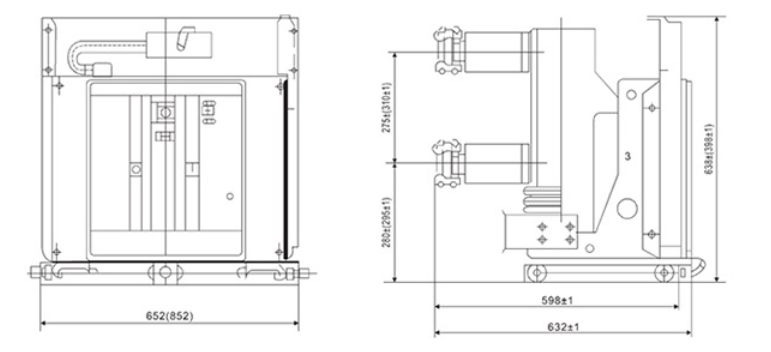

Outside Shape & Size
1. Altitude: less than 1000m.
2. Surrounding air temperature: upper
limit +40 ° C, lower limit -25 ° C (alpine region) and -1 ° C (general region).
3. Relative humidity of surrounding air:
when the maximum temperature is +40℃,
it is not more than 50%. When the temperature is low, it is allowed to have a
large relative humidity. Due to the change of temperature, it may occasionally
has condensation effect.
4. Outdoor wind speed shall not exceed
34m/s.
5. The slope of the ground shall not
exceed 3°.
6. The horizontal acceleration of the
earthquake shall not more than 0.4m/s, and the vertical acceleration shall not morn
than 0.2m/s;
7. The installation site shall be free
from fire, explosion, serious pollution, chemical corrosion and violent
vibration.
Note: if the actual conditions of use
cannot be met, please negotiation with the manufacturer.
