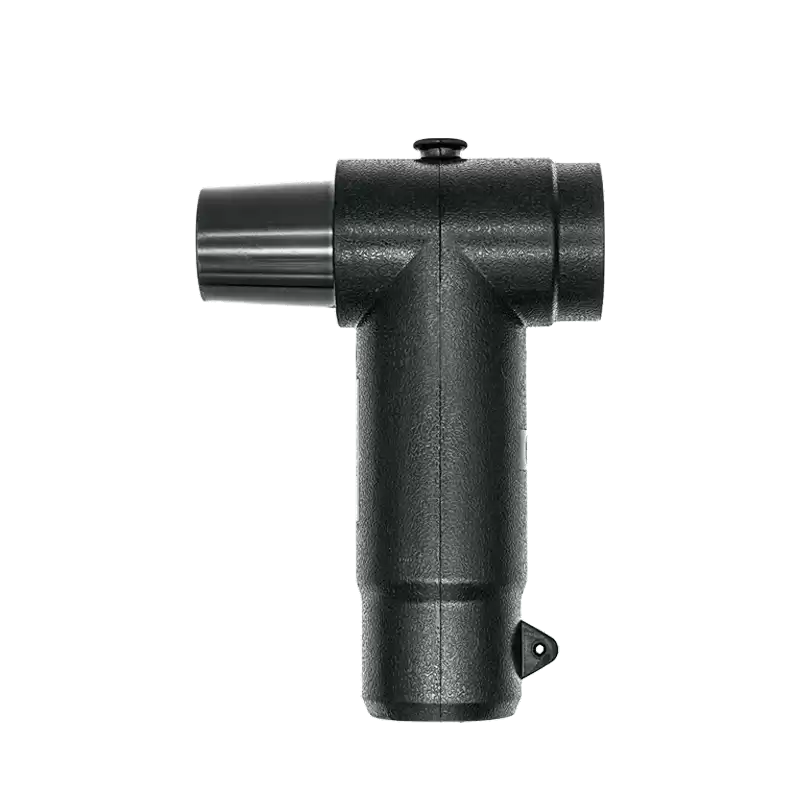

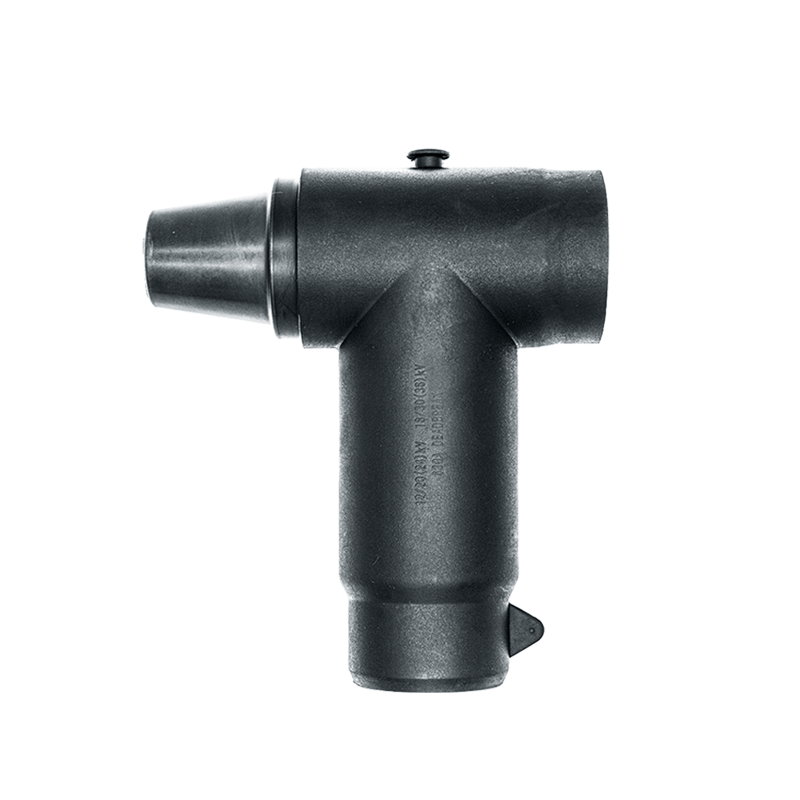

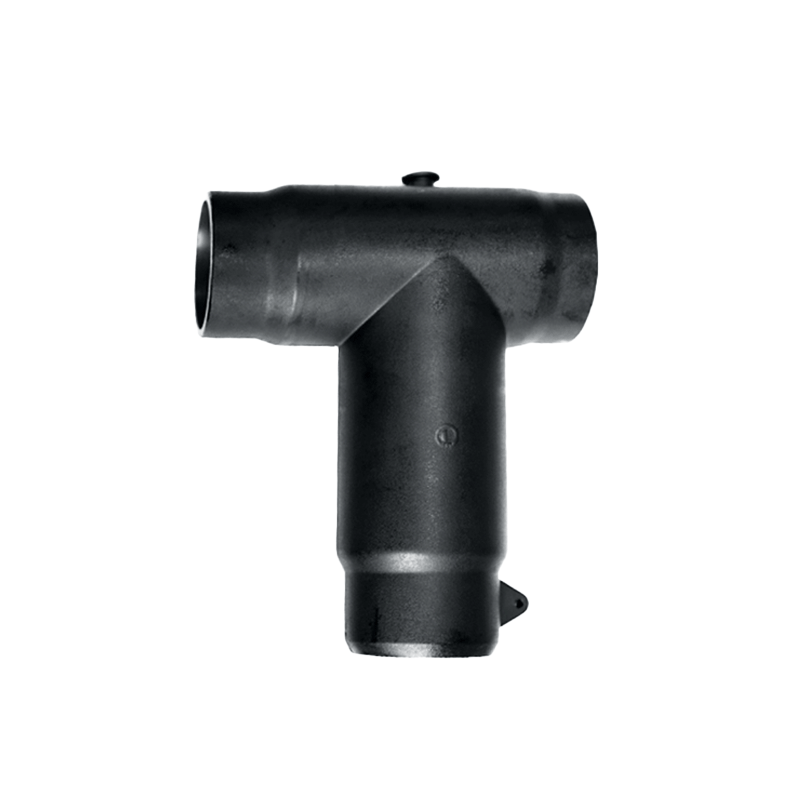

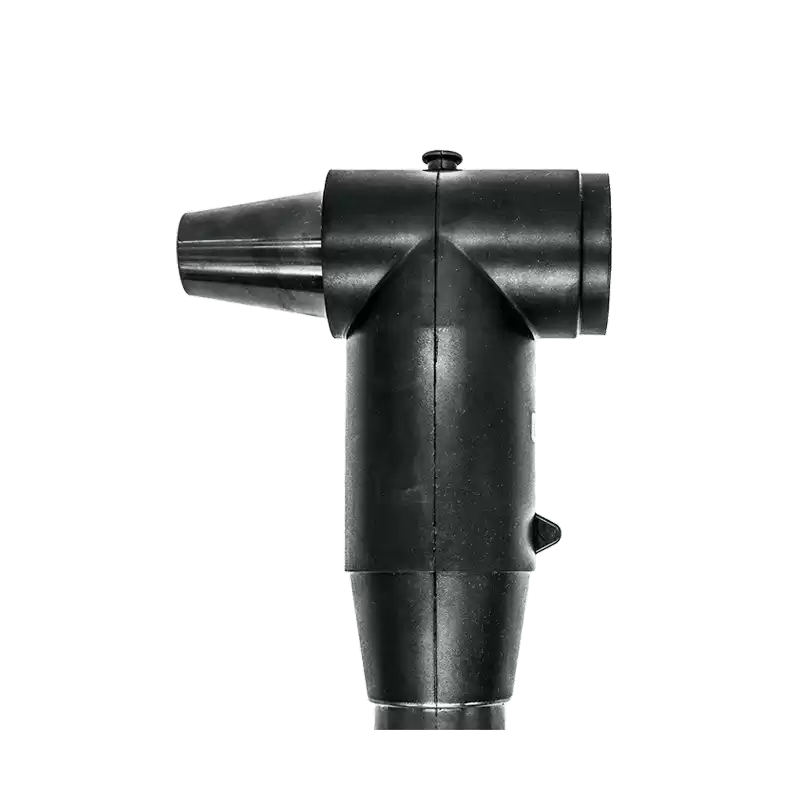

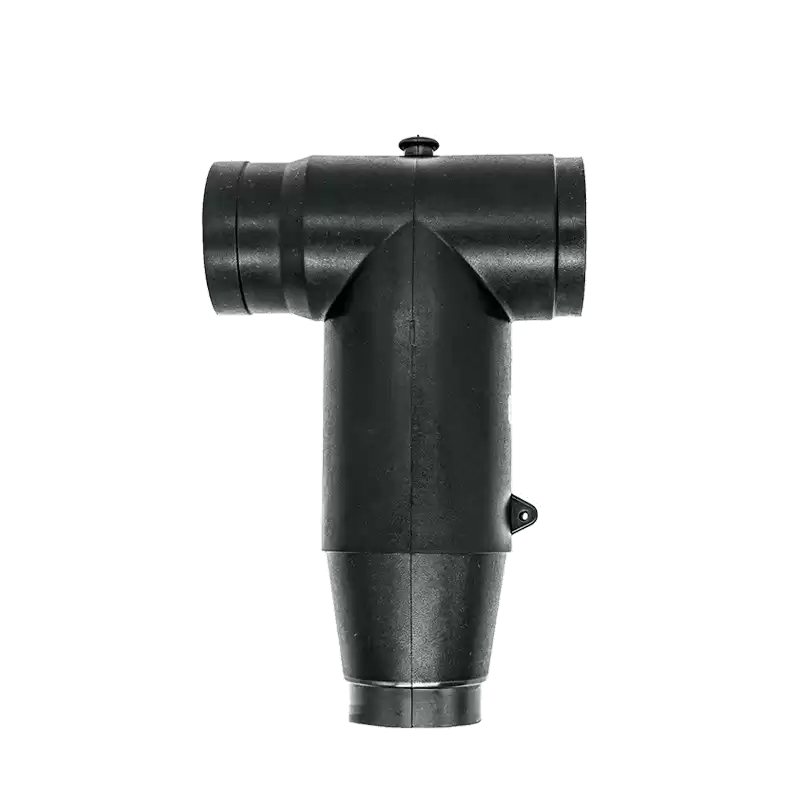

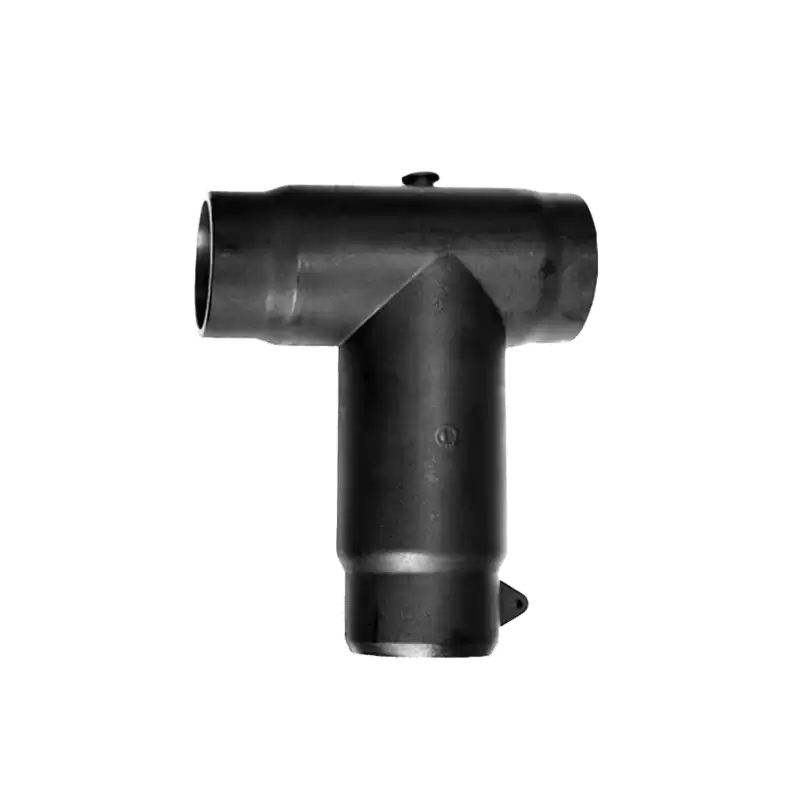

630A Separable Cable Connector European Type Cable Accessories

The IEC 630A Separable Cable Connector offers full insulation and shielding with durable EPDM housing, providing waterproof and moisture-proof protection. Featuring Interface C and compliance with EN50180/50181 standards, it supports XLPE cables with cross-sections from 25 to 500 mm². They're ideal for cable branching, ring main units (RMUs), and medium / highvoltage applications, ensuring secure, efficient connections for both indoor and outdoor installations.

Facebook Twitter Pinterest LinkedIn 分享

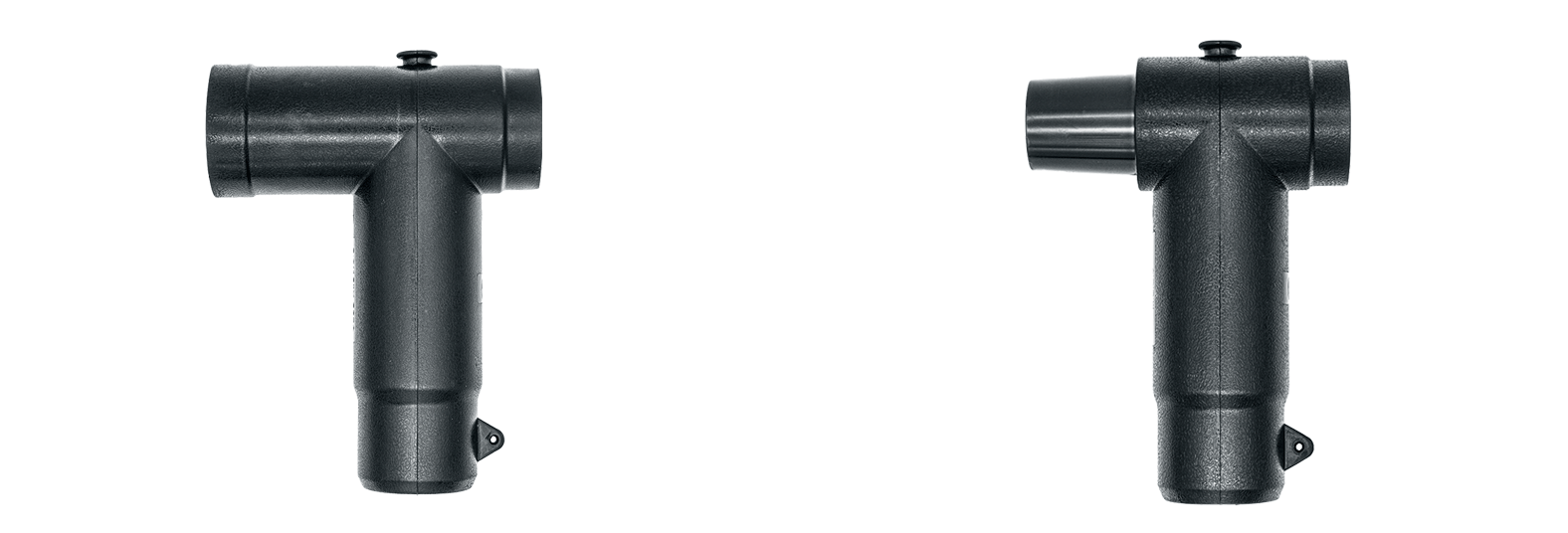

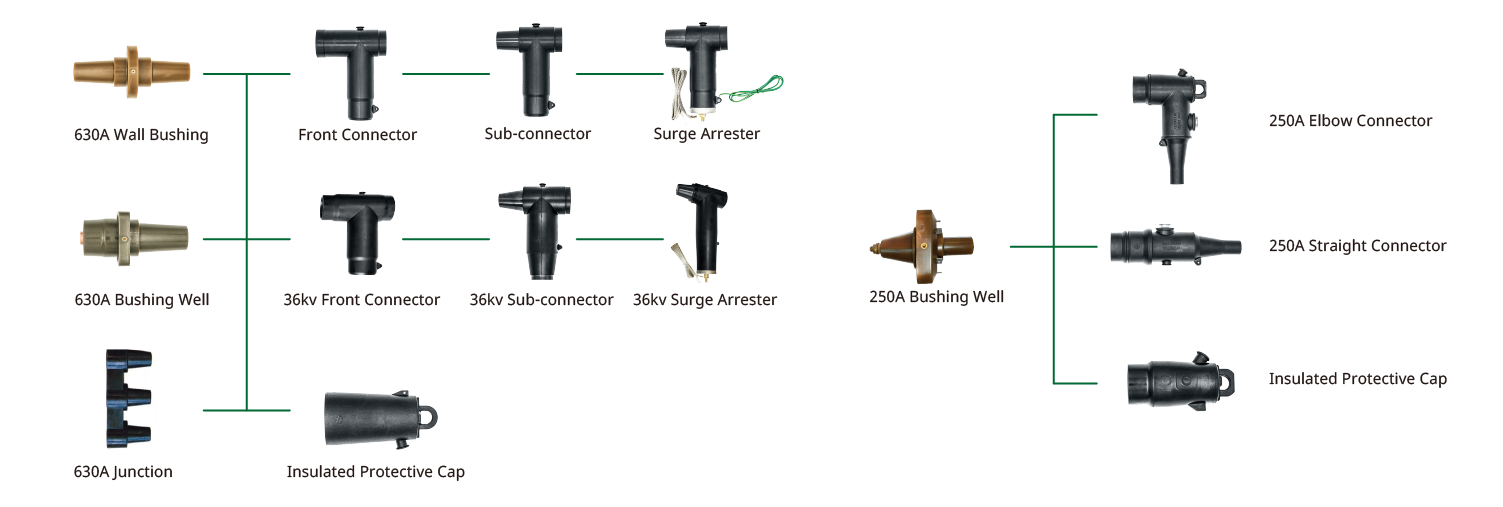

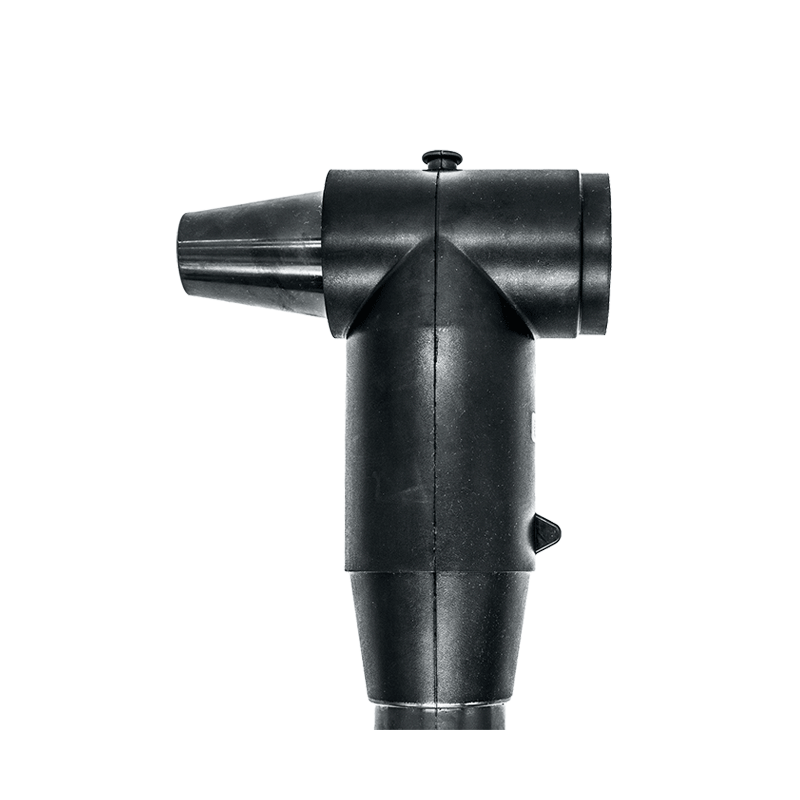

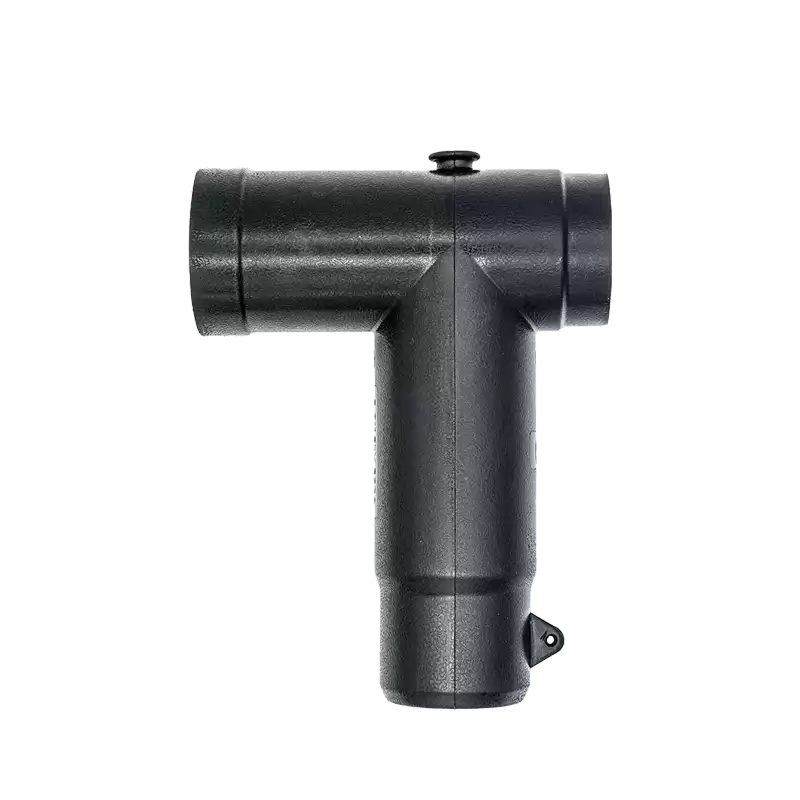

  • IEC Standard European Type Cable Accessories Overview

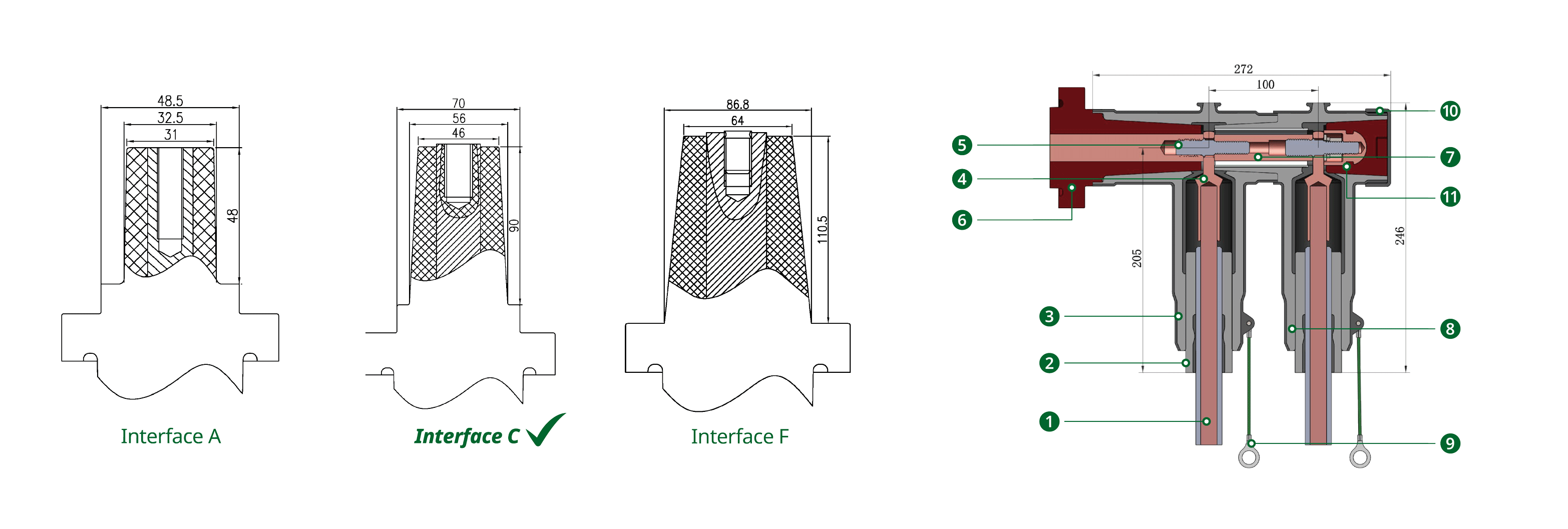

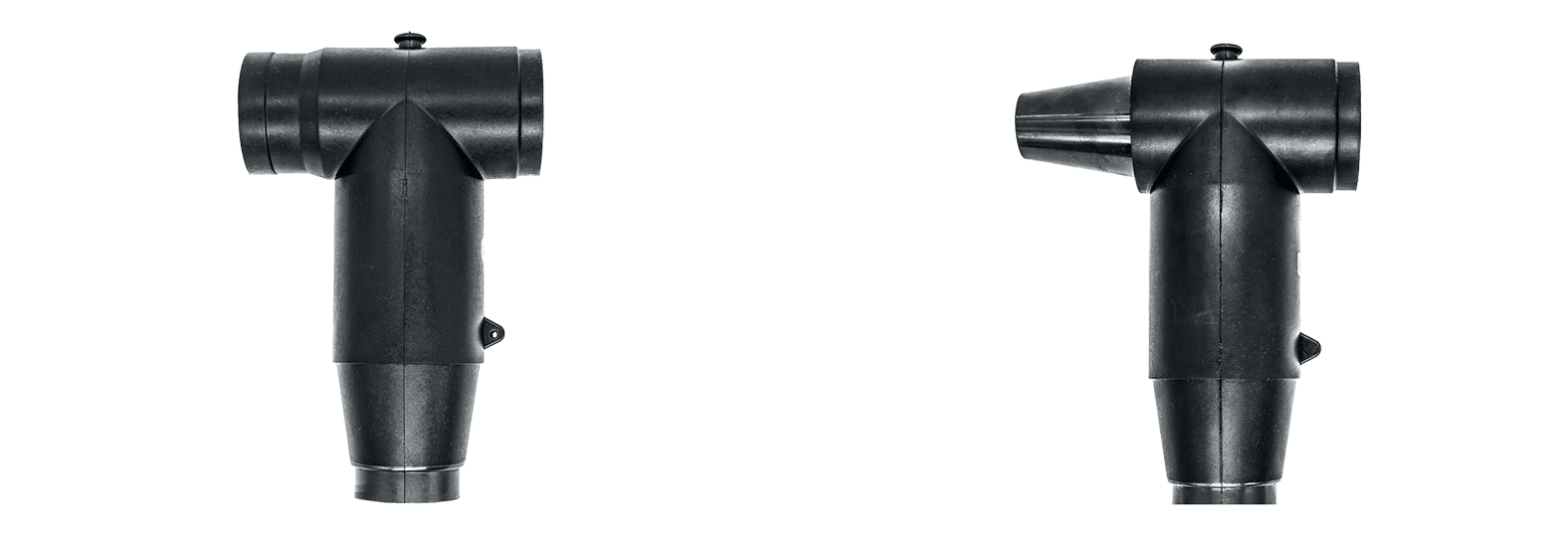

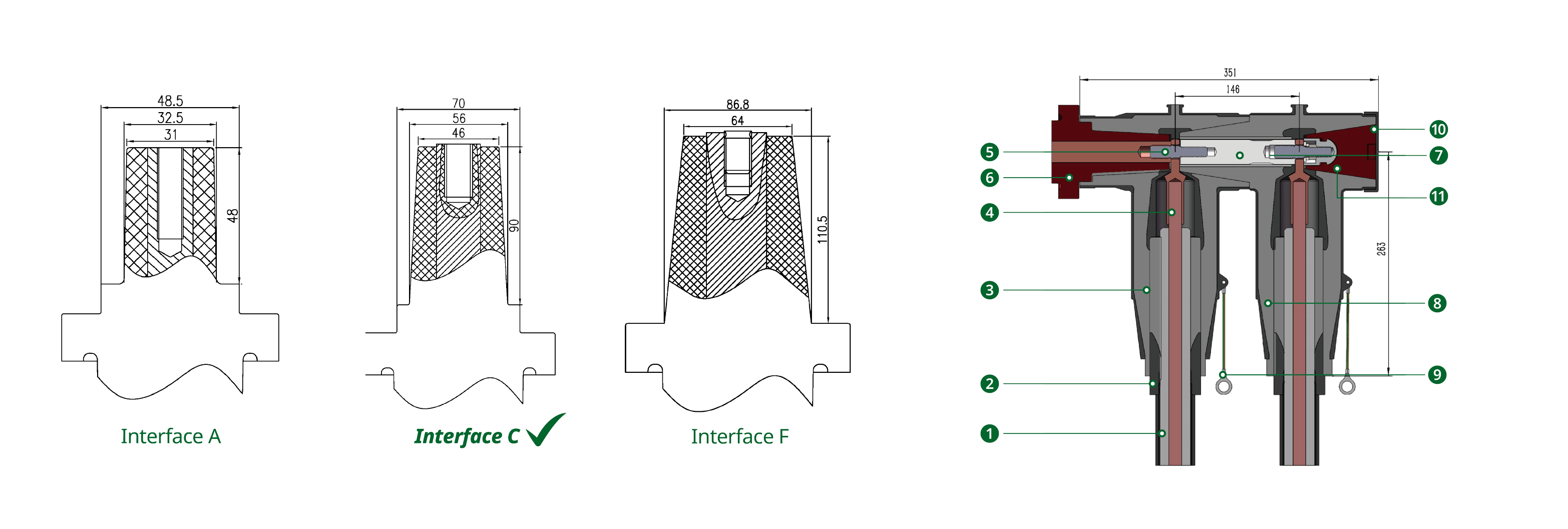

  • 15/24kV 630A IEC Cable Connector Diagram

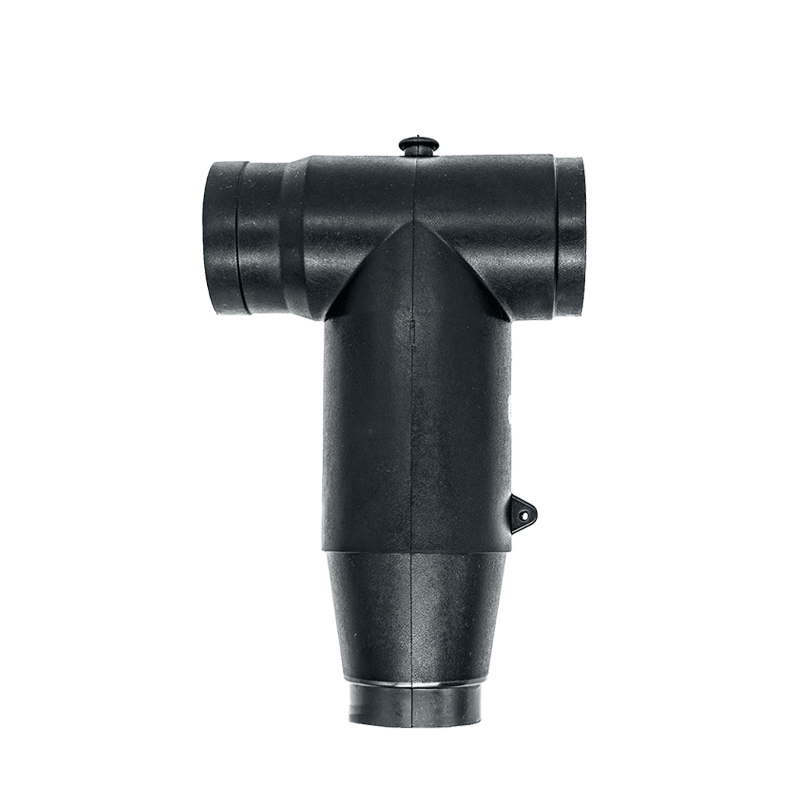

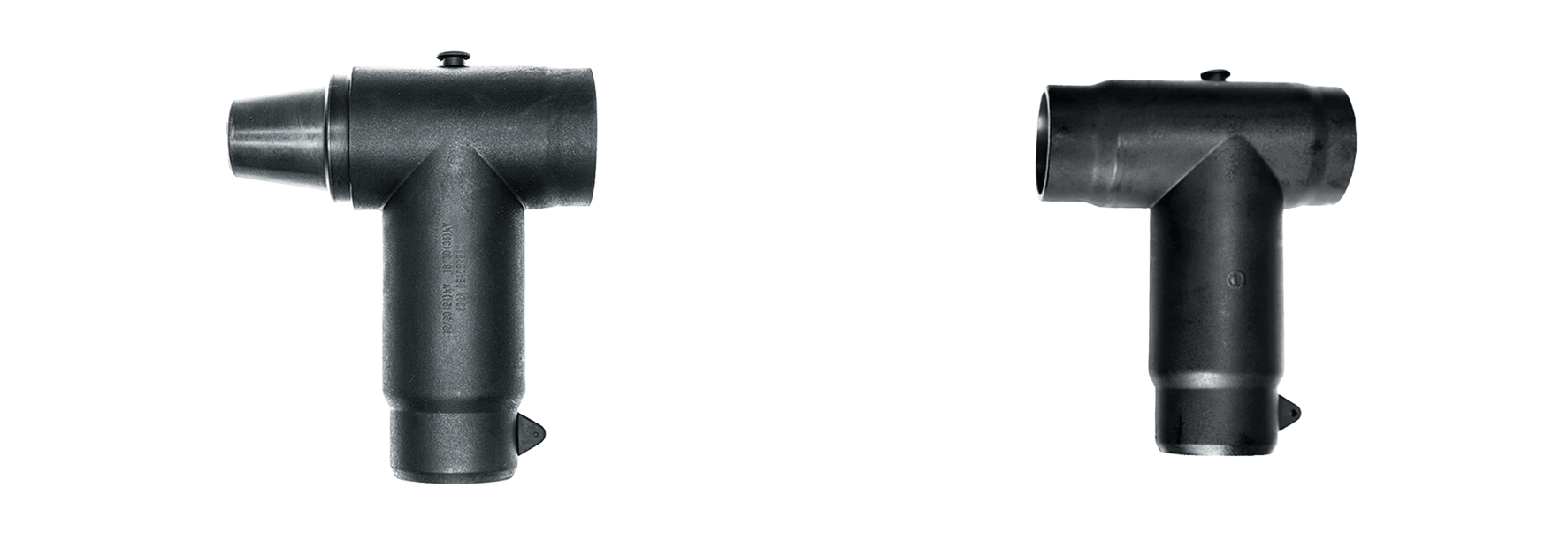

15kV/24kV  630A Compact Screen Front/Rear Connector

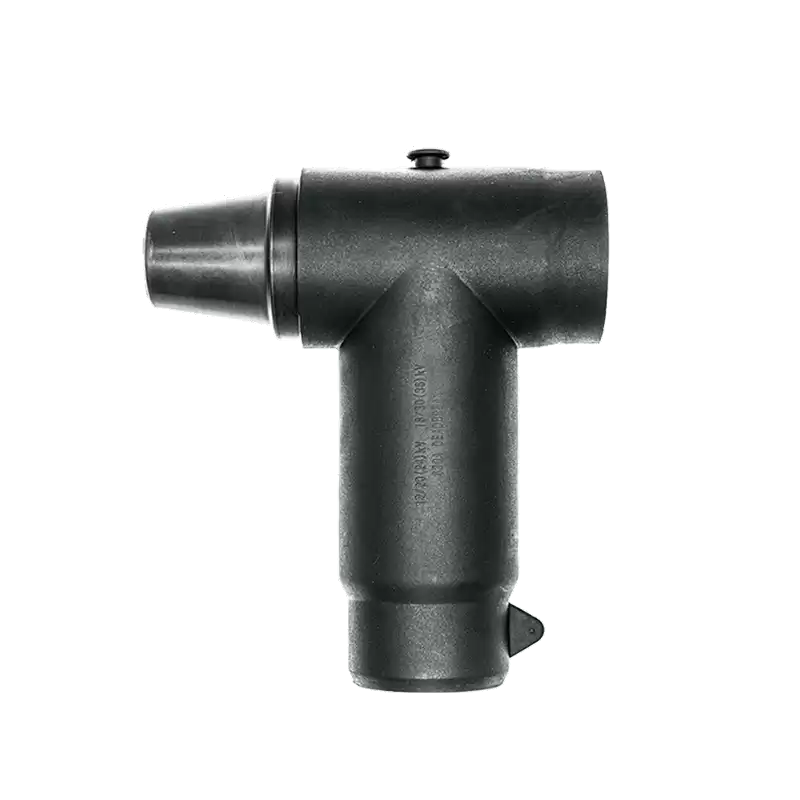

15KV  630A Screen Front/Rear Connector



1. Cable

2. Cable Adapter

3. Front Connector Body

4. Compression Lug

5. Bolt

6. Bushing (Type C)



7. Linking Rod

8. Rear Connector Body

9. Ground Wire

10. Screen Cover

11. Insulation Plug

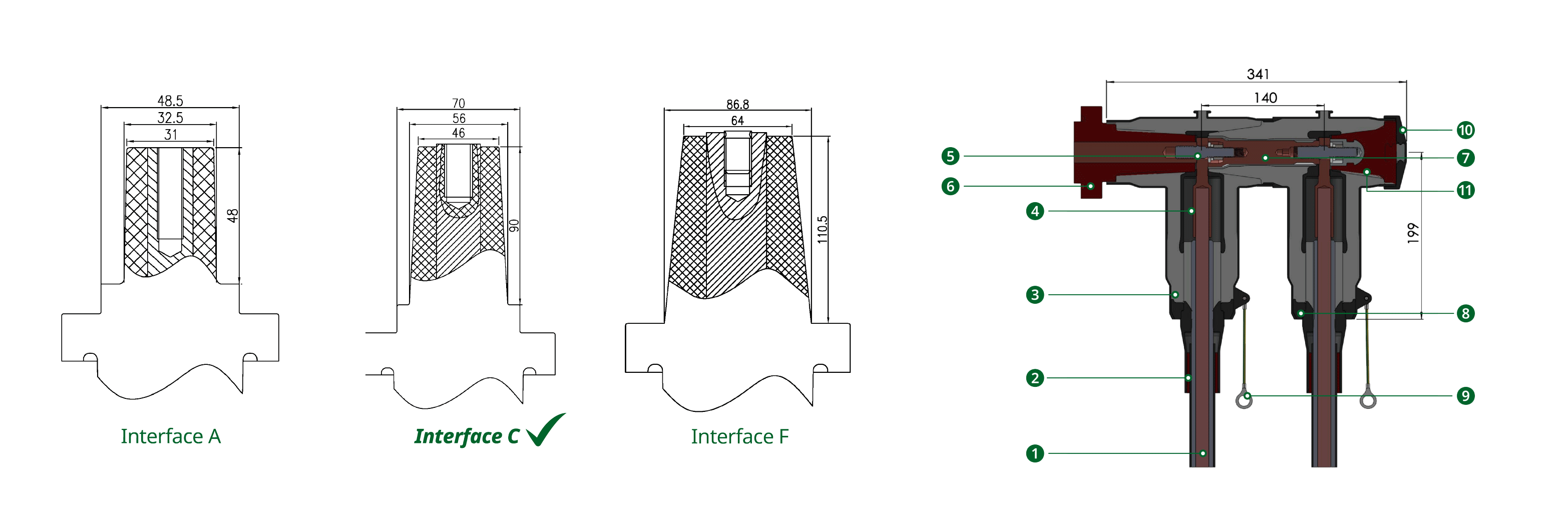

  • 24/36kV 630A IEC Cable Connector Diagram

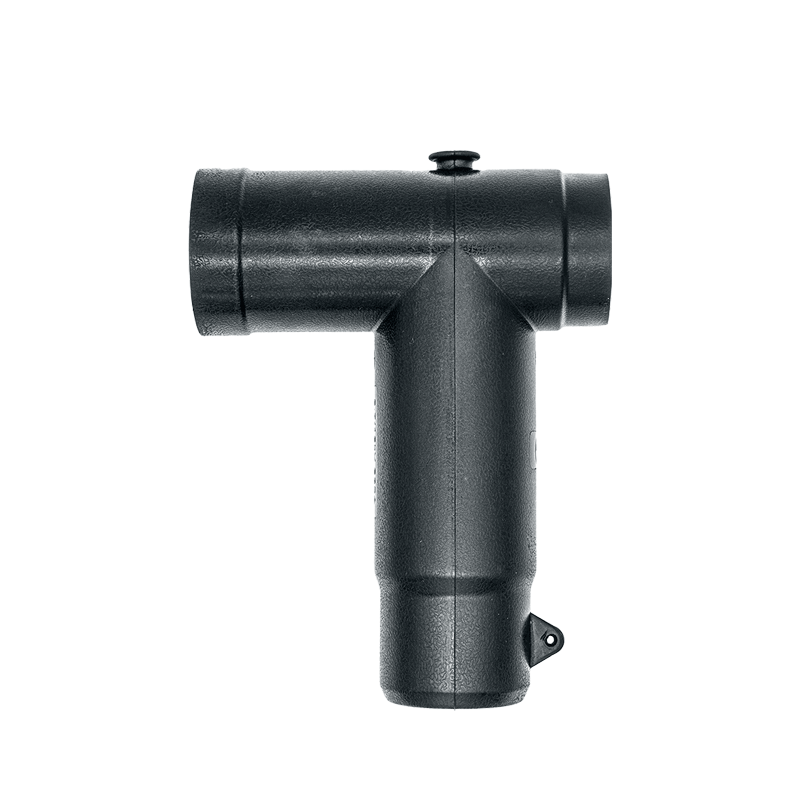

24KV 630A Screen Front/Rear Connector

36KV 630A Screen Front/Rear Connector



1. Cable

2. Cable Adapter

3. Front Connector Body

4. Compression Lug

5. Bolt

6. Bushing(Type C)



7. Linking Rod

8. Rear Connector Body

9. Ground Wire

10. Screen Cover

11. Insulation Plug















  • 40.5KV 630A IEC Cable Connector Diagram


40.5KV 630A Screen Front/Rear Connector



1. Cable

2. Cable Adapter

3. Front Connector Body

4. Compression Lug

5. Bolt

6. Bushing (Type C)



7. Linking Rod

8. Rear Connector Body

9. Ground Wire

10. Screen Cover

11. Insulation Plug















  • IEC 630A Separable Cable Connector Features
  • # Safety & Protection

    Compact, Insulated, and Fully Shielded Connector. High-Quality EPDM Housing, Waterproof, Moisture-Proof
  • # Standards & Compatibility

    Interface C, EN50180/50181 Compliant. Compatible with various XLPE Cables (25-120 mm²)
  • # Applications

    Ideal for Ring Main Units and Cable Branches













  • Specifications



Rated Voltage 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 26/35(40.5)kV
Rated Current 630A 630A 630A 630A
Withstand Voltage 39kV/5MIN 54kV/5MIN 81kV/5MIN 117kV/5MIN
Partial Discharge ≤10pC(15KV) ≤10pC(20KV) ≤10pC(30KV) ≤10pC(38KV)
Lighting Impulse Withstand Voltage 95KV 125KV 170KV 200KV
Thermal Short-Circuit Current 22.8KA/2S 24KA/2S 23KA/2S 23KA/2S
Dynamic Short-Circuit Current 80.8KA 84KA 83KA 83KA
Conductor Cross Section 25-500mm² 25-500mm² 50-500mm² 50-500mm²
