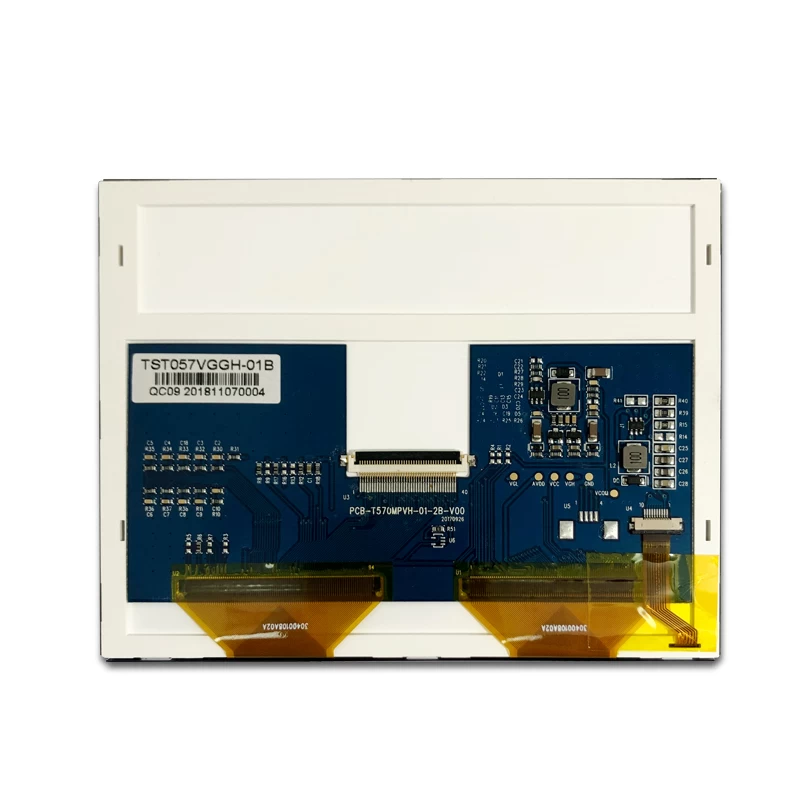

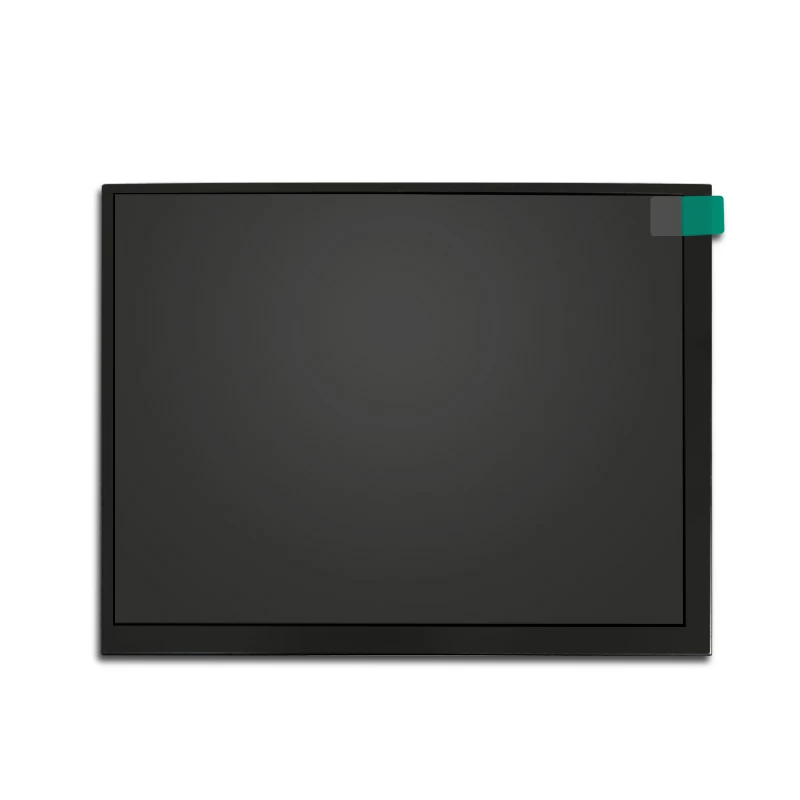

640x480 resolution 5.7 inch tft lcd display with TCON board
|
Specification
|
|
LCD size
|
5.7 inch TFT LCD
|
|
Resolution
|
640 x (RGB) × 480
|
|
LCM (W × H × D )
|
127.00*98.43*5.80
|
|
Active Area (W × H)
|
115.2*86.4
|
|
Viewing Direction
|
12 o’clock
|
|
Color Depth
|
16.7M
|
|
Backlight Type
|
21 LEDs
|
|
Surface Luminance
|
700
|
|
Surface Treatment
|
Glare
|
|
Interface
|
RGB 18-bit
|
|
Driver IC
|
|
|
Operating temperature
|
-20 C°~70 C°.
|
|
Storage temperature
|
-30 C°~80 C°.
|
|
Storage Humidity:
|
10RH ~ 40RH
|
