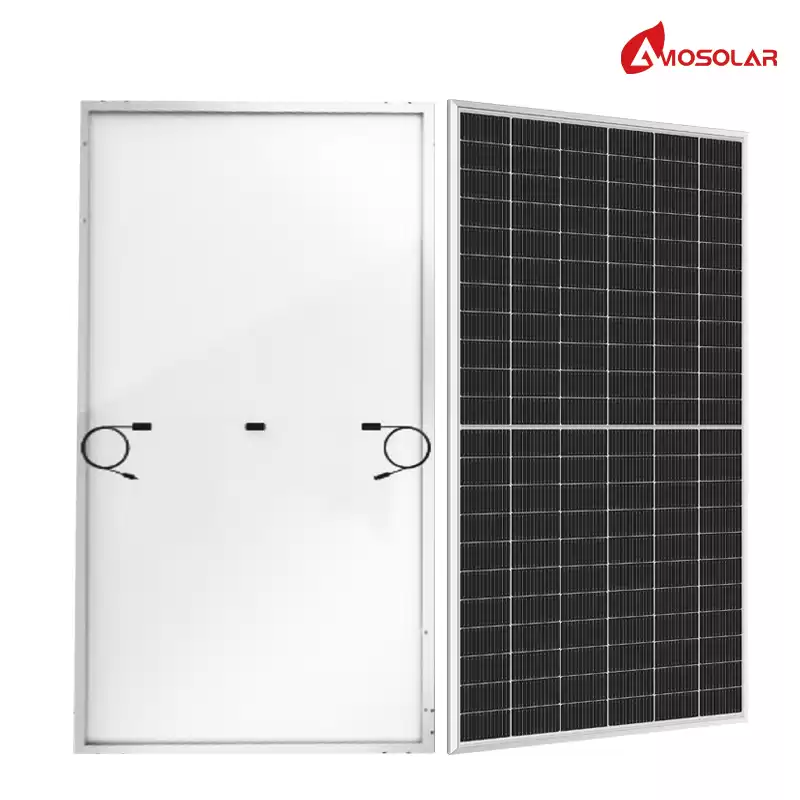

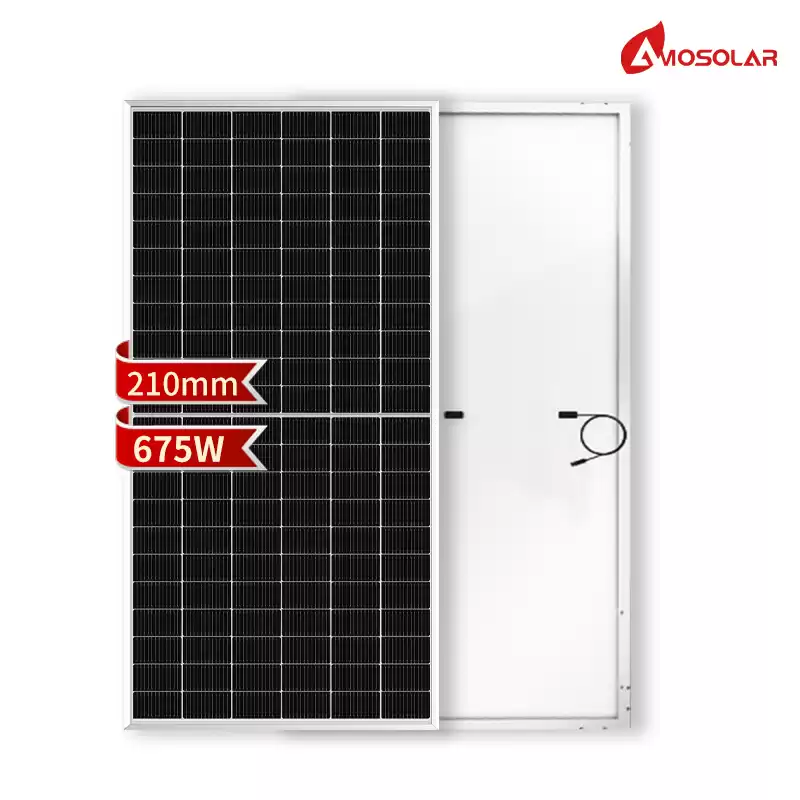

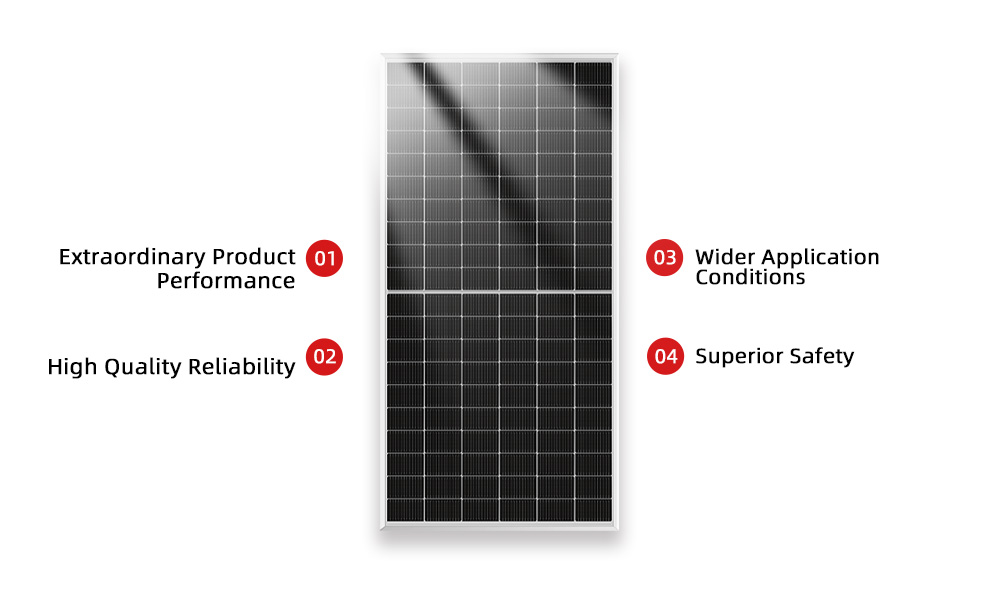

645W-675W Half Cells Mono Solar Panel China Factory : With multi-busbar PERC cells, 210mm solar cells will bring extraordinary product performance, wider application conditions , reliability quality and higgest safety.

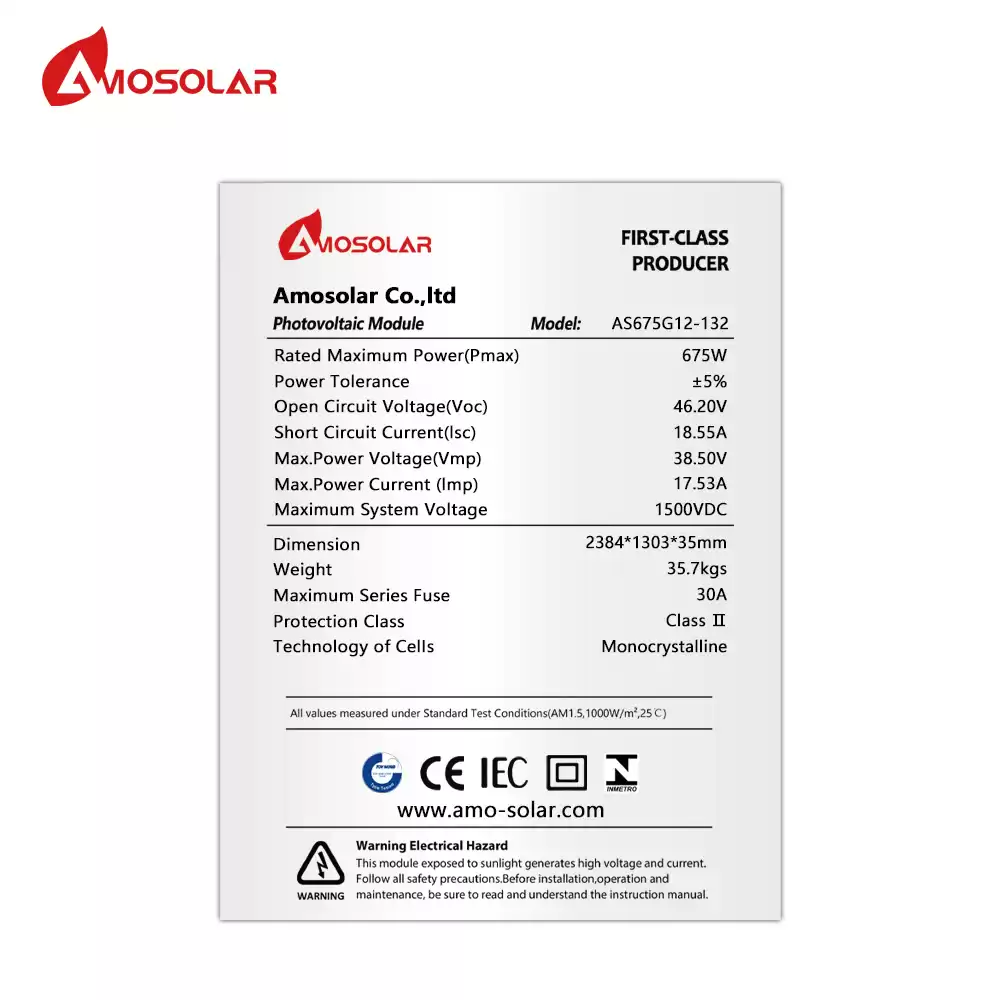

Electrical Performance Parameters (STC Test)
Model
|
AS645G12-132
|
AS650G12-132
|
AS655G12-132
|
AS660G12-132
|
AS665G12-132
|
AS670G12-132
|
AS675G12-132
|
|
Rated Maximum Power at STC
|
645W
|
650W
|
655W
|
660W
|
665W
|
670W
|
675W
|
|
Open Circuit Voltage (Voc)
|
45.00
|
45.20
|
45.40
|
45.60
|
45.80
|
46.00
|
46.20
|
|
Maximum Power Voltage (Vmp)
|
37.30
|
37.50
|
37.70
|
37.90
|
38.10
|
38.30
|
38.50
|
|
Short Circuit Current (Isc)
|
18.31
|
18.35
|
18.39
|
18.44
|
18.48
|
18.51
|
18.55
|
|
Maximum Power Current (Imp)
|
17.29
|
17.33
|
17.37
|
17.41
|
17.45
|
17.49
|
17.53
|
|
PV Module Efficiency (%)
|
20.76
|
20.92
|
21.09
|
21.25
|
21.41
|
21.57
|
21.73
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 132( 6 × 22 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 35.7KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

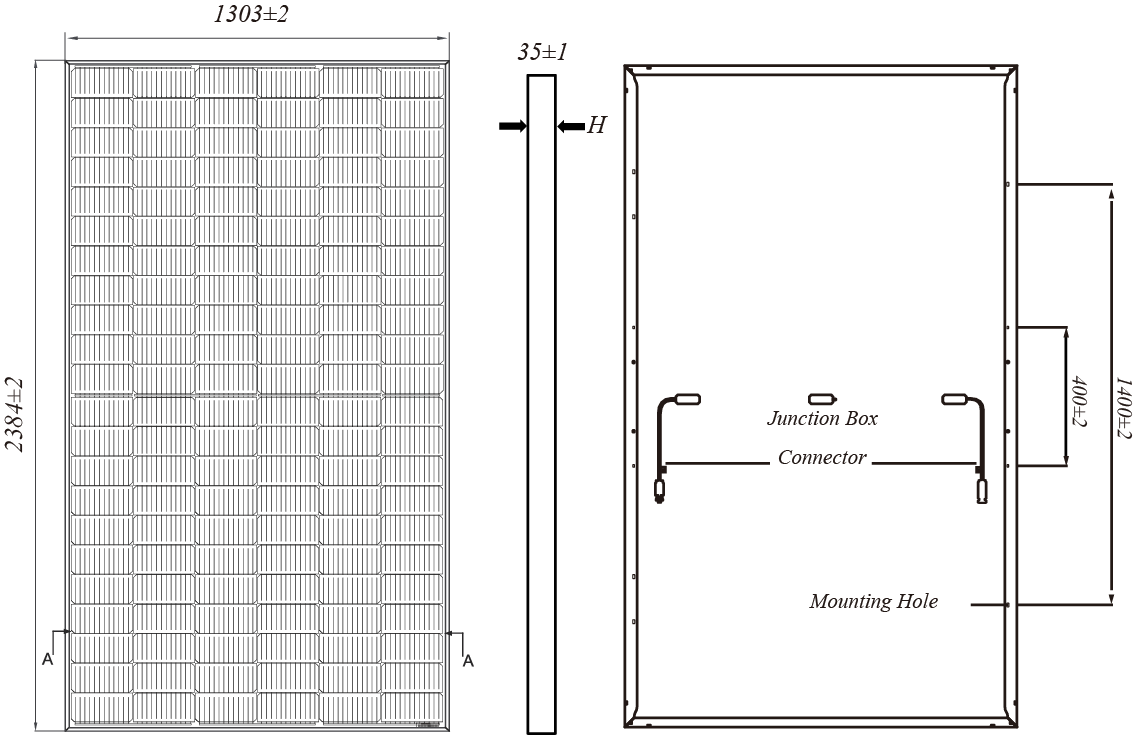

PV Size: 2384×1303×35mm

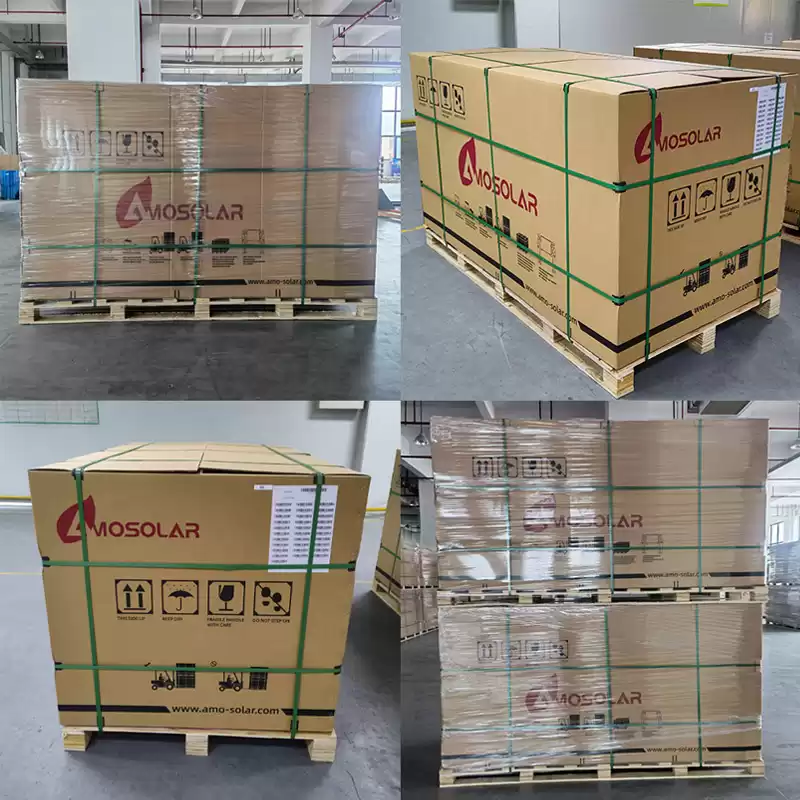

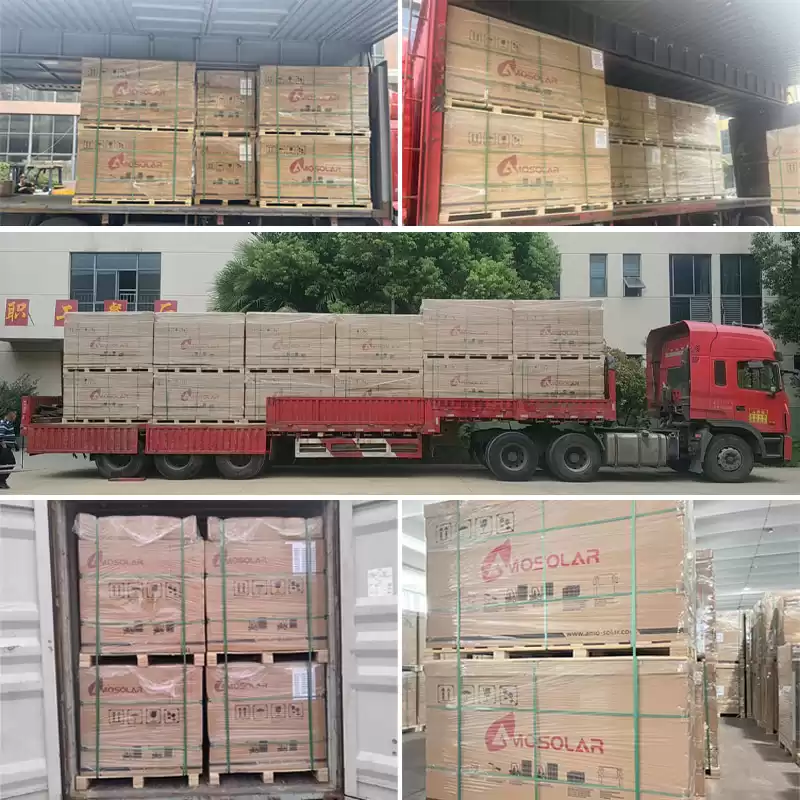

Packaging: 31 pcs / pallet
558 pcs / 40HQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
