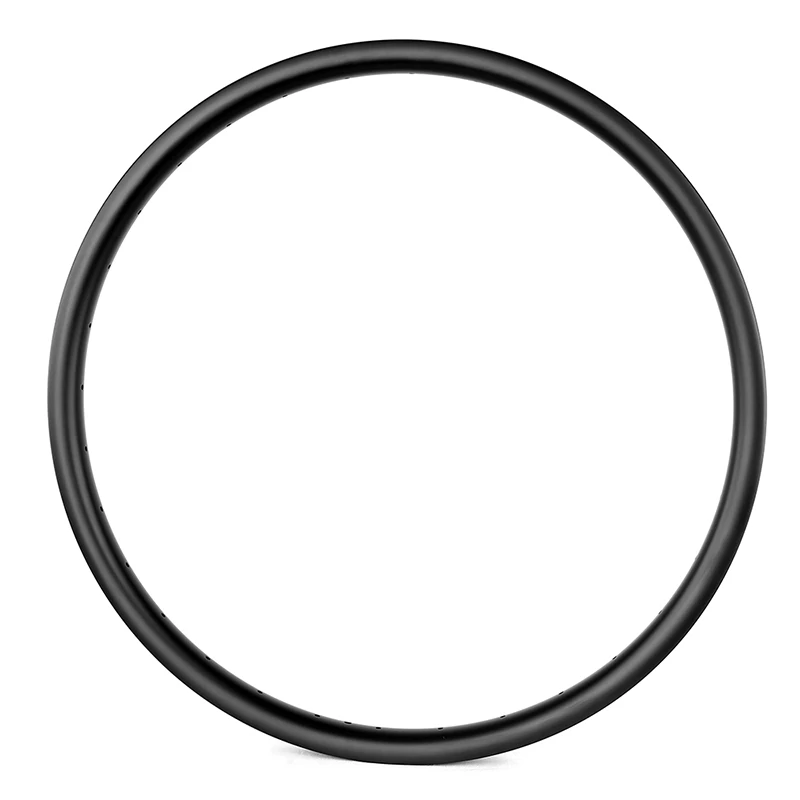

650B ASD MTB BICYCLE RIMS

YISHUN MTB ASD Asymmetry Carbon Rims are the most popular mtb rims we have. This series are being used for several decent brands in the world. xc, trail, am, dh and plus are available. All rim's weight is with 15gram industrial tolerance.

In 2018, we have applied graphene nano carbon technology to ASD series for a lighter and stronger rim.

Facebook Twitter Pinterest LinkedIn 分享

Description

700C MTB ASD ASYMMETRY CARBON RIMS

Key Features

Low profile design for the better impact distribution

Asymmetric design for the better wheel stiffness

Ease of tubeless inflation and best tire bead retention

Ultra smooth inner wall technology for better strength

Thick side wall design for better impact resistance

MTB CARBON RIMS

650B ASD ASYMMETRY MTB RIMS
Modle	ASD730XC	ASD730XC-SL	ASD730XC-GP	ASD733XC-GP	ASD733TR-GP	ASD737TR-GP	ASD737AM\|ED	ASD742TR	ASD742-AM&ED
Rim
Weight	365+/-10g	325+/-10g	305+/-10g	315+/-10g	350+/-10g	400+/-10g	480+/-10g	420+/-10g	520+/-10g
Finish	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K
Prepreg	T700	60% T700 & 40% T800	100% Nano Graphene	100% Nano Graphene	T700	T700	T700	T700	T700
Max. Rider Weight	100kg\|220lbs	80kg\|175lbs	80kg\|175lbs	100kg\|220lbs	115kg/250lbs	115kg/250lbs	115kg/250lbs	115kg/250lbs	115kg/250lbs
Max. Tire Pressure	40PSI\|2.7bars	40PSI\|2.7bars	40PSI\|2.7bars	40PSI\|2.7bars	40PSI\|2.7bars	35PSI\|2.4 bars	35PSI\|2.4 bars	35PSI\|2.4 bars	35PSI\|2.4 bars
Rec. Tire Size	2.1-2.5"	2.1-2.5"	2.1-2.5"	2.2-2.6"	2.2-2.6"	2.3-2.8"	2.3-2.8"	2.4-3.0"	2.4-3.0"
Max Spoke Tension	140kgf	140kgf	140kgf	140kgf	140kgf	140kgf	140kgf	140kgf	140kgf
Rim Chart
Tire Bead	Hookless	Hookless	Hookless	Hookless	Hookless	Hookless	Hookless	Hookless	Hookless
Profile	21mm	21mm	21mm	24.5mm	24.5mm	24.5mm	24.5mm	25mm	25mm
OD	596mm	596mm	596mm	596mm	596mm	596mm	596mm	596mm	596mm
Dimension	585*24m	585*24m	585*24m	584*26mm	584*26mm	622*30.6mm	622*30.6mm	585*35mm	585*35mm
ERD	565mm	565mm	565mm	558mm	558mm	558mm	558mm	558mm	558mm
Terrain	Cross Country	Cross Country	Cross Country	Cross Country	Cross Country\|Trail	TRAIL	All Mountain Enduro	TRAIL	All Mountain Enduro
Advantag	■ Hookless design ■ Tubeless ready ■ Super light lay-up to minimize the rim weight ■ Asymmetric profile ■ Internal&external nipple systems available
