650B Plus Full Suspension E-bike Carbon Frame E881

Finish:UD

Size:16"/18"/20"

Battery System:BAFANG M500 (intergrated hidden battery)

Rear Shock: SRAM:Delux-rlr-185x55mm

Grade Available: B:3350g(For size18)



Facebook Twitter Pinterest LinkedIn 分享

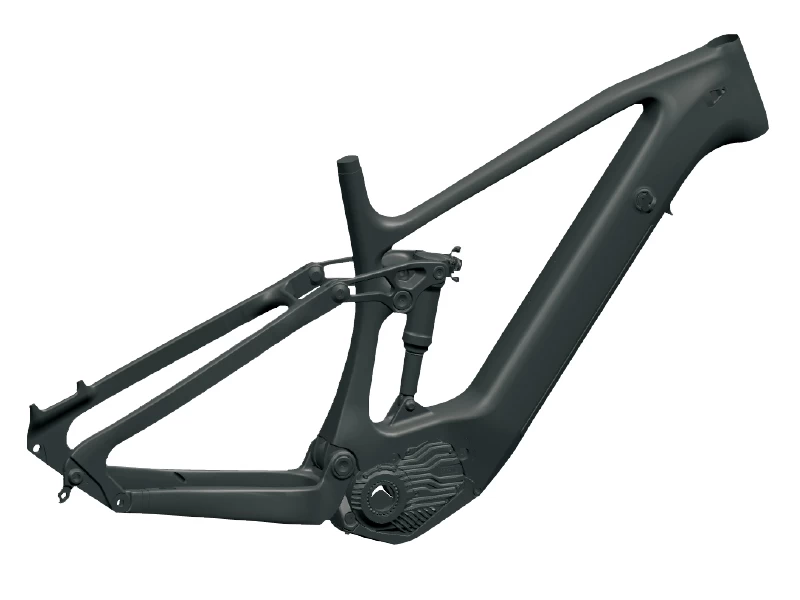

Frame 650B Plus Full Suspension E-bike Carbon Frame
Finish UD
Size
 		16"/18"/20"
Weight 3450g/18"
Head tube Integrated 42mm/52mm (Headset FSA NO.57)
Seat post 31.6 (34.9mm clamp)
Drive system

BAFANG M500

(intergrated hidden battery)

Rear shock size 20-54*185*55mm
Front Travel                           160mm
Rear Travel 160mm
Dropout TA12*148mm

Max tire clearance

27.5*3.0" 29*2.35"
Warranty  2 years
