FS711

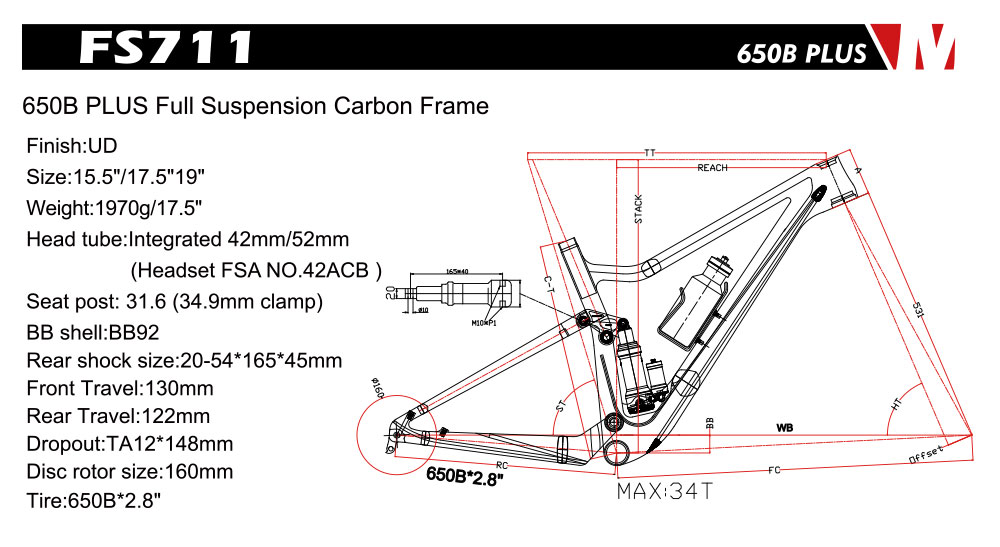

650B Plus Full Suspension Carbon Frame
FS711
|
SIZE
|
C-T
|
A
|
Offset
|
TT
|
HT
|
ST
|
BB
|
RC
|
WB
|
FC
|
RD
|
RB
|
POST
|
STACK
|
PEACH
|
H/T INSERT
|
BB INSERT
|
Wheel
|
Travel
|
15.5"
|
410
|
95
|
51
|
567
|
67
|
73
|
-42
|
443
|
1133.5
|
688.6
|
Inner
|
Inside
|
31.6
|
604.1
|
393.2
|
FSA
NO:42
ACB
|
BB92
|
650B*2.8"
Dropout:
∅12*148mm
|
F 120MM
R 122MM
Suspension
165*45mm
|
17.5"
|
440
|
95
|
51
|
600
|
67
|
73
|
-42
|
443
|
1166.5
|
721.6
|
598.3
|
424.2
|
|
19"
|
490
|
105
|
51
|
630
|
67
|
73
|
-42
|
443
|
1196.5
|
751.6
|
607.6
|
454.2
|

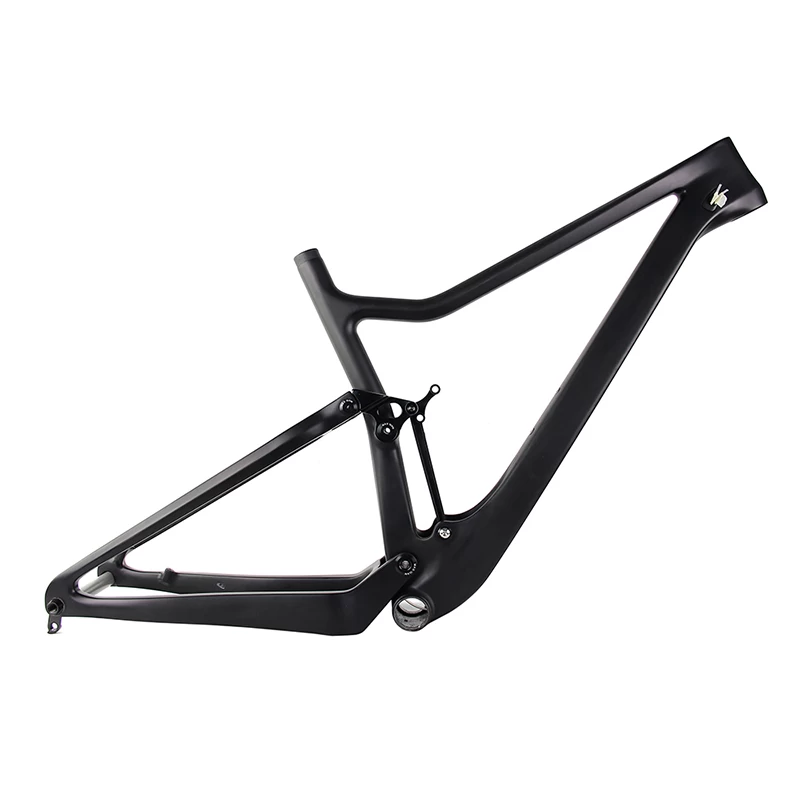

650B PLUS Full Suspension Carbon Mountain Bike MTB Frame FS711
|
Frame
|
650b cross country mountain bike frame
|
|
Material
|
High modulus Toray T700 carbon fiber
|
Size
|
15.5'', 17.5'', 19'' (Small, Medium, Large)
|
|
FrontTravel
|
130mm
|
|
Rear Travel
|
122mm
|
|
Headtube
|
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
|
|
Weight
|
1970g/Medium
|
|
Seatpost Diameter
|
31.6mm(34.9 clamp)
|
|
Bottom Bracket
|
Press Fit BB92
|
|
Max Tire Clearance
|
650b*2.8''
|
|
Max Compatible Chainring
|
34T
|
|
Brake Type
|
Post Mount Disc brake 160mm
|
|
Front Derailleur
|
Braze on
|
|
Rear Shock
|
165*45mm rear shocks(compatible with standard mount and trunnion mount)
|
|
Dropout
|
Thru Axle 12*148mm
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
