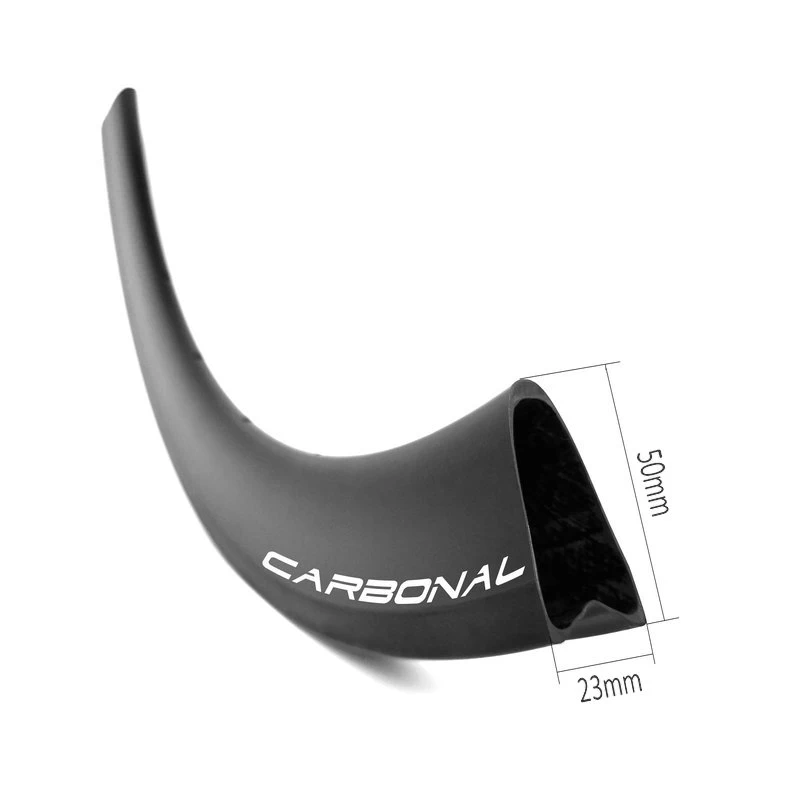

650C road bicycle carbon rim 23mm wide 50mm deep tubular

Item RT650C, weight: 350g, ERD 495. 650C carbon road 23mm wide 50mm deep tubular rim is lightweight and aerodynamics, build into a light 650C road wheelset. Available in rim brake and disc brake for training, racing.


  • Max spoke tension140kgf
  • Depth50mm
  • Width23mm
  • ERD495mm
  • Weight350g±20
  • BrakeRim brake or Disc brake
  • TypeTubular
  • Materialfull carbon Toray T700
  • Size650C
  • Max weight limit125kgs

Product Item: 650C road bicycle carbon rim 23mm wide 50mm deep tubular

650c carbon road rim

650C road bicycle V shape 23mm wide 50mm deep tubular carbon rim is lightweight and aerodynamics, build into a light 650C carbon road wheelset. Available in rim brake and disc brake for training, racing.


Rim Specs:

 Item:
 RT650C
 Use:
 road bike, cyclocross
 Rim type:
 650C tubular - rim brake or disc brake *
 Material:
 Toray T700 carbon fiber
 Width:
 23mm
 Weight:
 350g±20
 Depth:
 50mm
 ERD:
 495mm
 Weave:
 UD, 3k, 6k, 3k twill, marble
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Min tire pressure:
 80psi
 Decal:
 Customized
 Weight limit:
 125kgs
 TG resin temperature:
 210°C
 Standard:
 EN standard


* Disc brake, we will manufacture this rim without braking surface accordingly.


Features:

  • Aero V shape design, 650C size 50mm depth tubular rim available in V-brake and Disc brake (without brake track).
  • Rim constructed with premium Toray T700 carbon fiber, precise layup, achieve a most lightweight.
  • One piece molding, a rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is strongest.
  • High TG 210°C resin temperature brake track, use pregreg carbon fiber, which is carbon with resin together already, high TG resin be used to make rim is good enough at high temperature heating on wheels during braking.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
