Product Model:650C BMX bicycle carbon clincher rims
This 38mm/50MM Deep 21mm wide 650C bike carbon rims made of Full carbon fiber T700,have great strength but light weight.better for 650C Road bicycle.
650C carbon Rims have basalt or Disc brake to choose.
650C carbon rims with 21mm wide,clincher tyres,easily to change the inner tube.
UD or 3K appearance to choose.also have matte or glossy to finish.
Wholesale carbon bicycle rims,with competitive price and fast delivery.
Features:
1.650C bicycle rims made of Full carbon fiber T700.Made in high temprature carbon resin with high performance brake surface.
2.38mm Deep 21mm wide and 50mm Deep 21mm wide carbon rims,650C clincher Road rims have great strength but lightweight.suit for 650C bicycle road riding.
3.The new style 650C rims are made in one piece molding,each rim is made by one piece long carbon fiber,no wrinkles,better for the strength and lightweight.
4.650C carbon rims have basalt and Disc brake to choose.
5.We offer decal and painting service for OEM your brands.
6.We can customized Different appearance carbon rims.
7.Fast delivery,strong technical force and good service.
8.Best quality carbon wheels manufacturer.
9.5 years warranty
Specification:
|
Model
|
D38-W21-650C
|
D50-W21-650C
|
|
Size
|
349mm 17inch
|
369mm 17inch
|
|

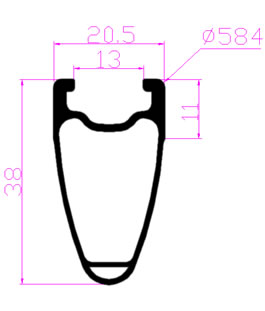

Sectional Drawing
|
|
|
|
Material
|
Toray T700
|
Toray T700
|
|
Depth
|
38mm
|
50mm
|
|
Wide
|
21mm
|
21mm
|
|
Weight
|
420+/-15g
|
480+/-15g
|
|
Appearance
|
3K/UD or Customized
|
3K/UD or Customized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
515mm
|
491mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>150kg
|
>150kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|

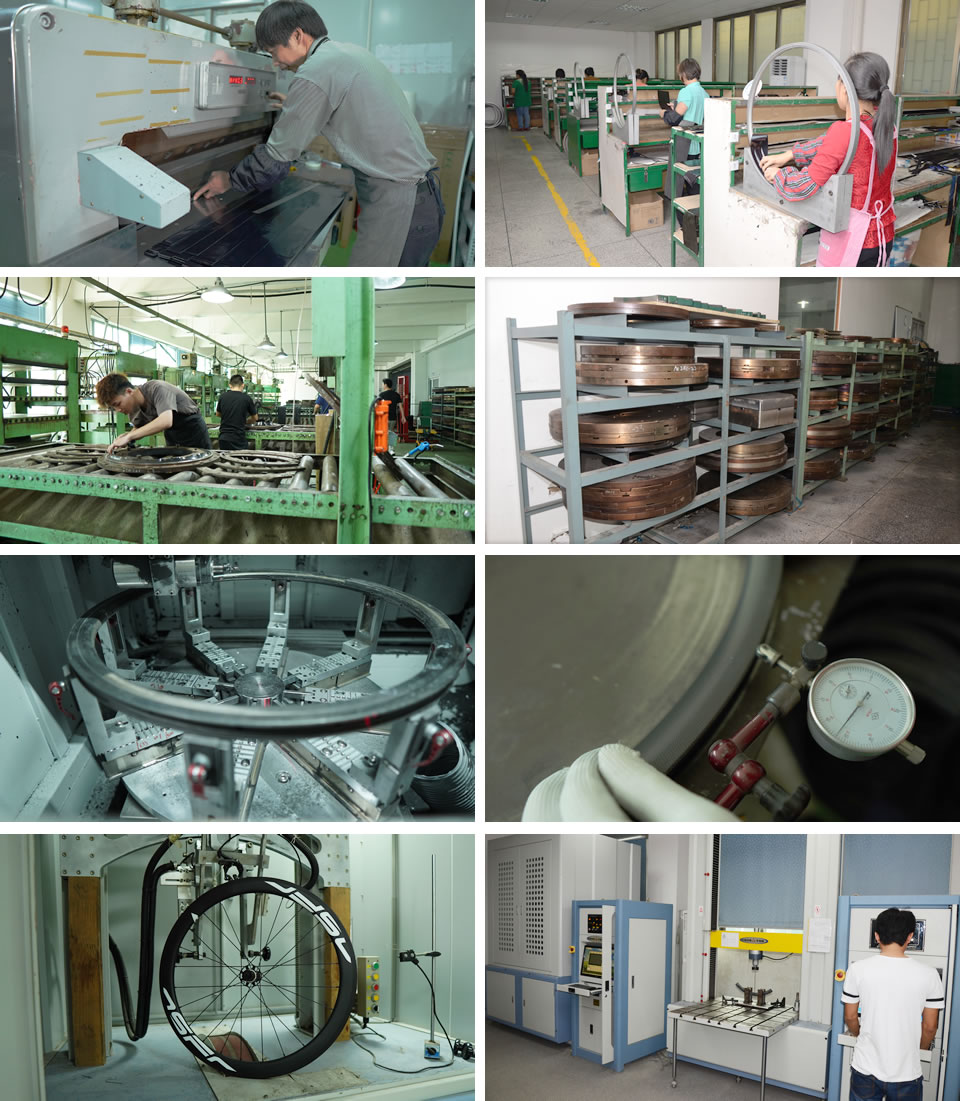

Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
