680*500*6mm Large Size Lithium Battery Aluminum Film Forming Machine For Battery Production Line
SPECIFICATIONS
1 TOB-SCK700 Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the laboratory and production line of making pouch cell batteries.
2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.
3 This labaluminum laminated film pouch forming machineis designed with Double start button and Safety grating protection device, and Automatic counting.
|
Model
|
TOB-SCK400
|
TOB-SCK700
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
2500W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Suitable aluminum film thickness
|
0.1-0.2mm
|
|
Air source
|
0.6-0.8MPa
|
|
Mold materials
|
S136 Die steel
|
|
Punching depth
|
Single kit≤6mm. Double kit≤12mm
|
|
Max aluminum film size
|
400*300mm (L*W)
|
680*500mm(L*W)
|
|
Output
|
500Time/Hour
|
400Time/Hour
|
|
Output pressure
|
0-5T, Adjustable
|
0-8T, Adjustable
|
|
Dimension(L*W*H)
|
700*650*1850mm
|
850*850*2200mm
|
|
Weight
|
About 600kg
|
About 1200kg
|

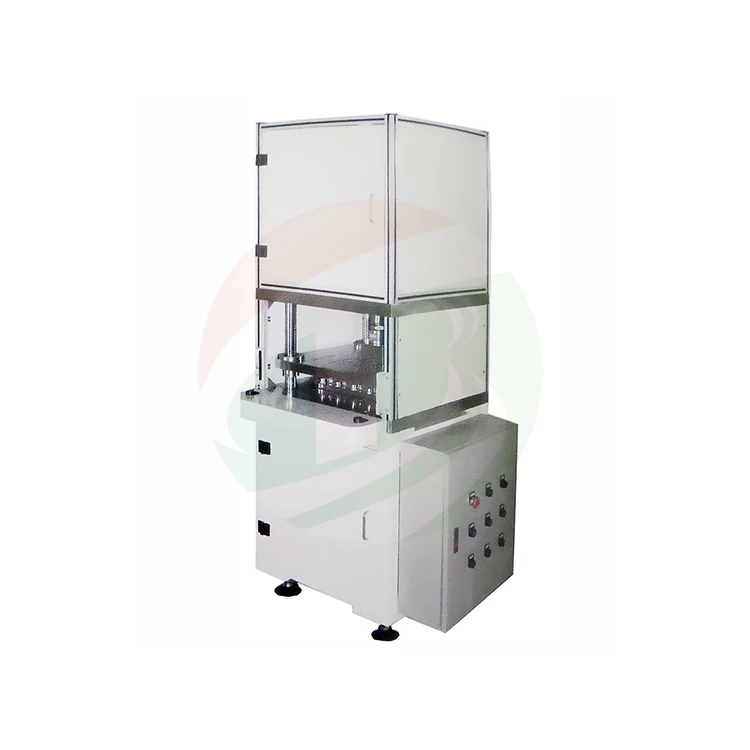

PRODUCT DISPLAY
