Product Name

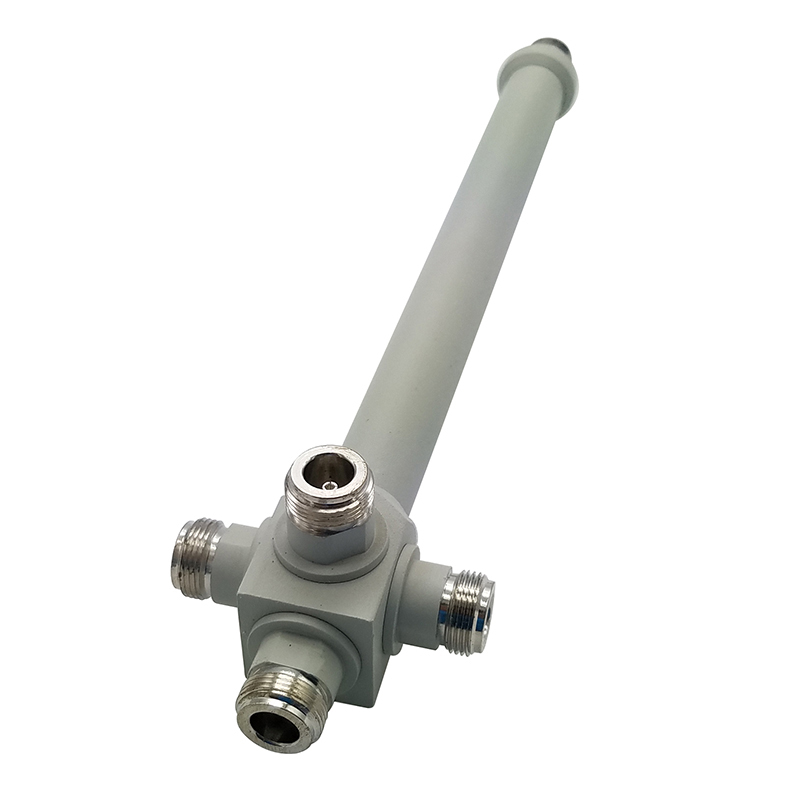

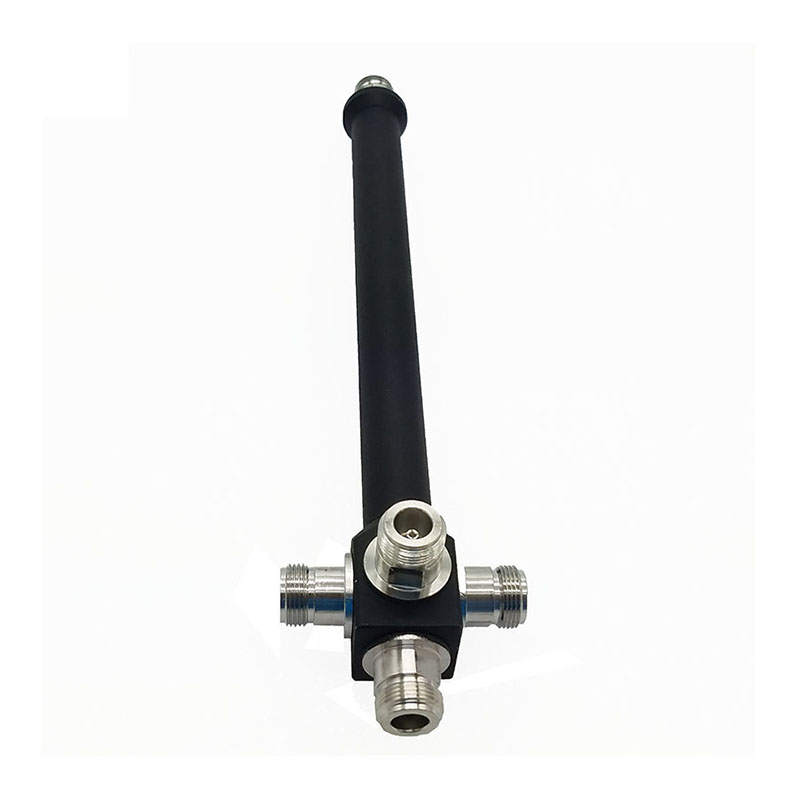

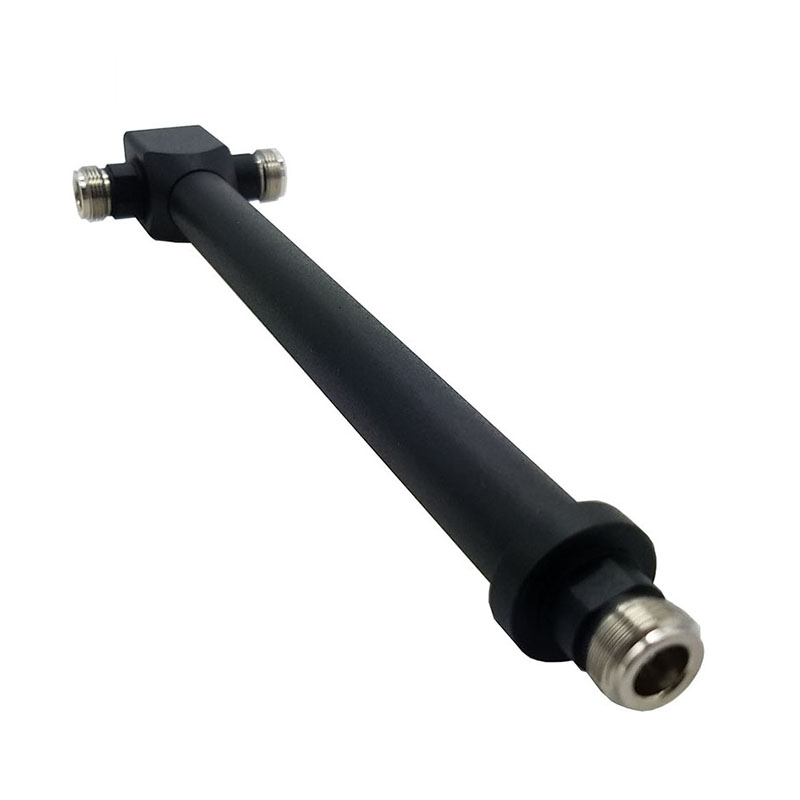

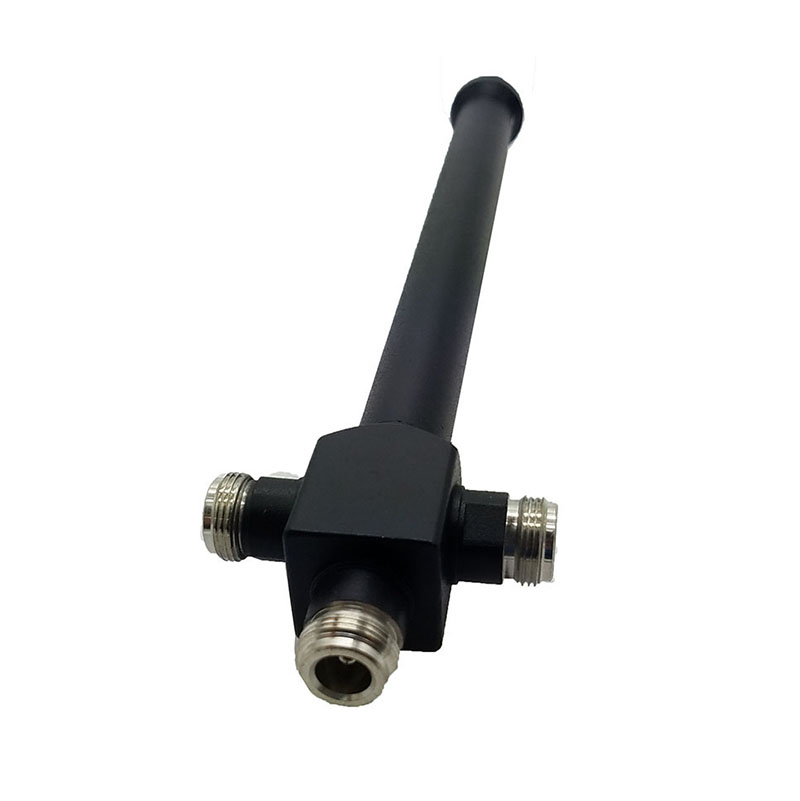

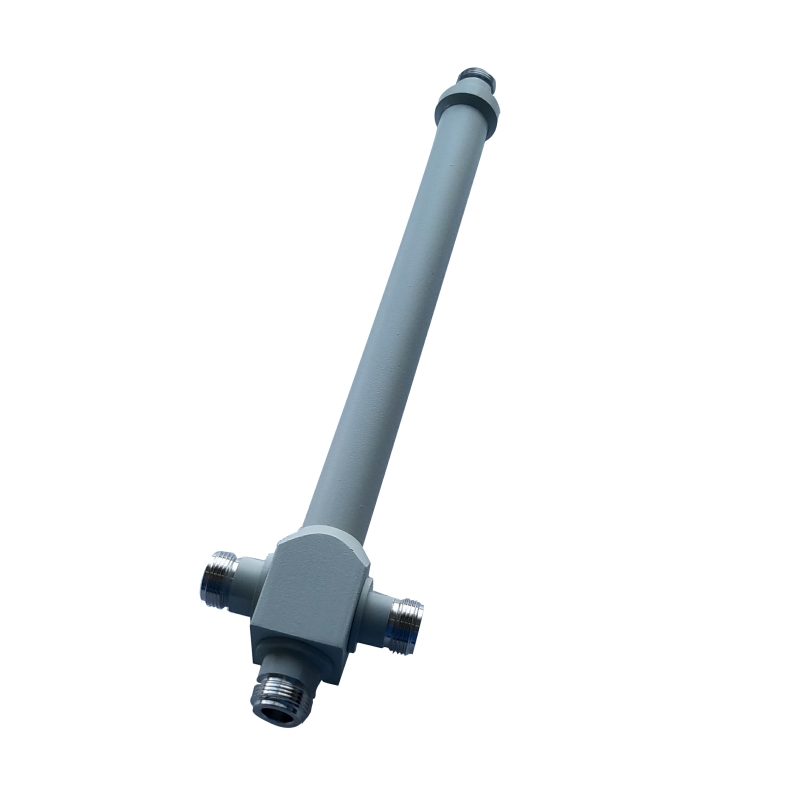

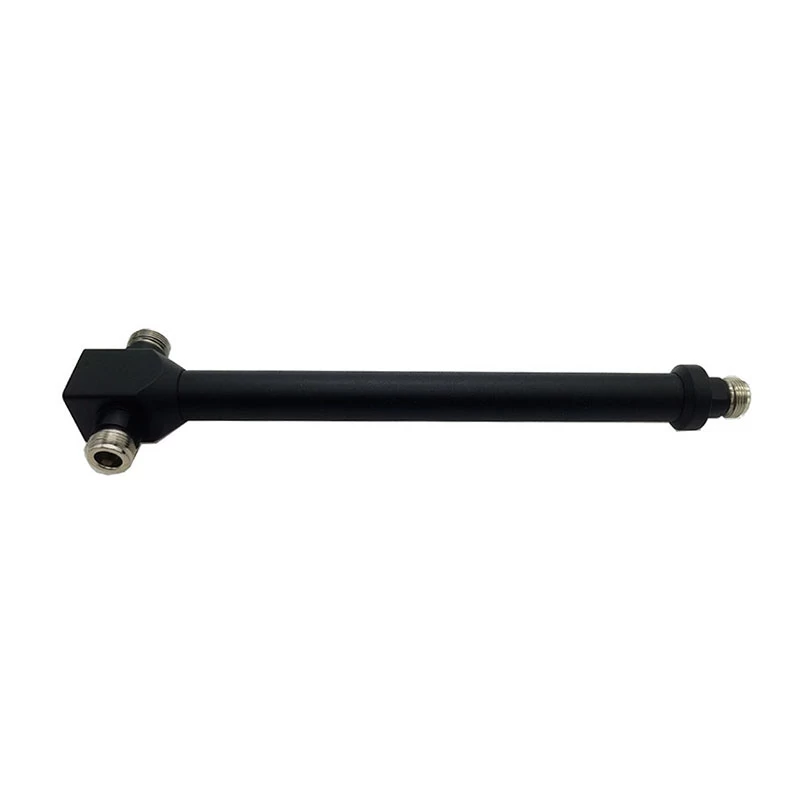

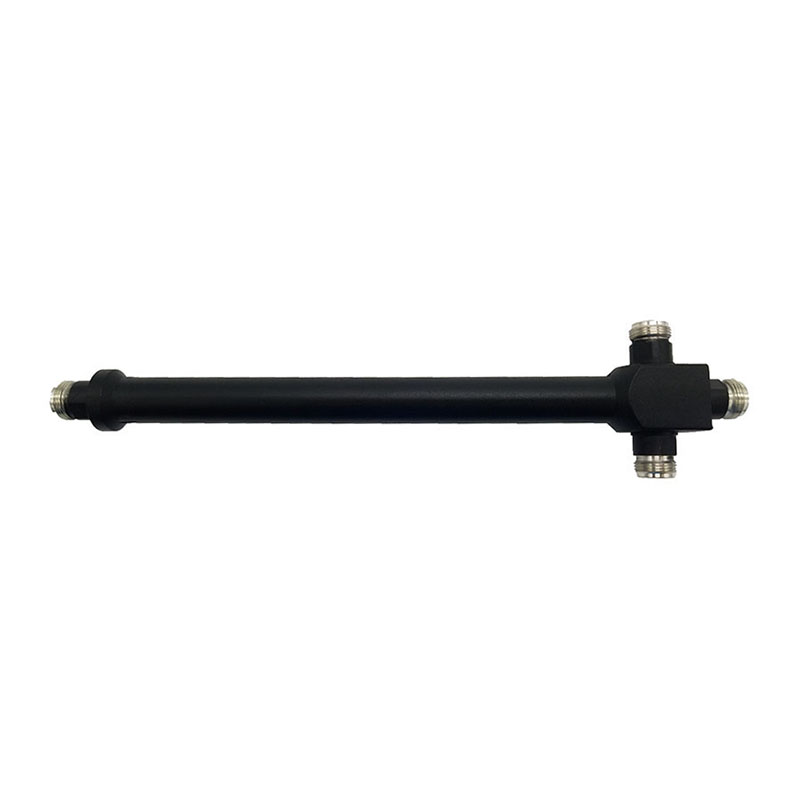

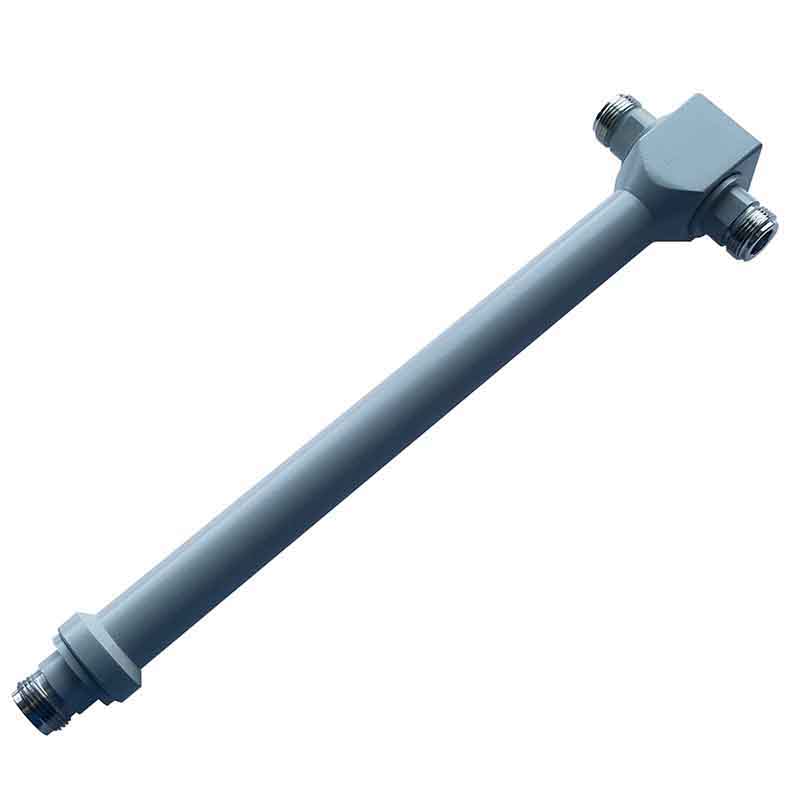

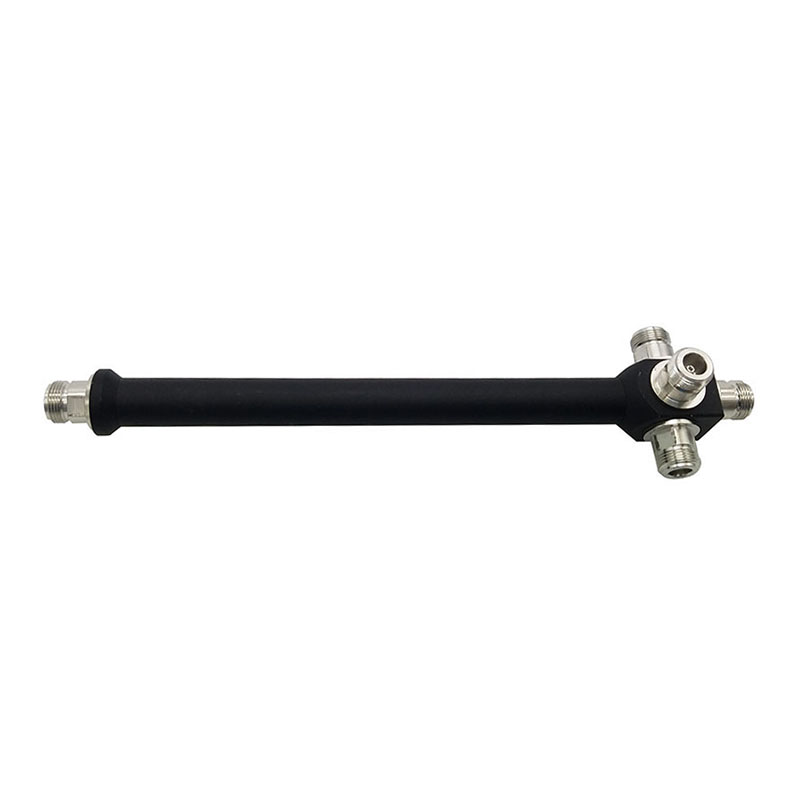

698-2700MHz 2Way/3Way/4Way/6Way Cavity Power Splitter/Divider with N-F
3G Power Splitter with round or square type,black or customized color.
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆Widely used for In-building Solutions and Outdoor application.

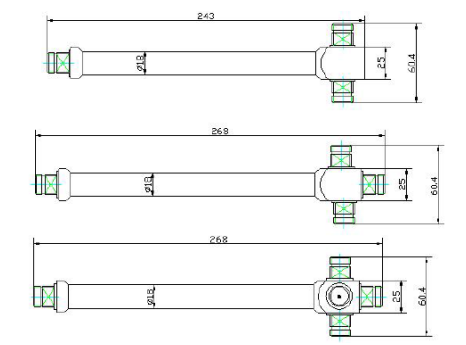

Technical &Mechanical Specifications
|
Model No.
|
MPS-727-02-NF-150
|
MPS-727-03-NF-150
|
MPS-727-04-NF-150
|
MPS-727-06-NF-150
|
|
Freq(MHz)
|
698-2700
|
|
Input
|
2-way
|
3-way
|
4-way
|
6-way
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
7.8
|
|
IL(dB)
|
≤0.3
|
≤0.5
|
≤0.5
|
≤1.2
|
|
VSWR
|
≤1.3
|
|
PIM(dBc)
|
≤-140dBc/-150dBc@2*43dBm
|
|
Power(W)
|
200
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor or Outdoor, IP65
|
OUR SERVICES
1. Professional skills support for
698-2700MHz 2Way/3Way/4Way/6Way Cavity Rounded Power Splitter/Divider with N-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
